Description

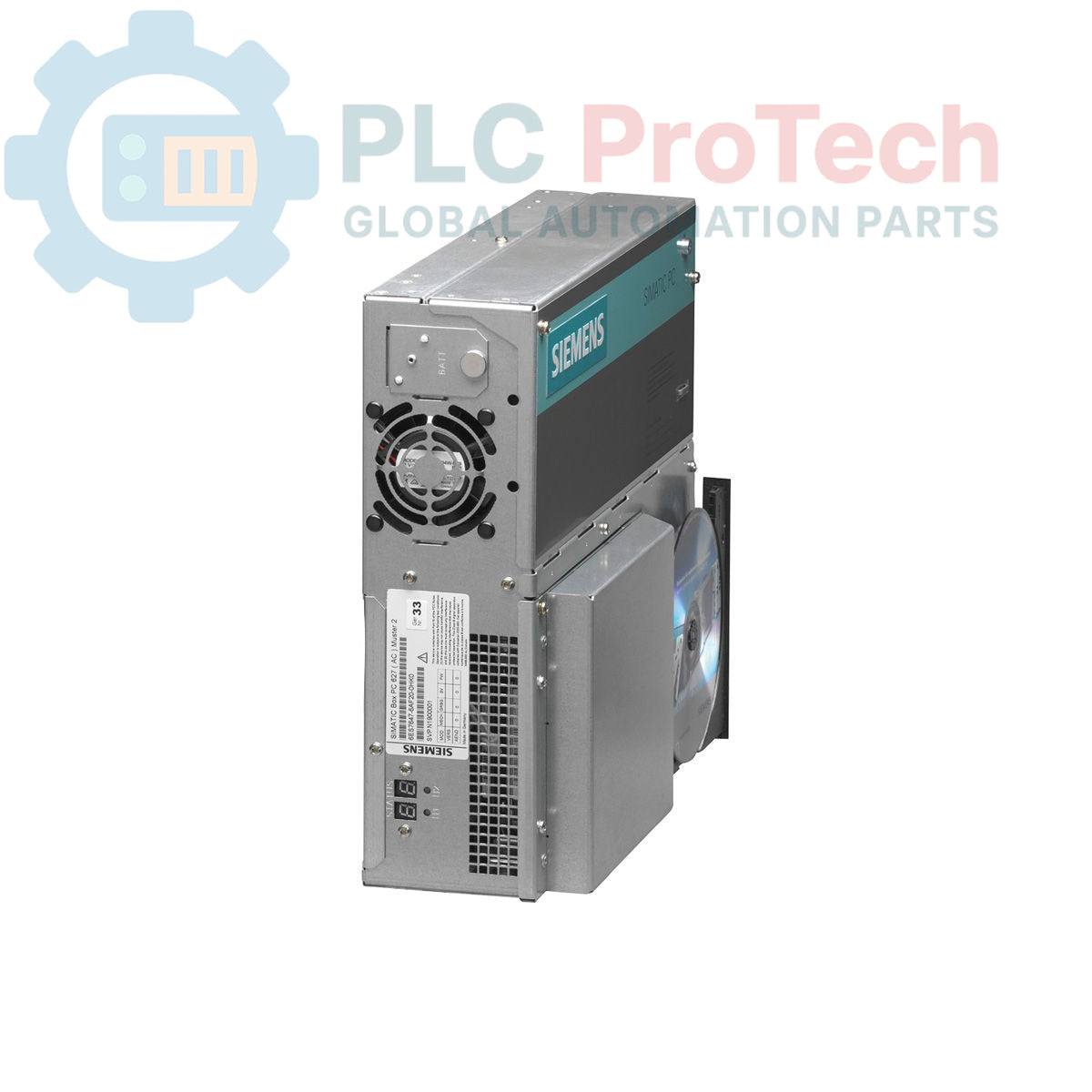

This Siemens 6ES7647-6AF30-0BK0 is a SIMATIC BOX PC 627, a robust industrial computer designed for demanding automation environments. It is configured with a Pentium M 760 2.0 GHz processor, 1 GByte of DDR2 RAM, and an 80 GByte SATA hard drive. Connectivity options are extensive, including dual Ethernet ports, four high-current USB 2.0 ports, a serial port, and an integrated PROFIBUS/MPI interface for direct fieldbus communication. The unit features onboard monitoring for temperature and fan status, a watchdog timer for system reliability, and is powered by an AC 110/230V industrial power supply.

Features

• Pentium M 760 processor operating at 2.0 GHz
• Onboard AGP graphics with 8-128 MB shared memory
• Integrated RAID controller for data redundancy
• Dual 10/100 Mbit/s Ethernet ports for network connectivity
• PROFIBUS/MPI interface for industrial communication
• Four high-current USB V2.0 ports
• Built-in watchdog timer and temperature/fan monitoring
• Two free PCI slots for hardware expansion
• Slot for a Compact Flash drive
• Pre-installed with Windows XP Professional Multi-Language SP2

Applications

• Human-Machine Interface (HMI) server
• Data acquisition and logging systems
• Process visualization and control
• Gateway between plant floor networks and enterprise systems
• Industrial automation and measurement tasks

Technical Specifications

Installation Guidelines

1. 1 De-energize System: Before installation, completely disconnect and lock out all AC power sources supplying the industrial PC and the control cabinet. Verify the absence of voltage with a properly rated meter.
2. 2 Mount Securely: Install the Box PC on a stable, vibration-free surface within the control cabinet. Ensure all mounting screws are securely fastened to maintain mechanical stability and proper grounding continuity.
3. 3 Ensure Ventilation: Maintain adequate clearance around the PC's ventilation openings as specified by the manufacturer to prevent overheating. Do not obstruct airflow with cables or other components.
4. 4 Connect Grounding: Connect the chassis to the main protective earth (PE) busbar of the cabinet using a low-impedance conductor. A reliable ground connection is essential for safety and noise immunity.
5. 5 Connect Peripherals: Connect all required interface cables (Ethernet, USB, PROFIBUS, serial). Ensure cable shields for communication lines are properly terminated at one end to the cabinet ground to minimize electrical noise.
6. 6 Apply Power: After verifying all connections are correct and secure, remove the lockout/tagout devices and re-apply AC power to the system. Monitor the PC during its initial boot sequence.
