Description

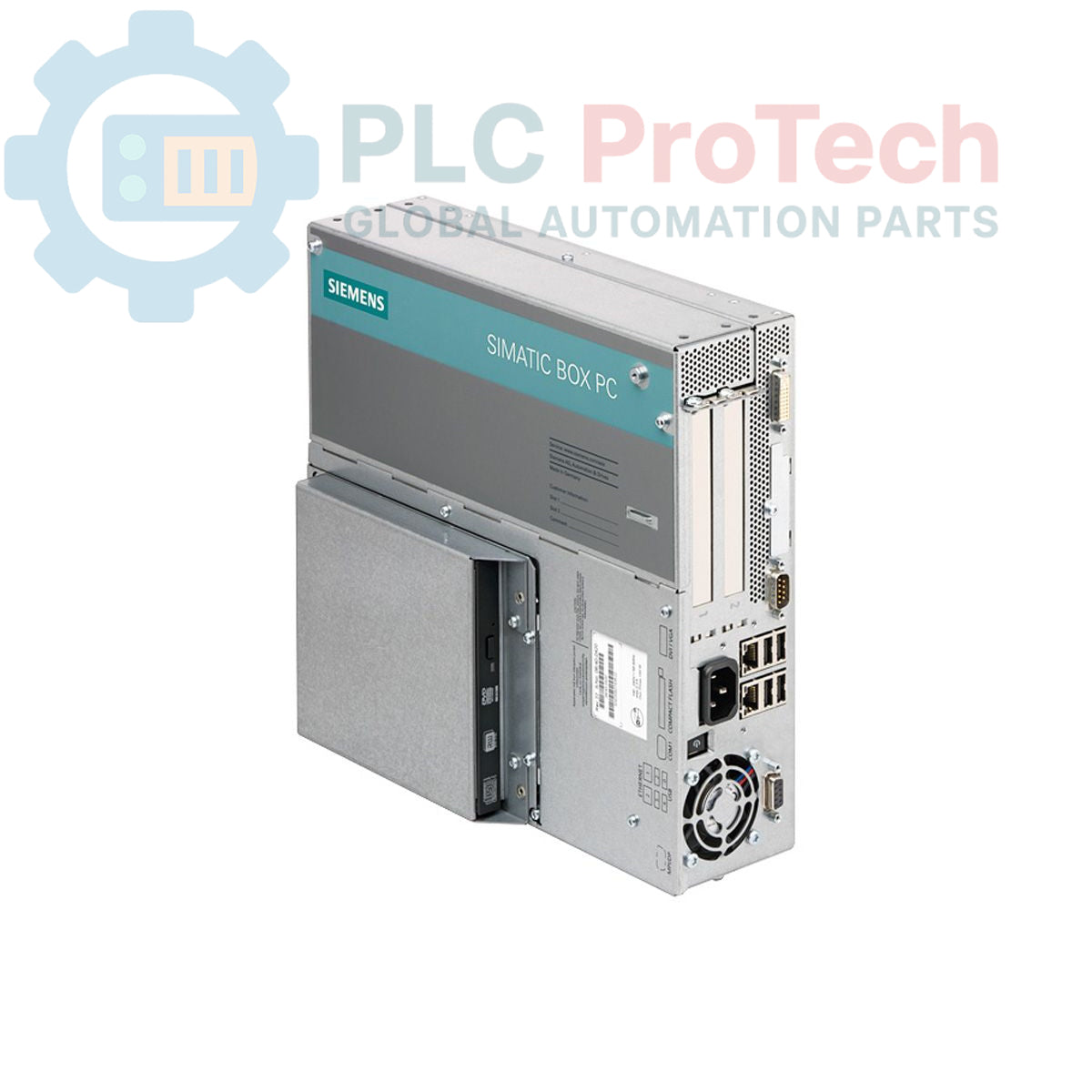

The Siemens 6ES7647-6BD10-0BX0 is a SIMATIC Box PC 627B, designed for industrial applications requiring a robust and compact computing solution. This industrial PC features onboard graphics with 128 MB shared memory, a Core 2 Duo T5500 processor, and 512 MB DDR2 RAM. It provides comprehensive connectivity with two 10/100/1000 Mbit/s Ethernet RJ45 ports, four USB V2.0 ports (high current), and one serial (COM1) port. Storage includes a 160 GB SATA HDD and a front-side CompactFlash drive slot. The unit integrates an onboard RAID controller, a watchdog, and temperature/fan monitoring for reliable operation in demanding environments. It is equipped with an AC 110/230V industrial power supply unit with NAMUR support and includes two free PCI slots for expansion.

Features

• Onboard graphics with 128 MB shared memory
• Intel Core 2 Duo T5500 processor (1.66 GHz, 2 MB L2 cache, 667 MHz FSB)
• 512 MB DDR2 667 SODIMM RAM
• 2x 10/100/1000 Mbit/s Ethernet RJ45 ports
• 4x USB V2.0 (high current) ports
• 1x Serial (COM1) port
• Onboard RAID controller
• Front-side CompactFlash drive slot (without CF)
• Watchdog, temperature, and fan monitoring
• AC 110/230V industrial power supply unit with NAMUR support
• 2x free PCI expansion slots
• 160 GB SATA HDD
• DVD +/-RW drive

Applications

The Siemens SIMATIC Box PC 627B is suitable for a wide range of industrial automation and control applications, including:

• Machine control and visualization
• Data acquisition and processing
• Human-Machine Interface (HMI) systems
• Process monitoring and control
• Factory automation and manufacturing execution systems (MES)
• Industrial communication gateways

Technical Specifications

Connections / Interfaces

• 2x Ethernet RJ45 (10/100/1000 Mbit/s)
• 4x USB V2.0
• 1x Serial (COM1)

Installation Guidelines

1. De-energize System: Ensure all power to the system and associated equipment is disconnected before beginning installation.
2. Mounting: Securely mount the Box PC in a suitable industrial enclosure or control cabinet, ensuring adequate space for ventilation and cable routing.
3. Power Connection: Connect the AC 110/230V industrial power supply cable to the designated power input. Ensure proper grounding of the unit.
4. Ethernet Connections: Connect Ethernet cables to the RJ45 ports for network communication. Use shielded cables in environments with high electromagnetic interference.
5. USB Peripherals: Connect USB devices such as keyboards, mice, or other peripherals to the USB V2.0 ports.
6. Serial Devices: Connect any serial communication devices to the COM1 port as required by the application.
7. Expansion Cards: If utilizing the PCI slots, install compatible expansion cards according to their specific instructions, ensuring proper seating and securing.
8. Cooling: Verify that the cooling fans are unobstructed and that the ambient temperature within the enclosure remains within the specified operating limits to prevent overheating.
9. System Grounding: Establish a reliable protective earth ground connection for the Box PC to ensure electrical safety and minimize noise interference.
10. Power On: After all connections are verified, re-apply power to the system.
