Description

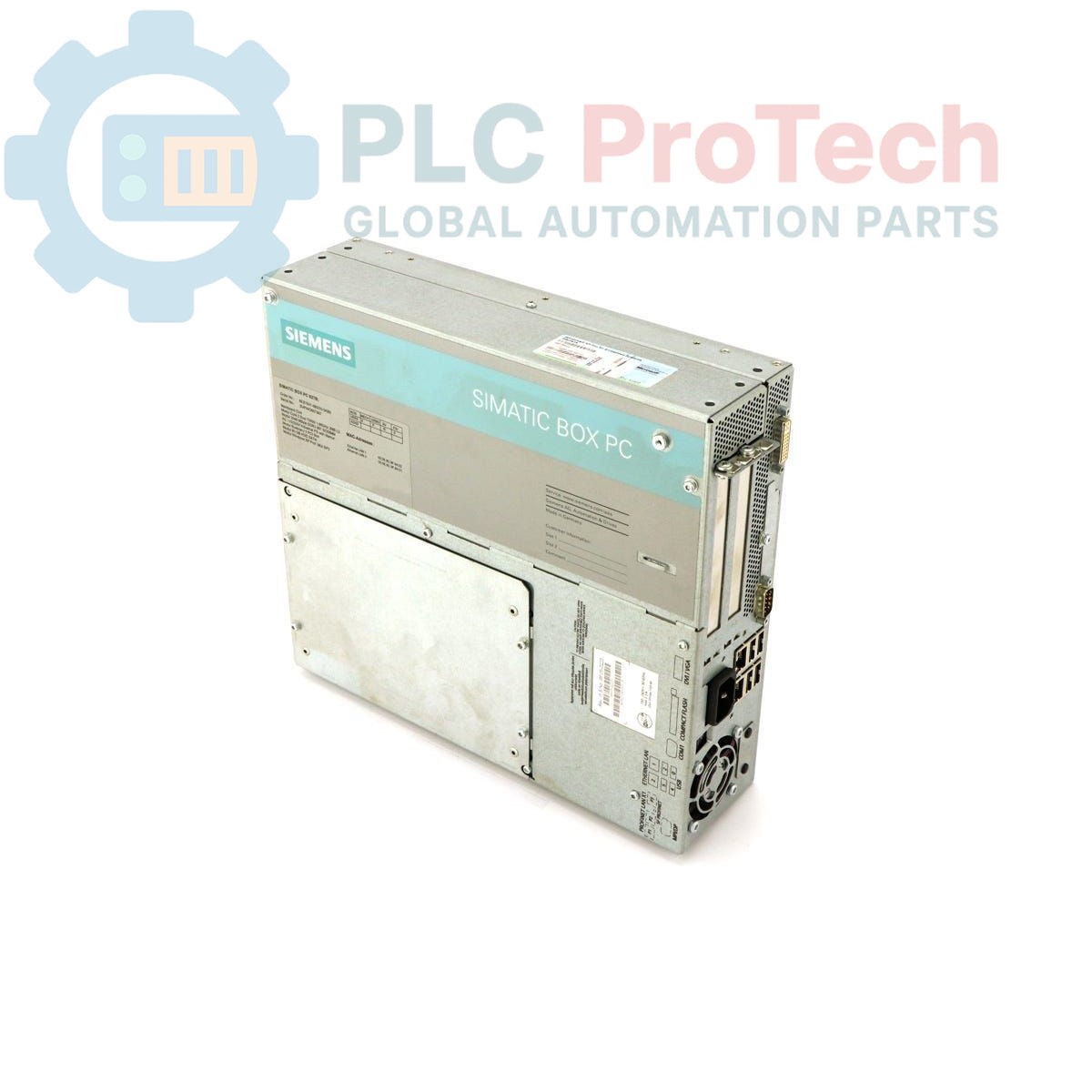

The Siemens 6ES7647-6BG30-1AB0 is a SIMATIC Box PC 627B, designed for industrial applications requiring robust computing and connectivity. This industrial PC features onboard graphics with 128 MB shared memory, dual 10/100/1000 Mbit/s Ethernet RJ45 ports, four high-current USB V2.0 ports, and one serial (COM1) interface. It includes an onboard RAID controller, a front-side CompactFlash drive slot (without CF card), and integrated watchdog, temperature, and fan monitoring for reliable operation.

Powered by an Intel Core 2 Duo T7400 processor (2.16 GHz, 4 MB L2 cache, 667 MHz FSB) and equipped with 2 GB DDR2 667 SODIMM RAM, the unit provides ample processing capability. Storage is handled by a 160 GB SATA HDD. The system is supplied with an AC 110/230V industrial power supply unit featuring NAMUR compatibility and comes with a European power supply cable. Expansion options include one PCI slot and one PCIe (x4) slot. It ships with Windows XP Professional Multi-Language SP2 pre-installed.

Features

• Integrated Graphics with 128 MB Shared Memory
• 2x 10/100/1000 Mbit/s Ethernet RJ45 Ports
• 4x USB V2.0 Ports (High Current)
• 1x Serial (COM1) Interface
• Onboard RAID Controller
• Front-side CompactFlash Drive Slot (without CF card)
• Watchdog, Temperature, and Fan Monitoring
• Intel Core 2 Duo T7400 Processor (2.16 GHz)
• 2 GB DDR2 667 SODIMM RAM
• AC 110/230V Industrial Power Supply Unit with NAMUR
• 1x PCI and 1x PCIe (x4) Expansion Slots
• 160 GB SATA Hard Disk Drive
• Pre-installed Windows XP Professional Multi-Language SP2

Applications

The SIMATIC Box PC 627B is suitable for a wide range of industrial automation tasks, including:

• Machine control and visualization (HMI)
• Data acquisition and processing
• Process control systems
• Industrial communication gateways
• Manufacturing execution systems (MES) client stations
• System monitoring and diagnostic applications

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Securely mount the Box PC in a suitable industrial enclosure or rack, ensuring adequate ventilation and clearance for cable routing and maintenance.
3. Power Connection: Connect the AC 110/230V industrial power supply unit to a stable power source using the provided European power supply cable. Verify correct voltage and grounding.
4. Ethernet Connections: Connect industrial Ethernet cables to the RJ45 ports for network communication. Ensure proper cable shielding and routing to minimize interference.
5. USB and Serial Connections: Connect peripheral devices to the USB V2.0 ports and serial devices to the COM1 port as required by the application.
6. Expansion Cards: If utilizing the PCI or PCIe (x4) slots, carefully install compatible expansion cards according to their specific instructions, ensuring proper seating and retention.
7. Grounding: Ensure the Box PC chassis is properly grounded to the system's protective earth to prevent electrical hazards and reduce electromagnetic interference.
8. Environmental Considerations: Operate the unit within its specified temperature and humidity ranges. Avoid exposure to excessive dust, moisture, or corrosive agents.
9. Power On: After all connections are secure and verified, restore power to the system and observe for proper startup.
