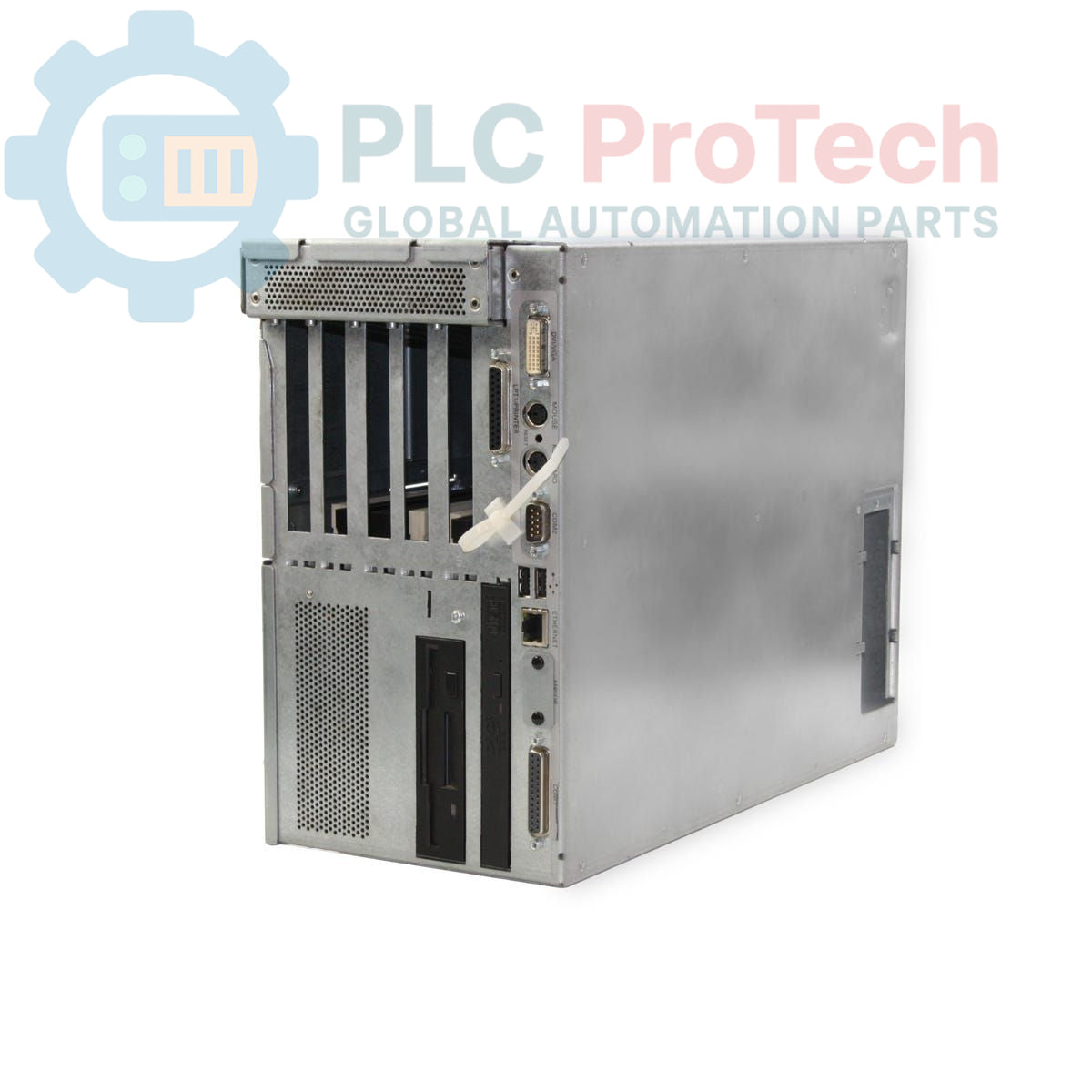

Siemens 6ES7647-6MA10-0AX0 SIMATIC BOX PC 840 V2 Industrial PC

SKU 6ES7647-6MA10-0AX0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-6MA10-0AX0
Origin Germany
Product Type: Industrial PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 11.5 kg
Dimensions: 48.0 cm x 45.0 cm x 25.0 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Siemens 6ES7647-6MA10-0AX0 is a SIMATIC BOX PC 840 V2, a robust industrial computer designed for demanding automation environments. This unit is configured with a Celeron 2.0 GHz processor featuring a 400 MHz FSB and 128 KB SLC cache. It includes 256 MB of DDR SDRAM and an 80 GB EIDE hard disk drive, supplemented by a floppy disk drive (FDD). For network connectivity, it provides a single 10/100 Mbit/s Ethernet RJ45 port, alongside two high-current USB ports for peripheral devices. The system features onboard AGP graphics with selectable 8/16/32 MB shared memory and is powered by a wide-range 110/230V AC industrial power supply with NAMUR compliance. Integrated system health functions include a hardware watchdog and temperature monitoring.

Features

Processor: Intel Celeron 2.0 GHz with 400 MHz FSB
Memory: 256 MB DDR SDRAM
Storage: 80 GB EIDE Hard Disk Drive and Floppy Disk Drive
Connectivity: 10/100 Mbit/s Ethernet and 2x High-Current USB
Graphics: Onboard AGP with shared memory
Expansion: PCI and ISA slots for legacy and modern cards
Monitoring: Integrated watchdog timer and temperature monitoring
Power Supply: 110/230V AC industrial unit with NAMUR interface

Applications

Human-Machine Interface (HMI) and SCADA systems
Data acquisition, logging, and archiving
PC-based process control and automation tasks
Industrial gateways and communication servers
Machine vision and quality inspection systems

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC BOX PC
Model	PC 840 V2
Part Number	6ES7647-6MA10-0AX0
Processor	Celeron 2.0 GHz, 400 MHz FSB, 128 KB SLC
Memory (RAM)	256 MB DDR SDRAM
Storage	80 GB HDD EIDE + FDD
Graphics	Onboard AGP, 8/16/32 MB Shared Memory
Ethernet	1 x 10/100 Mbit/s RJ45
USB Ports	2 x USB (High Current)
Expansion Slots	2 x PCI, 2 x ISA/PCI, 1 x ISA
Power Supply	110/230V AC Industrial Power Unit with NAMUR
Operating System	Not included
Product Lifecycle Phase	Obsolete
Shipping Weight	11.50 kg
Country of Origin	Germany (Estimate)
Package Dimensions (Calculated)	48.0 cm x 45.0 cm x 25.0 cm

Installation Guidelines

CRITICAL WARNING: This equipment contains components sensitive to electrostatic discharge (ESD). Use a properly grounded wrist strap and work on an anti-static mat during installation and handling to prevent permanent damage.

1 Ensure the control cabinet or mounting location is de-energized and locked out according to site safety procedures before beginning installation.
2 Securely mount the Box PC chassis within the enclosure using all provided mounting points. Verify there is adequate clearance for airflow and cable routing around the unit.
3 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the PC chassis. This is critical for both safety and noise immunity.
4 Connect the AC power cable to the power supply unit. Ensure the source voltage matches the 110/230V AC rating.
5 Connect all required peripheral and communication cables, such as Ethernet, USB, and video. Route cables neatly and secure them to prevent strain on the connectors.
6 After closing the enclosure, restore power and verify that the PC boots correctly and all system fans are operational.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What processor is included in the 6ES7647-6MA10-0AX0?

This SIMATIC BOX PC is equipped with an Intel Celeron processor running at 2.0 GHz with a 400 MHz Front Side Bus (FSB) and 128 KB of SLC cache.

Does this industrial PC come with a pre-installed operating system?

No, this specific configuration is supplied without an operating system, allowing for custom software installation.

What expansion slots are available on this model?

The unit provides a combination of legacy and modern expansion slots, including two PCI slots, two shared ISA/PCI slots, and one dedicated ISA slot.

What is the required input voltage for the power supply?

The integrated industrial power supply is designed for a wide input range of 110/230V AC.

How much RAM and storage does this unit have?

It comes with 256 MB of DDR SDRAM and an 80 GB EIDE hard disk drive, along with a floppy disk drive (FDD).
