Description

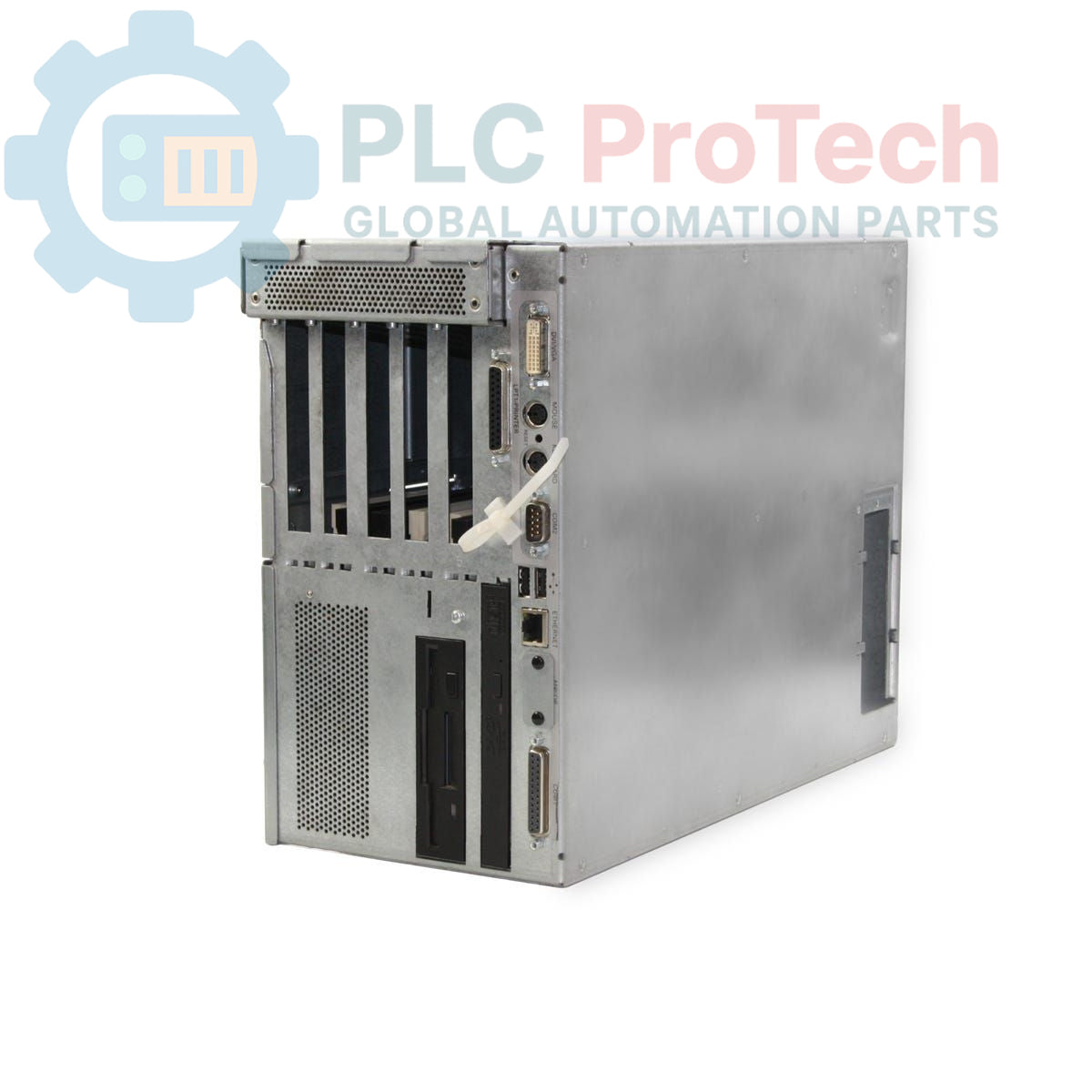

This is a Siemens 6ES7647-6ME05-0WX0 SIMATIC Box PC 840 V2, a robust industrial computer designed for demanding automation environments. It is equipped with a Pentium 4 M 2.2 GHz processor, 128 MB DDR SDRAM, and a 24V DC industrial power supply. This specific configuration includes a floppy disk drive (FDD) but is supplied without a hard disk drive (HDD), DVD-ROM, or operating system. Integrated features include onboard AGP graphics with shared memory, 10/100 Mbit/s Ethernet, and two high-current USB ports. The system also incorporates a watchdog timer and temperature monitoring for enhanced reliability and operational stability.

Features

• Processor: Pentium 4 M 2.2 GHz with 400 MHz FSB and 512 KB SLC
• Memory: 128 MB DDR SDRAM
• Graphics: Onboard AGP with 8/16/32 MB shared memory
• Networking: Integrated 10/100 Mbit/s Ethernet RJ45 port
• I/O Ports: 2x High-Current USB
• Expansion Slots: 2x PCI, 2x ISA/PCI (shared), 1x ISA
• Power Supply: 24V DC Industrial Power Supply
• System Monitoring: Integrated watchdog timer and temperature monitoring
• Storage: Includes Floppy Disk Drive (FDD); no HDD or DVD-ROM

Applications

• Human-Machine Interface (HMI) visualization stations
• Process control and data acquisition systems
• Machine-level data logging and analysis
• Industrial gateways and communication servers
• Factory automation and assembly line control

Technical Specifications

Installation Guidelines

1. 1 Ensure the mounting location provides adequate ventilation and meets environmental specifications. Verify clearances for cabling and future maintenance access.
2. 2 Securely mount the Box PC chassis to the panel or mounting surface using all provided mounting points. Ensure the unit is level and stable.
3. 3 Connect a low-impedance protective earth (PE) conductor to the designated chassis grounding terminal. This is a critical safety connection.
4. 4 Connect the 24V DC power supply to the correct input terminals, observing proper polarity. Use appropriately sized conductors for the load.
5. 5 Connect all required peripherals, including Ethernet, USB devices, and video displays. Route cables to prevent strain and interference.
6. 6 After verifying all connections, remove LOTO devices and re-apply power to the control panel. Proceed with operating system installation and software configuration.
