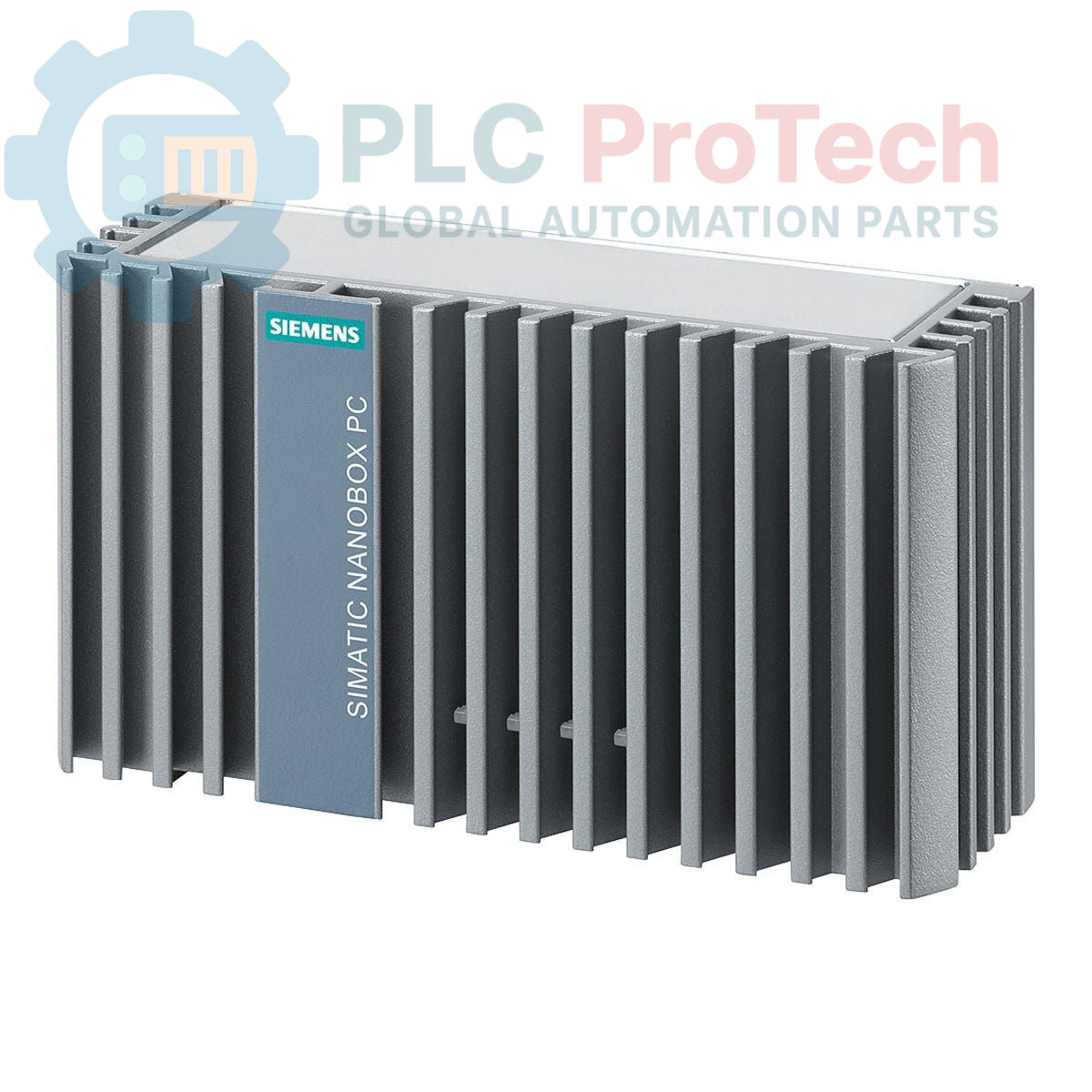

Siemens 6ES7647-8BA21-1BA1 SIMATIC IPC227E Nanobox PC

SKU 6ES7647-8BA21-1BA1

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-8BA21-1BA1
Origin Germany
Product Type: Nanobox
Barcode: 85371091
Payment: T/T, Western Union
Weight: 2.1 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 6ES7647-8BA21-1BA1 is a SIMATIC IPC227E Nanobox PC, designed as a compact and ruggedized computing platform for industrial automation tasks. Equipped with a dual-core Intel Celeron N2807 processor and 4 GB of RAM, this unit provides reliable performance for basic visualization, control, and data acquisition applications in constrained industrial spaces.

The device features a versatile set of connectivity options, including two Gigabit Ethernet ports, one USB 3.0 port, and three USB 2.0 ports. It also includes a DisplayPort interface for external monitor connection and a CFast slot for removable storage. Designed for 24 V DC industrial power environments, this Nanobox PC is configured for DIN rail mounting, facilitating seamless installation within standard control cabinets.

Features

SIMATIC IPC227E Nanobox PC architecture
Intel Celeron N2807 processor (2-core/2-thread)
4 GB RAM and 80 GB SSD storage
Connectivity: 2x 10/100/1000 Mbit/s Ethernet, 1x USB 3.0, 3x USB 2.0
1x DisplayPort for external video output
Integrated CFast slot
Compact, fanless design for DIN rail mounting
Industrial 24 V DC power supply

Applications

Machine-level HMI and visualization
Data logging and process monitoring
Industrial gateway and protocol conversion
Compact edge computing and control tasks

Technical Specifications

Feature	Specification
Brand	Siemens
Range	SIMATIC Box PC
Subrange	IPC
Product Type	Nanobox PC
Processor	Intel Celeron N2807 (2C/2T)
Memory	4 GB RAM
Storage	80 GB SSD
Ethernet	2x 10/100/1000 Mbit/s RJ45
Interfaces	1x USB 3.0, 3x USB 2.0, 1x DisplayPort
Power Supply	24 V DC
Mounting	DIN Rail
Weight	2.10 kg
Product Phase	Phase-Out
Commodity Code	85371091
Export Control (ECCN)	5A992

Installation Guidelines

Mounting: Designed for vertical or horizontal DIN rail mounting. Ensure the installation orientation aligns with the air convection requirements for the fanless cooling system.
Clearance: Maintain minimum spacing around the chassis as defined in the product manual to allow for passive heat dissipation.
Grounding: Connect the functional ground terminal on the chassis to the cabinet earth busbar to minimize noise and improve system stability.
Power: Ensure the 24 V DC power source is stable and protected from transients. Use wire cross-sections appropriate for the power supply's current requirements.
Storage Media: When utilizing the CFast slot, ensure the card is inserted fully and locked, and the system is powered off if swapping media in non-hot-swappable configurations.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the processor type in this IPC?

This unit is equipped with an Intel Celeron N2807 processor (2-core/2-thread).

Is this IPC fan-cooled?

No, the SIMATIC IPC227E features a fanless design for high reliability in industrial environments.

What mounting options are available?

The device is configured for DIN rail mounting.

How many Ethernet ports does the 6ES7647-8BA21-1BA1 provide?

The IPC provides two 10/100/1000 Mbit/s Ethernet ports via RJ45 interfaces.
