Siemens

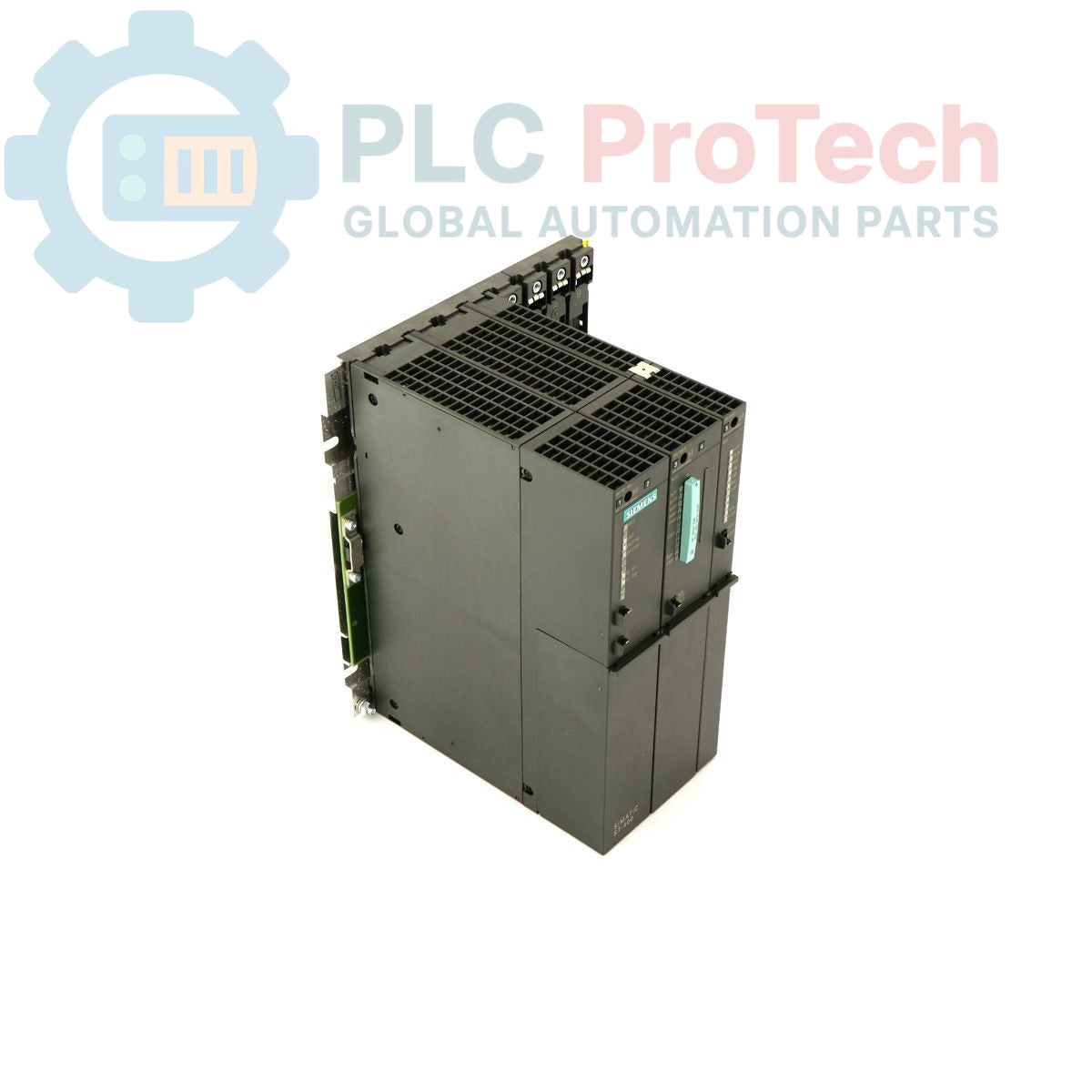

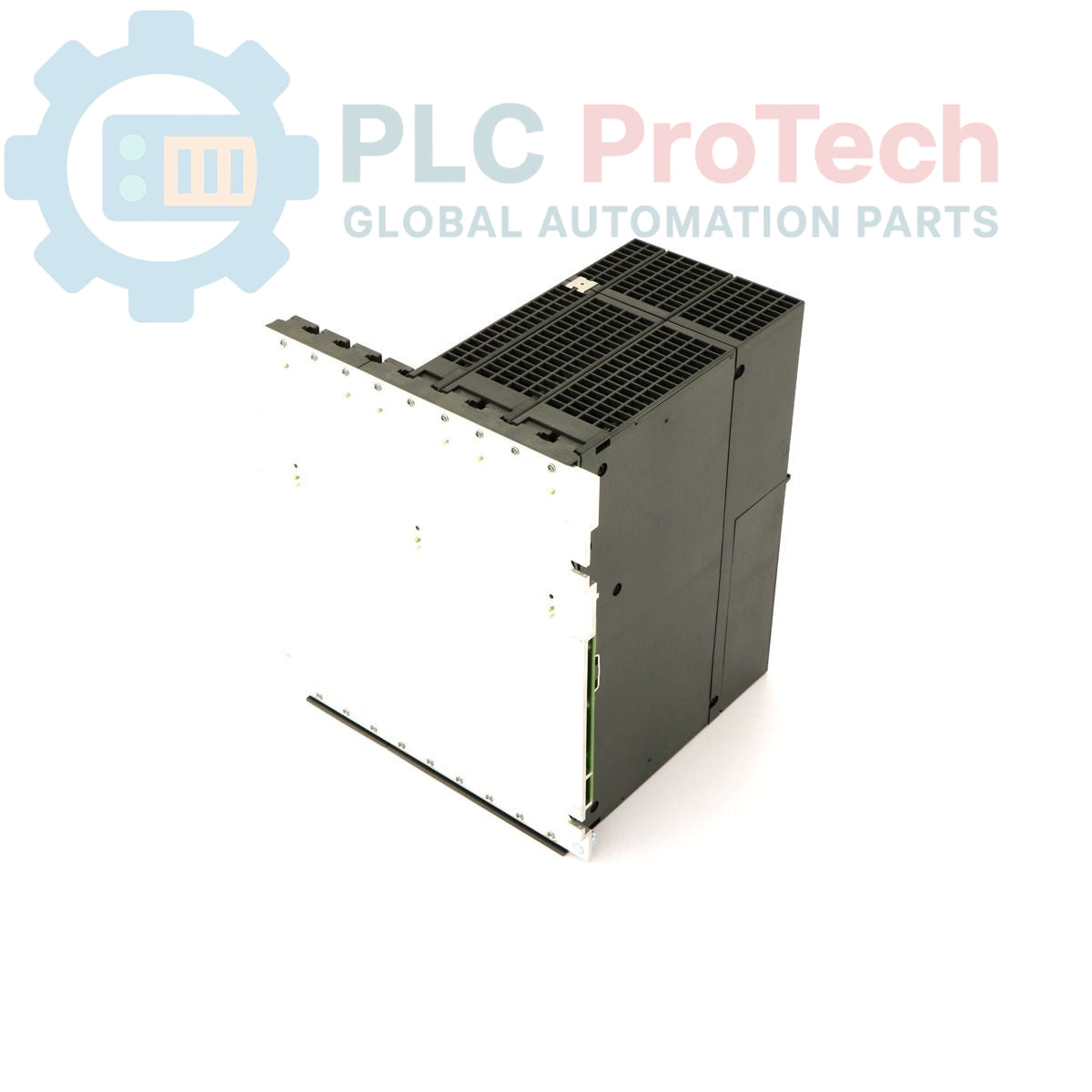

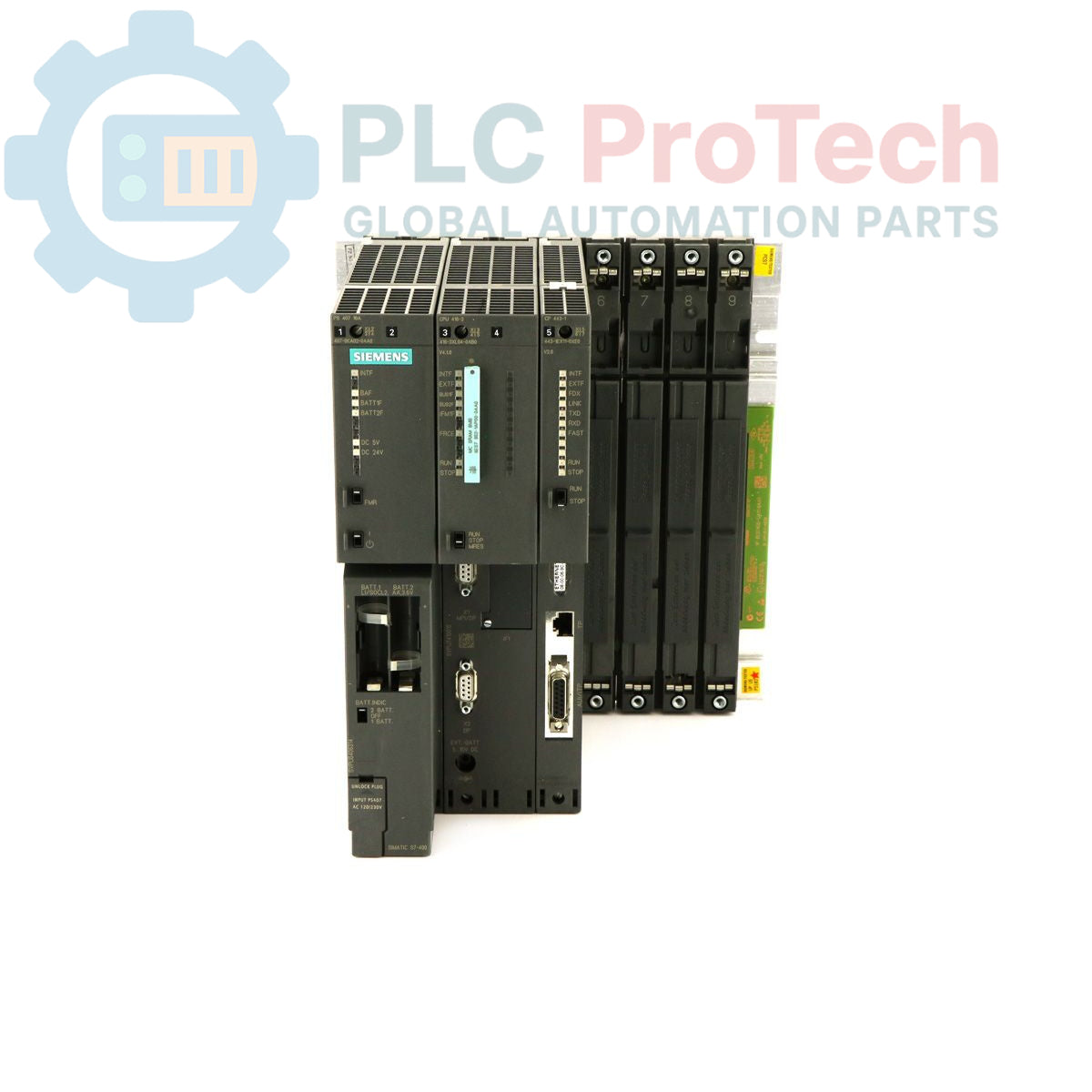

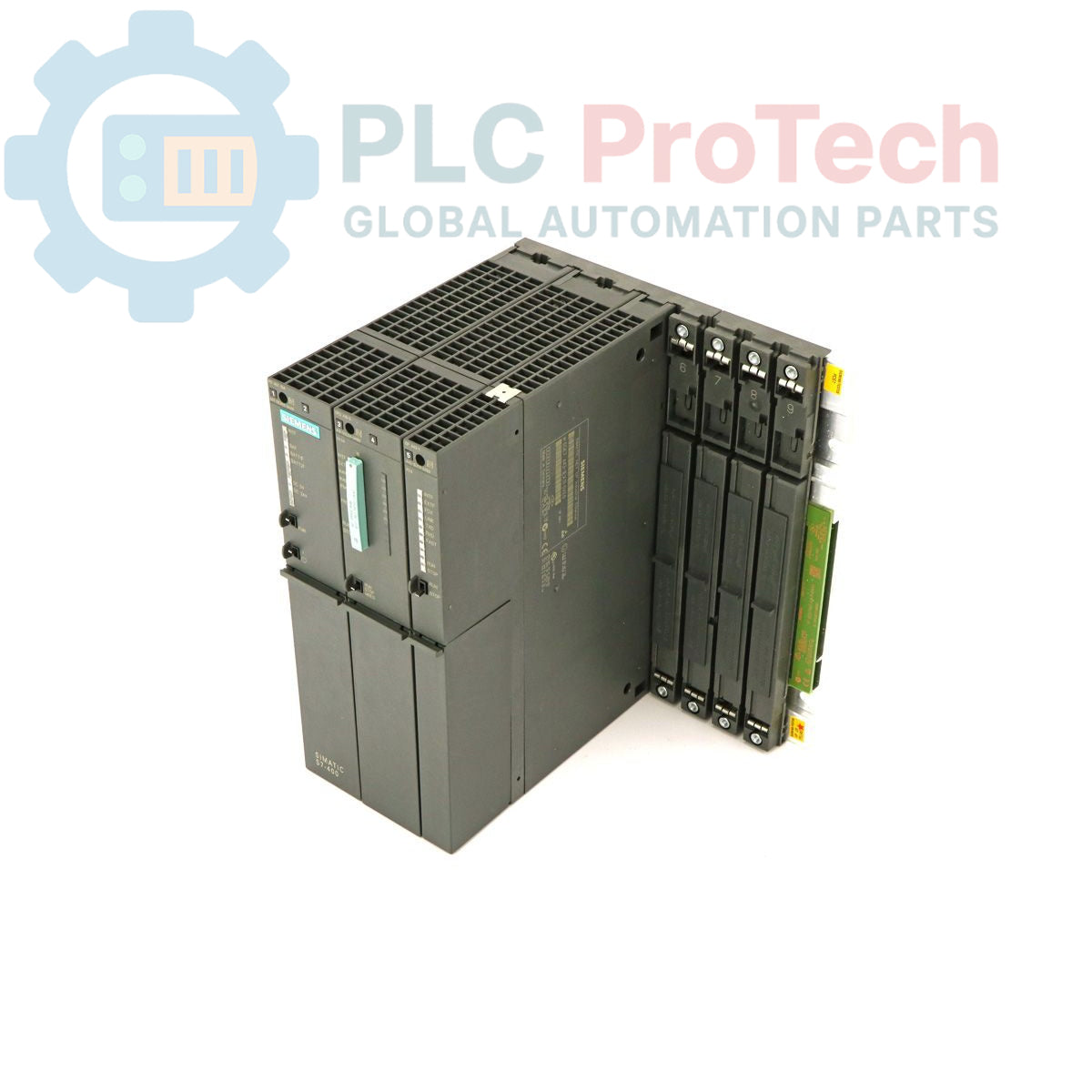

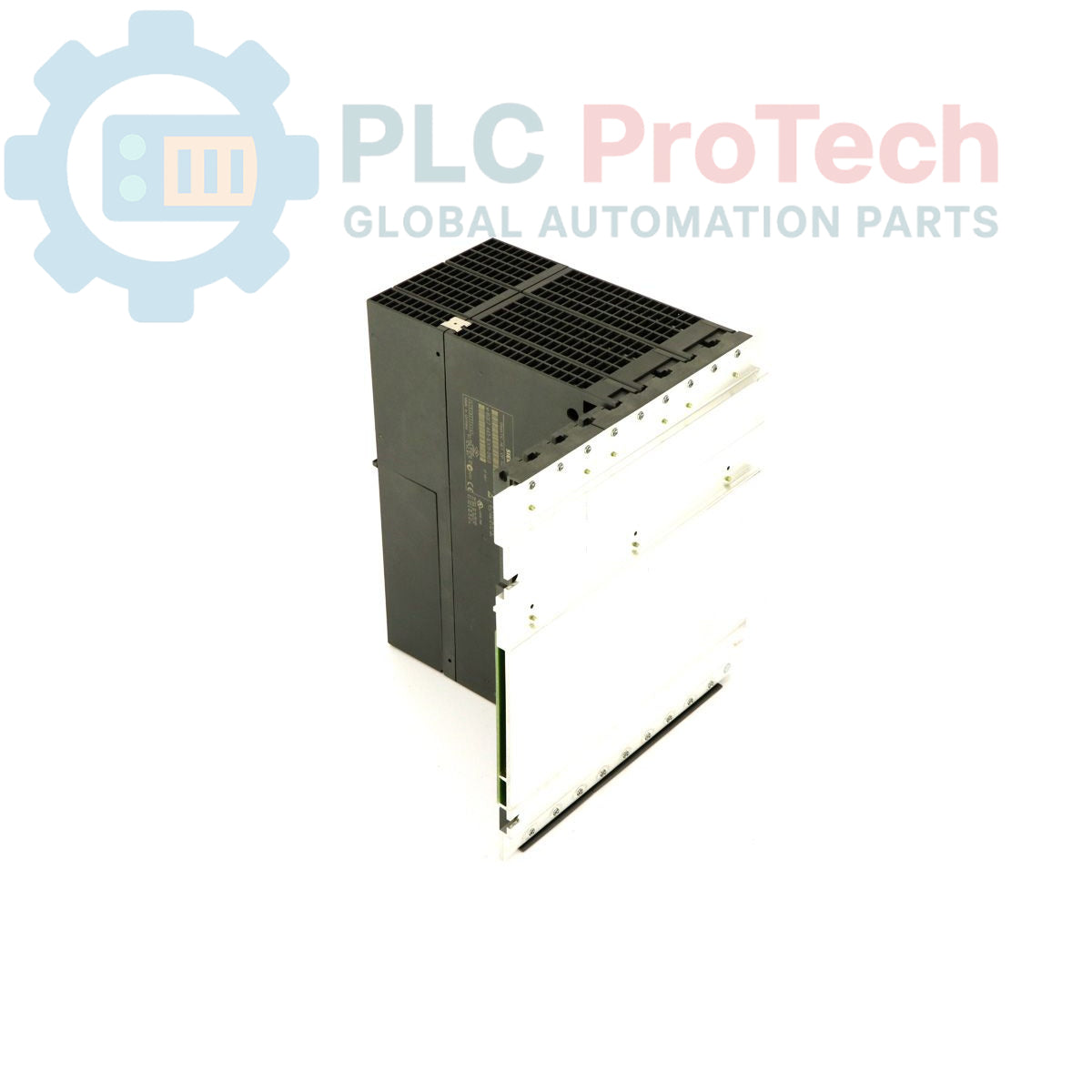

Siemens 6ES7654-1KF57-0XX0 SIMATIC S7 PCS7 AS416-3 Subrack

SKU 6ES7654-1KF57-0XX0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6ES7654-1KF57-0XX0
  • Origin Germany
  • Product Type: SIMATIC S7 Subrack
  • Barcode: 85176200
  • Payment: T/T, Western Union
  • Weight: 0.005 kg
  • Dimensions: 43.20 x 27.90 x 12.70 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Simatic S7s Subrack
Quantità
Call sales Contact

Product Description

Description

The Siemens 6ES7654-1KF57-0XX0 is a SIMATIC PCS7 AS416-3 subrack, designed for industrial automation applications. This unit operates with an AC 120/230V, 10A power supply and features a UR2 Subrack form factor. It comes equipped with an 8 MB RAM memory card and a CP 443-1 EX11 communication processor, making it suitable for process control systems requiring integrated CPU and communication capabilities. The module is system-mounted and pretested, ensuring readiness for deployment in demanding industrial environments.

Features

  • Configured as a SIMATIC PCS7 AS416-3 system
  • Integrated AC 120/230V, 10A power supply
  • UR2 Subrack design
  • Includes 8 MB RAM memory card
  • Equipped with CP 443-1 EX11 communication processor
  • System-mounted and pretested for operational reliability

Applications

This SIMATIC PCS7 AS416-3 Subrack is typically deployed in process automation systems where robust control and communication are essential. Common applications include:

  • Chemical and petrochemical plants
  • Power generation and distribution
  • Water and wastewater treatment facilities
  • Pharmaceutical manufacturing
  • Food and beverage processing
  • General industrial process control

Technical Specifications

Manufacturer Siemens
Brand Siemens
Range SIMATIC S7
Product Type Racks
PLM Product Phase Obsolete
Input Voltage AC 120/230V
Current Rating 10A
Memory Card 8 MB RAM
Communication Processor CP 443-1 EX11
Subrack Type UR2
Package Dimensions (Calculated) 43.20 x 27.90 x 12.70 cm
Shipping Weight 5.00 kg
Commodity Code 85176200
Export Control Regulations (ECCN) N

Installation Guidelines

  1. De-energize System: Ensure all power to the control cabinet and associated equipment is completely de-energized before beginning installation. Verify with a suitable voltage tester.
  2. Mounting: Secure the subrack firmly within the control cabinet using appropriate mounting hardware. Ensure adequate clearance for ventilation and cable routing.
  3. Power Connection: Connect the AC 120/230V, 10A power supply to the designated terminals on the subrack. Observe correct polarity and ensure all connections are tight and secure.
  4. Grounding: Establish a robust protective earth (PE) connection from the subrack to the cabinet's main grounding busbar. This is crucial for operational safety and EMC compliance.
  5. Module Insertion: Carefully insert any additional modules into their respective slots within the UR2 subrack, ensuring they are correctly seated and latched.
  6. Cable Routing: Route all power, communication, and I/O cables neatly, avoiding sharp bends and ensuring proper strain relief. Separate power and signal cables to minimize interference.
  7. Verification: After installation, double-check all connections, mounting, and grounding before re-energizing the system.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the Siemens 6ES7654-1KF57-0XX0?
It is a SIMATIC PCS7 AS416-3 subrack system, configured for process automation, including a CPU, memory, and communication processor.
What power supply is required for this subrack?
The subrack operates with an AC 120/230V, 10A power input.
What communication processor is integrated into this unit?
The subrack includes a CP 443-1 EX11 communication processor.
What is the product's current lifecycle status?
According to the manufacturer's PLM information, this product phase is classified as Obsolete.
What are the package dimensions of the subrack?
The package dimensions are 43.20 x 27.90 x 12.70 cm.
