Description

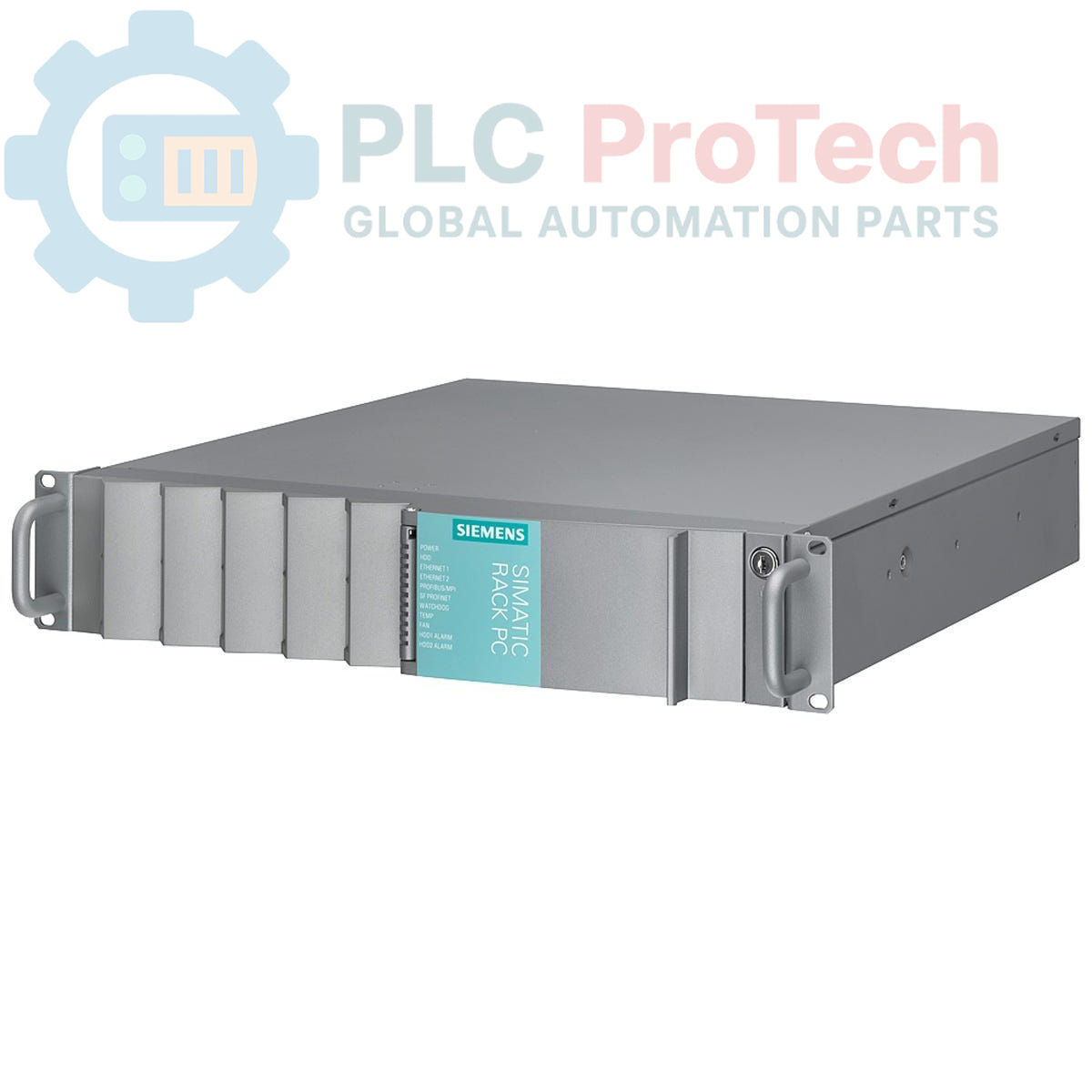

The Siemens 6ES7660-1AD31-0AC0 is a SIMATIC PCS 7 Industrial Workstation, specifically the IPC647C model, designed for robust industrial applications. This workstation features an Intel Core I7-610E processor (2C/4T, 2.53 GHz, 4 MB cache, TB, VT-X, VT-D, EM64-T) and is configured as an ES/OS single station with RAID1 storage (2 x 500 GB HDD SATA) in a removable, hot-swap frame. It includes 8 GB DDR3 SDRAM (2 x 4 GB) DIMM in a dual-channel, front-side mounted configuration. For industrial connectivity, it integrates Industrial Ethernet via a CP1623 module. The unit comes with PCS 7 V7.1 SP4 pre-installed, alongside Windows 7 Ultimate (MUI, 64-bit license) with a downgrade option to Windows XP Professional (MUI, 32-bit). A 4-fold multi-monitor card (PCS 7 option) is included, powered by a 110/230 V industrial power supply unit with a European power cable.

Features

• Intel Core I7-610E Processor (2C/4T, 2.53 GHz, 4 MB cache)
• RAID1 Storage (2 x 500 GB HDD SATA) with removable, hot-swap frame
• 8 GB DDR3 SDRAM (2 x 4 GB) DIMM, Dual Channel, front-side mounted
• Integrated Industrial Ethernet (CP1623)
• Pre-installed PCS 7 V7.1 SP4 software
• Pre-installed Windows 7 Ultimate (64-bit) with Windows XP Professional (32-bit) downgrade option
• 4-fold Multi-Monitor Card (PCS 7 option)
• 110/230 V Industrial Power Supply Unit

Applications

• SIMATIC PCS 7 Process Control Systems
• Engineering Station (ES) and Operator Station (OS) deployments
• Industrial automation and control environments
• Data acquisition, visualization, and supervisory control
• Applications requiring robust and reliable industrial computing

Technical Specifications

Installation Guidelines

1. De-energize System: Before installation, ensure all power to the rack and associated equipment is disconnected and locked out according to safety procedures.
2. Rack Mounting: Install the workstation securely into a standard industrial rack. Ensure adequate ventilation space around the unit for proper heat dissipation.
3. Power Connection: Connect the provided European power supply cable to the 110/230 V industrial power supply unit. Verify the power source voltage matches the unit's requirements before applying power.
4. Peripheral Connections: Connect display monitors to the 4-fold multi-monitor card. Connect Industrial Ethernet cables to the CP1623 module as required by the system architecture.
5. Storage Drive Handling: The workstation features hot-swap removable disk frames. When replacing or installing drives, follow proper hot-swap procedures to avoid data loss or system interruption.
6. RAM Access: RAM modules are front-side mounted for ease of access. If memory upgrades or replacements are necessary, ensure the system is de-energized before opening the front panel.
7. Grounding: Ensure the workstation chassis is properly grounded to the industrial rack and facility ground to prevent electrical hazards and ensure signal integrity.
