Description

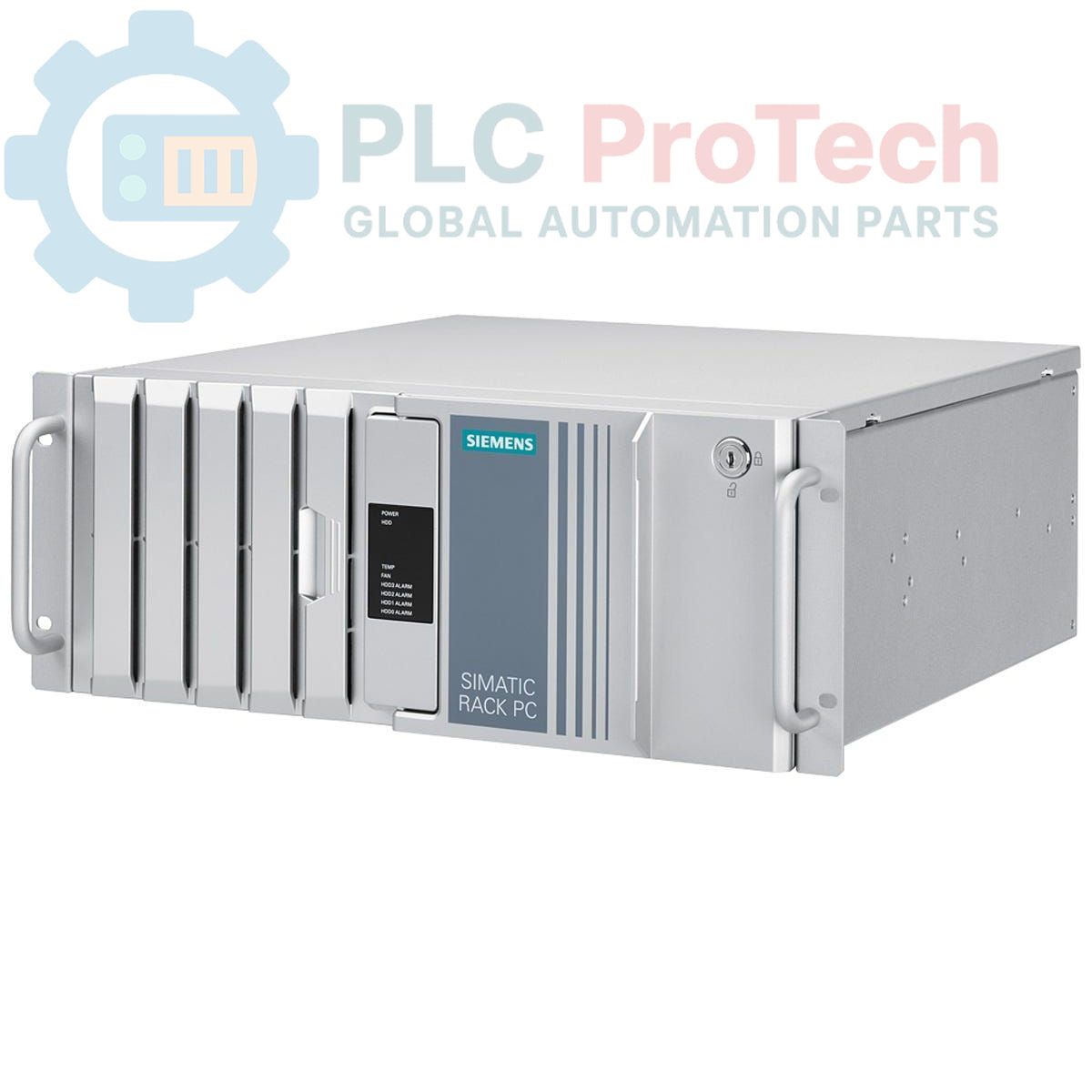

The Siemens 6ES7660-7CF18-3BC1 is a SIMATIC IPC547G industrial workstation, engineered as a robust platform for SIMATIC PCS 7 process control systems. This 4U, 19-inch rack-mountable PC is equipped with an Intel Core i5-6500 processor, 8 GB of DDR4 RAM, and a 1 TB enterprise-grade HDD housed in a front-accessible removable frame. It arrives with PCS 7 V9.0 SP3 and Windows 10 IoT Enterprise pre-installed, providing a ready-to-deploy client station for demanding industrial environments. Integrated monitoring for temperature and fans, along with a watchdog timer, ensures high operational availability.

Features

• Powered by an Intel Core i5-6500 quad-core processor.
• Configured with 8 GB DDR4 dual-channel SDRAM.
• Includes a 1 TB enterprise-class HDD in a front-removable frame.
• Pre-installed with SIMATIC PCS 7 V9.0 SP3 and Windows 10 IoT Enterprise 2015 LTSB (64-bit).
• Extensive I/O including dual Gigabit Ethernet, USB 3.0, and dual DisplayPort V1.2 outputs.
• Features 7 expansion slots (5x PCI Express, 2x PCI) for system customization.
• Onboard monitoring for system temperature and fan speed, plus a hardware watchdog.
• Durable 4U, 19-inch rack chassis with a blue chromated finish and card retainer.

Applications

• Process visualization and control (HMI/SCADA).
• Operator stations within a SIMATIC PCS 7 distributed control system.
• Data acquisition and logging in industrial plants.
• Engineering and configuration workstations.
• Suitable for deployment in control rooms in manufacturing, chemical processing, and power generation facilities.

Technical Specifications

Installation Guidelines

1. 1
   De-energize the target rack cabinet and verify the absence of voltage before beginning installation.
2. 2
   Securely mount the IPC into a standard 19-inch equipment rack using all four mounting points. Ensure adequate clearance for ventilation at the front and rear of the unit as specified by the manufacturer.
3. 3
   Connect a protective earth (PE) conductor to the designated grounding point on the chassis. This connection is mandatory for safety.
4. 4
   Connect all required peripheral devices, including monitors (DVI-D or DisplayPort), keyboard/mouse (USB or PS/2), and network cables (RJ45).
5. 5
   Connect the provided AC power cord to the industrial power supply unit and to a suitable, protected power source.
6. 6
   Power on the unit and verify that the operating system boots correctly and that all connected peripherals are recognized.
