Description

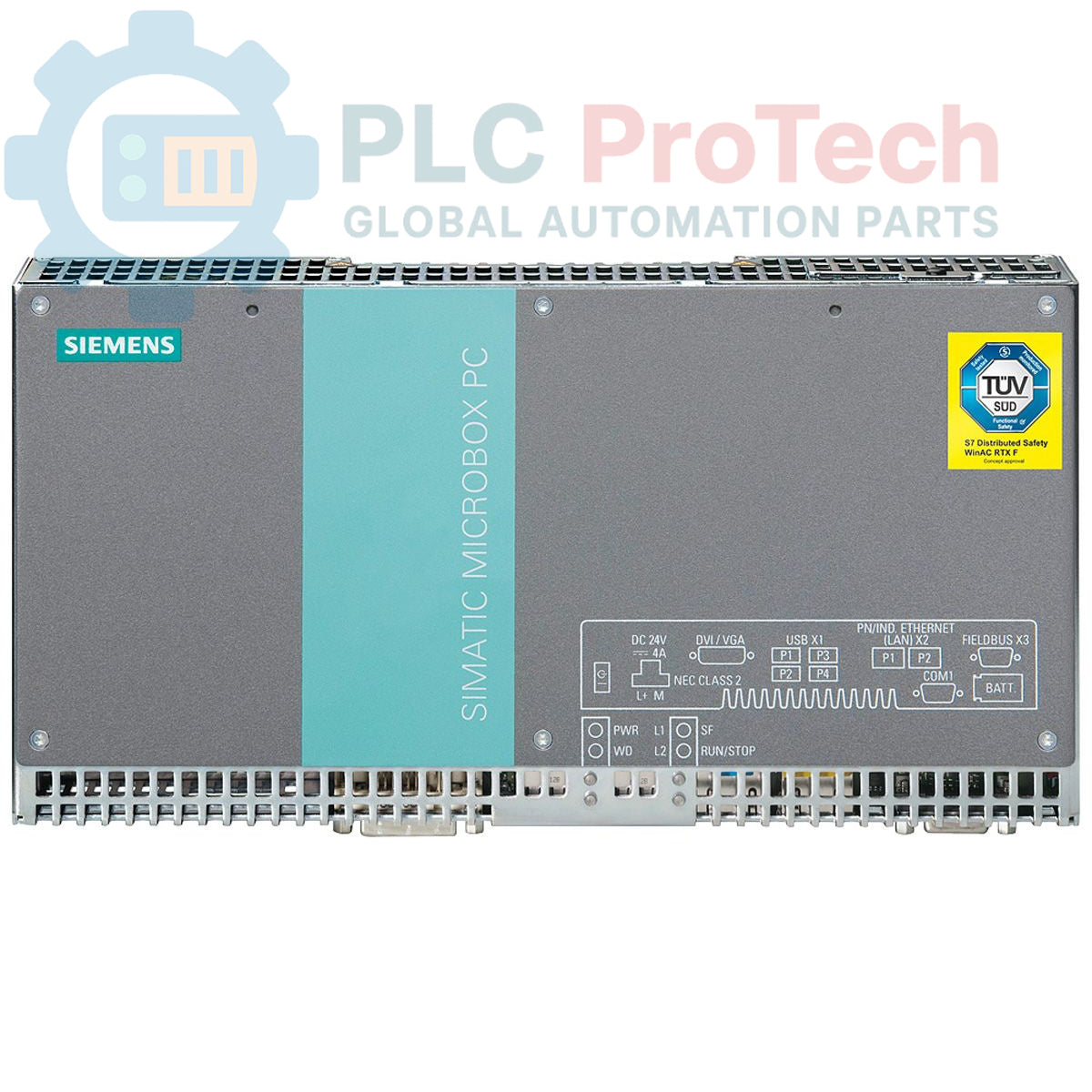

This Siemens 6ES7675-1DK30-2AB0 is a pre-configured SIMATIC IPC427C Microbox PC bundle designed for industrial control and visualization applications. The system is built around an Intel Core 2 Duo 1.2 GHz processor and includes 2 GB of DDR3 RAM and a 50 GB high-endurance SATA SSD for reliable data storage. It comes with Windows Embedded Standard 2009, WinCC Flexible 2008, and WinAC RTX 2010 software pre-installed, enabling rapid deployment. For network integration, the unit provides one PROFIBUS DP interface and two Gigabit Ethernet ports.

Features

• Processor: Intel Core 2 Duo running at 1.2 GHz
• Memory: 2 GB DDR3 1066 SODIMM
• Storage: 50 GB High-Endurance SATA Solid-State Drive (SSD)
• Operating System: Microsoft Windows Embedded Standard 2009
• Pre-installed Software: WinCC Flexible 2008 and WinAC RTX 2010
• Industrial Communications: 1x PROFIBUS DP and 2x Gigabit Ethernet
• Compact, fanless Microbox design for industrial environments
• Replaceable solid-state drive for simplified maintenance

Applications

• Human-Machine Interface (HMI) control stations
• Process visualization and SCADA nodes
• PC-based automation and machine control
• Data logging and acquisition gateways
• Small-scale manufacturing execution systems (MES)

Technical Specifications

Installation Guidelines

1. 1
   De-energize Equipment: Before installation, ensure all related power sources are de-energized, locked out, and tagged out (LOTO) to prevent electrical shock and equipment damage.
2. 2
   Secure Mounting: Mount the Microbox PC securely onto a stable, vibration-free surface or standard DIN rail within the control cabinet. Ensure adequate clearance for airflow and cable connections.
3. 3
   Establish Ground Connection: Connect the chassis to the cabinet's protective earth (PE) ground using a low-impedance conductor. A reliable ground connection is essential for safety and noise immunity.
4. 4
   Connect Power Supply: Connect the specified DC power supply to the unit's power input terminals. Verify voltage and polarity before applying power. Use appropriately sized wiring for the load.
5. 5
   Connect Peripherals & Networks: Connect PROFIBUS DP, Ethernet, and any other required peripheral cables. Ensure all connectors are fully seated and secured. Route communication cables separately from high-voltage power lines to minimize interference.
