Description

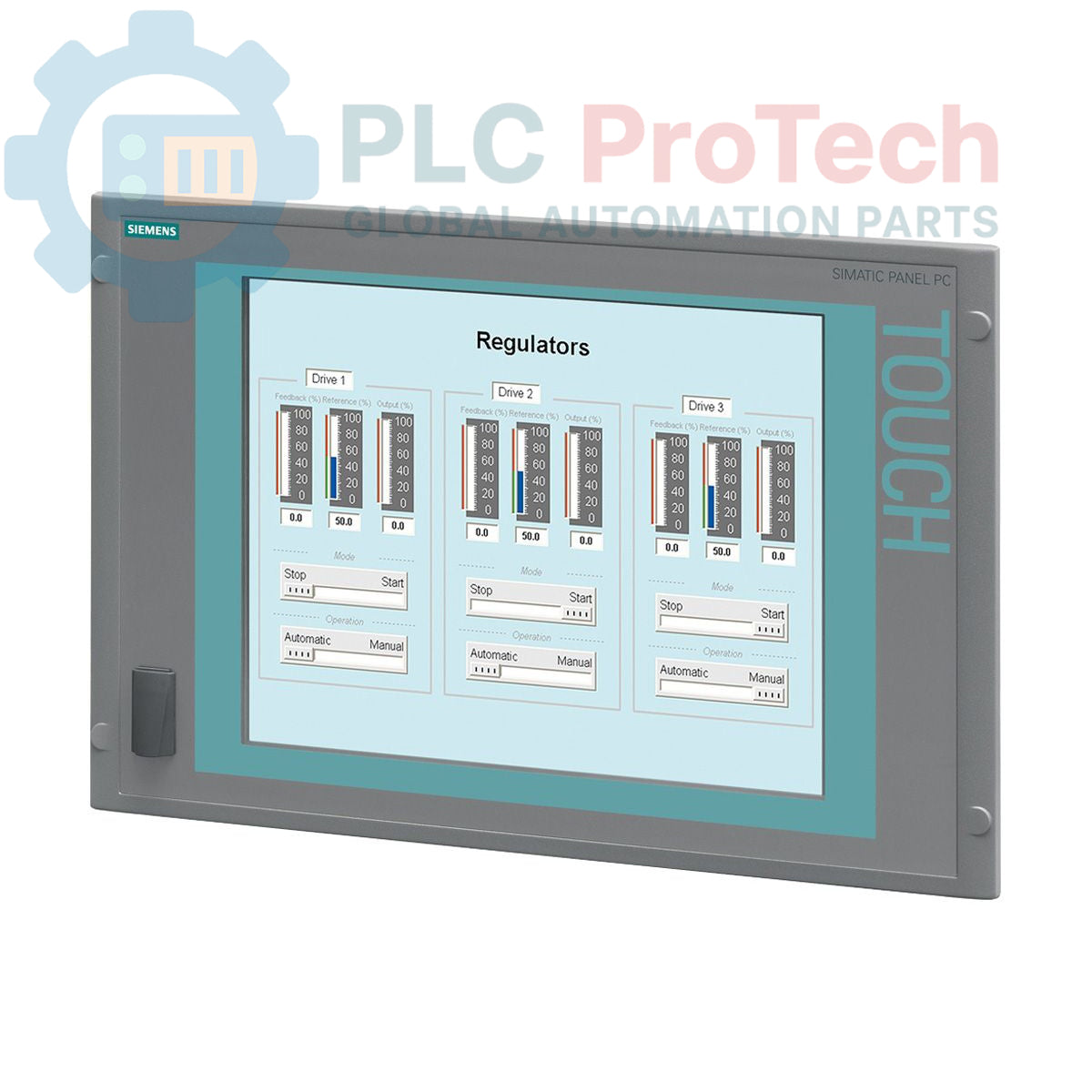

The Siemens 6ES7676-3BA00-0BE0 is a SIMATIC Panel PC 477B designed for industrial visualization and control applications. It features a 15-inch touch display with a resolution of 1024x768, a standard front with a USB interface, and is powered by an Intel Celeron M 1.0 GHz processor. The unit includes 1 GB DDR2 RAM, PROFIBUS DP 12 connectivity, two 1 Gbit/s Ethernet ports, four USB 2.0 ports (500mA), and one RS232 interface. It operates on a DC 24V power supply and provides two CF-slots, one of which is pre-installed with a 1 GB Compact-Flash card. The system is pre-configured with WinCC Flexible RT 2048PT, including archives and recipes, and is delivered without embedded Windows software.

Features

• 15-inch touch display with 1024x768 resolution
• Intel Celeron M 1.0 GHz processor
• 1 GB DDR2 RAM
• PROFIBUS DP 12 interface
• Two 1 Gbit/s Ethernet ports
• Four USB 2.0 ports (500mA)
• One RS232 interface
• DC 24V power supply
• Two CF-slots, one with pre-installed 1 GB Compact-Flash
• Pre-installed WinCC Flexible RT 2048PT (incl. archives & recipes)

Applications

• Industrial visualization and HMI tasks
• Machine control and monitoring
• Process automation systems
• Data acquisition and recipe management

Technical Specifications

Installation Guidelines

1. Ensure all power to the system and associated equipment is de-energized before beginning installation.
2. Prepare the panel cutout according to the specified dimensions for the Panel PC 477B.
3. Mount the Panel PC securely into the prepared panel cutout, ensuring proper sealing and stability.
4. Connect the DC 24V power supply to the designated terminals, observing correct polarity to prevent damage.
5. Connect necessary communication cables for Ethernet, PROFIBUS DP, USB, and RS232 interfaces to their respective ports.
6. Ensure proper grounding of the Panel PC to the system's protective earth.
7. Verify all electrical and communication connections are secure and correctly terminated before re-energizing the system.
