Description

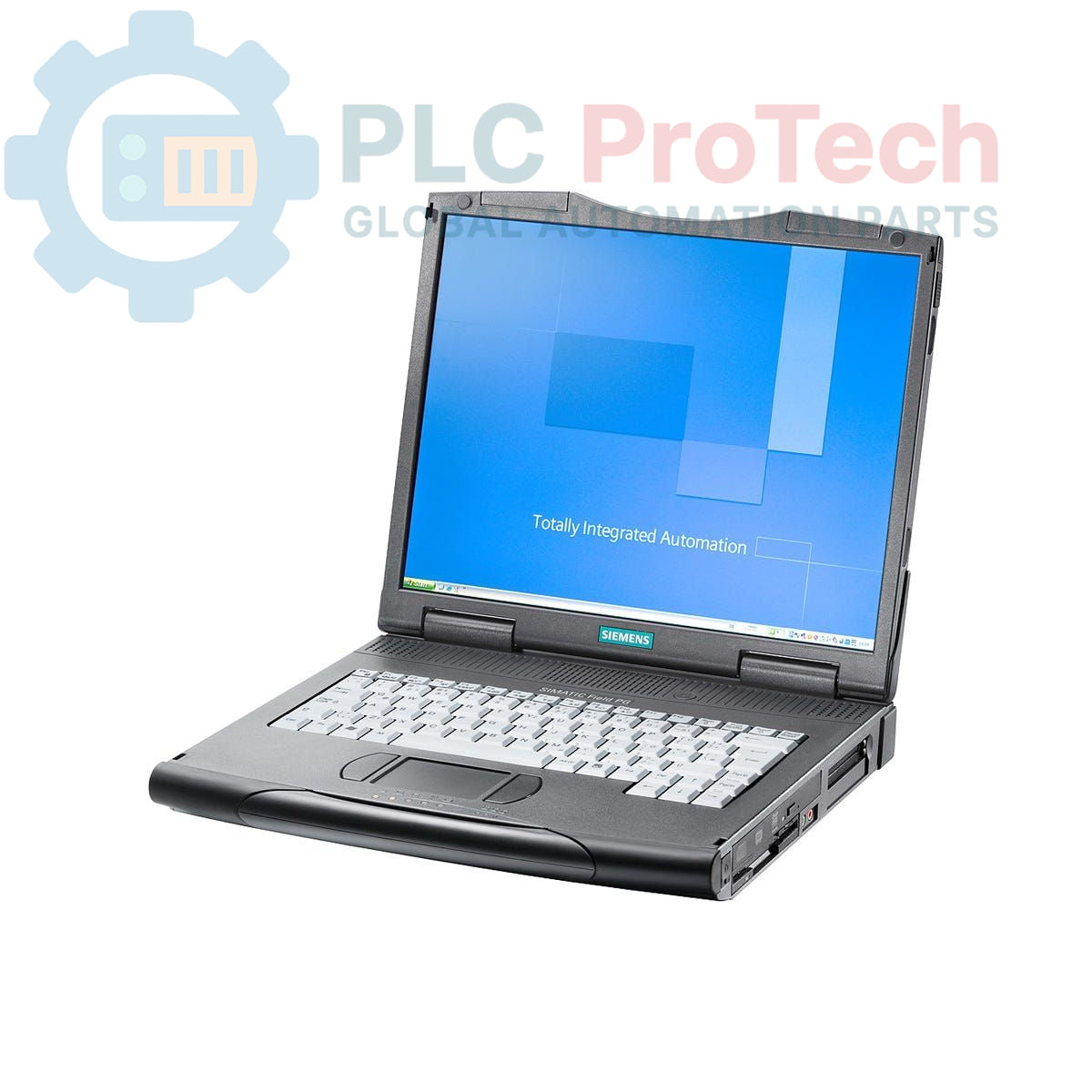

The Siemens 6ES7713-1BB14-0AD1 is a SIMATIC Field PG M2, a ruggedized industrial programming device designed for commissioning, servicing, and maintaining automation systems. This Premium model is equipped with a 2.2 GHz Core 2 Duo (T7500) processor, 2 GB of DDR2 RAM, and a 250 GB S-ATA hard drive. It features a 15-inch SXGA+ display and comes pre-loaded with a comprehensive suite of Siemens automation software, including STEP 7 Professional, STEP 5, and WinCC flexible Advanced, on a Windows XP Professional operating system. The unit includes essential accessories such as an EPROM adapter and an S5-PLC cable for direct connectivity to legacy systems.

Features

• Intel Core 2 Duo T7500 processor operating at 2.2 GHz.
• 15-inch SXGA+ display with a resolution of 1400 x 1050 pixels.
• 250 GB Serial ATA (S-ATA) hard disk drive for project storage.
• 2 GB of DDR2 RAM installed.
• Pre-installed Windows XP Professional English Multi-language User Interface (MUI).
• Includes licenses for STEP 7 Professional, STEP 5, STEP 7 Micro/WIN, STEP 7 Basic, and WinCC flexible Advanced.
• Equipped with a DL Multistandard DVD RW optical drive.
• Includes EPROM adapter and S5-PLC cable for legacy system support.

Applications

• Programming and configuration of SIMATIC S5 and S7 PLCs.
• Development and commissioning of HMI applications with WinCC flexible.
• On-site diagnostics, troubleshooting, and system maintenance.
• Mobile engineering workstation for field service personnel in industrial plants.

Technical Specifications

Installation Guidelines

1. 1 Visually inspect the Field PG for any signs of shipping damage to the chassis, screen, or ports before applying power. Verify that all included accessories are present.
2. 2 Connect the provided power cable (specified for Italy) to the Field PG's power input and a suitable, grounded mains outlet. Allow the internal battery to charge if necessary.
3. 3 Power on the device. Allow the Windows XP operating system to boot completely. Verify the functionality of the display, keyboard, and trackpad.
4. 4 Launch the required Siemens engineering software (e.g., STEP 7). Configure the programming interface (PG/PC Interface) to match the communication protocol and hardware being used (e.g., MPI, PROFIBUS).
5. 5 Connect the appropriate programming cable (e.g., the included S5-PLC cable) between the Field PG and the target automation device. Ensure a secure connection before attempting to go online with the controller.
6. 6 Due to the age of the operating system and hardware, it is critical to perform regular backups of all project files and software licenses to an external storage medium.
