Description

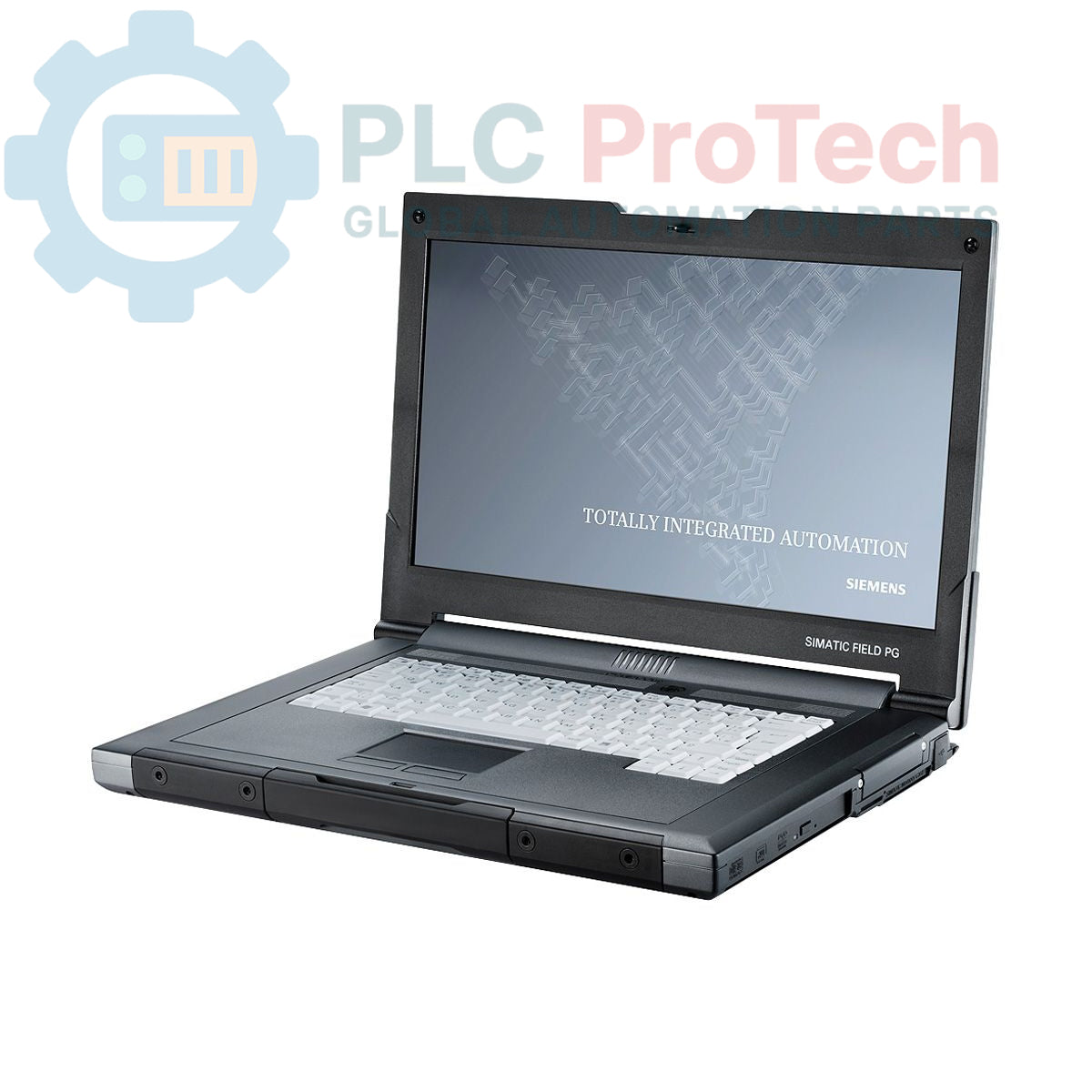

The Siemens 6ES7715-1BB21-0BE2 is a SIMATIC Field PG M3 Premium, a ruggedized portable programming device engineered for commissioning, servicing, and maintaining industrial automation systems. This configuration is equipped with an Intel Core i5-520M 2.4 GHz processor, 4 GB of DDR3 RAM, and a 500 GB SATA hard disk drive for robust performance in demanding field environments. It includes a comprehensive software package with licenses for STEP 7 Professional V11 and WinCC Advanced V11, running on a pre-installed Windows 7 Ultimate (32-bit) operating system. The device features a high-resolution 15.6-inch Full HD display and is supplied with a UK power cable and an MPI interface cable for direct connectivity to SIMATIC controllers.

Features

• ■Intel Core i5-520M Processor operating at 2.4 GHz
• ■4 GB DDR3 system memory
• ■500 GB SATA Hard Disk Drive (HDD) for application and project storage
• ■15.6-inch Full HD widescreen display with 1920x1080 resolution
• ■Integrated DL Multi-Standard DVD RW optical drive
• ■Pre-installed Windows 7 Ultimate (32-bit) with multi-language support
• ■Includes licenses for STEP 7 Professional V11, WinCC Advanced V11, and STEP 7 Micro/WIN
• ■Supplied with an MPI cable for direct PLC communication
• ■CE approval for use in Europe

Applications

• ■PLC programming, configuration, and diagnostics
• ■HMI and SCADA system development and deployment
• ■On-site commissioning and system start-up
• ■Field maintenance and troubleshooting of automated machinery
• ■Industrial network analysis and monitoring

Technical Specifications

Installation Guidelines

1. 1
   Inspect Equipment: Before use, inspect the Field PG, power adapter, and all cables for any signs of physical damage incurred during transport or storage. Do not use damaged equipment.
2. 2
   Connect Power Supply: Connect the provided UK power supply cable to the AC/DC adapter. Plug the adapter's DC barrel connector into the Field PG's power input port. Connect the AC plug to a verified, grounded mains outlet.
3. 3
   Initial Power-On: Press the power button to boot the device. Allow the Windows 7 operating system to load completely. Follow any on-screen prompts for initial system setup if it is the first use.
4. 4
   Establish Communication: For PLC communication, connect the included MPI cable to the appropriate port on the Field PG and to the MPI port on the target SIMATIC S7 controller or device.
5. 5
   Safe Handling: Operate the device on a stable, flat surface to ensure adequate ventilation. Avoid exposure to excessive moisture, dust, vibration, or extreme temperatures to maintain operational integrity.
