Description

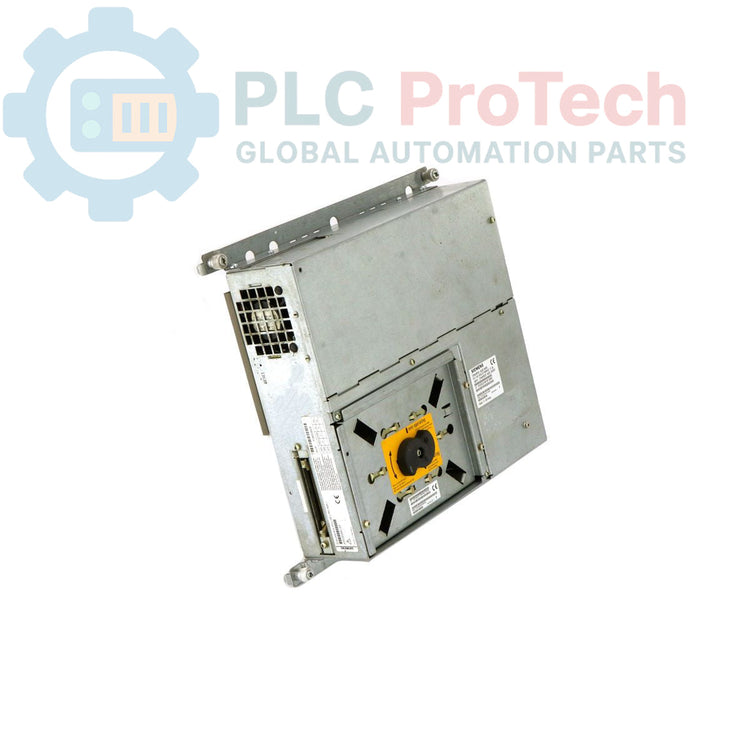

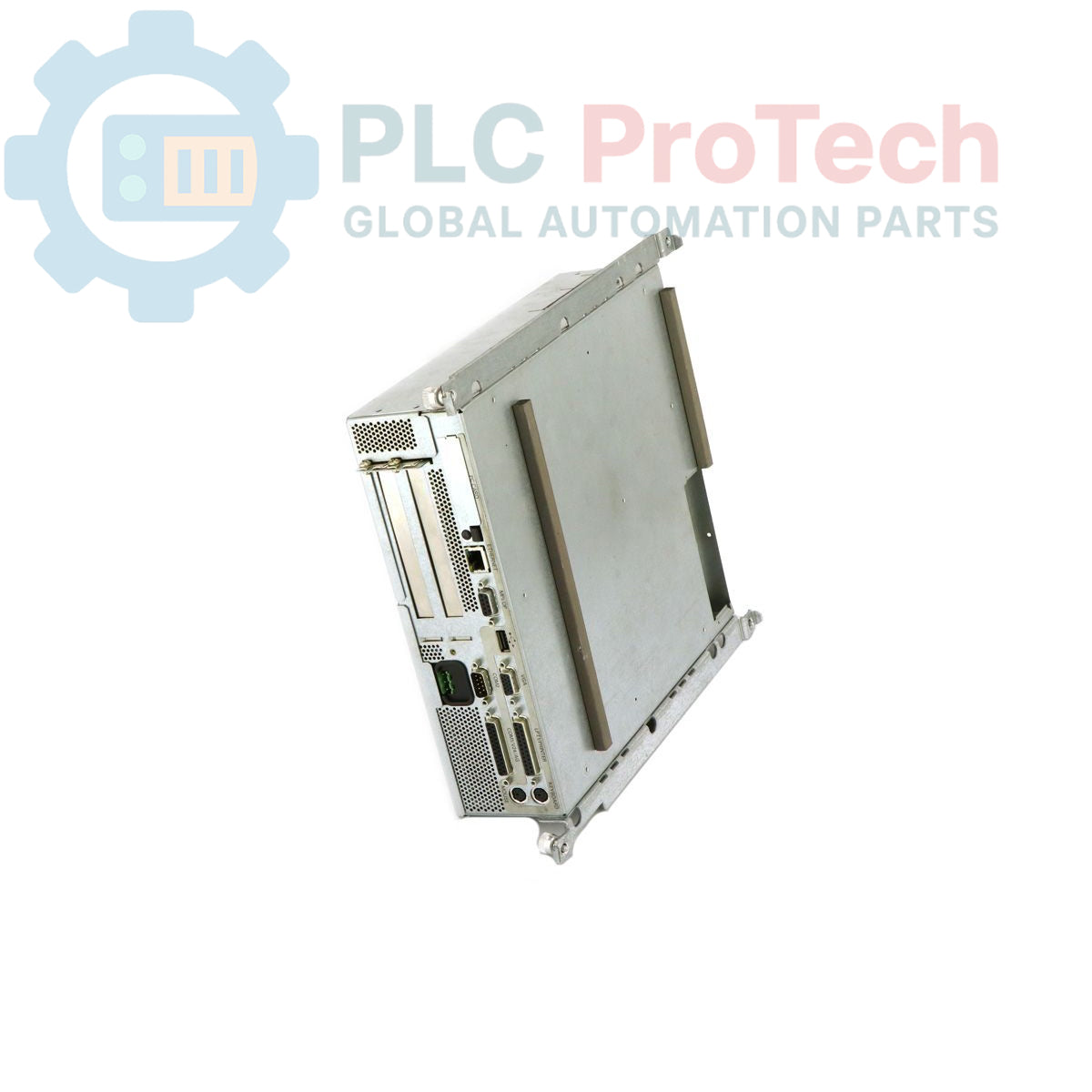

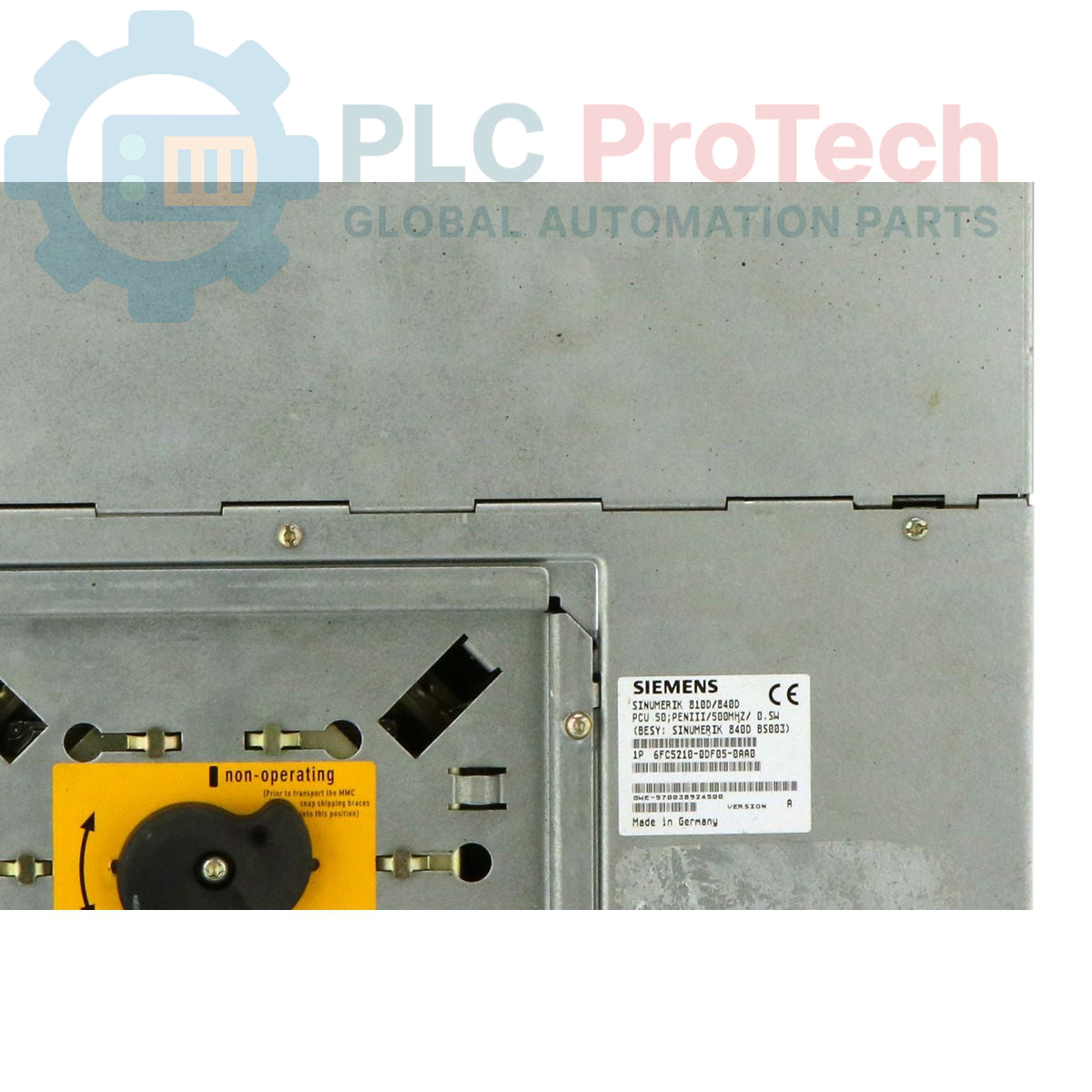

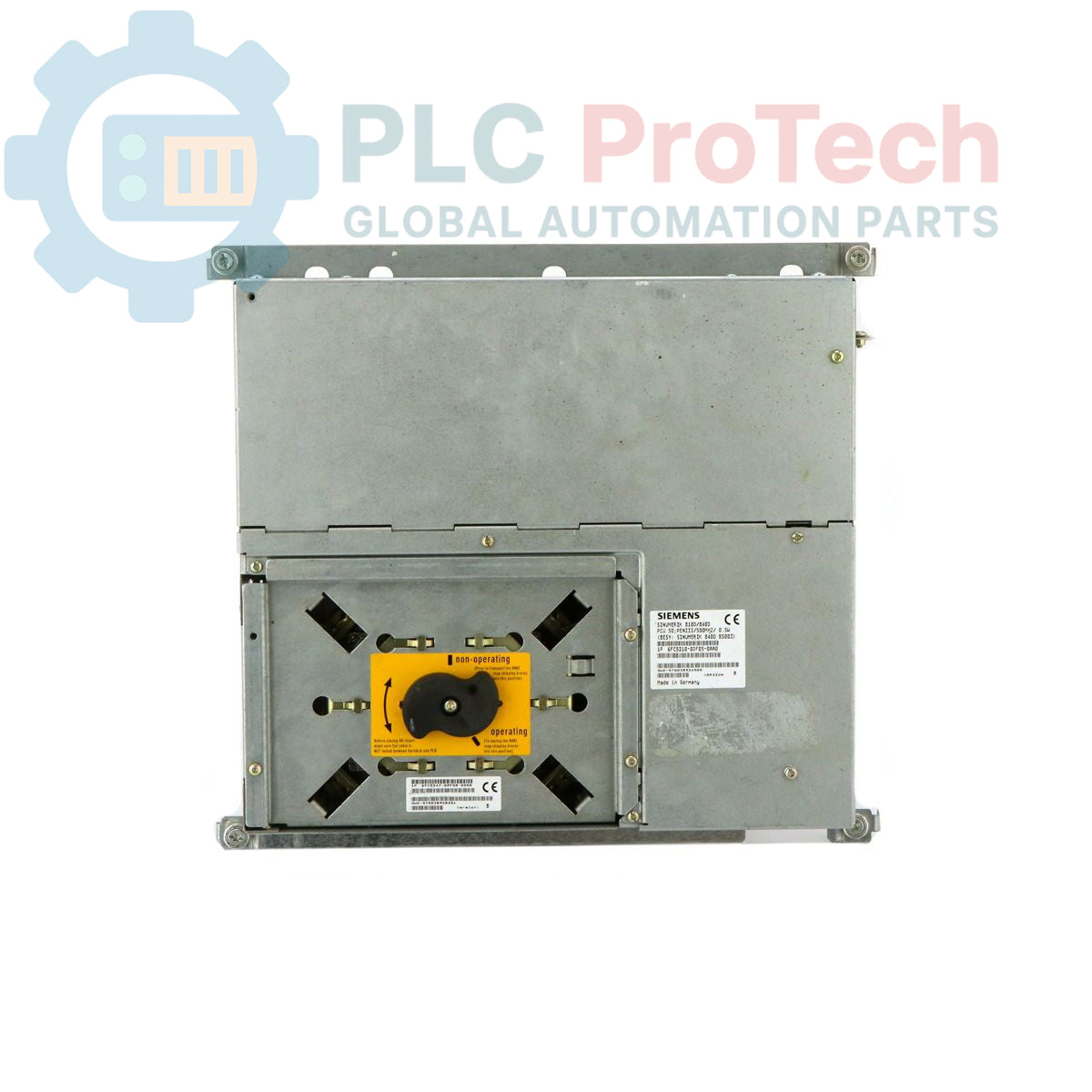

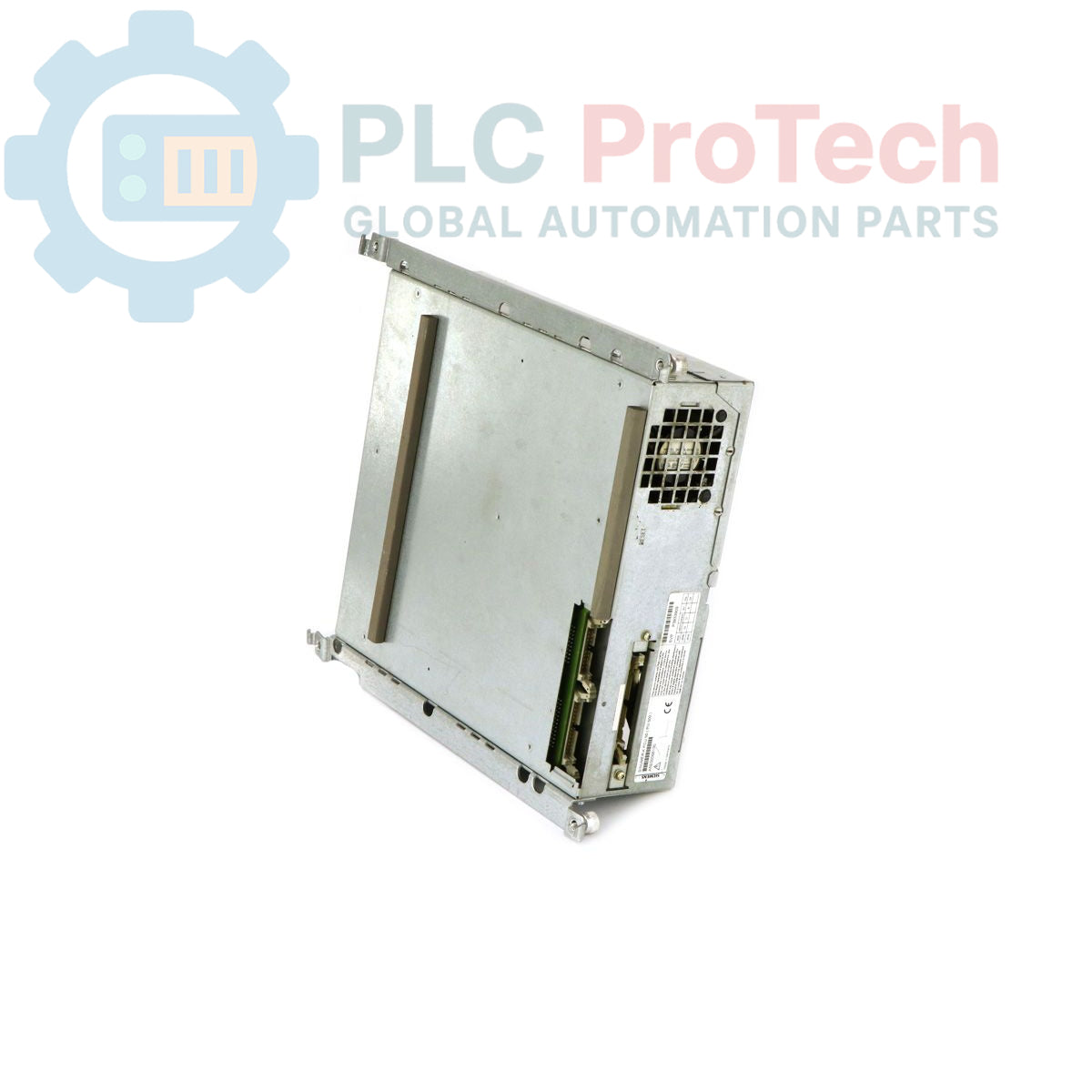

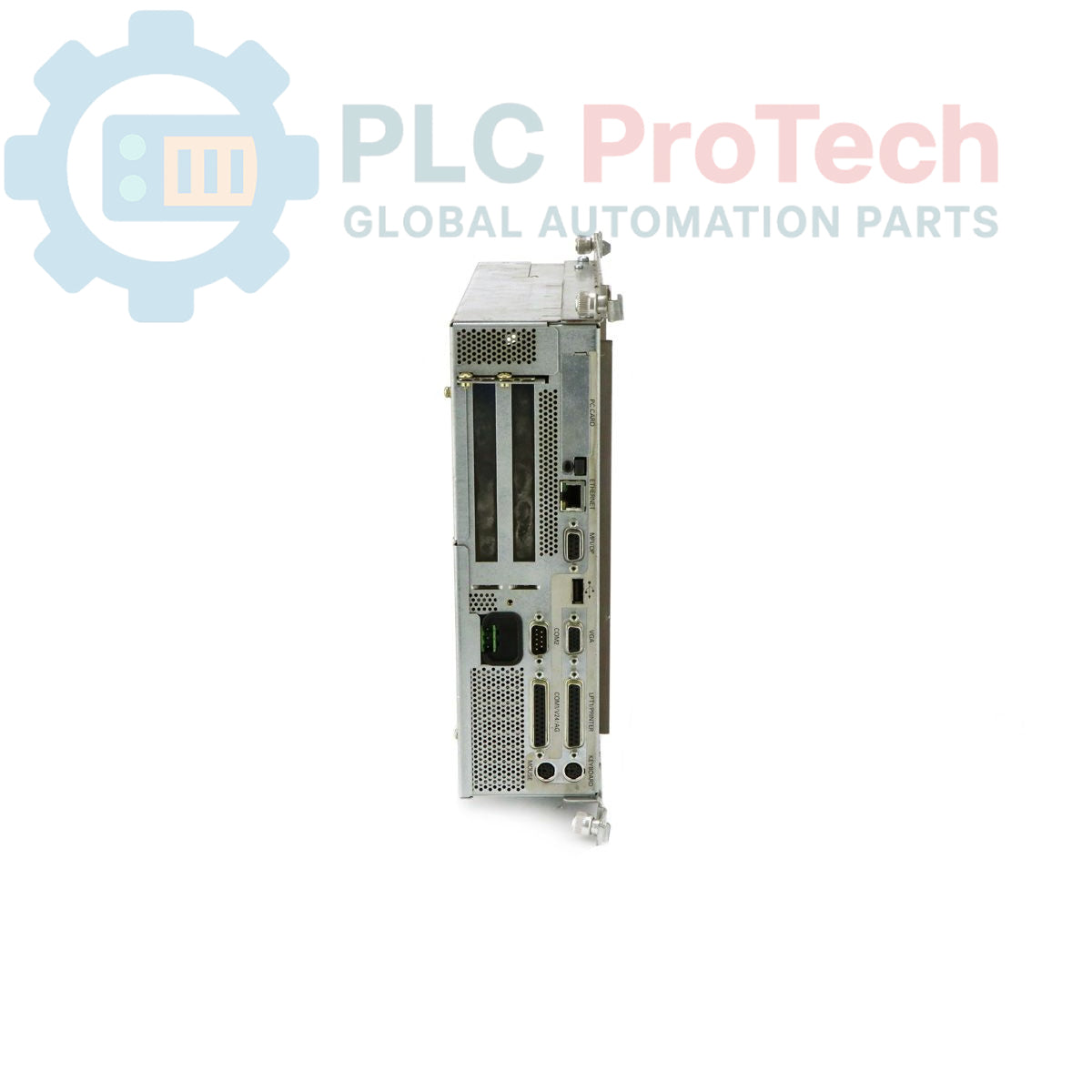

The 6FC5210-0DF05-0AA0 is a SINUMERIK PCU 50 industrial computer unit engineered for high-reliability CNC control applications. This PCU is powered by a Pentium III 500 MHz processor and features 128 MB of RAM, providing the computational capacity required for managing complex machining sequences. Designed for seamless integration with SINUMERIK 840D control systems, the unit operates on 24V DC power and includes a pre-installed Windows NT 4.0 operating system. It serves as a central computing platform for machine tool visualization and data management, ensuring stable performance in demanding industrial manufacturing environments.

Features

• Pentium III 500 MHz processor
• 128 MB system RAM
• Optimized for SINUMERIK 840D control environments
• Pre-installed Windows NT 4.0 operating system
• 24V DC industrial power input
• Robust industrial-grade construction for continuous operation

Applications

• CNC machine tool central control
• Industrial HMI and visualization systems
• Legacy SINUMERIK 840D system maintenance
• Automated manufacturing control terminals

Technical Specifications

Installation Guidelines

• Mounting: Ensure the PCU 50 is mounted in a well-ventilated cabinet or operator station. Verify that air intake and exhaust vents remain unobstructed to maintain optimal thermal operating conditions.
• Power Connection: Connect only to a regulated 24V DC power supply. Verify polarity before applying power to prevent internal circuitry damage.
• Environment: Protect the unit from excessive vibration, conductive metal dust, and moisture. Ensure the enclosure maintains the required environmental integrity for sensitive electronic components.
• Configuration: As a component of the SINUMERIK 840D system, ensure the software environment is correctly initialized during first startup and that all backplane communication cables are securely connected.
