6FC5303-1AF12-8AL0

Siemens

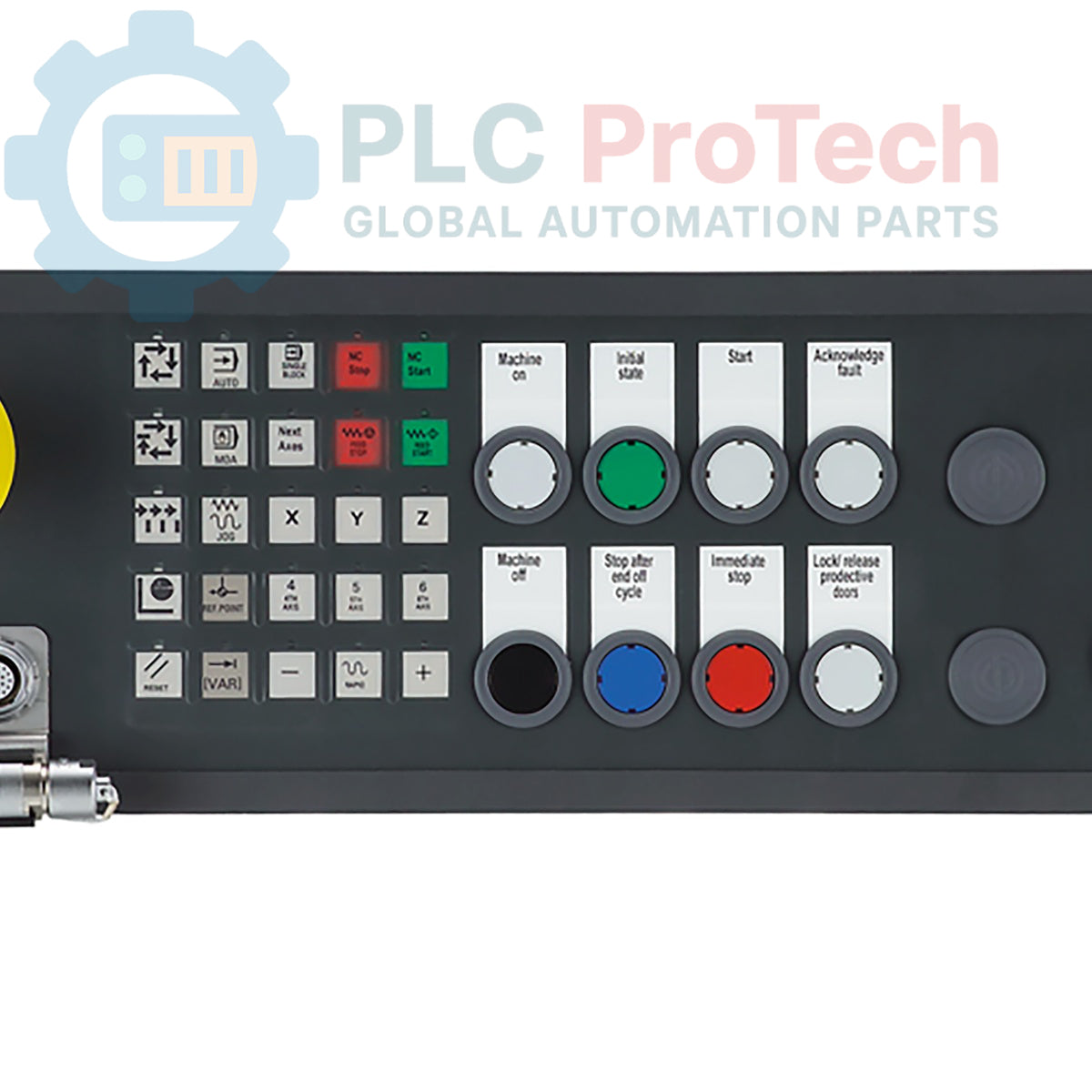

Siemens 6FC5303-1AF12-8AL0 SINUMERIK MPP 483 IEH-S11 Push Button Panel

SKU 6FC5303-1AF12-8AL0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6FC5303-1AF12-8AL0
  • Origin Germany
  • Product Type: Digital Modules
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.003 kg
  • Dimensions: 39.50cm x 30.00cm x 17.00cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Digital Modules
Quantità
Call sales Contact

Product Description

The 6FC5303-1AF12-8AL0 is a SINUMERIK Push Button Panel (MPP 483 IEH-S11) designed for advanced human-machine interaction in CNC control environments. This digital module provides an Industrial Ethernet connection for seamless integration into machine control networks and includes a dedicated connection interface for the HT 8 handheld terminal. The unit is a customer-specific variant based on the standard 6FC5303-1AF10-8AA0 and features a blanking cover designed to facilitate EKS (Electronic Key System) retrofitting. It serves as a centralized operator input interface for SINUMERIK-controlled machine tools.

Features

  • Integrated Connectivity: Industrial Ethernet interface for robust network communication.
  • Terminal Support: Dedicated connection port for the SINUMERIK HT 8 handheld terminal.
  • Modular Design: Features a blanking cover for simplified EKS (Electronic Key System) retrofit installation.
  • System Integration: Engineered as an operator interface for high-performance SINUMERIK CNC environments.
  • Robust Build: Designed for professional industrial machine control applications.

Applications

  • CNC machine tool operator control panels.
  • SINUMERIK-based automation and manufacturing systems.
  • Environments requiring secure operator authentication via EKS retrofitting.
  • Remote monitoring and control interface via handheld terminals.

Technical Specifications

Parameter Specification
Manufacturer Siemens
Product Range SINUMERIK
Product Type Push Button Panel (MPP 483 IEH-S11)
Communication Industrial Ethernet
HT 8 Connectivity Yes, integrated
EKS Retrofit Ready Yes, includes blanking cover
Weight 3.00 kg
Dimensions 39.50 cm x 30.00 cm x 17.00 cm
Commodity Code 85371091
Export Control (ECCN) EAR99
Product Phase Active

Installation Guidelines

  • Panel Mounting: Install the MPP 483 into a standard industrial operator panel cutout, ensuring the housing is correctly sealed to prevent the ingress of dust or coolant.
  • Networking: Use industrial-grade Ethernet cabling to connect the module to the SINUMERIK control network, adhering to EMI shielding best practices.
  • HT 8 Integration: Connect the HT 8 terminal to the designated port; ensure the cable is routed to prevent mechanical stress or interference with machine operations.
  • EKS Retrofit: When implementing the EKS retrofit, remove the blanking cover and install the electronic key reader according to the specific system documentation.
  • Grounding: Properly ground the panel housing to the machine frame to ensure signal integrity and compliance with electrical safety standards.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What handheld terminal does the 6FC5303-1AF12-8AL0 support?
This module includes a dedicated connection interface for the SINUMERIK HT 8 handheld terminal.
Does this panel support EKS retrofitting?
Yes, it is designed with a blanking cover specifically to facilitate EKS (Electronic Key System) retrofitting.
How does this module communicate with the control system?
It utilizes an Industrial Ethernet connection for network-based communication.
What is the base model for this customer-specific variant?
This unit is a customer-specific variant based on the standard 6FC5303-1AF10-8AA0 model.
