Description

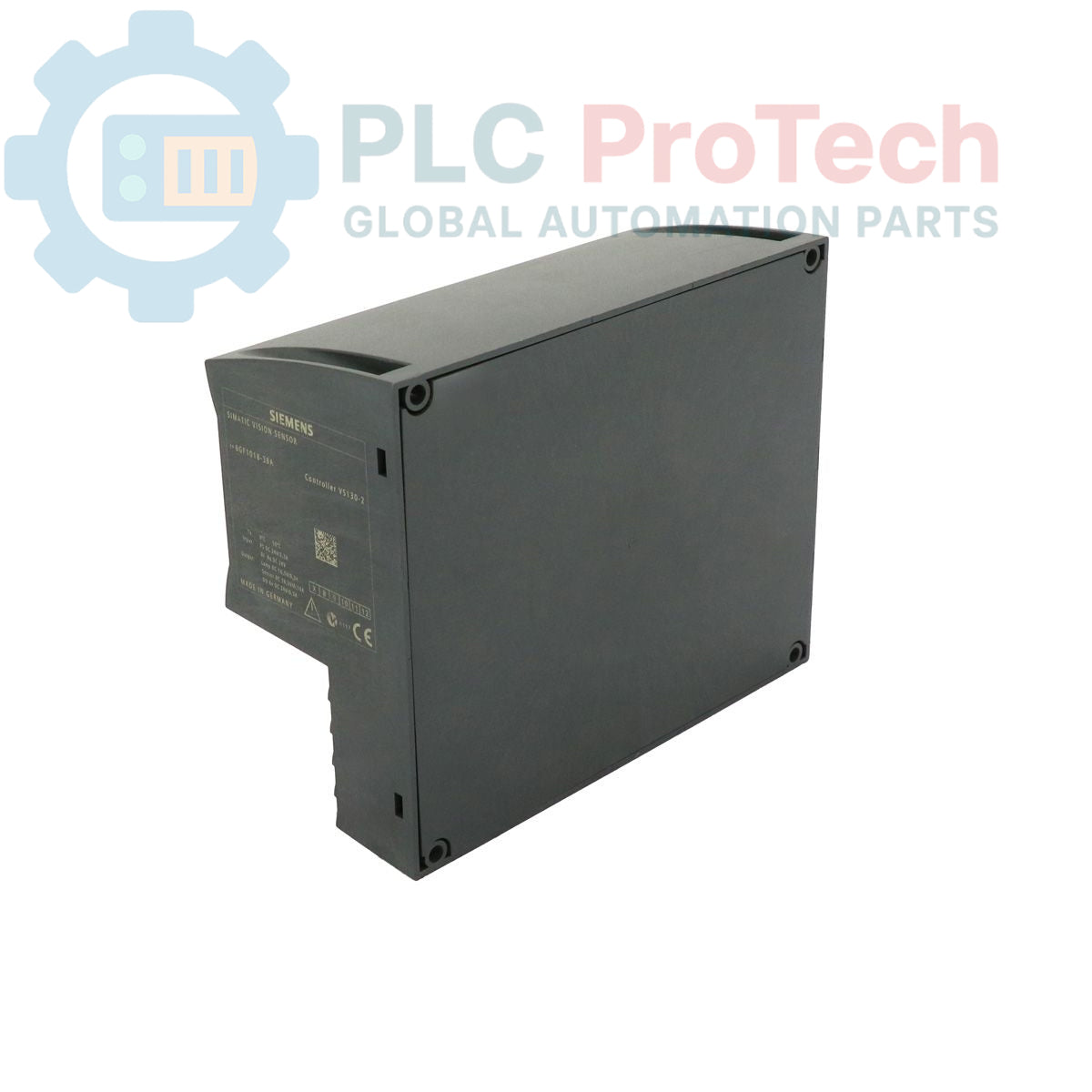

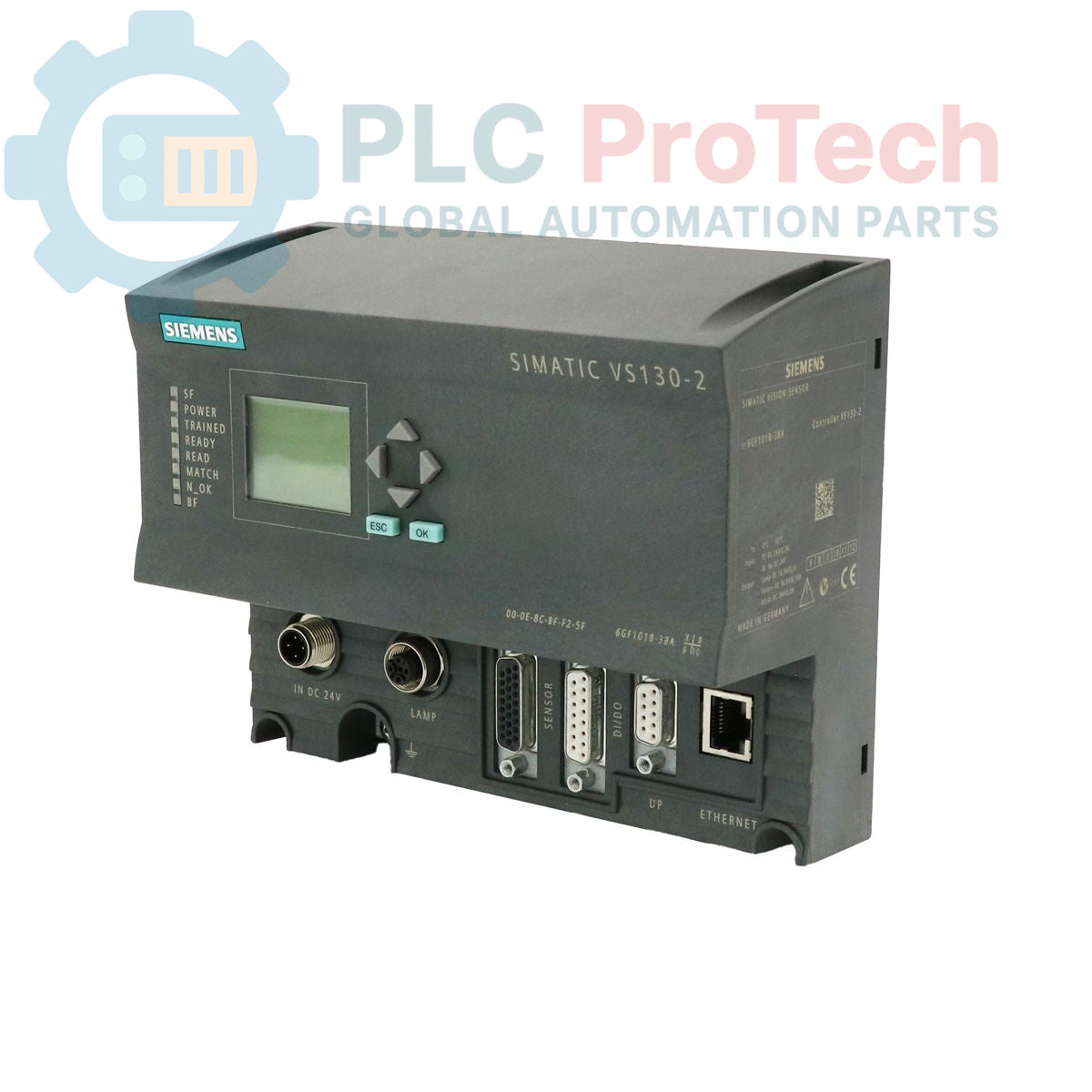

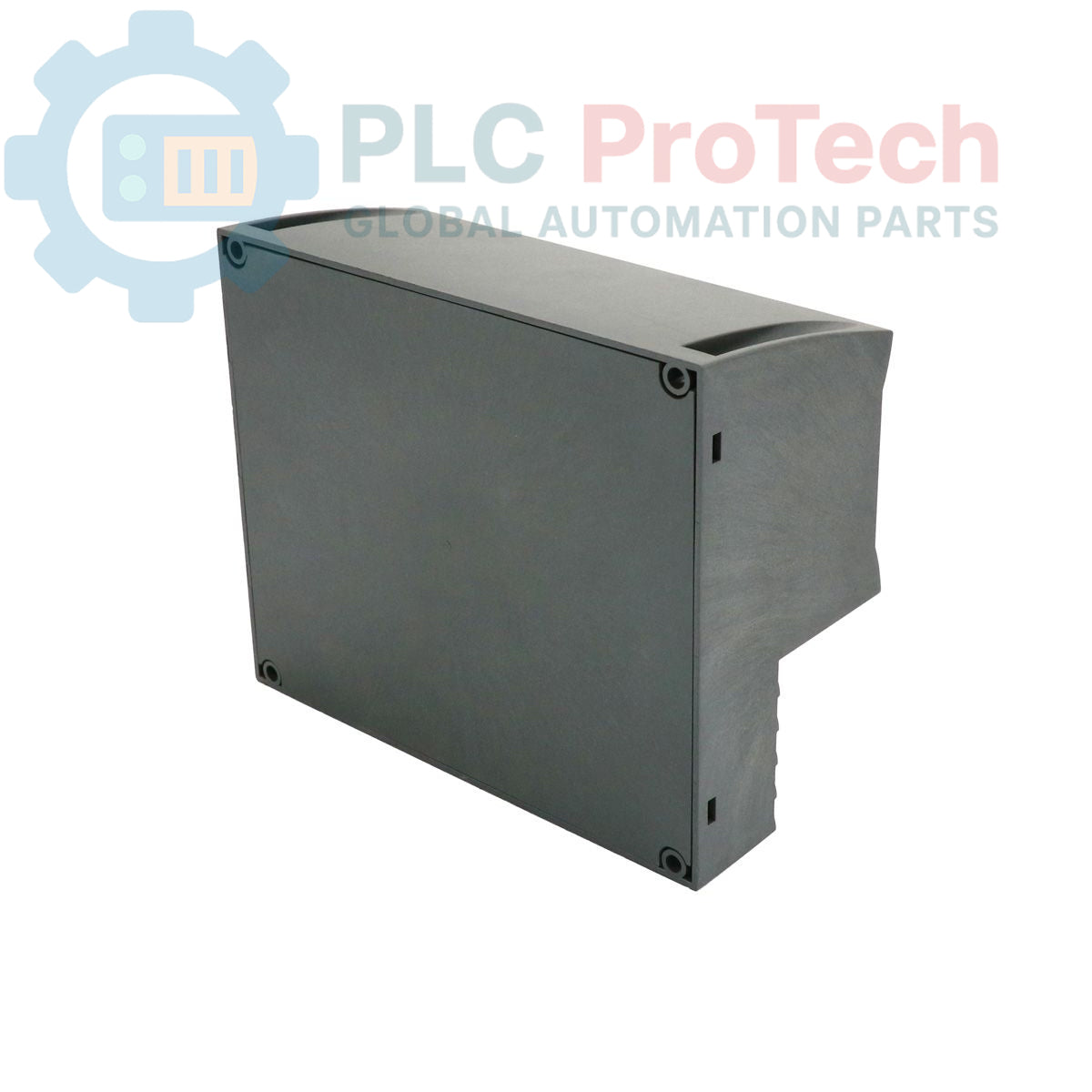

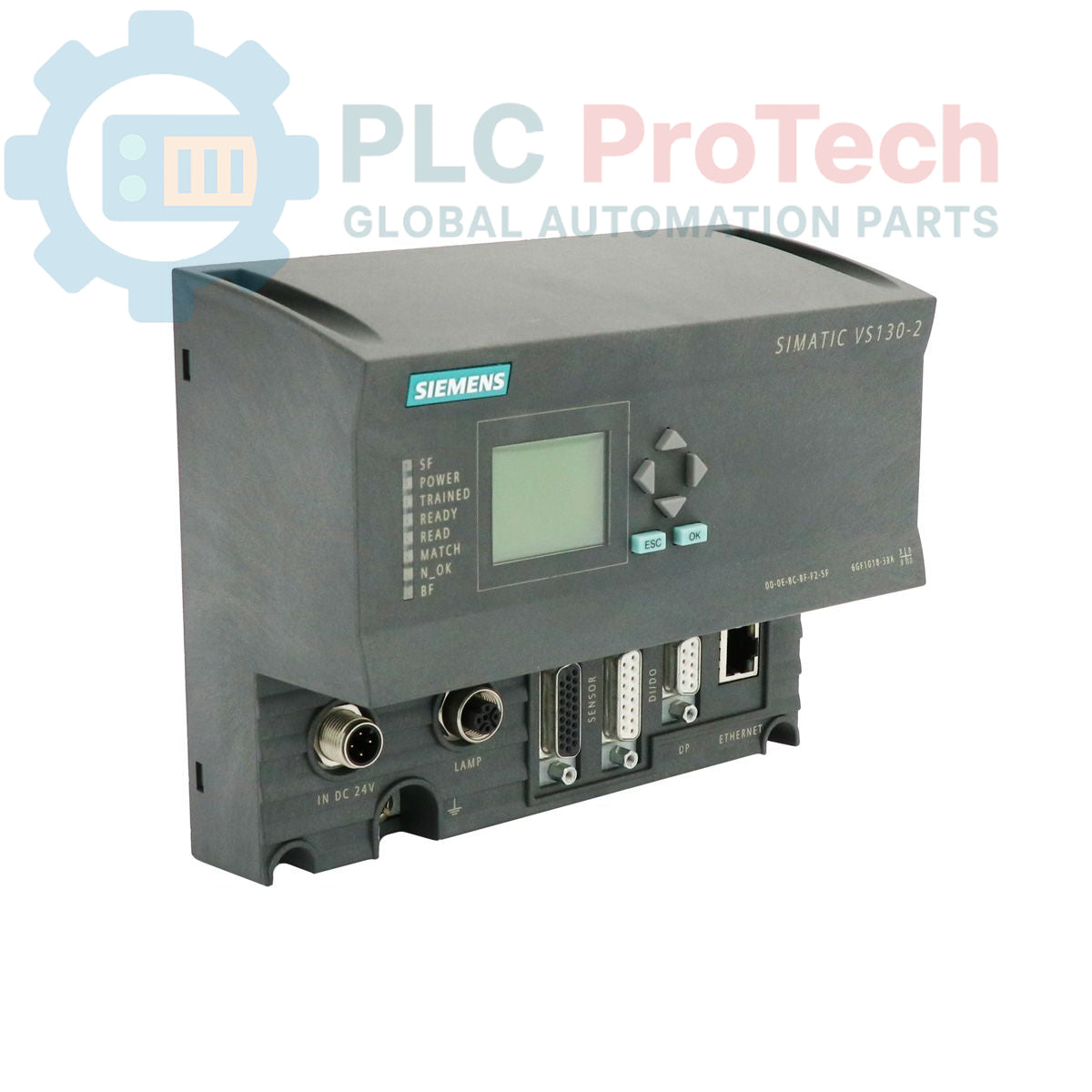

The 6GF1018-3BA is a SIMATIC VS130-2 DMC (Data Matrix Code) reading evaluation unit designed for industrial machine vision and identification tasks. This intelligent unit is capable of learning up to 15 different object types, allowing for versatile automated inspection and identification in production lines. It serves as the primary processing core within the SIMATIC VS130 complete package, responsible for capturing and interpreting high-speed matrix codes.

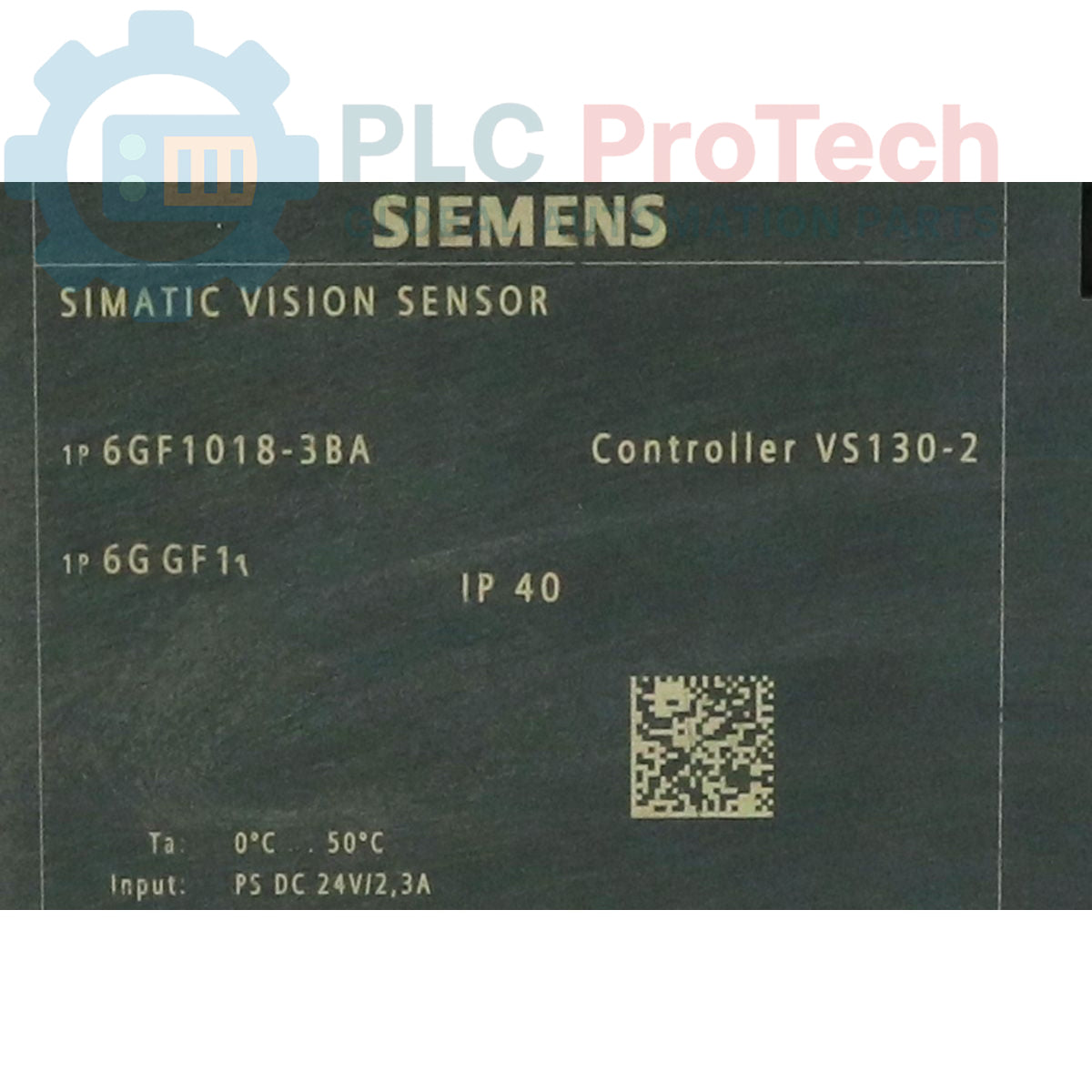

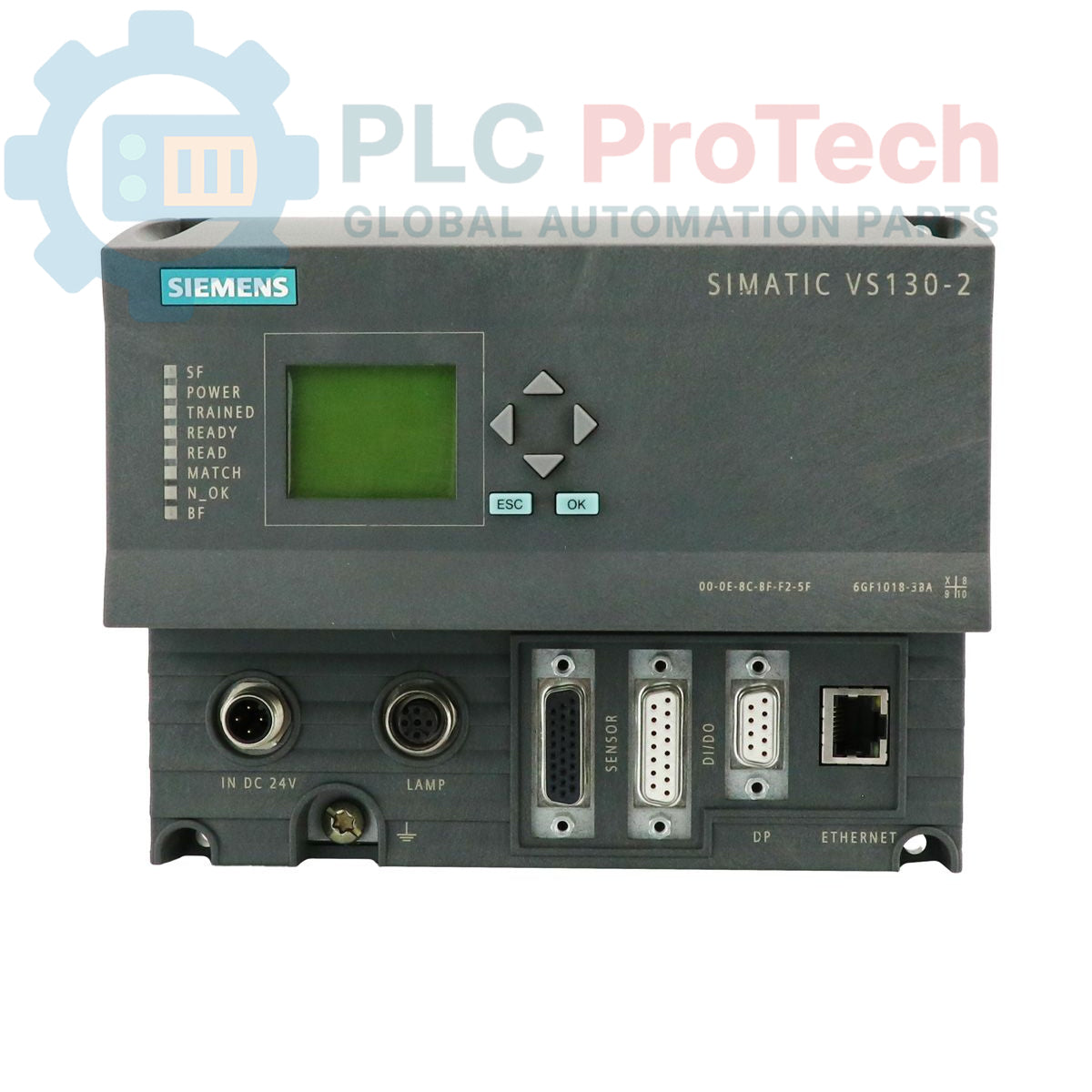

The unit is equipped with a comprehensive range of connectivity options, including Ethernet, PROFIBUS IO, and PROFIBUS DP interfaces, facilitating seamless integration into existing plant networks and PLC architectures. Featuring 8 digital inputs (DI) and 6 digital outputs (DQ/DO), it provides the necessary control signals to trigger external processes or report inspection results directly to the automation system.

Features

• Intelligent Identification: Configurable training for up to 15 different object types
• Processing: Advanced DMC (Data Matrix Code) reading evaluation
• Communication: Integrated Ethernet, PROFIBUS IO, and PROFIBUS DP interfaces
• I/O Configuration: 8 digital inputs and 6 digital outputs for localized control
• Design: Compact unit compatible with the SIMATIC VS130 complete package
• Environmental Protection: IP40 degree of protection

Applications

• Automated traceability in assembly lines
• Identification of parts via Data Matrix Codes
• Quality control and sorting systems
• High-speed industrial logistics and packaging verification

Technical Specifications

Installation Guidelines

• Mounting: Ensure the unit is mounted in an area with adequate airflow to maintain operational temperatures.
• Grounding: Proper grounding of the unit is essential for stable communication over PROFIBUS and Ethernet interfaces.
• Connectivity: Ensure all PROFIBUS and Ethernet cabling meets industrial standards for noise immunity; use shielded cables where necessary.
• Configuration: Utilize the integrated learning functionality to define the 15 object types during the initial commissioning phase of the SIMATIC VS130 system.
