6GK5202-2BB00-2BA3

Siemens

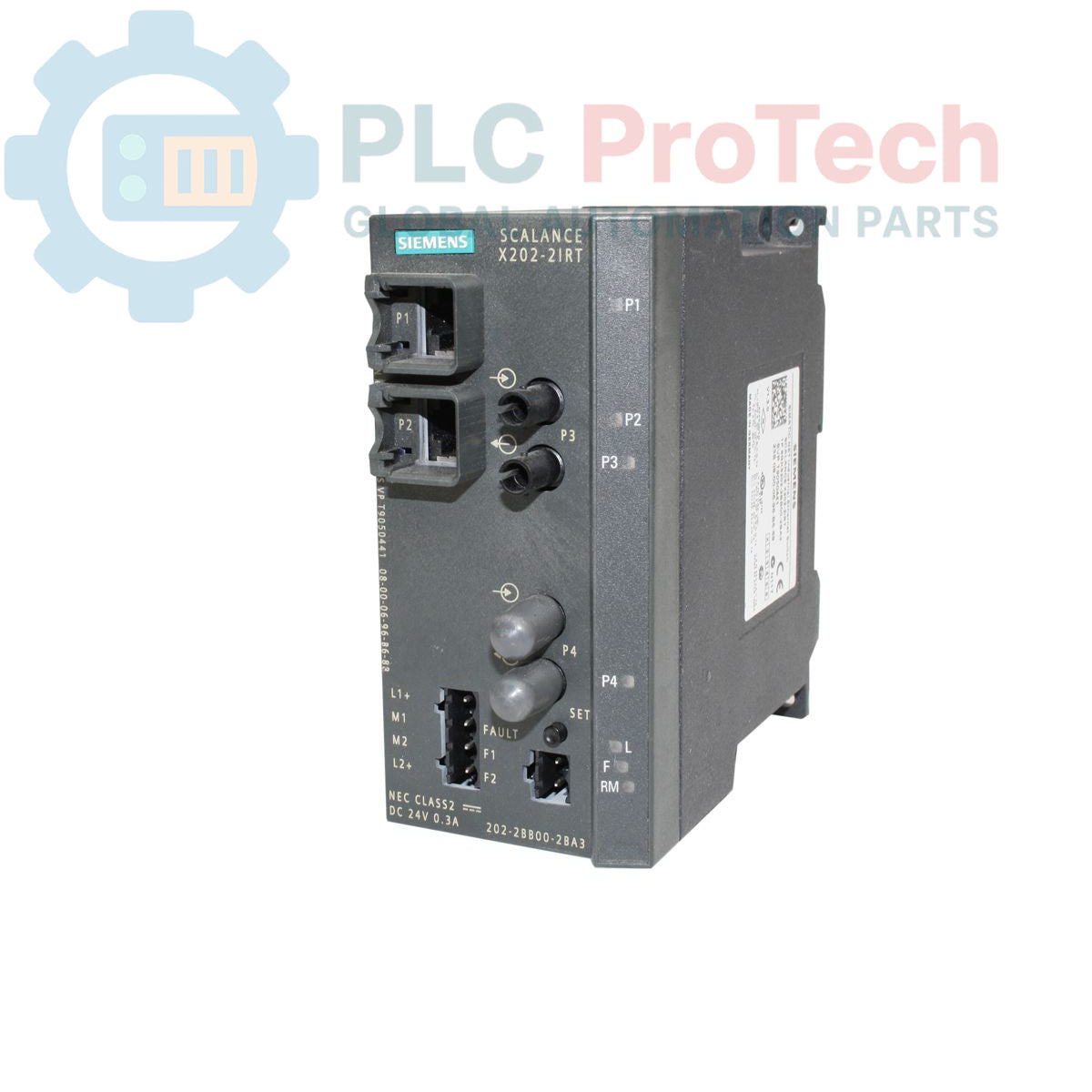

Siemens 6GK5202-2BB00-2BA3 SCALANCE X202-2IRT Managed Switch

SKU 6GK5202-2BB00-2BA3

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6GK5202-2BB00-2BA3
  • Origin Germany
  • Product Type: Accessories
  • Barcode: 85176200
  • Payment: T/T, Western Union
  • Weight: 0.9 kg
  • Dimensions: 6.00cm x 12.40cm x 12.50cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Industrial Ethernet Switches Scalances
Quantità
Call sales Contact

Product Description

Description

The 6GK5202-2BB00-2BA3 is a managed SCALANCE X202-2IRT Industrial Ethernet switch, engineered for high-performance Isochronous Real-Time (IRT) communication in demanding automation networks. It is equipped with two 10/100 Mbit/s RJ45 ports and two 100 Mbit/s multimode BFOC (ST) fiber optic ports, providing versatile media connectivity for copper and fiber infrastructures. Designed for mission-critical reliability, it supports redundant power supplies and features an integrated Redundancy Manager to ensure seamless network recovery. The device functions as a PROFINET IO device and includes robust network management features, an error signaling contact with a set button, and optional C-plug support for simplified configuration and device replacement.

Features

  • Media Flexibility: 2x RJ45 (10/100 Mbit/s) and 2x Multimode BFOC fiber optic ports.
  • Network Reliability: Integrated Redundancy Manager for rapid failover and redundant power supply inputs.
  • Real-Time Performance: Optimized for PROFINET IRT applications requiring deterministic communication.
  • Diagnostics: Error signaling contact with manual set button for immediate network fault notification.
  • Configuration: Support for C-plug for convenient data storage and device swapping.

Applications

  • PROFINET-based industrial automation networks
  • High-availability motion control systems
  • Industrial backbones requiring fiber optic long-distance connectivity
  • Environments demanding deterministic real-time data exchange

Technical Specifications

Feature Specification
Manufacturer Siemens
Brand SCALANCE
Model 6GK5202-2BB00-2BA3
Product Type Managed IE IRT Switch
Product Phase Phase-Out
Ports (RJ45) 2 x 10/100 Mbit/s
Ports (Fiber) 2 x 100 Mbit/s Multimode BFOC
Weight 0.90 kg
Dimensions 6.00 x 12.40 x 12.50 cm
Commodity Code 85176200
Export Control (ECCN) 5A002

Installation Guidelines

  • Mounting: Designed for standard DIN rail or wall mounting within an industrial control cabinet.
  • Powering: Connect redundant power supplies to the designated terminals to maintain network availability during a single power source failure.
  • Grounding: Ensure the switch chassis is correctly connected to the common system ground to minimize electromagnetic interference (EMI).
  • Fiber Handling: When connecting BFOC fiber cables, ensure the connectors are clean and free of dust to maintain signal integrity; avoid bending cables beyond the specified radius.
  • Configuration: Utilize the C-plug for automated configuration backup, which allows for fast device replacement without needing manual network parameter re-entry.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What does IRT stand for in this switch model?
IRT stands for Isochronous Real-Time, a high-performance communication standard used in PROFINET networks to ensure deterministic data transfer.
Can I use this switch for fiber optic connections?
Yes, this model features two 100 Mbit/s multimode BFOC (ST) ports specifically for fiber optic communication.
What is the purpose of the C-plug?
The C-plug is an optional memory module that stores the device configuration, allowing for simple, fast replacement of the switch without requiring external programming tools.
Does this switch support network redundancy?
Yes, it features a redundant power supply input and an integrated Redundancy Manager to support rapid recovery in ring topologies.
