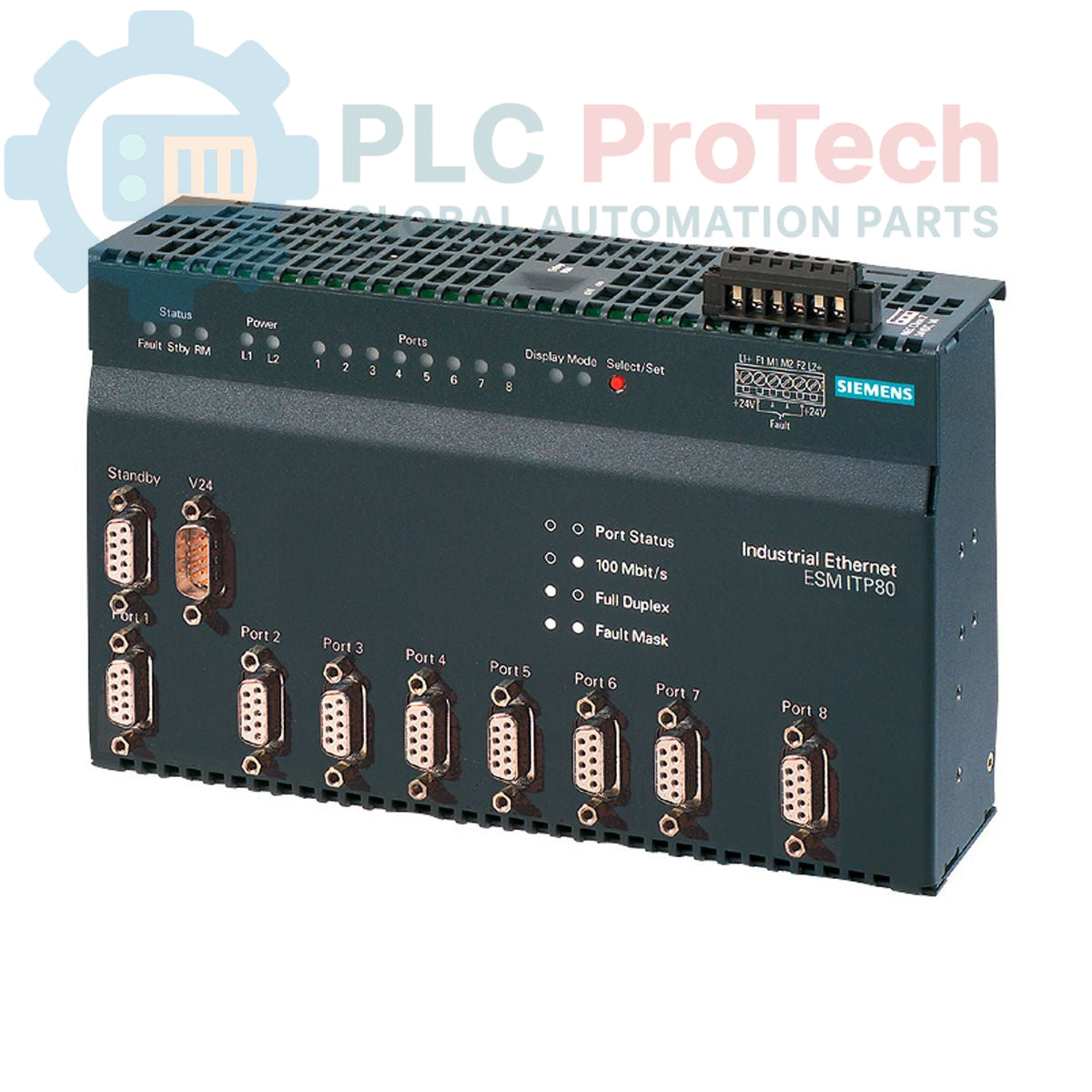

Siemens 6GK1105-3AA10 SIMATIC NET ESM ITP80 Electrical Switch Module

SKU 6GK1105-3AA10

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6GK1105-3AA10
  • Origin Germany
  • Product Type: Digital Modules
  • Barcode: 85176200
  • Payment: T/T, Western Union
  • Weight: 2.1 kg
  • Dimensions: 21.70cm x 6.90cm x 15.65cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Industrial Ethernet Switch Modules
Quantità
Call sales Contact

Product Description

The 6GK1105-3AA10 is an ESM ITP80 Electrical Switch Module designed for high-availability industrial network communication. This module features eight ITP (Industrial Twisted Pair) ports supporting 10/100 Mbit/s transmission speeds and includes eight integrated digital inputs for monitoring or control tasks. Engineered for demanding environments, it supports a redundant 24 V DC power supply and features an integrated redundancy manager to ensure stable network operation, complemented by comprehensive network management capabilities.

Features

  • Eight ITP-ports with 10/100 Mbit/s transfer rates.
  • Eight integrated digital inputs for versatile signal processing.
  • Redundant 24 V DC power supply infeed for increased reliability.
  • Integrated redundancy manager for high-availability network topologies.
  • Supports advanced network management functions.
  • Robust design with an ambient operating temperature capability up to +55 degC.

Applications

  • Industrial Ethernet network infrastructure for manufacturing plants.
  • Distributed control system (DCS) communication backbone.
  • Network redundancy management in automation cells.
  • Remote monitoring and data acquisition systems requiring digital I/O.

Technical Specifications

Parameter Specification
Manufacturer Siemens
Brand SIMATIC
Product Range NET
Module Type Digital Module / Electrical Switch Module
Ports 8 x ITP (10/100 Mbit/s)
Digital Inputs 8
Power Supply Redundant 24 V DC
Max. Ambient Temperature +55 degC
Dimensions 21.70 cm x 6.90 cm x 15.65 cm
Weight 2.10 kg
Commodity Code 85176200

Installation Guidelines

  • DIN Rail Mounting: Ensure the module is securely mounted on a standard 35 mm DIN rail to maintain structural integrity and proper grounding.
  • Power Connection: Connect the redundant 24 V DC power supply to the designated terminals to ensure uninterruptible operation.
  • Cooling: Maintain sufficient clearance around the module to allow for proper airflow, ensuring the ambient temperature does not exceed +55 degC.
  • Cable Routing: Use shielded industrial-grade cables for ITP connections to mitigate EMI/RFI interference in high-noise environments.
  • Communication: Verify that the redundancy manager settings are configured correctly to match the network topology requirements.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the 6GK1105-3AA10 module?
The module acts as an electrical switch (ESM ITP80) for industrial Ethernet networks, providing 8 ITP ports for data communication and 8 digital inputs for I/O tasks.
Does this module support power redundancy?
Yes, it supports a redundant 24 V DC power supply infeed to ensure continued operation in the event of a single power source failure.
What is the maximum operating ambient temperature for this device?
The module is designed to operate in ambient temperatures up to +55 degC.
Can this switch be used in redundant network configurations?
Yes, it features an integrated redundancy manager which allows it to be used in high-availability network topologies.
