Description

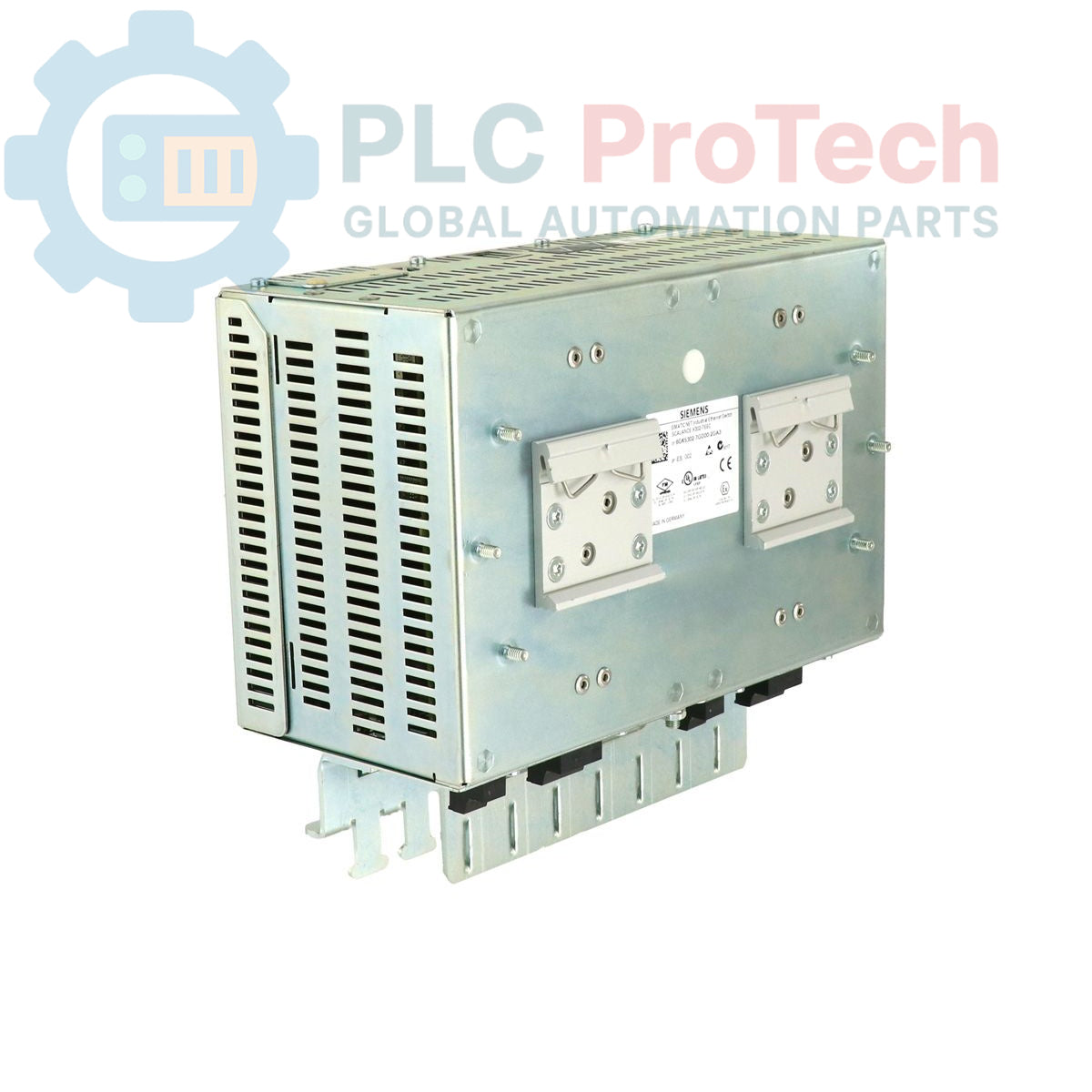

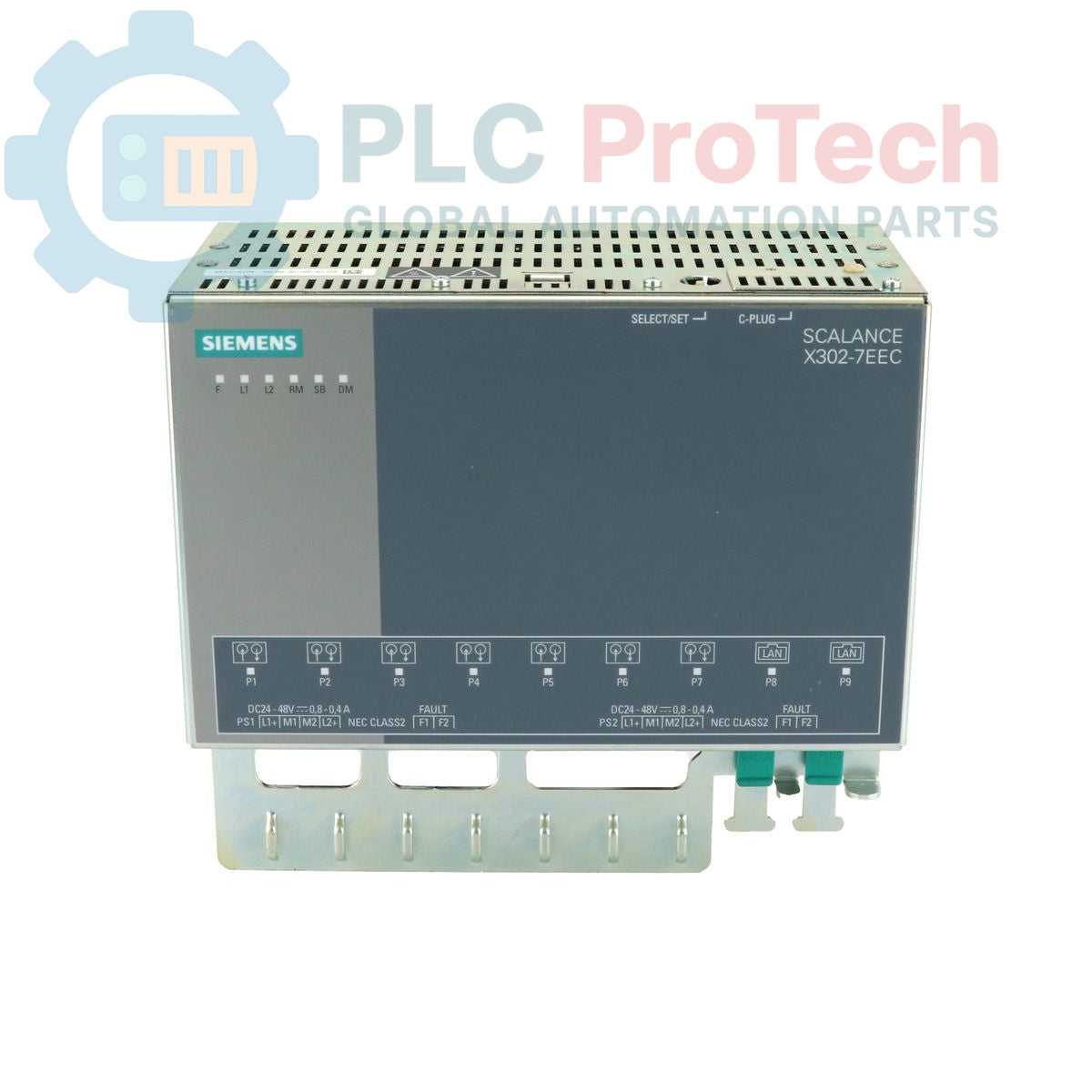

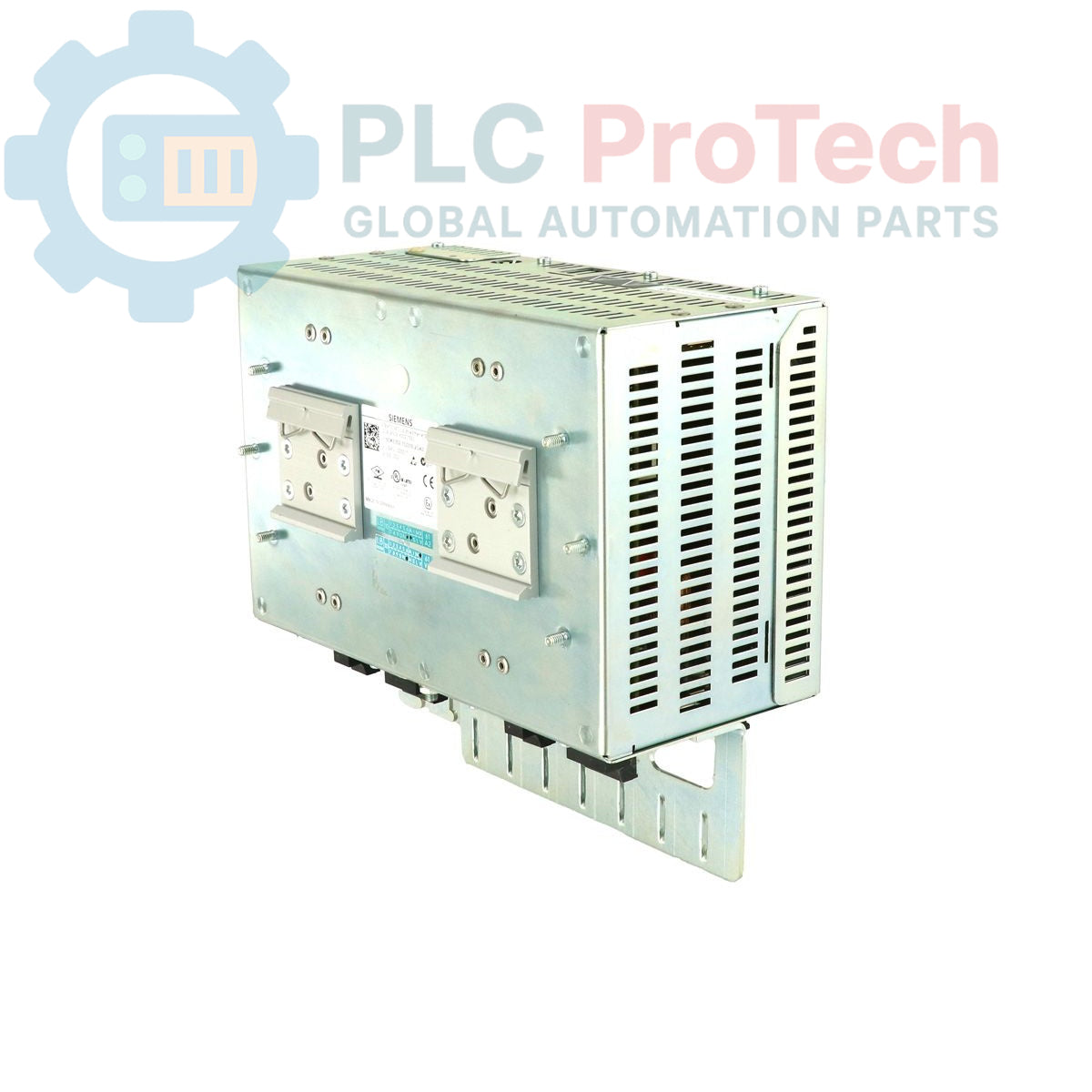

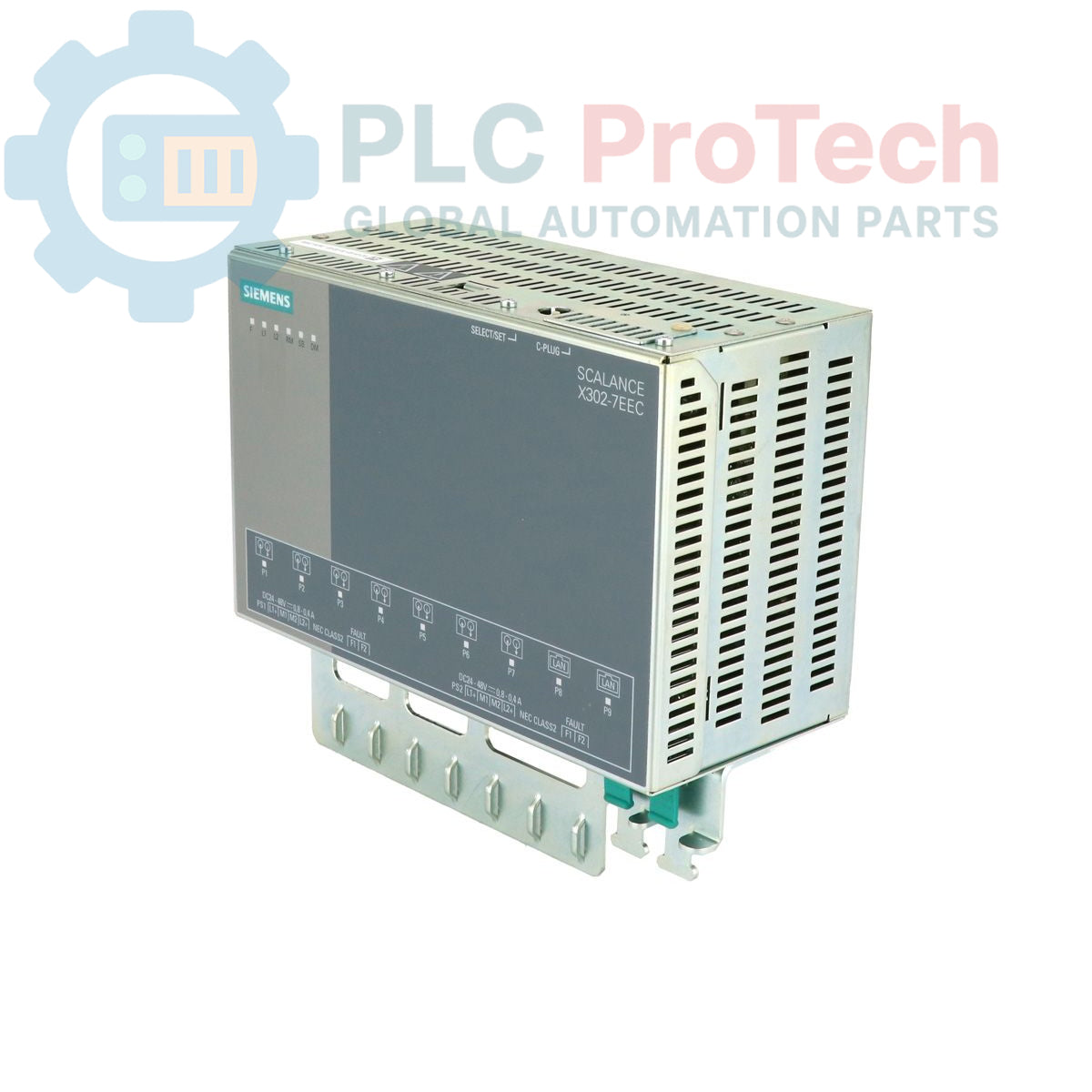

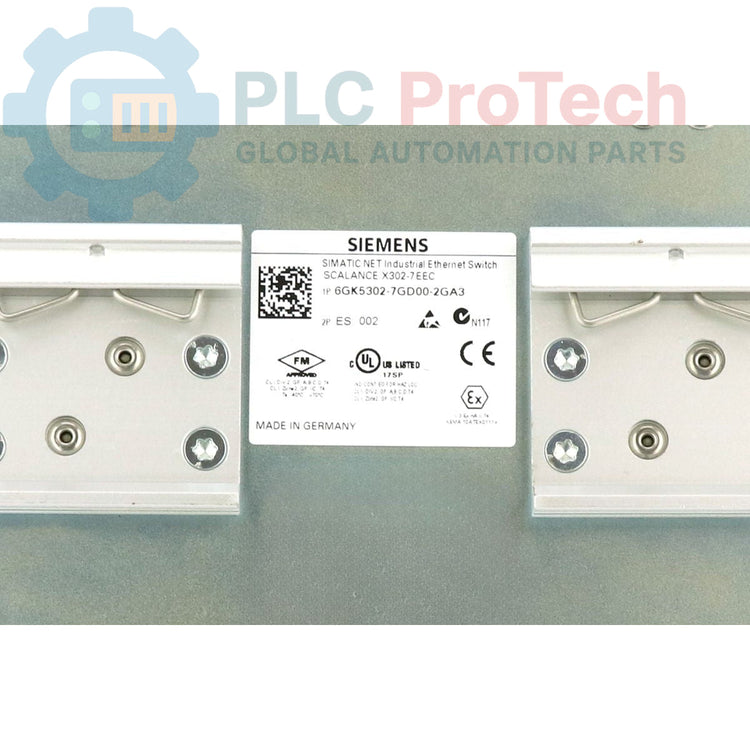

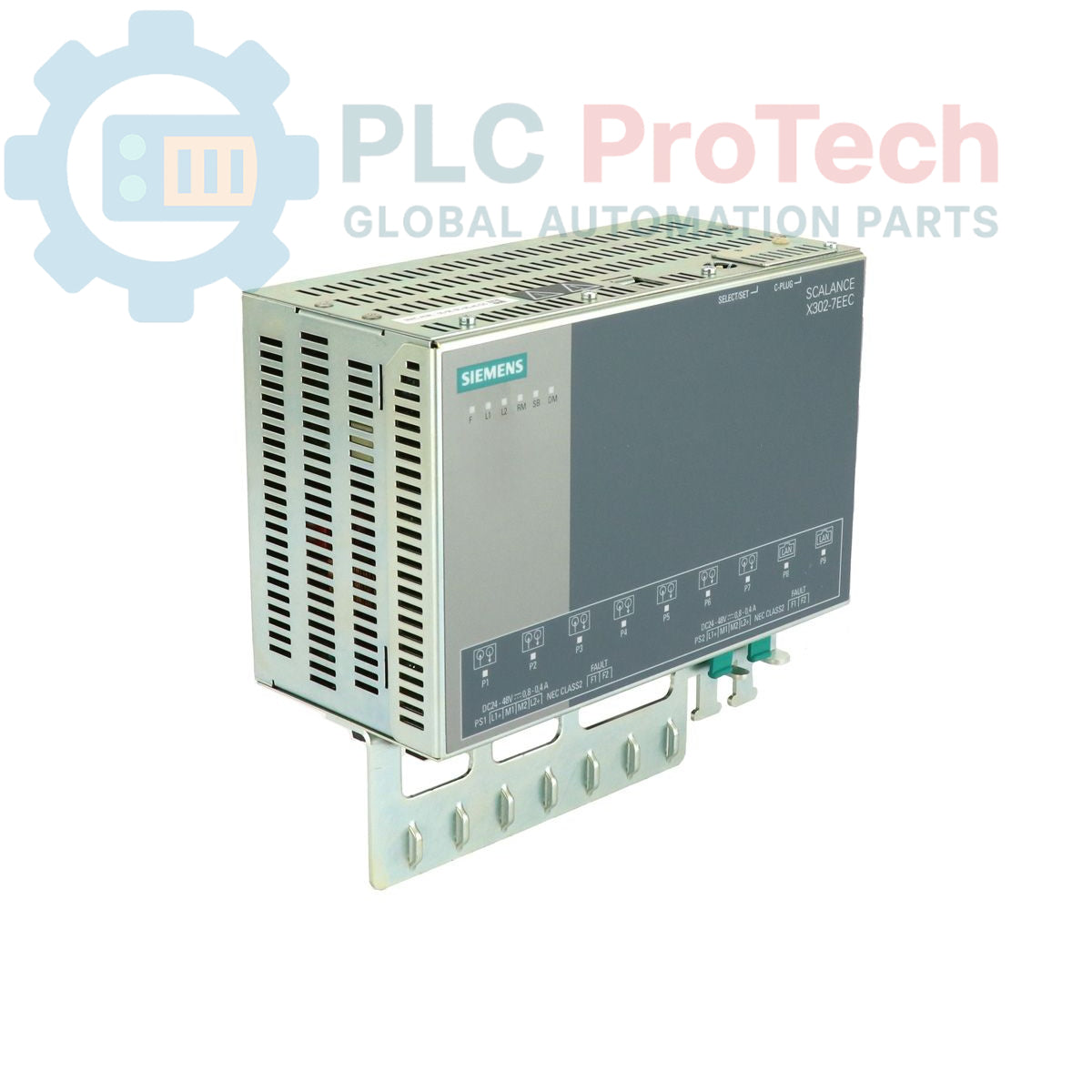

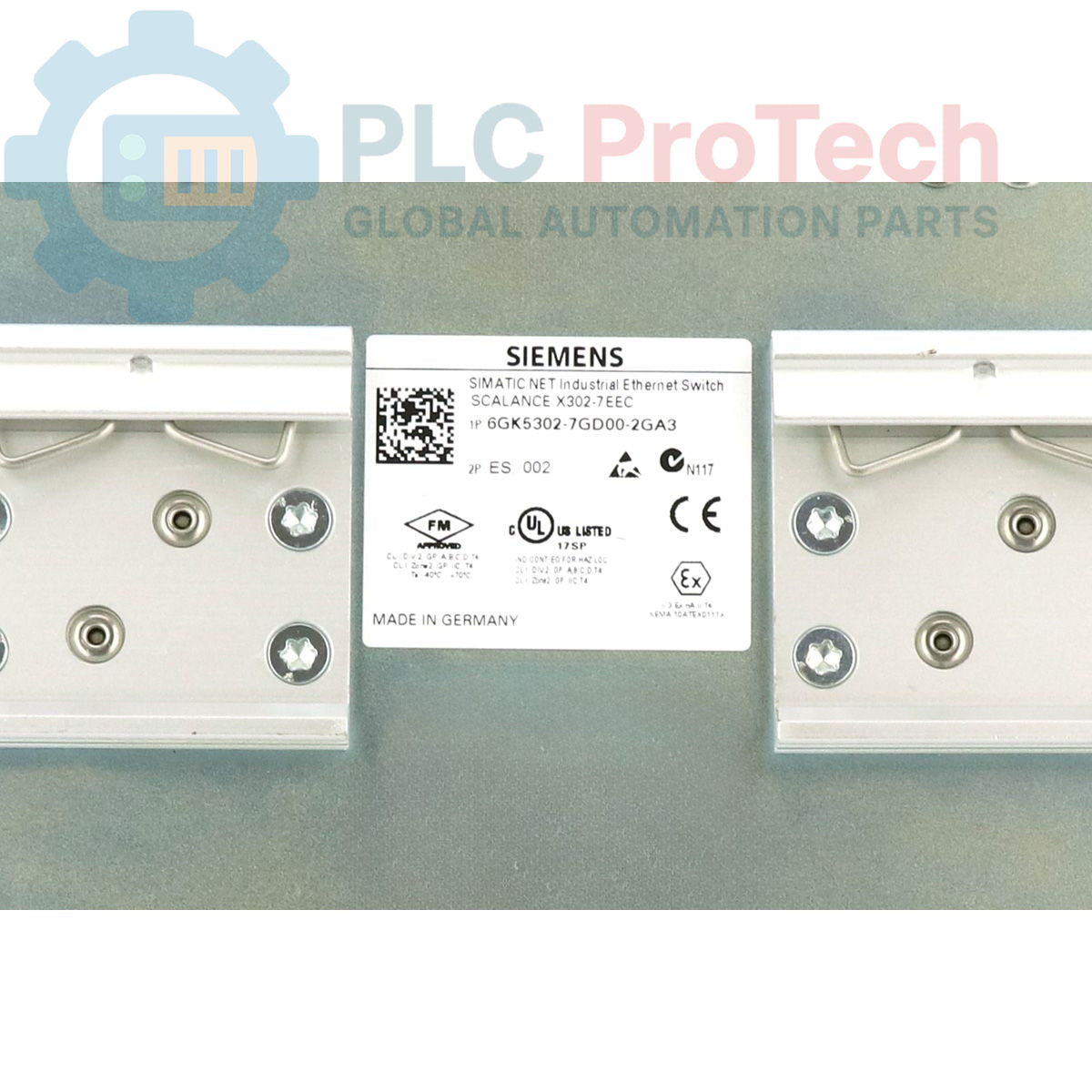

The Siemens 6GK5302-7GD00-2GA3 is a compact, managed Industrial Ethernet (IE) switch from the SCALANCE X302-7EEC series. This device is engineered for industrial network applications, offering a versatile port configuration including two 10/100/1000 Mbit/s RJ45 ports and seven 100 Mbit/s LC Fiber Optic (FO) ports. It functions as a PROFINET IO device and incorporates network management capabilities, an integrated redundancy manager, and support for standard office features such as RSTP, VLAN, and IGMP. Diagnostic feedback is provided via LED indicators and an error signaling contact, with configuration options accessible through a select/set pushbutton. Designed for robust industrial environments, the switch features a 24 V DC redundant power supply unit and conformal coating, with a C-plug included in the scope of delivery.

Features

• Managed Industrial Ethernet switch functionality
• 2x 10/100/1000 Mbit/s RJ45 ports
• 7x 100 Mbit/s LC Fiber Optic (FO) ports
• PROFINET IO device support
• Integrated redundancy manager
• Supports office features (RSTP, VLAN, IGMP)
• LED diagnostics and error signaling contact
• Select/set pushbutton for configuration
• 24 V DC redundant power supply capability
• Conformal coating for environmental protection
• C-plug included for easy replacement

Applications

• Industrial Ethernet networks requiring managed switching and diagnostic features.
• Integration into PROFINET IO systems for data exchange and control.
• Applications demanding high availability through network redundancy.
• Deployment in environments where fiber optic communication is beneficial for extended distances or electrical isolation.
• Use in harsh industrial settings due to conformal coating.

Technical Specifications

Connections / Interfaces

• RJ45 Ports: For standard Ethernet connections at 10/100/1000 Mbit/s.
• LC Fiber Optic Ports: For 100 Mbit/s fiber optic Ethernet connections.
• Power Supply Terminals: For redundant 24 V DC power input.
• Error Signaling Contact: For external fault indication.
• Select/Set Pushbutton: For local device configuration and diagnostics.

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected before mounting or wiring the device.
2. Mounting: Securely mount the SCALANCE switch in a suitable industrial enclosure or on a DIN rail, ensuring adequate ventilation.
3. Power Connection: Connect the 24 V DC redundant power supply to the designated terminals, observing correct polarity. Utilize both inputs for redundancy where required.
4. Grounding: Establish a robust protective earth (PE) connection to the device's grounding terminal to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Cabling: Connect RJ45 Ethernet cables to the respective ports. For fiber optic connections, use appropriate LC fiber optic cables, ensuring proper handling to prevent damage.
6. Configuration: Perform initial configuration using the select/set pushbutton or via network management tools to integrate the switch into the existing network infrastructure.
7. Verification: After installation and power-up, verify LED diagnostics for correct operation and network status.
