Description

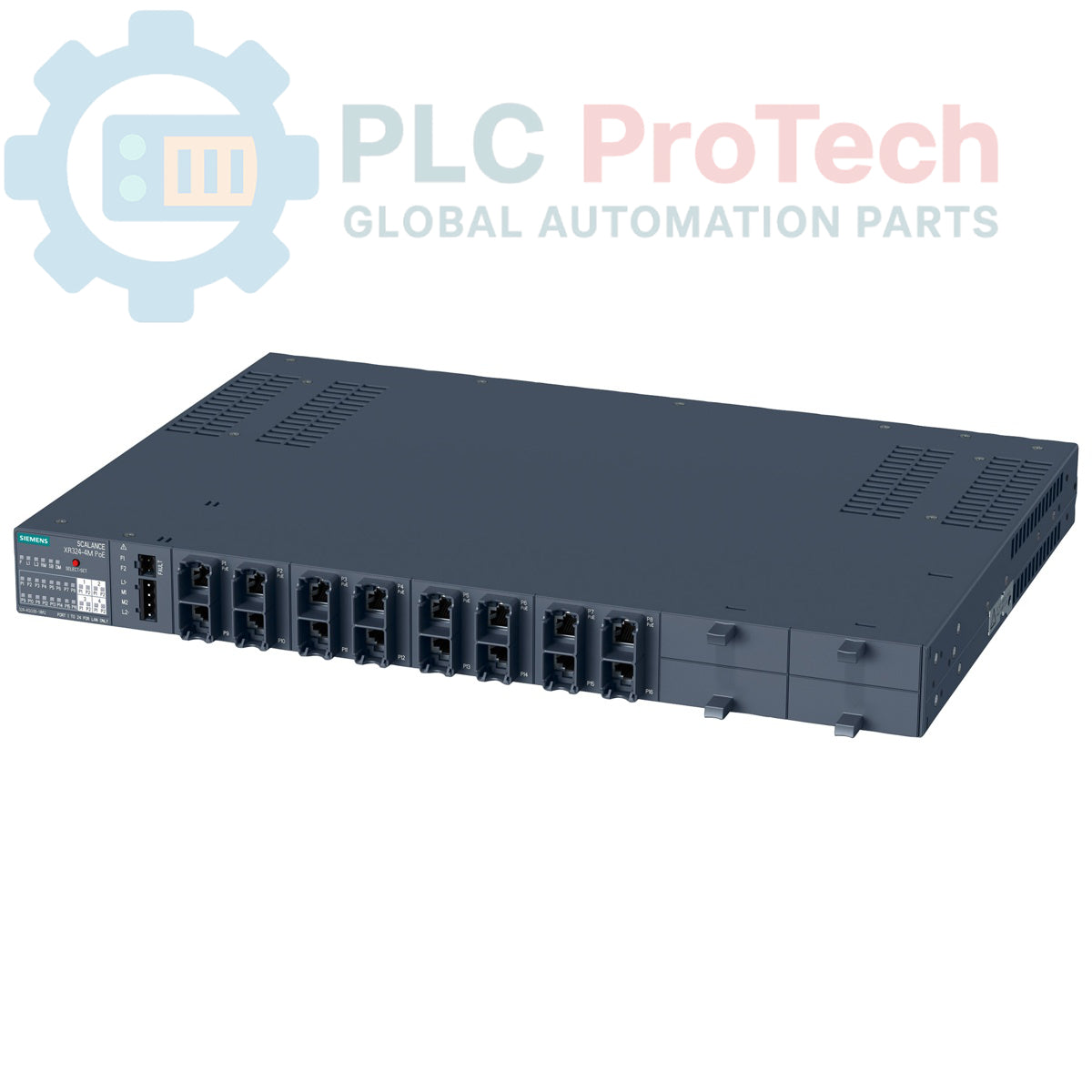

The Siemens 6GK5324-4QG10-1AR2 is a SCALANCE XR324-4M PoE, a managed Industrial Ethernet switch designed for 19-inch rack mounting. This device provides extensive connectivity with a total of 16 fixed RJ45 ports, eight of which support Power over Ethernet (PoE), and four slots for optional 2-port media modules for fiber optic or additional electrical connections. It operates as a PROFINET IO device and is powered by a 24 V DC supply. Diagnostics are facilitated through front-facing LEDs, a select/set pushbutton, and an error signaling contact for integration into plant monitoring systems.

Features

• Managed Layer 2 switching capabilities
• Standard 19-inch rack-mount form factor
• 8x 10/100/1000 Mbit/s RJ45 ports with Power over Ethernet (PoE)
• 8x 10/100/1000 Mbit/s standard RJ45 ports
• 4x slots for 2-port 10/100/1000 Mbit/s media modules (electrical or optical)
• Integrated PROFINET IO device functionality
• Front-panel LED diagnostics for status monitoring
• Error signaling contact for fault reporting
• Operates on a 24 V DC nominal power supply

Applications

• Machine-level networking in manufacturing
• Plant-wide network backbones
• Control cabinet installations in process automation
• Industrial data centers and server rooms
• Applications requiring PoE for devices like IP cameras or VOIP phones

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet or rack is fully de-energized and locked out before beginning work. Verify the absence of voltage.
2. 2 Securely mount the SCALANCE switch into the 19-inch rack using the appropriate mounting hardware. Ensure adequate ventilation space around the unit.
3. 3 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the switch chassis. This is critical for safety and noise immunity.
4. 4 Connect the 24 V DC power supply wiring to the power input terminals, observing correct polarity. Use appropriately sized conductors for the load.
5. 5 Connect network devices using shielded Ethernet cables. Connect the error signaling contact wiring if required by the application.
6. 6 After all connections are secure, remove LOTO devices and re-energize the cabinet. Verify the switch powers on and that status LEDs indicate normal operation.
