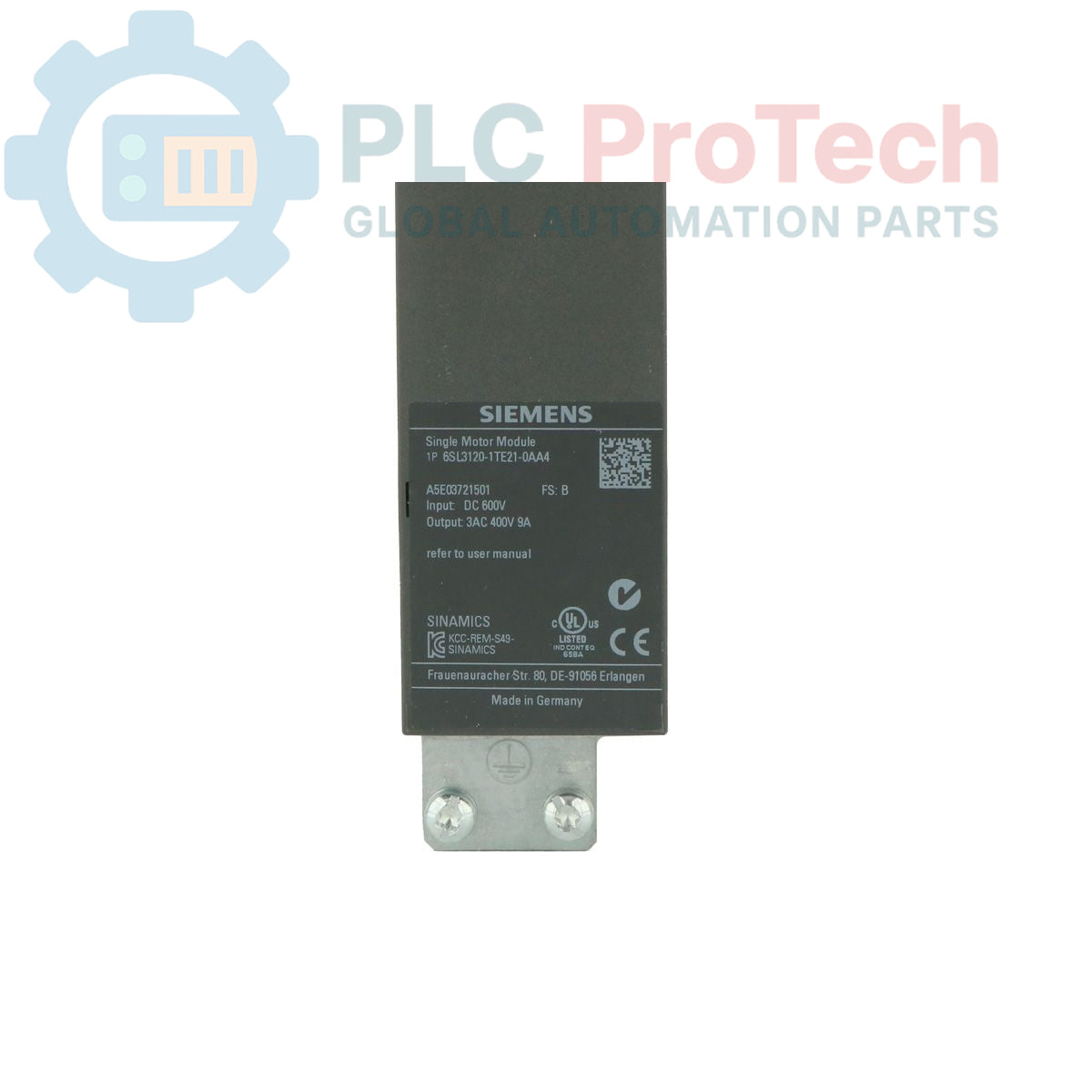

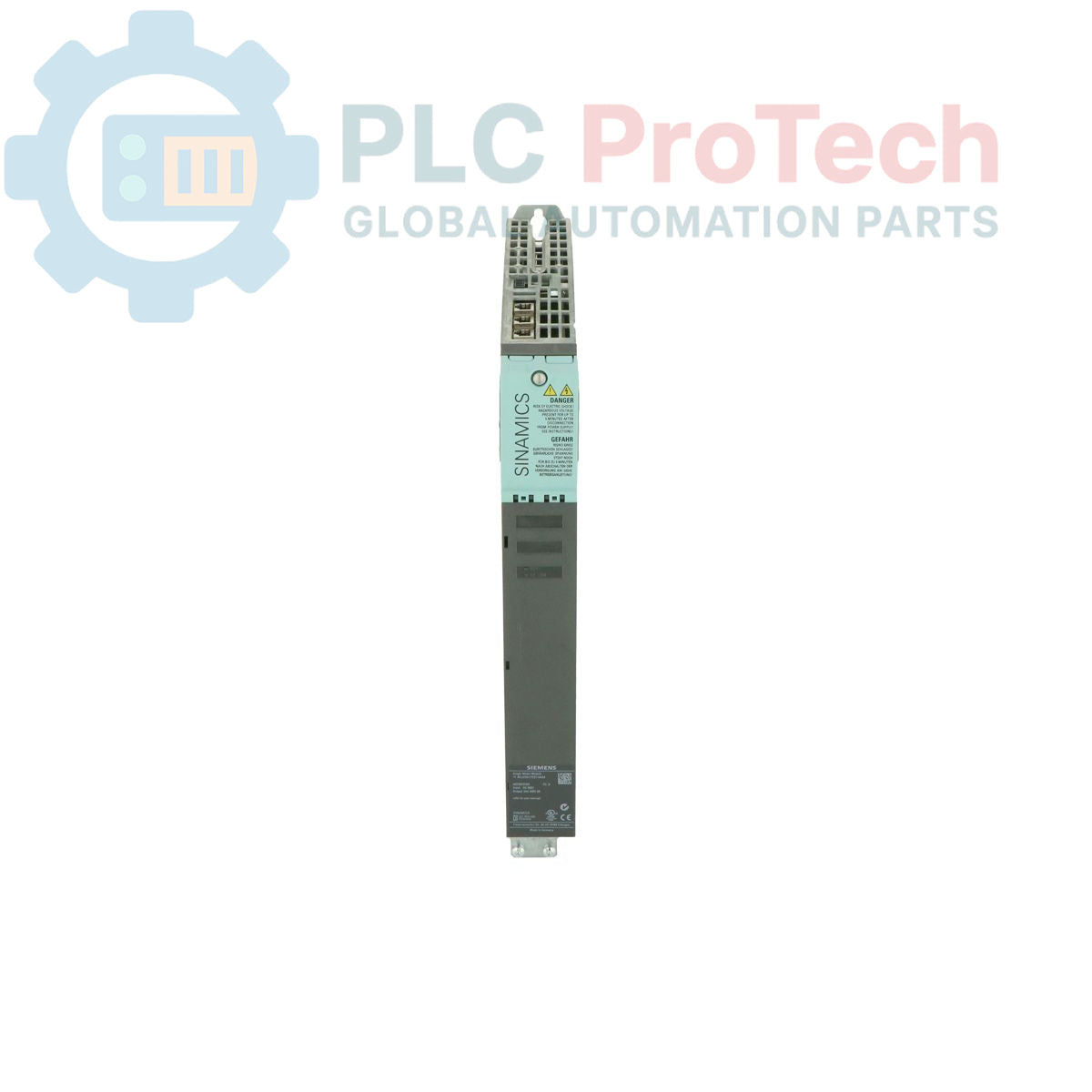

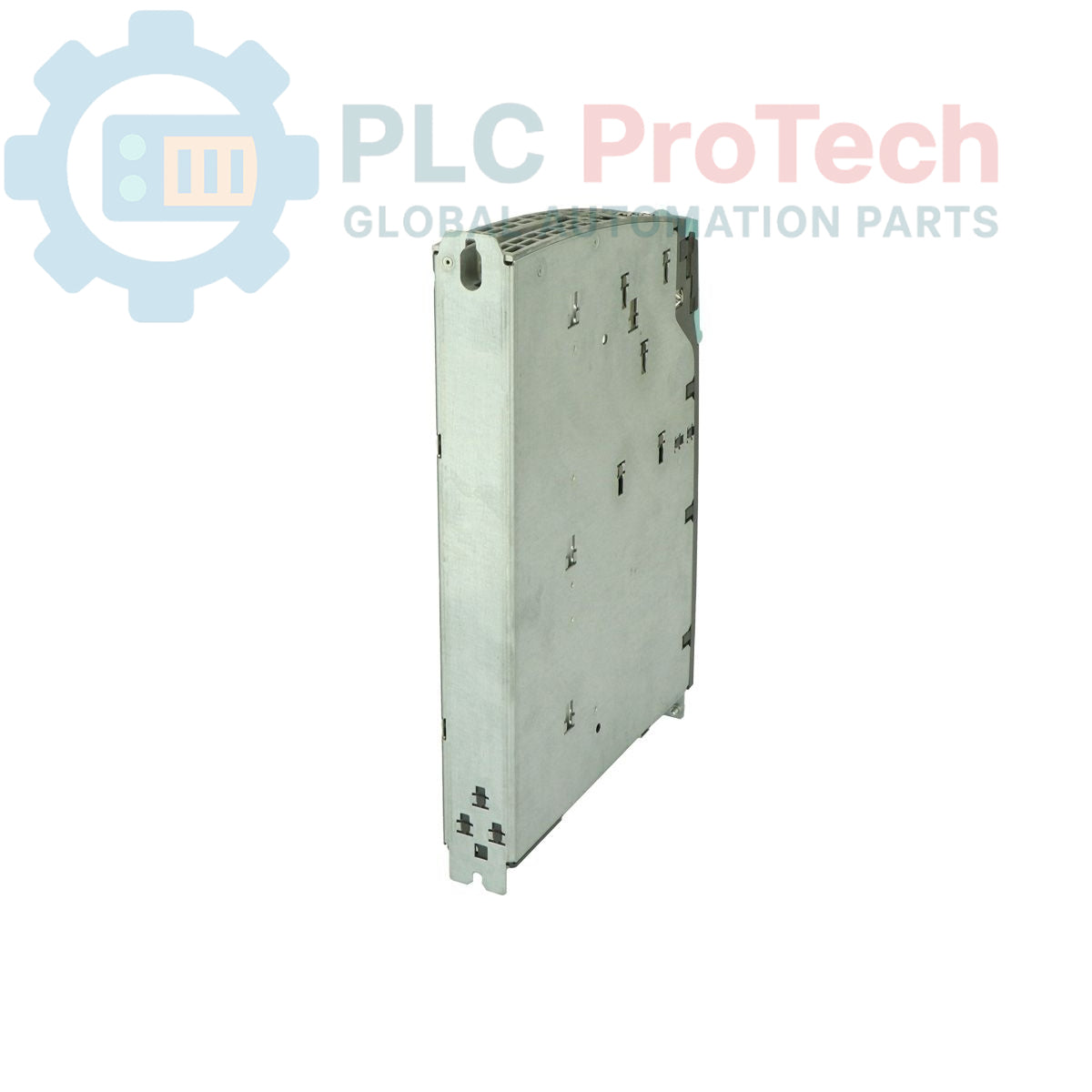

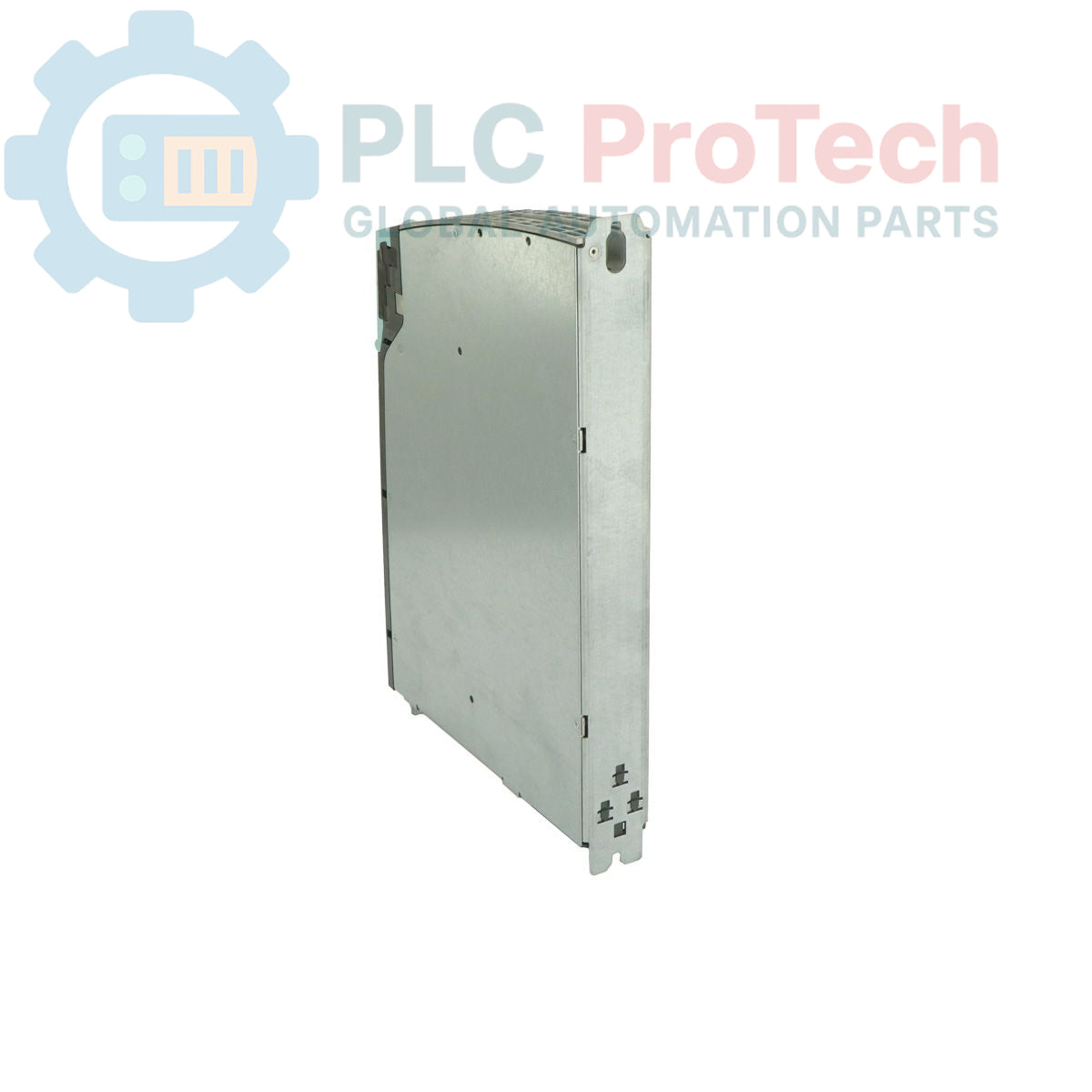

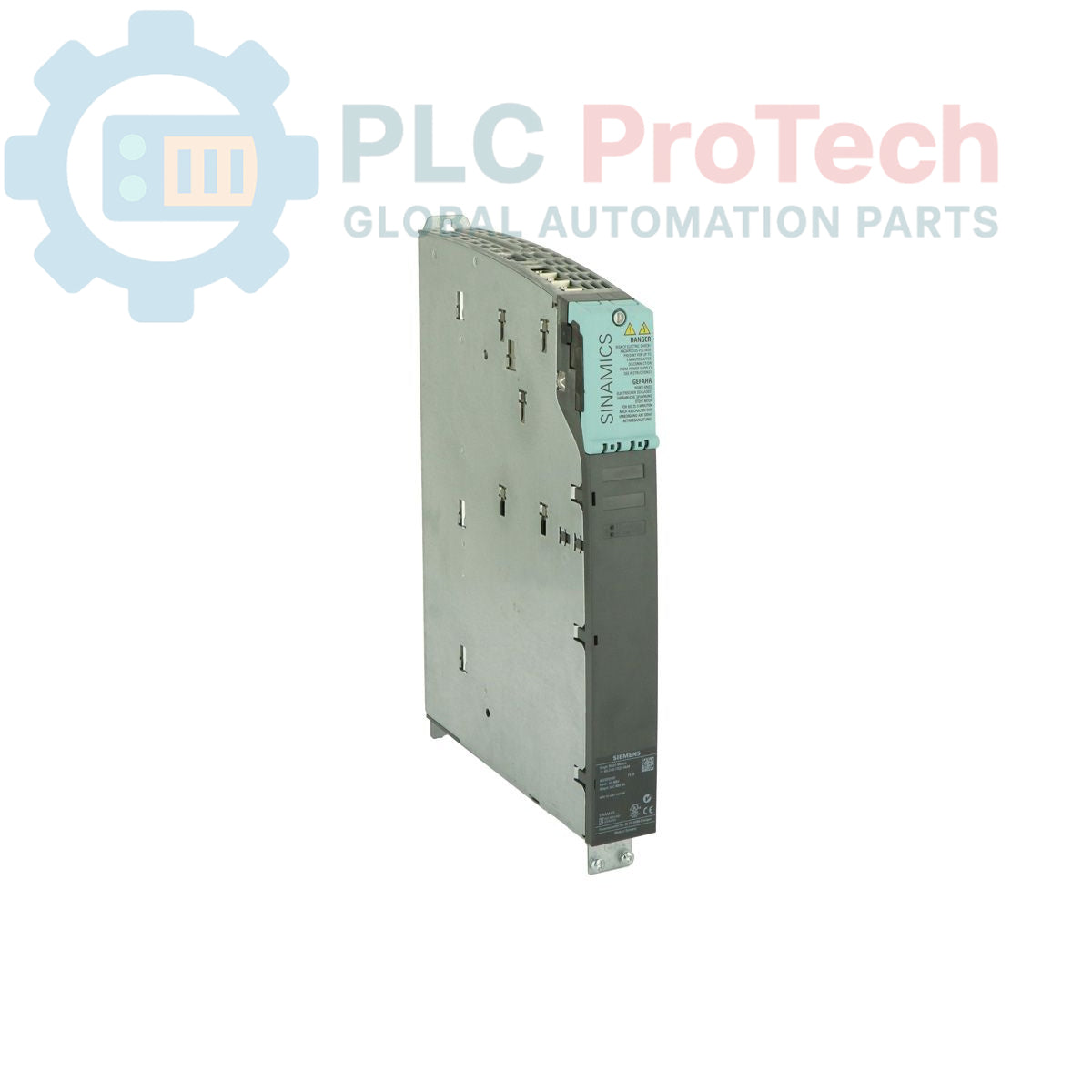

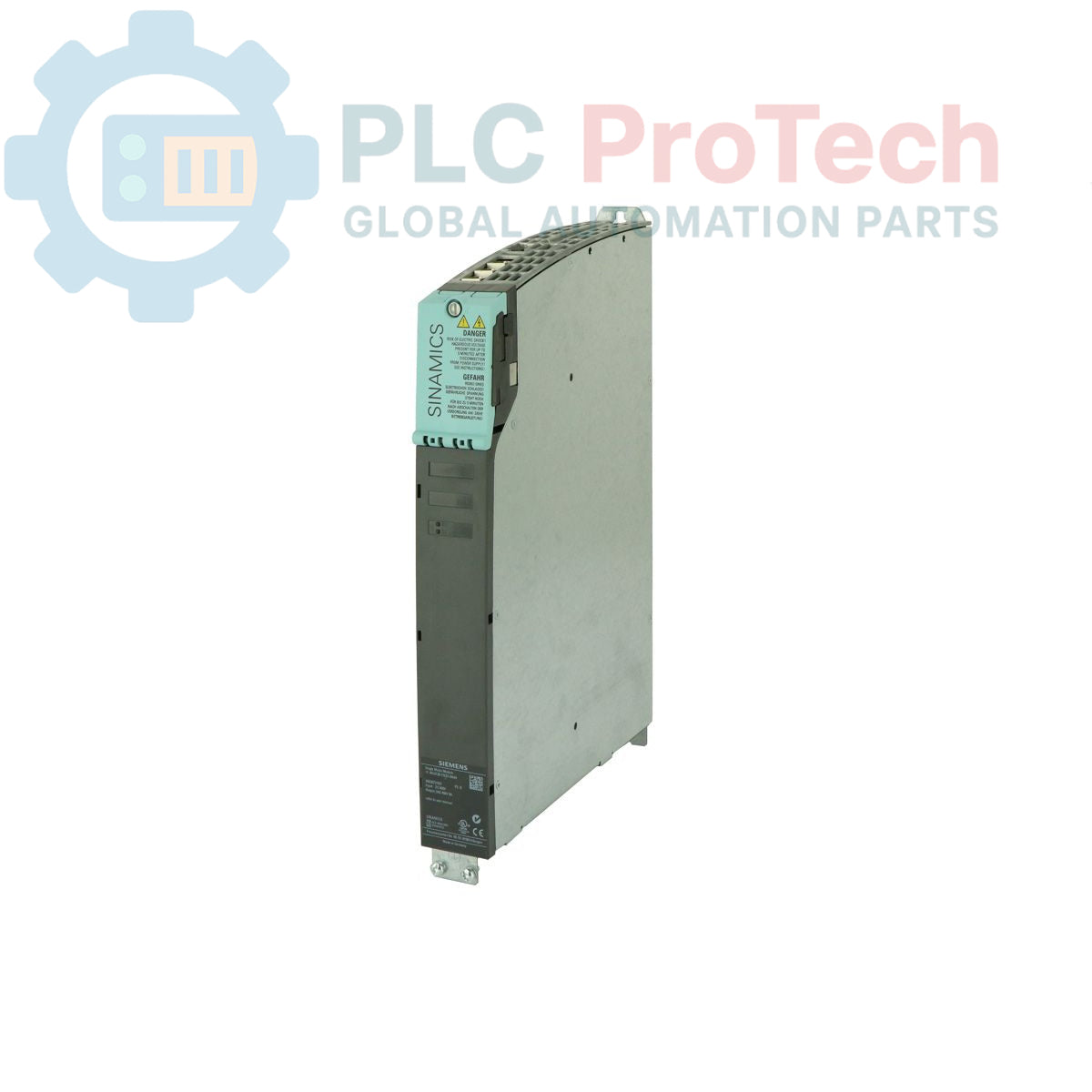

Siemens 6SL3120-1TE21-0AA4 SINAMICS S120 Single Motor Module

SKU 6SL3120-1TE21-0AA4

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6SL3120-1TE21-0AA4
Origin Germany
Product Type: Single Motor Modules
Barcode: 85044095
Payment: T/T, Western Union
Weight: 0.005 kg
Dimensions: 35.60cm x 5.10cm x 30.50cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 6SL3120-1TE21-0AA4 is a high-performance SINAMICS S120 Single Motor Module engineered for precision motion control in industrial applications. Designed with a compact booksize architecture, this module operates with a 600 V DC input and provides a 400 V 3-phase AC output at a nominal current of 9 A. To ensure optimal performance and energy efficiency, it utilizes optimized pulse patterns and features efficient internal air cooling. This module is built for safety and reliability, supporting extended Safety Integrated functions and including a DRIVE-CLiQ cable for streamlined communication within the S120 drive system.

Features

Compact booksize construction for space-optimized cabinet mounting
Nominal output: 9 A at 400 V 3-phase AC
Input voltage: 600 V DC
Internal air cooling system
Optimized pulse patterns for enhanced efficiency
Supports extended Safety Integrated functions
Includes DRIVE-CLiQ cable for rapid system integration

Applications

High-precision multi-axis machine tools
Packaging and printing machinery
Advanced production line automation
Material handling and robotics
Complex drive systems requiring safety-critical functionality

Technical Specifications

Feature	Specification
Manufacturer	Siemens
Brand	Sinamics
Subrange	S120
Product Type	Single motor modules
Supply Voltage	510-720 V DC
Nominal Output Current	9 A
Max. Output Frequency	600 Hz
Dimensions	35.60 cm x 5.10 cm x 30.50 cm
Weight	5.00 kg
Commodity Code	85044095
ECCN	EAR99
Product Phase	Phase-Out

Installation Guidelines

Mounting: Install the module in a vertical orientation within a clean, ventilated control cabinet. Ensure the 35.6 cm x 5.1 cm x 30.5 cm clearance is maintained to facilitate optimal internal air cooling.
Wiring: Use shielded motor cables to ensure electromagnetic compatibility (EMC). Connect the included DRIVE-CLiQ cable directly to the corresponding Control Unit interface.
Safety: Configure the Safety Integrated functions via the drive software to ensure compliance with relevant machinery safety standards.
Grounding: Connect the module's ground terminal securely to the cabinet's central grounding rail to minimize interference and ensure operational safety.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the 6SL3120-1TE21-0AA4?

This module is a single motor module for the SINAMICS S120 drive system, providing controlled power to a single AC motor from a common DC link.

Does this module support safety features?

Yes, it supports extended Safety Integrated functions for enhanced machinery safety.

What is the physical size of this module?

The module measures 35.60 cm x 5.10 cm x 30.50 cm, featuring a slim booksize design.

Is the communication cable provided?

Yes, the module is supplied with a DRIVE-CLiQ cable for integration with the drive system.
