Siemens

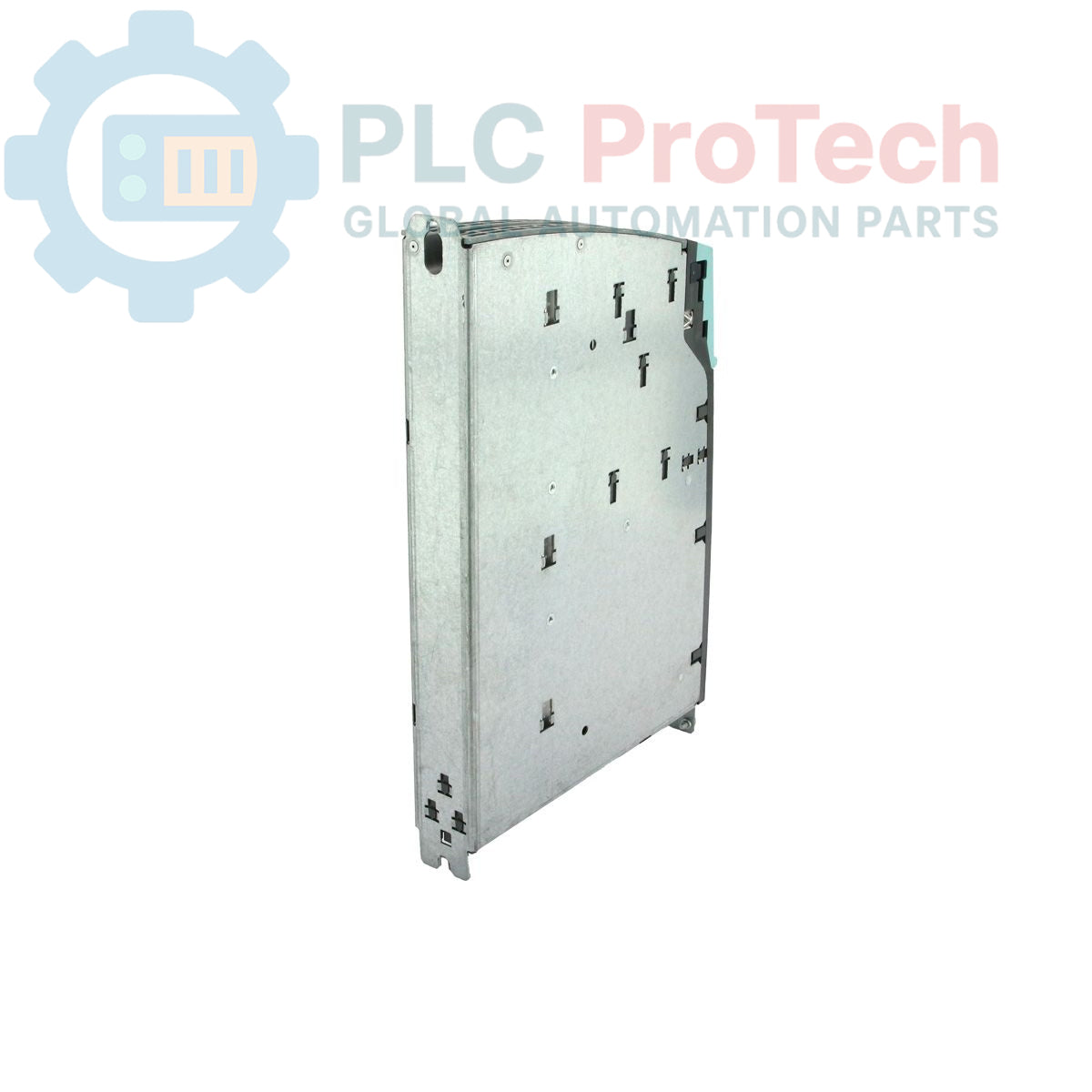

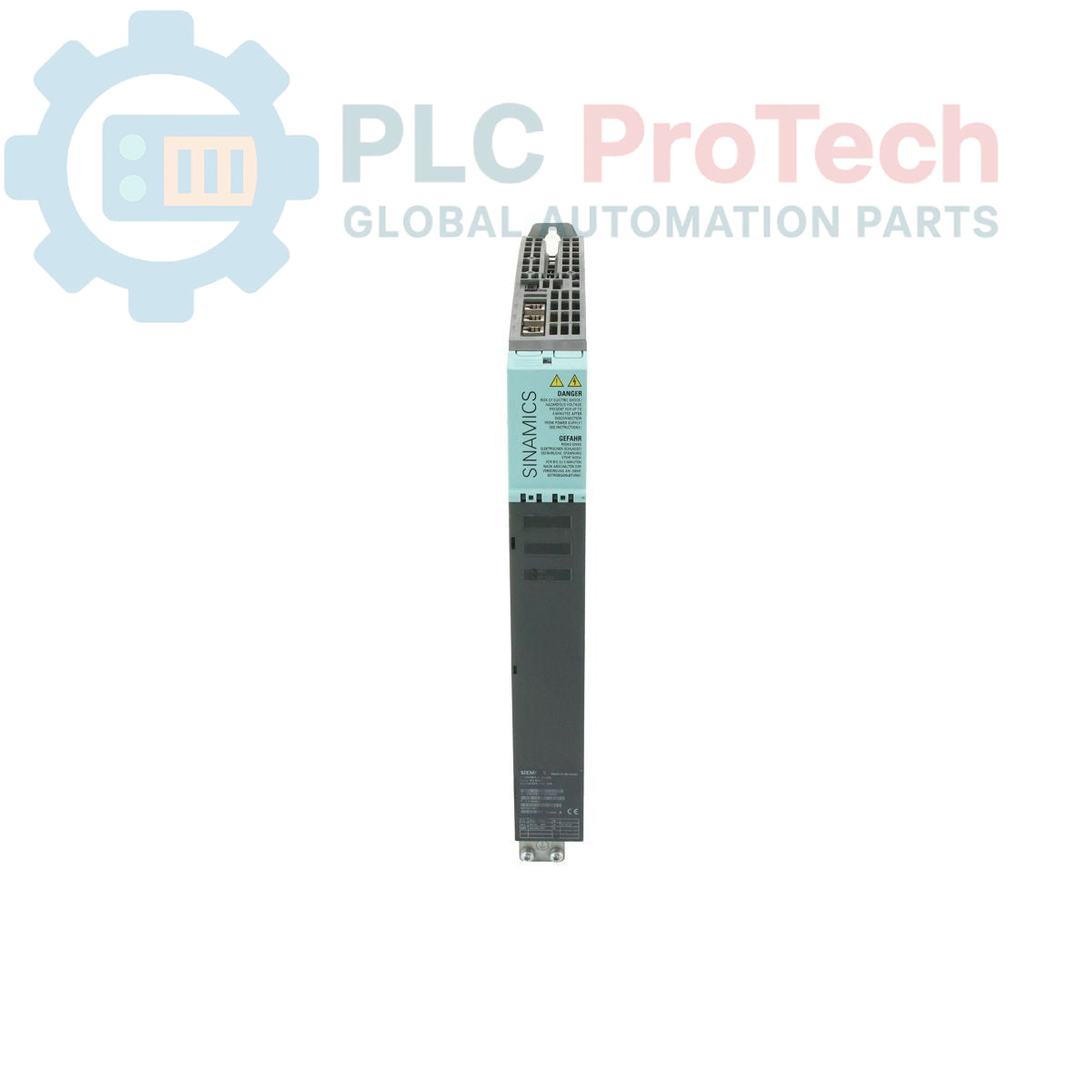

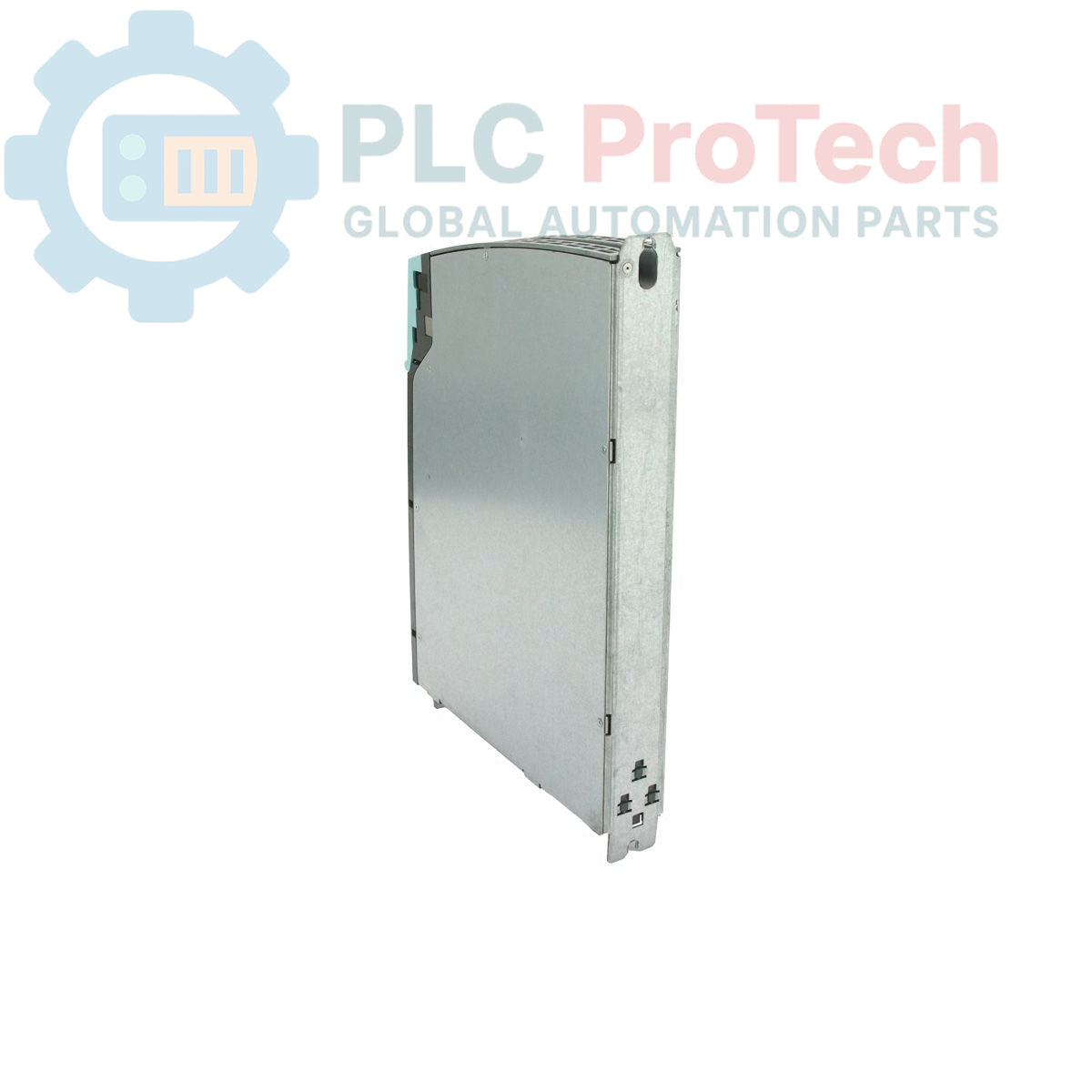

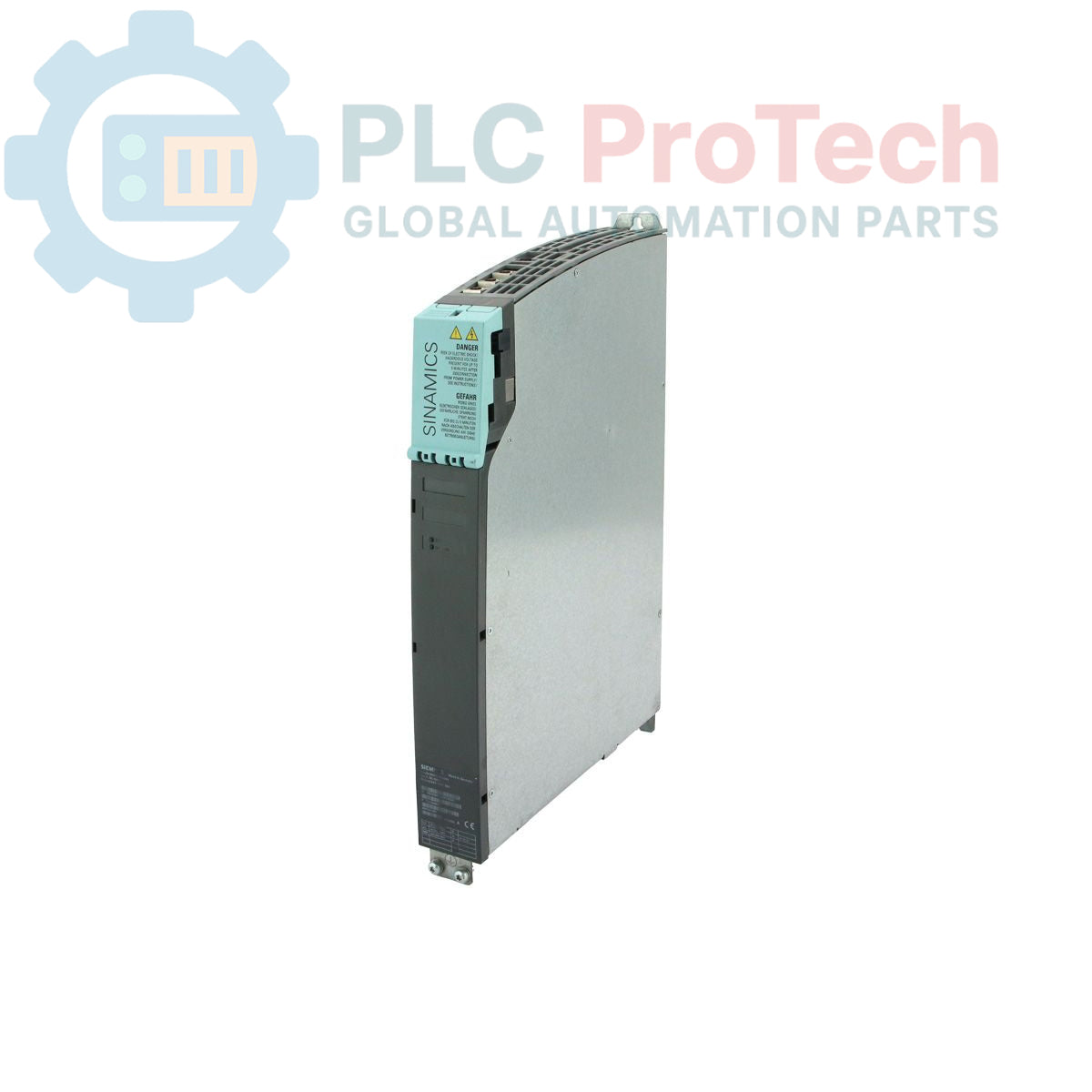

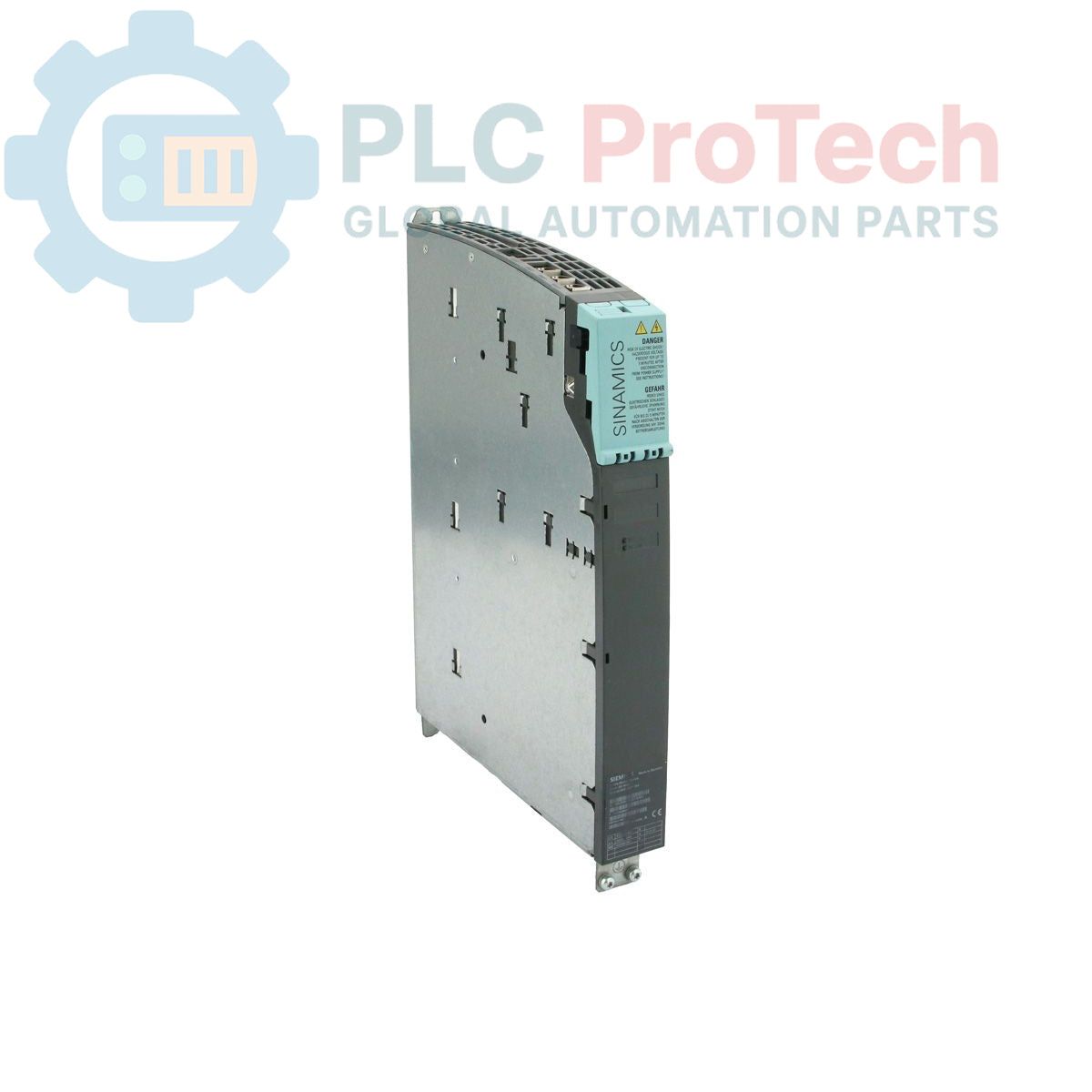

Siemens 6SL3120-1TE21-8AB0 SINAMICS Single Motor Module

SKU 6SL3120-1TE21-8AB0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6SL3120-1TE21-8AB0
Origin Germany
Product Type: Single Motor Modules
Barcode: 85044086
Payment: T/T, Western Union
Weight: 5.06 kg
Dimensions: 41.00cm x 25.00cm x 5.00cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

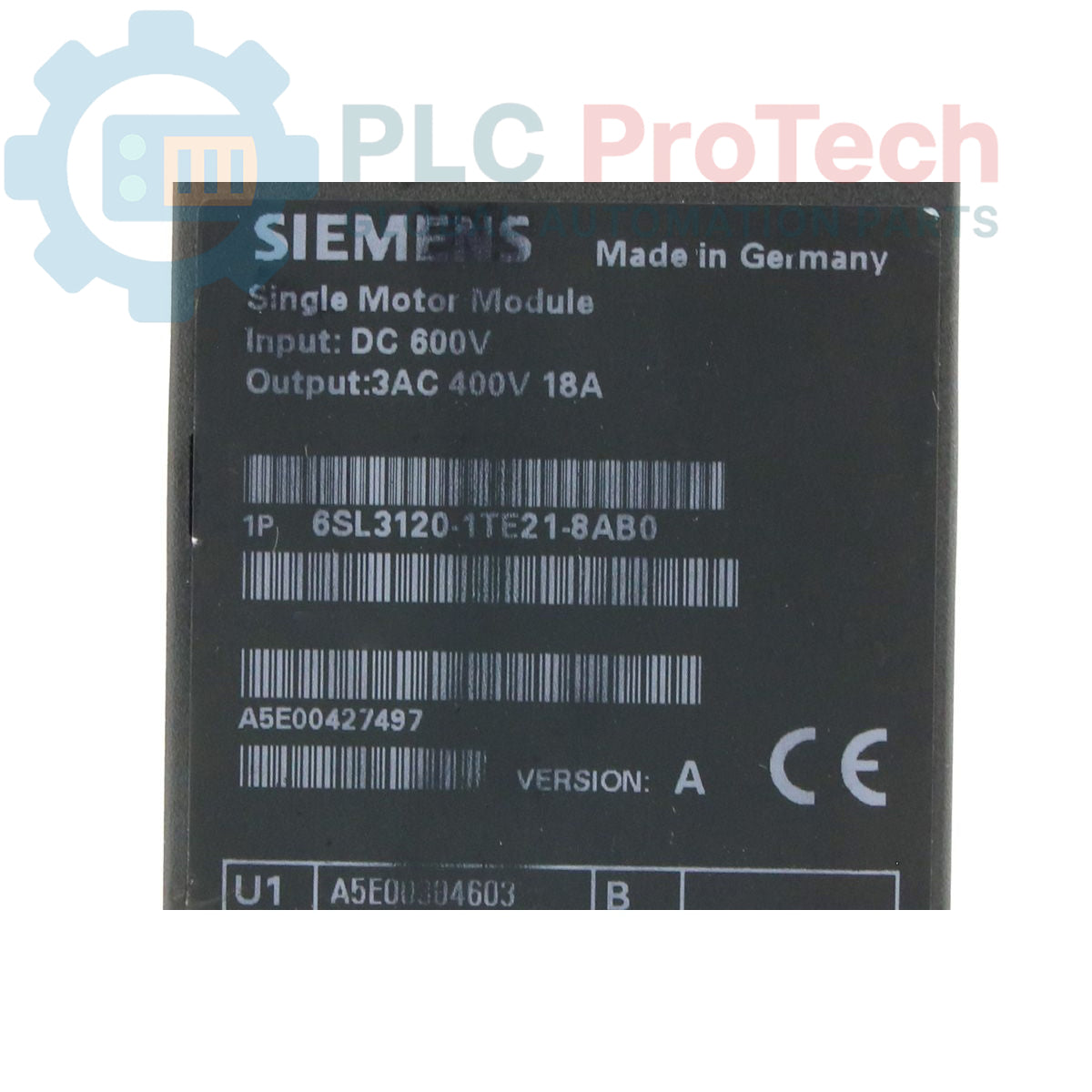

The Siemens 6SL3120-1TE21-8AB0 is a Single Motor Module from the SINAMICS S120 drive family. It is a high-performance power component designed to drive a single motor by converting a DC link voltage into a three-phase AC output. With a nominal DC input of 600 V and an output of 18 A at 400 V, this module is optimized for motion control tasks requiring precision, high dynamic response, and energy efficiency. It utilizes internal air cooling and includes a DRIVE-CLiQ interface for seamless, high-speed communication with the Control Unit.

Features

High Performance: Designed for demanding multi-axis and single-axis drive applications.
Thermal Management: Integrated internal air cooling system for reliable heat dissipation.
Communication: Includes DRIVE-CLiQ cable for intelligent, standardized connectivity within the SINAMICS ecosystem.
Durability: Features a painted finish, providing enhanced environmental protection.
Integration: Compact modular design for space-saving installation in control cabinets.

Applications

Multi-axis machine tools
Packaging and printing machinery
Industrial production line motion control
High-precision positioning systems

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Range	SINAMICS
Product Type	Single motor modules
DC Input Voltage	600 V DC
AC Output	3-Phase, 400 V
Output Current	18 A
Cooling System	Internal Air Cooling
Product Phase	Phase-out
Dimensions (cm)	41.0 x 25.0 x 5.0
Weight	5.06 kg
Commodity Code	85044086

Installation & Integration Guidelines

Mounting: Install the module in a vertical orientation within a suitable control cabinet. Ensure the cooling air intake and exhaust vents are not obstructed.
Wiring: Use screened power cables to minimize electromagnetic interference (EMI). Connect the DRIVE-CLiQ cable to the corresponding interface on the Control Unit.
DC Link: Ensure the DC link busbars are securely connected to the Line Module to facilitate power distribution.
Thermal Clearances: Maintain the minimum clearance distances above and below the module as specified in the Siemens SINAMICS S120 documentation to ensure optimal thermal performance.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the 6SL3120-1TE21-8AB0?

It acts as a single motor module for the SINAMICS S120 drive system, converting DC link voltage into three-phase AC power for motor control.

What are the electrical ratings for this module?

It accepts 600 V DC input and provides an 18 A, 3-phase 400 V output.

What cooling method does it employ?

The unit uses internal air cooling.
