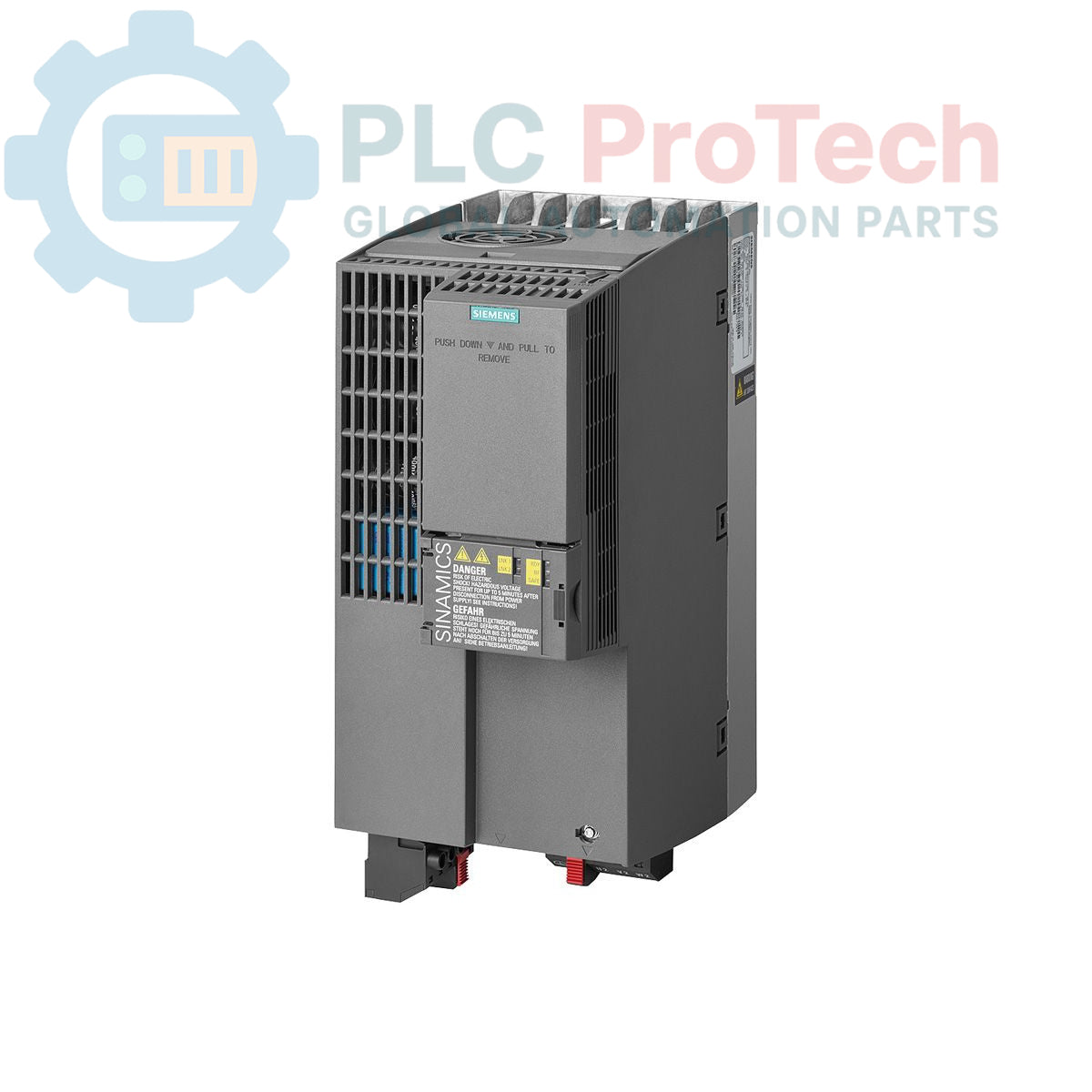

The 6SL3210-1KE23-8AF1 is a SINAMICS G120C compact variable frequency drive designed for high-efficiency motor control in industrial automation. This unit is rated for 18.5 kW applications, supporting a 150% overload capacity for 3 seconds to handle demanding startup or dynamic load conditions. It operates on a 3-phase AC supply (380-480 V, 47-63 Hz) and features an integrated Class A filter to reduce electromagnetic interference. Communication and control are facilitated via an integrated PROFINET-PN fieldbus interface, complemented by a versatile I/O configuration (6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output). The drive includes Safe Torque Off (STO) for enhanced operational safety and is housed in an IP20/UL Open Type enclosure, making it ideal for integration into control cabinets.
Rated Power: 18.5 kW
Overload Capability: 150% for 3 seconds
Supply: 3AC 380-480 V, 47-63 Hz
Integrated PROFINET-PN fieldbus interface
Safe Torque Off (STO) integrated
Integrated Class A filter
I/O Interface: 6DI, 2DO, 1AI, 1AO
Protection: IP20/UL Open Type
Pump and fan systems
Conveyor technology and material handling
Centrifugal pumps and compressors
Packaging machines
General purpose industrial machinery
| Feature | Specification |
| Manufacturer | Siemens |
| Brand | Sinamics |
| Subrange | G120C |
| Product Type | Variable frequency drives |
| Nominal Power Rating | 18.5 kW |
| Nominal Output Current | 38 A |
| Supply Voltage | 3AC 380-480 V |
| Frequency | 47-63 Hz |
| Dimensions | 14.00 cm x 22.50 cm x 29.50 cm |
| Weight | 5.40 kg |
| Protection Rating | IP20 |
| Commodity Code | 85044086 |
| Product Phase | Active |
Mounting: Install the drive vertically within an enclosure to comply with IP20 requirements. Ensure sufficient top and bottom clearance for proper cooling airflow.
Power Supply: Requires an external 24 V DC power supply for control board operation. Ensure the incoming 3-phase supply matches the rated voltage range.
Grounding: Secure a solid, low-impedance connection between the drive chassis and the cabinet ground busbar to meet EMC requirements and ensure safety.
Wiring: Use shielded motor cables to minimize radiated interference. Maintain separation between power cables and signal/communication cabling.
Safety: Ensure the Safe Torque Off (STO) circuit is wired according to local safety regulations if safety functions are required for the application.
Global Express Shipping
Returns & Warranty
Manufacturer: Siemens
Product No.: 6SL3210-1KE23-8AF1
Country of origin:Germany
Product Type: Variable frequency drives
Barcode: 85044086
Payment: T/T, Western Union
Weight: 5400g
Dimensions: 14.00cm x 22.50cm x 29.50cm
Shipping port: Xiamen
Warranty: 12 months
