Siemens

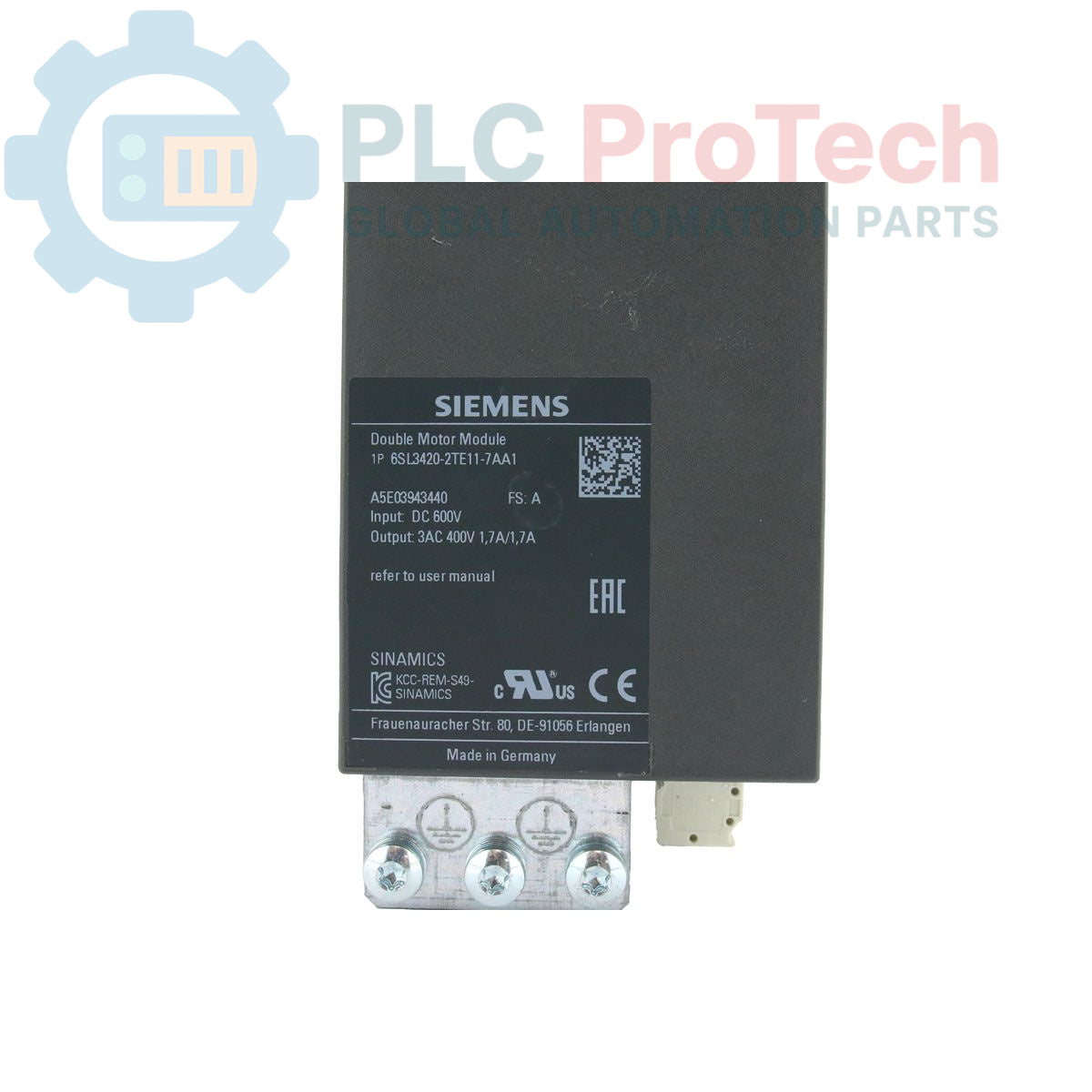

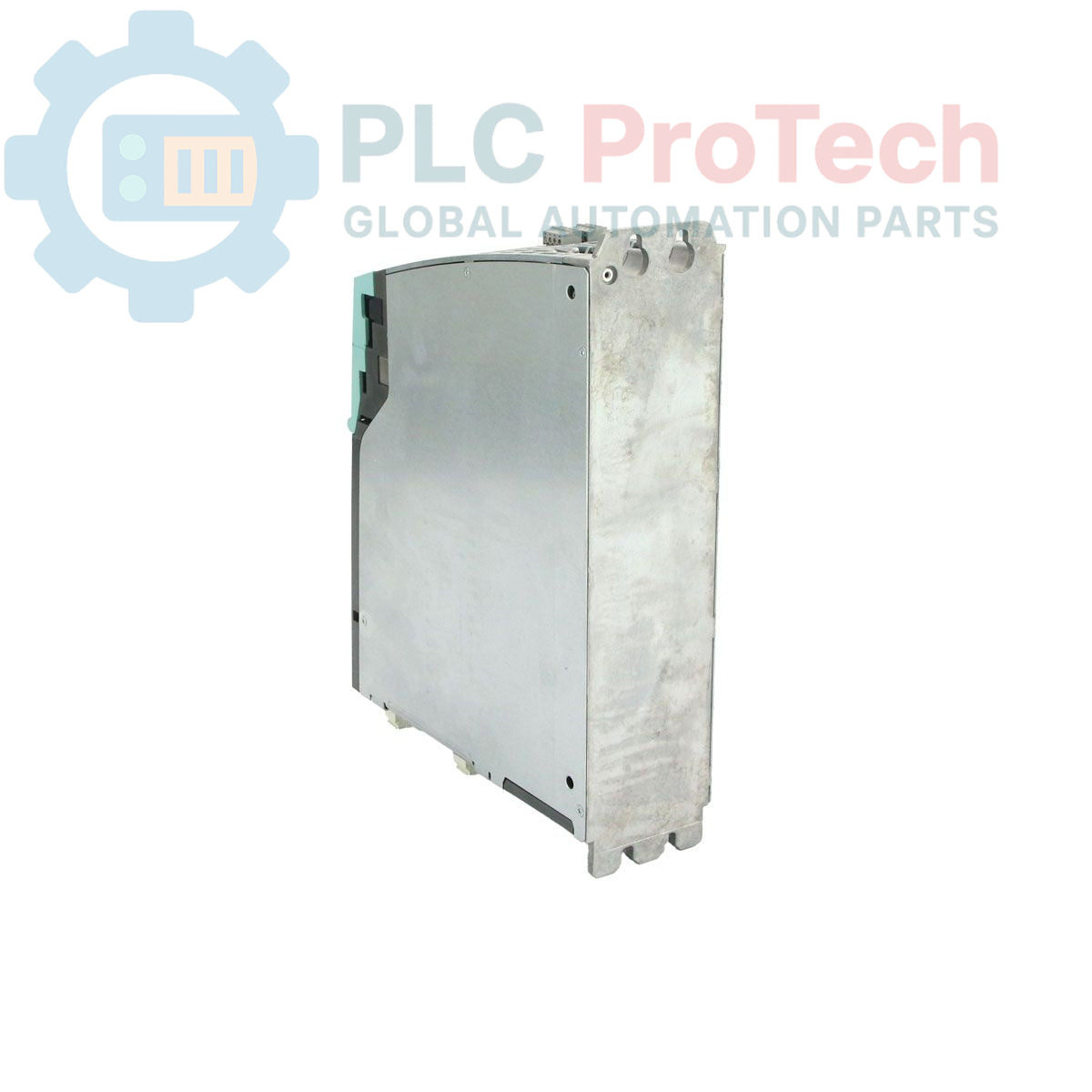

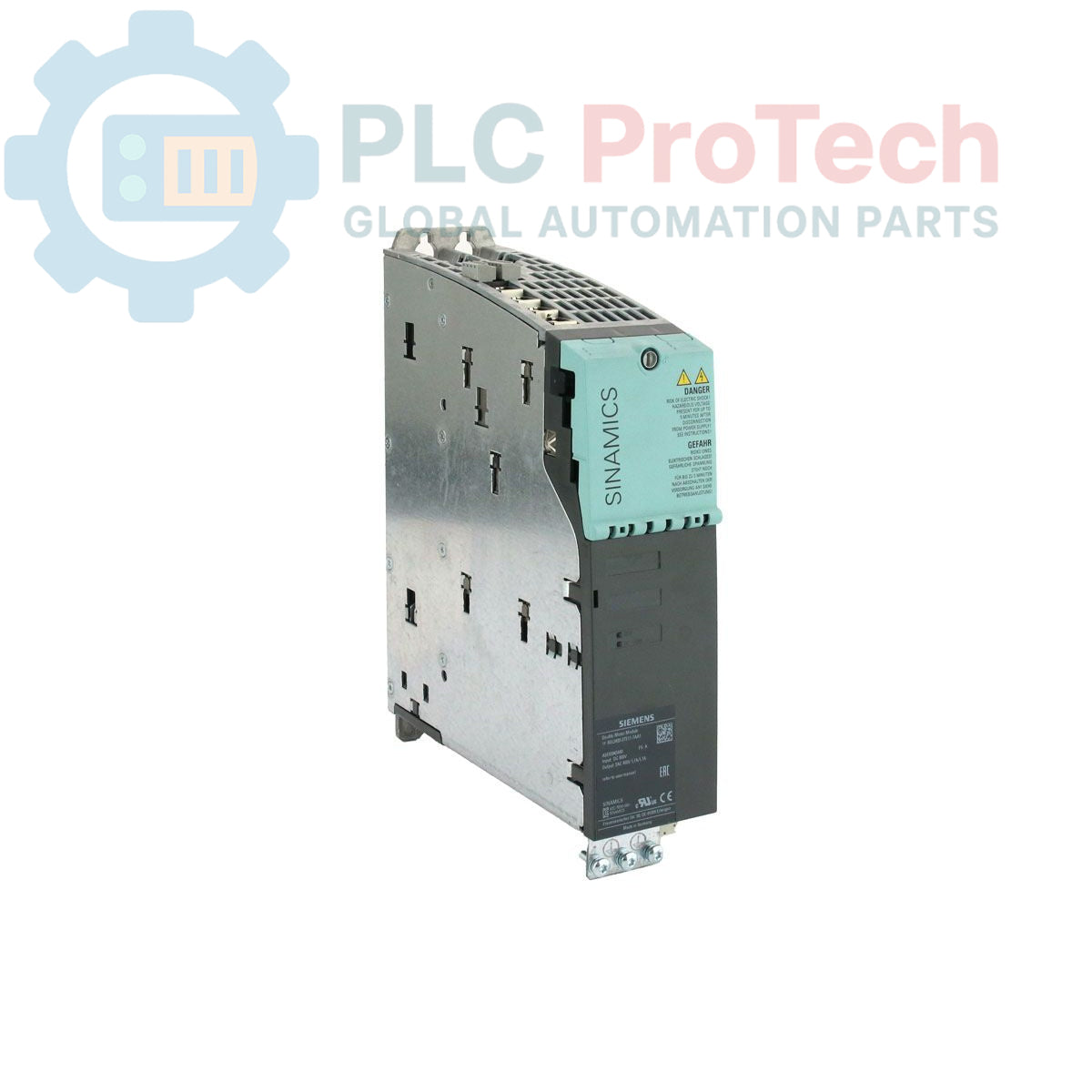

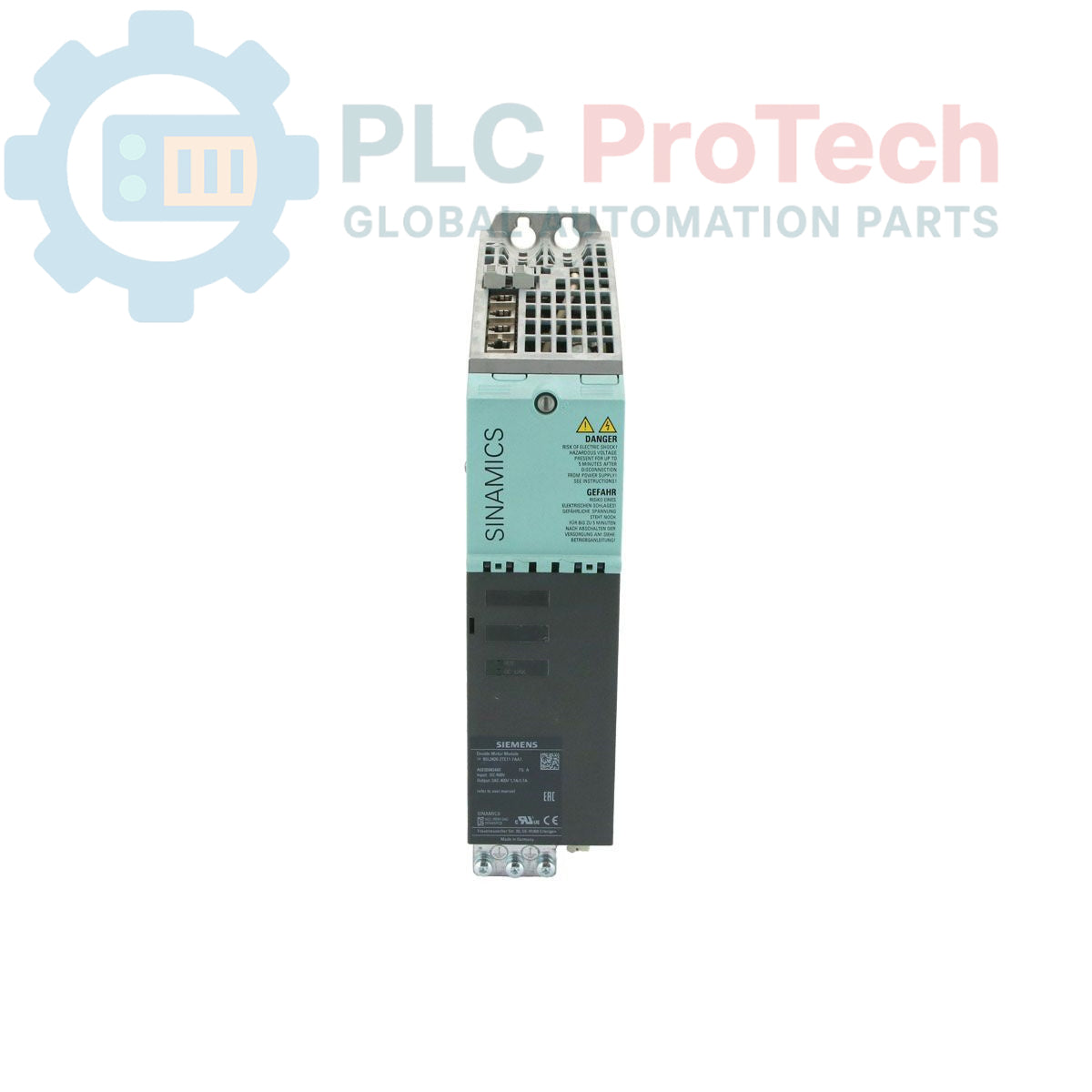

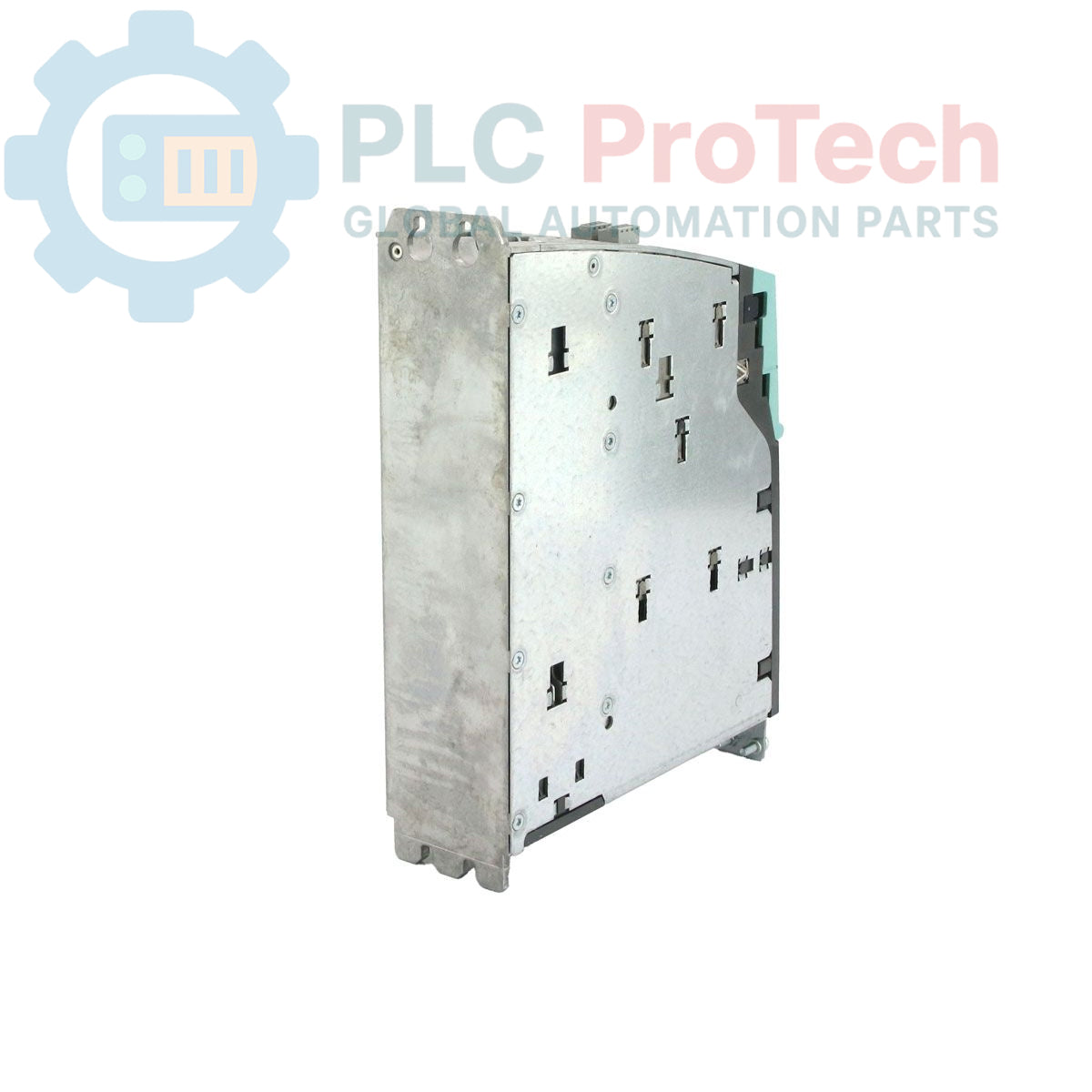

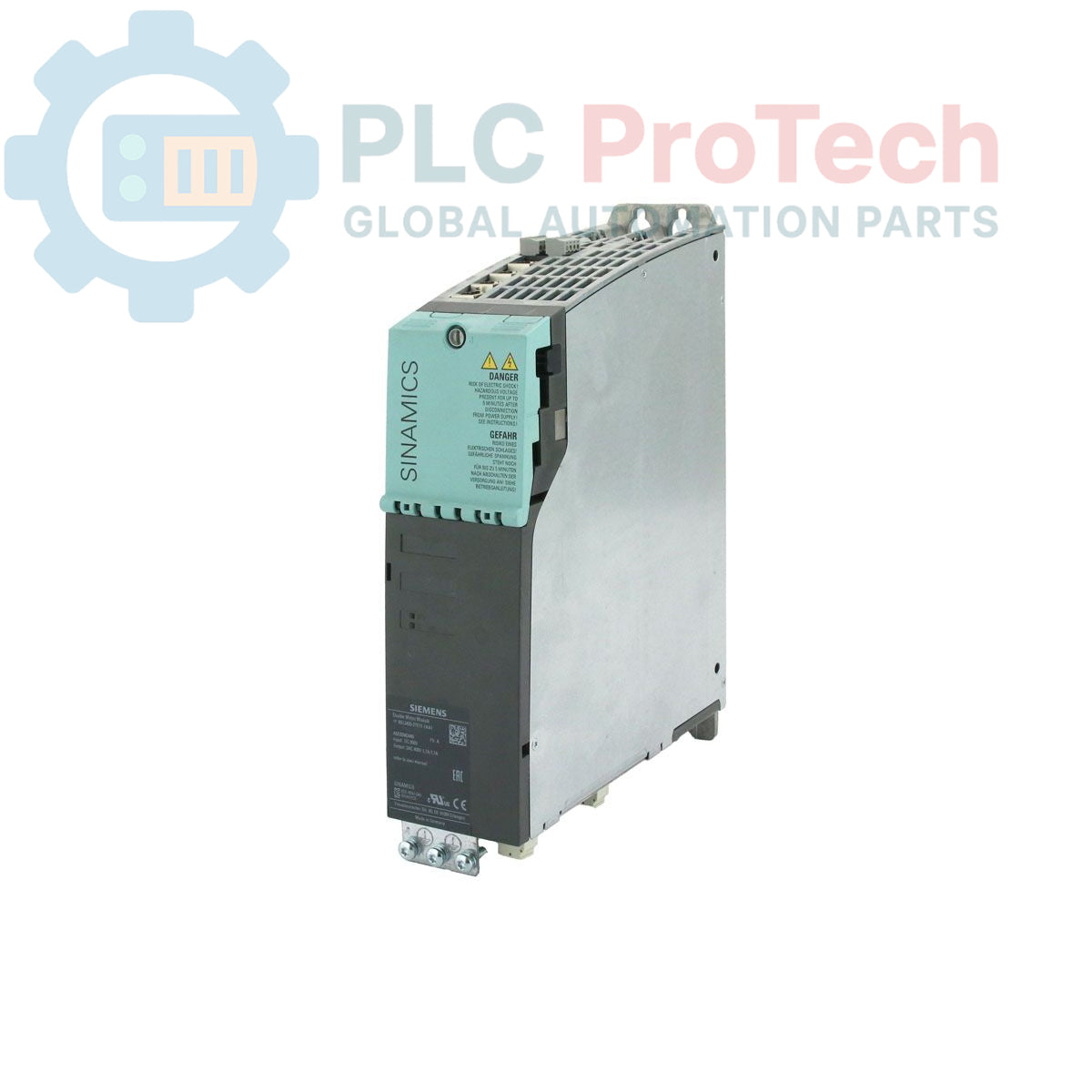

Siemens 6SL3420-2TE11-7AA1 SINAMICS S120 Double Motor Module

SKU 6SL3420-2TE11-7AA1

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6SL3420-2TE11-7AA1
Origin Germany
Product Type: Double Motor Modules
Barcode: 85044095
Payment: T/T, Western Union
Weight: 2.7 kg
Dimensions: 7.50cm x 22.60cm x 27.00cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

The 6SL3420-2TE11-7AA1 is a SINAMICS S120 Double Motor Module engineered to provide high-performance, multi-axis control in industrial automation systems. This compact module supports the simultaneous operation of two independent motors, featuring a DC 600V input and dual 3AC 400V outputs, each rated for 1.7A. Built with a space-saving booksize compact frame, it integrates efficiently into control cabinets. The module is enhanced with optimized pulse patterns for superior control accuracy and supports advanced safety functions to meet modern operational standards. A DRIVE-CLiQ cable is included for seamless, standardized communication across the SINAMICS ecosystem.

Features

Double Motor Module: Controls two independent motors from a single compact unit.
Compact Booksize Design: Optimized for high power density and space-saving cabinet installation.
Performance Specs: DC 600V input with dual 1.7A (3AC 400V) outputs.
Integrated Safety: Supports higher-order safety functions for reliable operation.
Advanced Technology: Features optimized pulse patterns for precise drive control.
Connectivity: Includes a DRIVE-CLiQ cable for fast, automated component configuration.
Thermal Management: Efficient internal air cooling system.

Applications

High-performance multi-axis machine tool synchronization.
Automated handling and assembly systems.
Packaging and material transport machinery.
Complex drive configurations within the SINAMICS S120 modular architecture.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Brand	SINAMICS
Range	S120
Product Type	Double Motor Module
Input Voltage	DC 600V
Output Current	2 x 1.7A (3AC 400V)
Frame Size	Booksize Compact
Cooling	Internal Air Cooling
Safety Functions	Supports Higher-Order Safety
Dimensions	7.50 cm x 22.60 cm x 27.00 cm
Weight	2.70 kg
Commodity Code	85044095
ECCN	EAR99

Installation Guidelines

Mounting: Mount the module vertically on a suitable heat-dissipating surface. Ensure the mandatory clearance distances above and below the module are maintained for effective internal air cooling.
DRIVE-CLiQ Connectivity: Connect the included DRIVE-CLiQ cable to the Control Unit and adjacent components; the system will automatically detect the module configuration.
Grounding: Ensure all shielding for the power and DRIVE-CLiQ cables is properly grounded to the cabinet's protective earth busbar to ensure EMC compliance.
Safety Integration: Configure the higher-order safety functions within the drive's software commissioning tool to ensure all interlocks function as intended.
Maintenance: Periodically inspect the cooling vents for dust accumulation to maintain optimal thermal performance.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

How many motors can the 6SL3420-2TE11-7AA1 control?

This Double Motor Module can control two independent motors.

What is the rated output current for this module?

Each of the two outputs is rated for 1.7A at 3AC 400V.

Is the DRIVE-CLiQ cable included with the module?

Yes, a DRIVE-CLiQ cable is included for seamless connectivity.

Does this module support safety functions?

Yes, it supports higher-order safety functions as part of the SINAMICS S120 feature set.
