6SL3525-0PE24-0AA1

Siemens

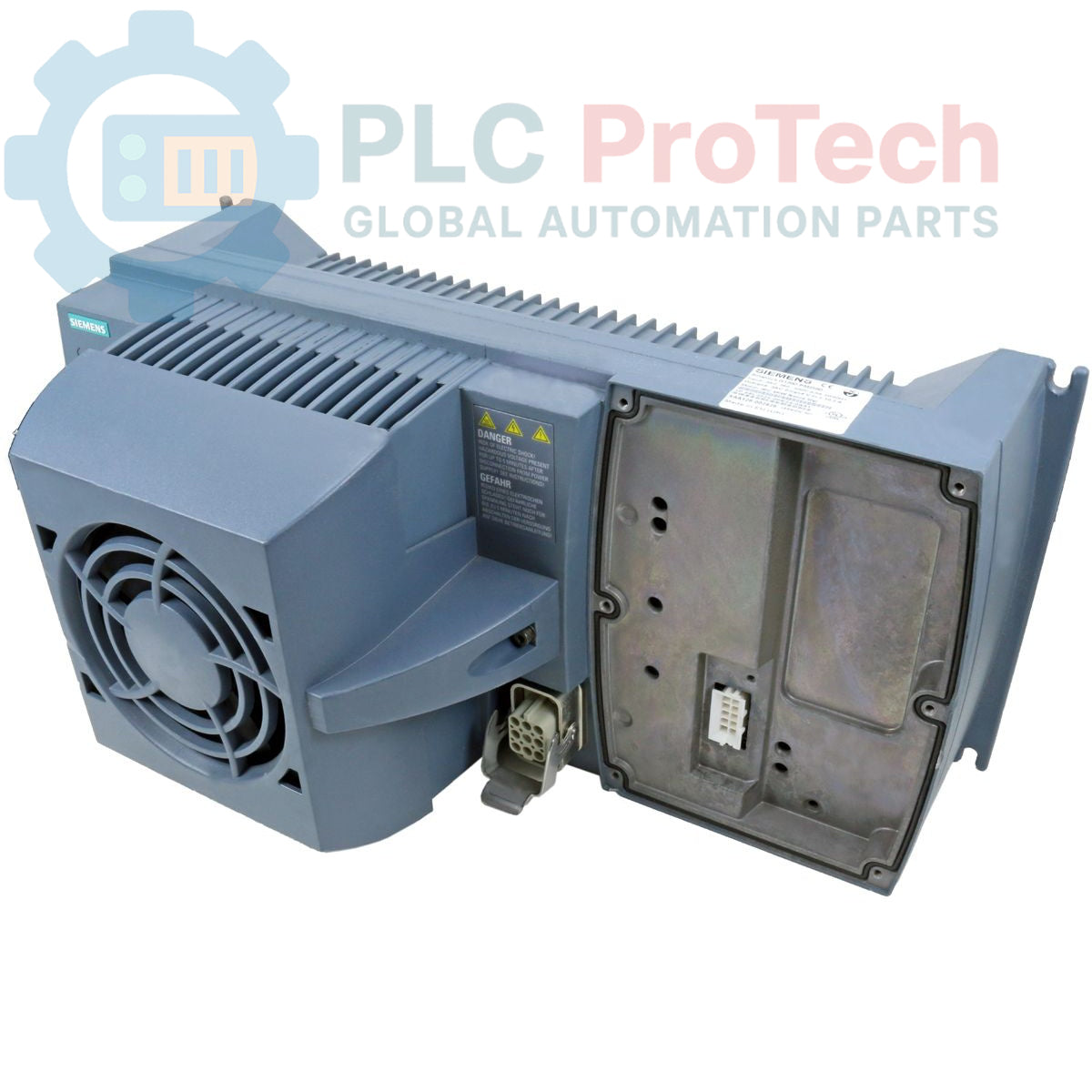

Siemens 6SL3525-0PE24-0AA1 | Siemens | SINAMICS G120D Power Module PM250D

SKU 6SL3525-0PE24-0AA1

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6SL3525-0PE24-0AA1
  • Origin Germany
  • Product Type: Power Modules
  • Barcode: 85044095
  • Payment: T/T, Western Union
  • Weight: 8.2 kg
  • Dimensions: 44.50cm x 22.00cm x 21.00cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Power Modules
Quantità
Call sales Contact

Product Description

The 6SL3525-0PE24-0AA1 is a high-performance SINAMICS G120D Power Module (PM250D) designed for decentralized drive configurations in industrial automation. This module features advanced energy recovery capabilities, allowing it to feed braking energy back into the supply grid, which significantly improves system energy efficiency. Rated for 4.0 kW, it is engineered for high-overload applications and is housed in a rugged IP65-rated enclosure, making it suitable for direct mounting on machines in harsh, dust-prone, or wet environments.

Features

  • Energy Recovery: Integrated technology enables regeneration of energy back to the grid during motor braking.
  • Robust Overload Capacity: Rated for 4.0 kW with peak capacity (200% for 3s, 150% for 60s, 100% for 300s).
  • Industrial Protection: IP65 degree of protection ensures reliable operation in demanding environments without the need for additional electrical cabinets.
  • Integrated Filtering: Built-in Class A filter to ensure electromagnetic compatibility (EMC).
  • Operating Range: Designed for reliable performance in ambient temperatures from -10 degC to +55 degC.

Applications

  • Decentralized conveyor systems and material handling.
  • Automotive assembly lines and distributed robotic cells.
  • Applications requiring direct machine mounting to save control cabinet space.
  • Systems requiring high energy efficiency through regenerative braking.

Technical Specifications

Parameter Specification
Manufacturer Siemens
Model 6SL3525-0PE24-0AA1
Series SINAMICS G120D PM250D
Rated Power 4.0 kW
Input Voltage 3AC 380-480V (+10/-10%)
Input Frequency 47-63 Hz
Nom. Output Current 10.2 A
Protection Rating IP65
Dimensions (HxWxD) 210 mm x 450 mm x 220 mm
Weight 8.20 kg
Product Phase Active

Installation Guidelines

  • Mounting: Designed for decentralized mounting directly on the machine or process equipment. Ensure the mounting surface is flat and capable of supporting the 8.2 kg weight.
  • Cooling: Although IP65 rated, ensure the module has adequate airflow to manage thermal dissipation, especially when operating near the 55 degC ambient limit.
  • Electrical Safety: Ensure that a compatible SINAMICS G120D Control Unit is correctly attached and configured (note: the power module is supplied without a Control Unit).
  • Wiring: Use appropriate sealed cable glands to maintain the IP65 integrity. All power connections must be performed by qualified personnel according to local electrical codes.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What does the energy recovery feature in the PM250D do?
The energy recovery feature allows the power module to feed braking energy back into the industrial power supply grid instead of dissipating it as heat, increasing overall system energy efficiency.
Does this module include a Control Unit?
No, the 6SL3525-0PE24-0AA1 is the Power Module component only; a separate SINAMICS G120D Control Unit is required for operation.
What level of protection does the IP65 rating provide?
The IP65 rating indicates that the module is dust-tight and protected against water jets, making it suitable for use directly on machines in harsh industrial environments.
What is the primary power rating of this module?
The module has a nominal power rating of 4.0 kW with significant overload capabilities for varying industrial demands.
Reviews

More from this brand

Siemens 3RW4447-6BC45 SIRIUS 3RW44 Soft Starter
3RW4447-6BC45Siemens 3RW4447-6BC45 SIRIUS 3RW44 Soft Starter
Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 226 Compact Unit
6ES7216-2BD23-0XB0Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 226 Compact Unit
Phoenix Contact IBS S5 DSC/I-T 2752000 Termination Board for Siemens SIMATIC S5 PLCs
IBSS5DSC/I-T 2752000Phoenix Contact IBS S5 DSC/I-T 2752000 Termination Board for Siemens SIMATIC S5 PLCs
BECKHOFF KL8001 Bus Terminal Power Terminal for Siemens Contactor
KL8001BECKHOFF KL8001 Bus Terminal Power Terminal for Siemens Contactor

6SL3525-0PE24-0AA1

Stock & lead time on request

Call
  • 6SL3525-0PE24-0AA1
1 1

Siemens 6SL3525-0PE24-0AA1 | Siemens | SINAMICS G120D Power Module PM250D

Only 5 item(s) left in stock

  • Manufacturer: Siemens

  • Product No.: 6SL3525-0PE24-0AA1

  • Country of origin:Germany

  • Product Type: Power Modules

  • Barcode: 85044095

  • Payment: T/T, Western Union

  • Weight: 8200g

  • Dimensions: 44.50cm x 22.00cm x 21.00cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Visualizza dettagli completi
Product Description
FAQ
Shipping Returns
Additional details
Reviews

The 6SL3525-0PE24-0AA1 is a high-performance SINAMICS G120D Power Module (PM250D) designed for decentralized drive configurations in industrial automation. This module features advanced energy recovery capabilities, allowing it to feed braking energy back into the supply grid, which significantly improves system energy efficiency. Rated for 4.0 kW, it is engineered for high-overload applications and is housed in a rugged IP65-rated enclosure, making it suitable for direct mounting on machines in harsh, dust-prone, or wet environments.

Features

  • Energy Recovery: Integrated technology enables regeneration of energy back to the grid during motor braking.
  • Robust Overload Capacity: Rated for 4.0 kW with peak capacity (200% for 3s, 150% for 60s, 100% for 300s).
  • Industrial Protection: IP65 degree of protection ensures reliable operation in demanding environments without the need for additional electrical cabinets.
  • Integrated Filtering: Built-in Class A filter to ensure electromagnetic compatibility (EMC).
  • Operating Range: Designed for reliable performance in ambient temperatures from -10 degC to +55 degC.

Applications

  • Decentralized conveyor systems and material handling.
  • Automotive assembly lines and distributed robotic cells.
  • Applications requiring direct machine mounting to save control cabinet space.
  • Systems requiring high energy efficiency through regenerative braking.

Technical Specifications

Parameter Specification
Manufacturer Siemens
Model 6SL3525-0PE24-0AA1
Series SINAMICS G120D PM250D
Rated Power 4.0 kW
Input Voltage 3AC 380-480V (+10/-10%)
Input Frequency 47-63 Hz
Nom. Output Current 10.2 A
Protection Rating IP65
Dimensions (HxWxD) 210 mm x 450 mm x 220 mm
Weight 8.20 kg
Product Phase Active

Installation Guidelines

  • Mounting: Designed for decentralized mounting directly on the machine or process equipment. Ensure the mounting surface is flat and capable of supporting the 8.2 kg weight.
  • Cooling: Although IP65 rated, ensure the module has adequate airflow to manage thermal dissipation, especially when operating near the 55 degC ambient limit.
  • Electrical Safety: Ensure that a compatible SINAMICS G120D Control Unit is correctly attached and configured (note: the power module is supplied without a Control Unit).
  • Wiring: Use appropriate sealed cable glands to maintain the IP65 integrity. All power connections must be performed by qualified personnel according to local electrical codes.
Key Features:
#Power Modules

What does the energy recovery feature in the PM250D do?
The energy recovery feature allows the power module to feed braking energy back into the industrial power supply grid instead of dissipating it as heat, increasing overall system energy efficiency.

Does this module include a Control Unit?
No, the 6SL3525-0PE24-0AA1 is the Power Module component only; a separate SINAMICS G120D Control Unit is required for operation.

What level of protection does the IP65 rating provide?
The IP65 rating indicates that the module is dust-tight and protected against water jets, making it suitable for use directly on machines in harsh industrial environments.

What is the primary power rating of this module?
The module has a nominal power rating of 4.0 kW with significant overload capabilities for varying industrial demands.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
