Description

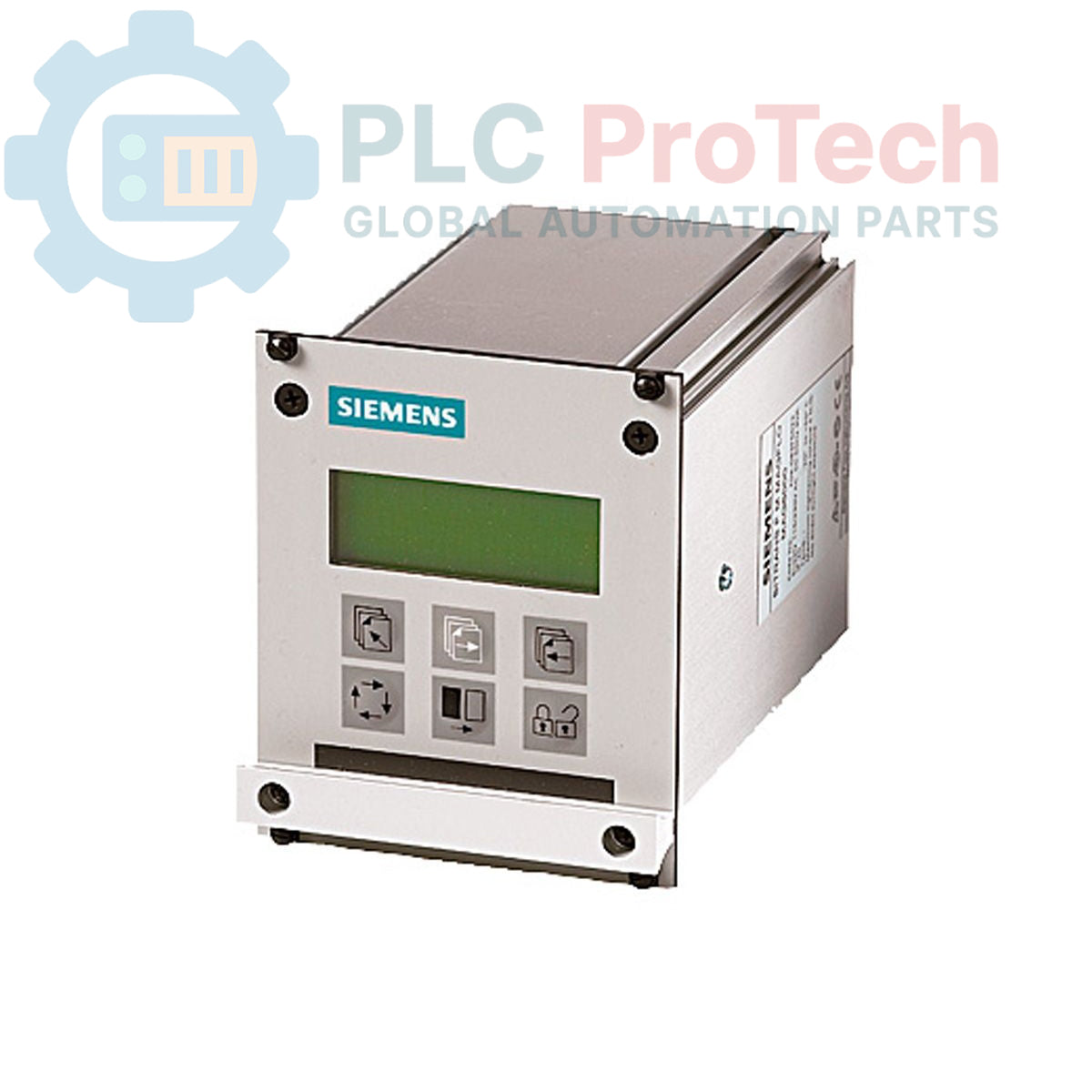

The 7ME6910-2CA10-1AA0 is a MAG 5000 electromagnetic flow transmitter designed for high-performance measurement in various industrial fluid applications. Engineered for integration into 19-inch rack systems, this transmitter (insert version) features a robust aluminum construction and is rated IP20 / NEMA 2 for indoor panel mounting environments. This unit operates on a wide voltage supply range of 115-230V AC at 50/60 Hz, ensuring compatibility with standard industrial power grids. The MAG 5000 series is recognized for its straightforward operation and reliability in flow monitoring within process control systems.

Features

• 19-inch insert design for rack mounting
• Robust aluminum enclosure
• Designed for IP20 / NEMA 2 protection class
• Wide input power range: 115-230V AC, 50/60 Hz
• High-performance signal processing for electromagnetic flow sensors

Applications

• Water and wastewater management
• Chemical and pharmaceutical processing
• Industrial process flow monitoring
• Energy and power plant auxiliary systems

Technical Specifications

Installation Guidelines

• Mounting: Designed for installation in a standard 19-inch equipment rack or control panel. Ensure adequate clearance for airflow to prevent overheating.
• Environment: The unit is rated IP20; ensure installation in a clean, dry, and climate-controlled environment, away from direct moisture, dust, or corrosive vapors.
• Power: Verify the local supply voltage is within the 115-230V AC range before connection. Ensure all electrical connections are tightened to prevent voltage drops or intermittent signaling.
• Grounding: Proper grounding of the 19-inch rack and the transmitter chassis is essential for electromagnetic compatibility (EMC) and to maintain measurement accuracy.
• Cable Routing: Keep signal cables separated from high-voltage power lines to minimize induced interference on the flow measurement signals.
