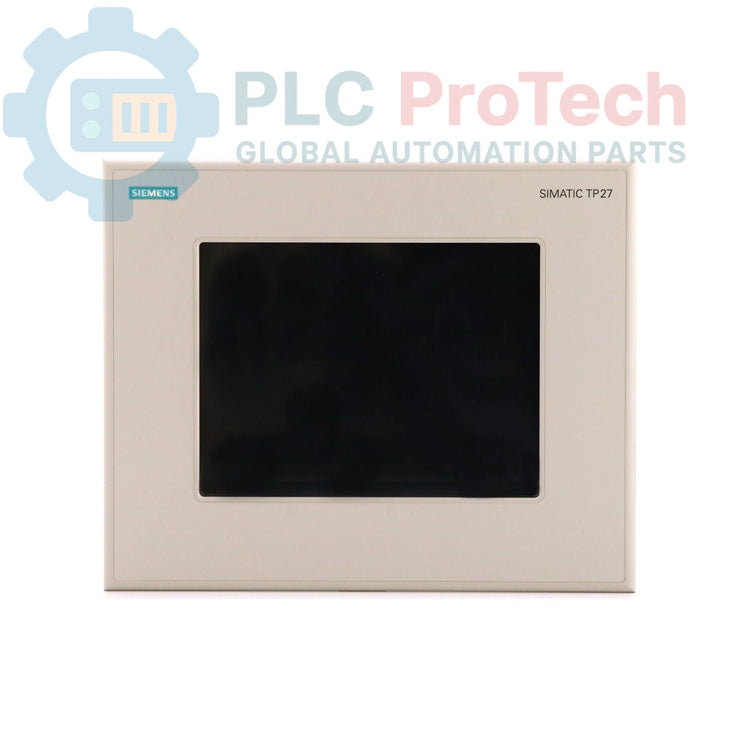

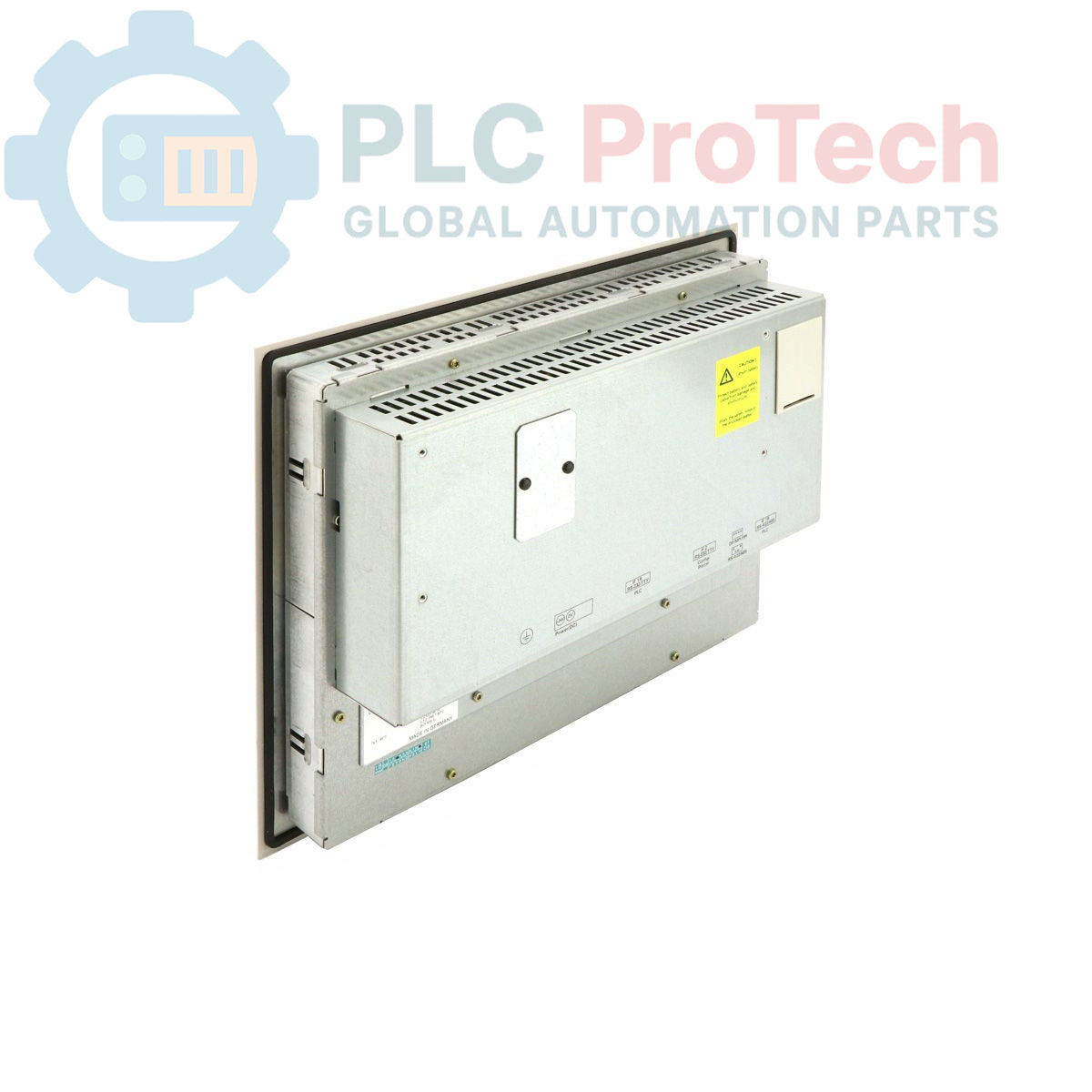

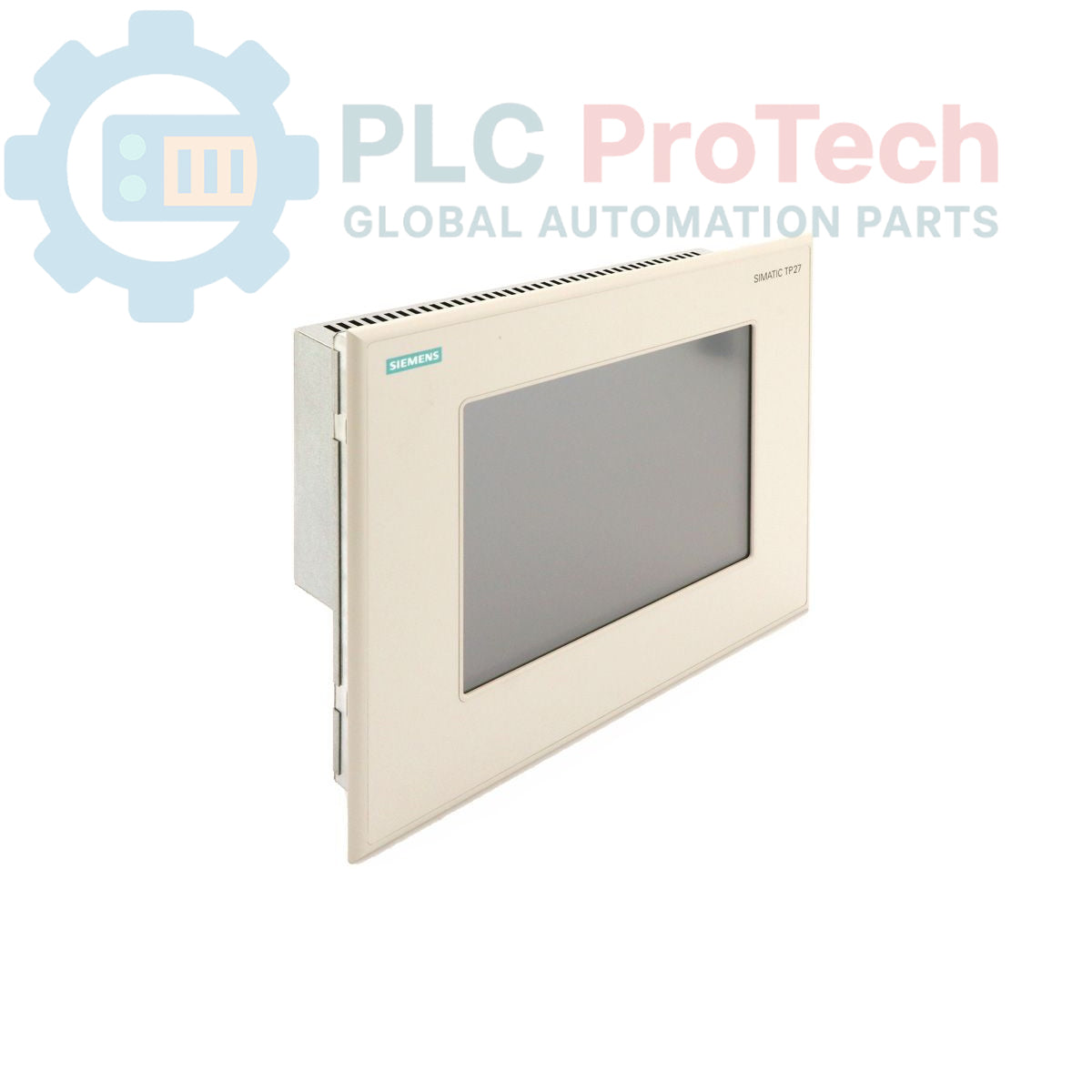

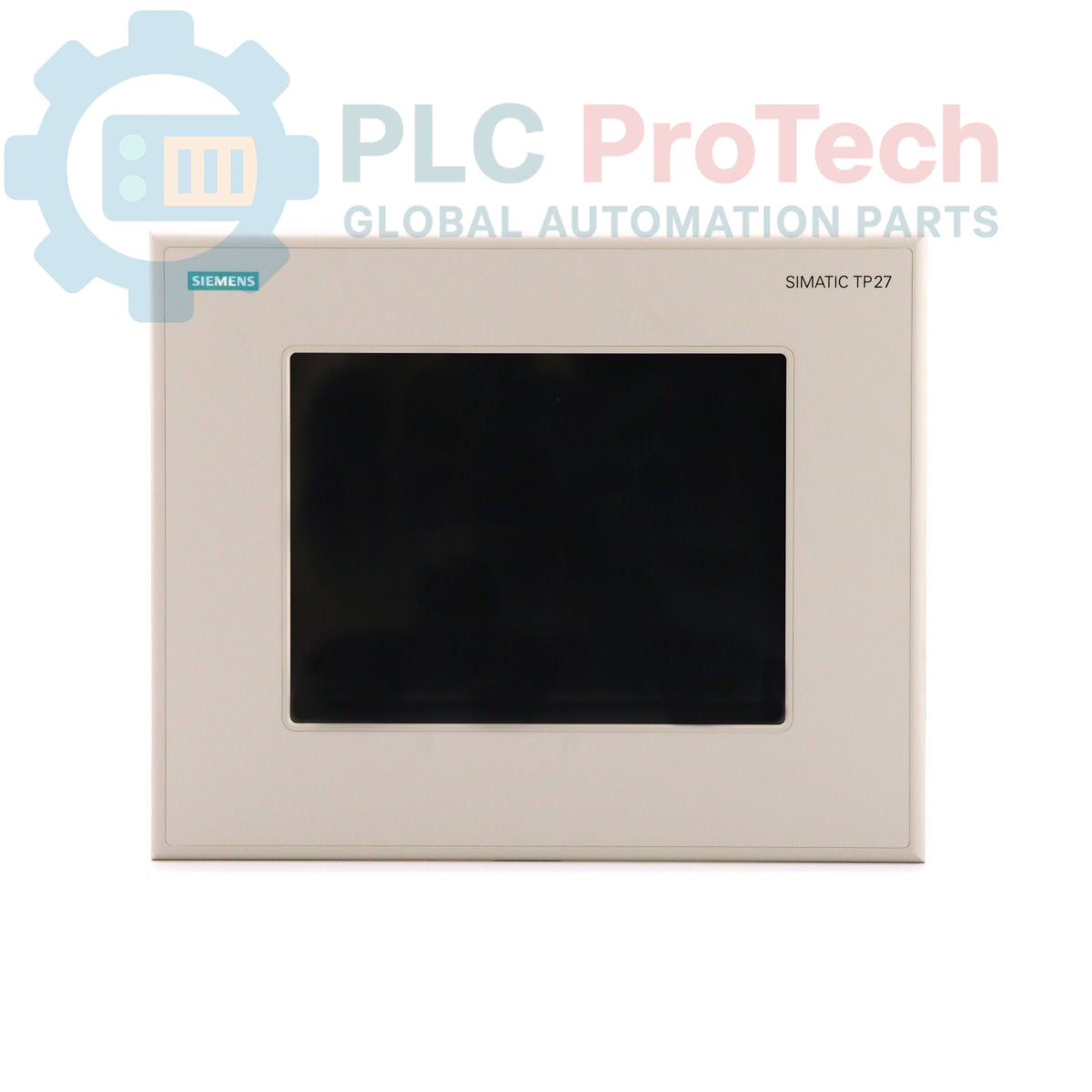

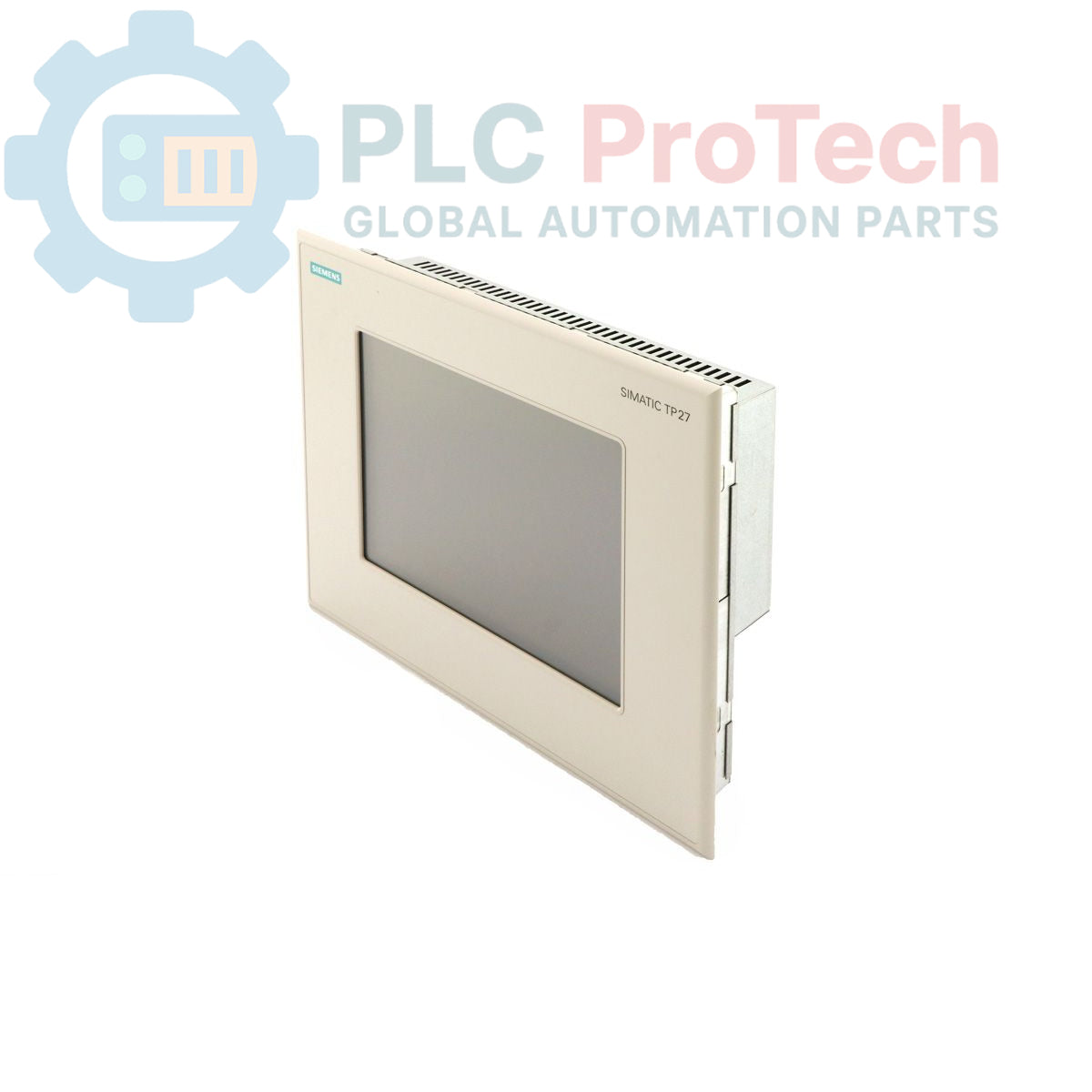

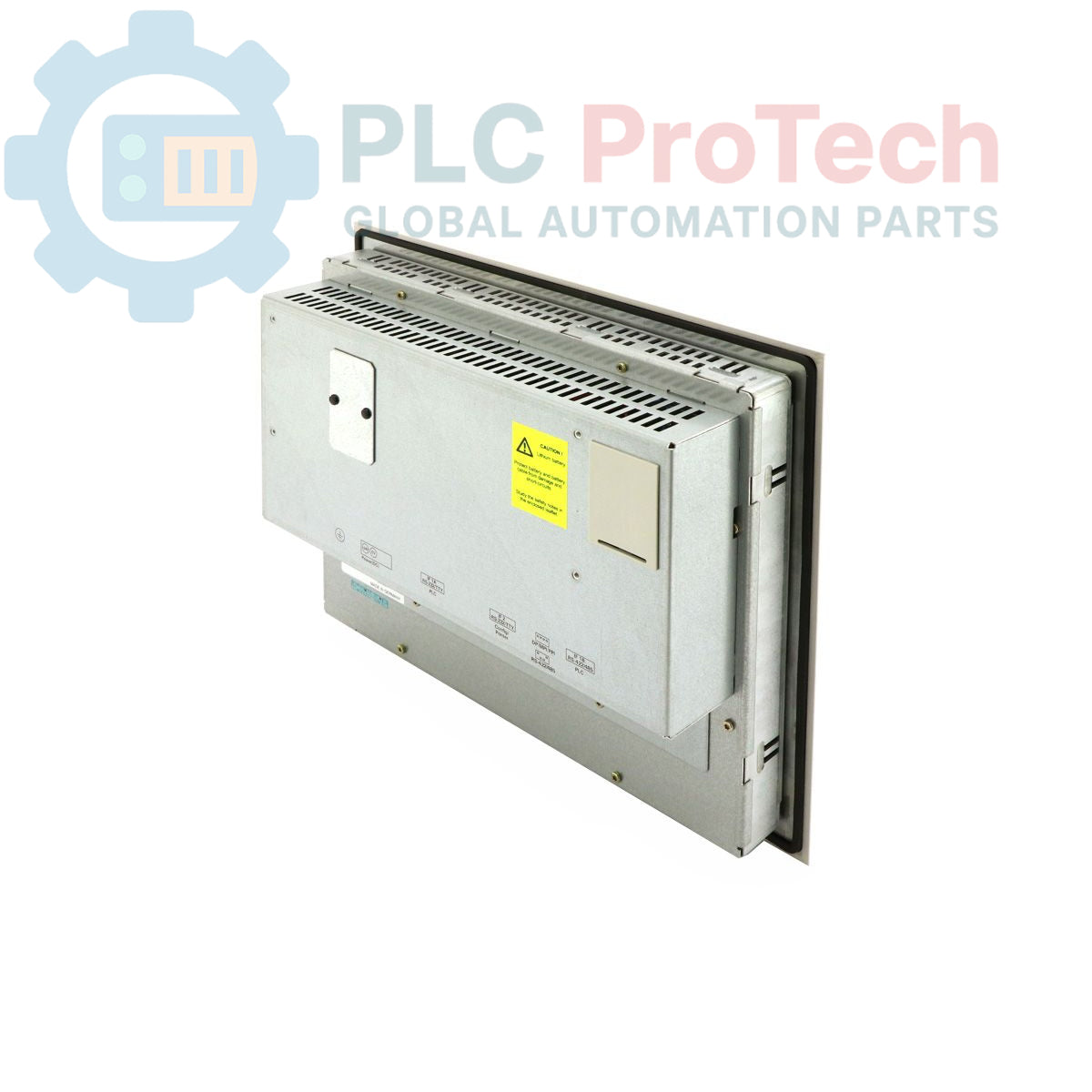

The Siemens 6AV3627-1QL01-0AX0 is a SIMATIC TP27-10 touch panel designed for industrial operator control and visualization. Equipped with a 10.4-inch STN color LCD display featuring a resolution of 640 x 480 pixels and supporting 8 colors, this HMI provides clear operational data monitoring. It includes 1 MB (1024 kbyte) of Flash-EPROM memory for configuration data and user applications and operates on a 24 V DC supply voltage. Built with dimensions of 33.00 x 28.00 x 8.00 cm and a weight of 4.74 kg, it serves as an established replacement for its predecessor model (6AV3627-1QL00-0AX0). Although classified as an obsolete product phase, it remains a vital component for maintaining legacy Siemens SIMATIC HMI control systems.
| Specification | Detail |
|---|---|
| Brands | Siemens |
| Manufacturer | Siemens |
| Range | SIMATIC HMI |
| Subrange | TP27 series |
| Type of Product | Touch panels |
| Supply Voltage | 24 V DC |
| Product Phase | Obsolete |
| Predecessor | 6AV3627-1QL00-0AX0 |
| Screen Diagonal | 10.4" inch |
| Type of Display | STN |
| Display Resolution | 640 x 480 pixels |
| Type of Operation | Touch |
| With Colour Display | Yes |
| Display Colours | 8 |
| Memory | 1024 kbyte |
| Dimensions | 33.00 x 28.00 x 8.00 cm |
| Weight | 4.74 kg |
| Commodity Code | 85371091 |
| Export Control Regulations (ECCN) | EAR99 |

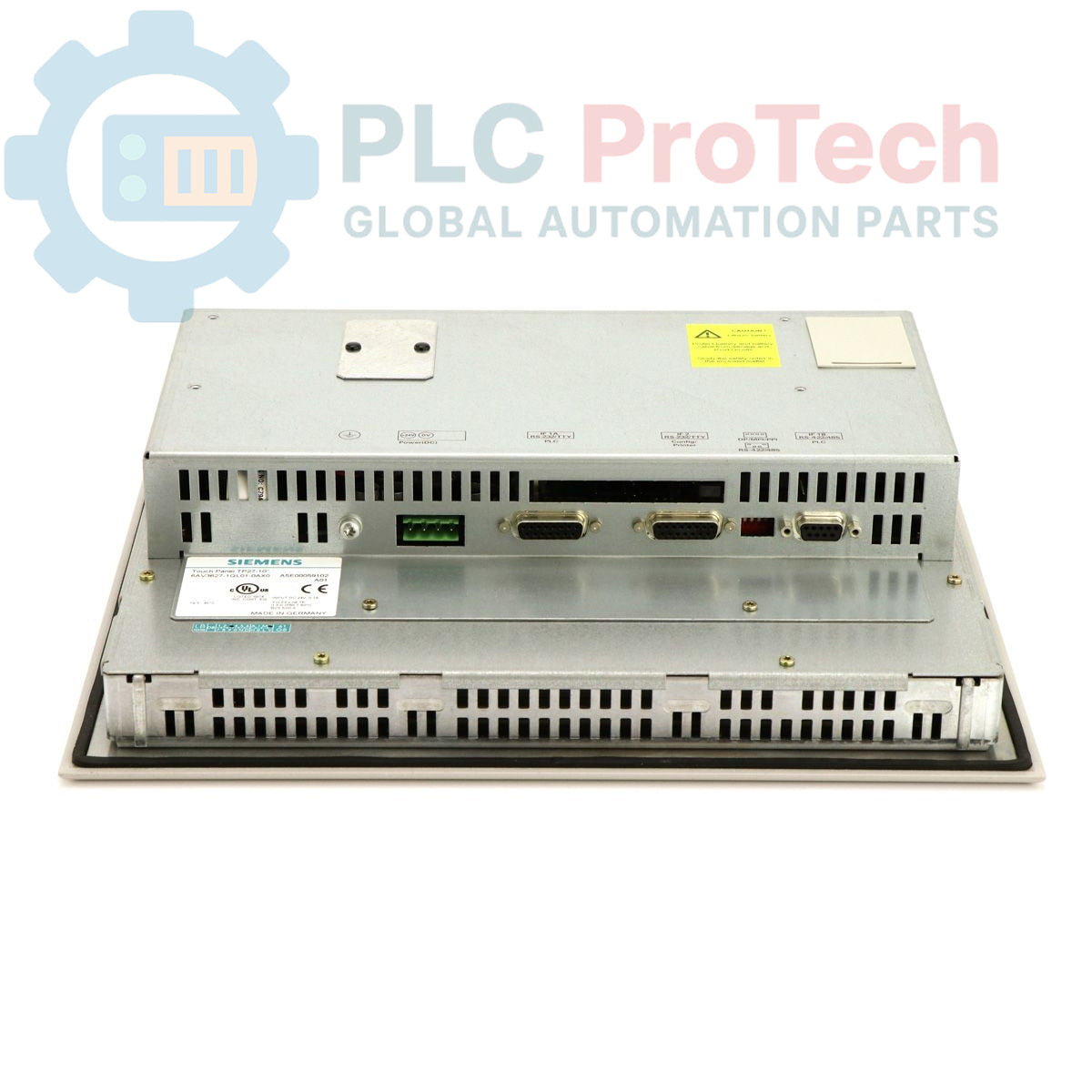

| Port / Interface | Type |
|---|---|
| Power Supply | 24 V DC Terminals |
| Communication | Operator Panel Communication Ports |
Global Express Shipping
Returns & Warranty
Manufacturer: Siemens
Product No.: 6AV3627-1QL01-0AX0
Country of origin:Germany
Product Type: Touch Panels
Barcode: 85371091
Payment: T/T, Western Union
Weight: 4740g
Dimensions: 33.00cm x 28.00cm x 8.00cm
Shipping port: Xiamen
Warranty: 12 months
