Description

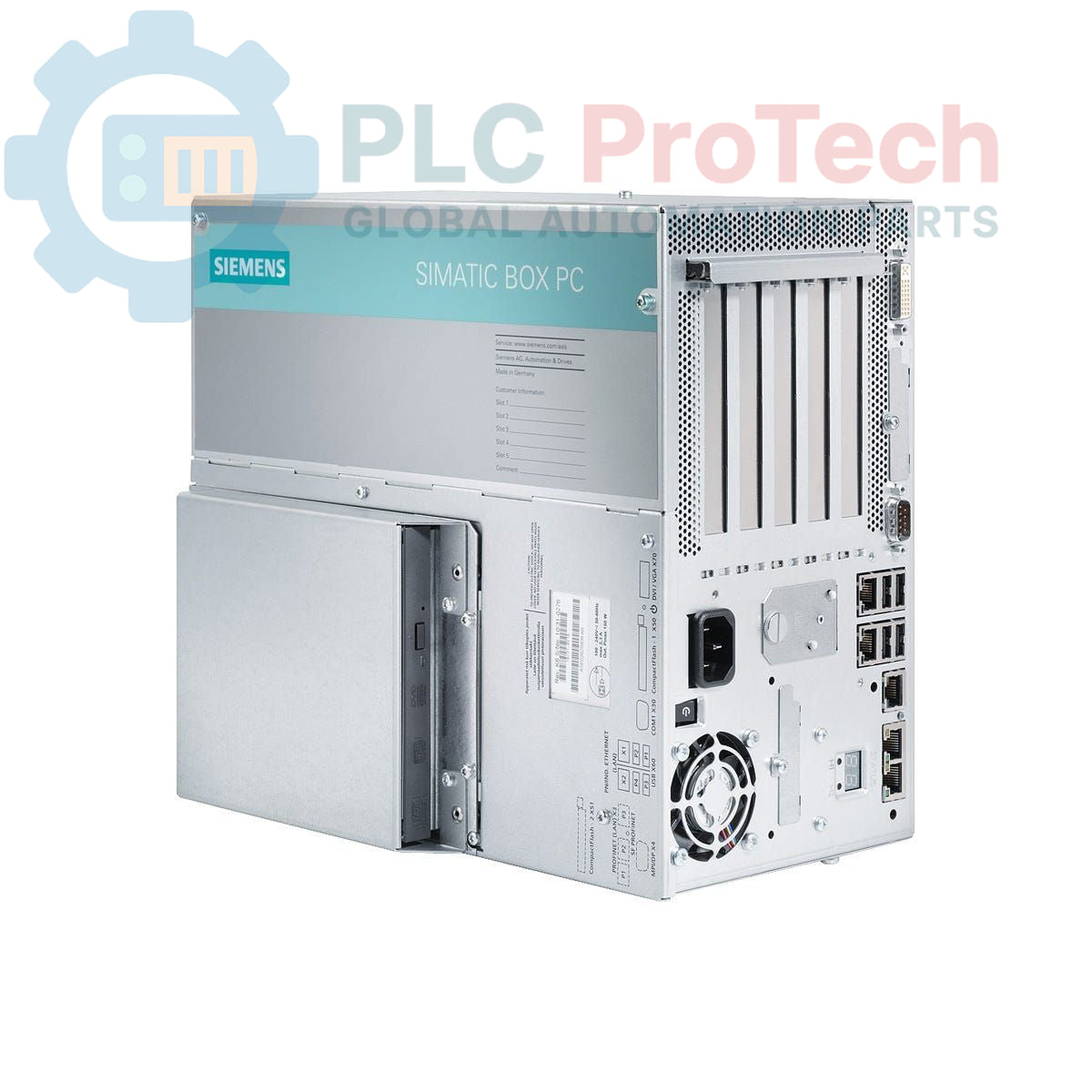

The Siemens 6ES7647-6PJ66-0LB0 is a SIMATIC IPC827C series industrial box PC designed for demanding automation environments. This unit is equipped with an Intel Core i7-610E processor, 4 GB of ECC DDR3 RAM, and a 240 GB SATA solid-state drive for robust performance and data integrity. It features an integrated PROFINET interface, making it suitable for real-time control and communication tasks. The system includes onboard monitoring for temperature and fans, a watchdog timer for high availability, and operates on a 24 V DC industrial power supply. This model comes pre-installed with Windows 7 Ultimate (32-bit).

Features

• Processor: Intel Core i7-610E (2.53 GHz, 2 Cores / 4 Threads)
• Memory: 4 GB DDR3 1066 DIMM with ECC
• Storage: 240 GB SATA Solid-State Drive (SSD)
• Operating System: Windows 7 Ultimate 32-bit SP1 (MUI)
• Industrial Communications: Integrated PROFINET interface (CP 1616-compatible) with 3x RJ45 ports
• Standard Ethernet: 2x 10/100/1000 Mbps RJ45 ports
• Expansion Slots: 3x PCI, 1x PCIe (x4), 1x PCIe (x16)
• Onboard Monitoring: Watchdog timer, temperature, and fan monitoring
• Power Supply: 24 V DC input
• Additional Memory: 2 MB buffered SRAM

Applications

• Process visualization and HMI stations
• SCADA and data acquisition nodes
• Industrial data logging and analysis
• PC-based machine control and automation
• Gateway and communication server applications

Technical Specifications

Installation Guidelines

1. 1
   Site Preparation: Ensure the mounting location is free from excessive vibration, moisture, and extreme temperatures. Provide adequate clearance around the unit for ventilation and cable access.
2. 2
   Mounting: Securely fasten the Box PC to a stable panel or surface using all provided mounting points. Verify the unit is level and firmly attached before proceeding.
3. 3
   Grounding: Connect the chassis grounding terminal to the main system protective earth (PE) busbar using a low-impedance conductor. A reliable ground connection is essential for safety and noise immunity.
4. 4
   Power Connection: Connect a stable, properly-rated 24 V DC power source to the designated power input terminals. Ensure correct polarity. Use appropriately sized wiring and overcurrent protection as required by local codes.
5. 5
   I/O Cabling: Connect network, peripheral, and communication cables. Use shielded cables for all data lines, especially for PROFINET, and ensure shields are properly terminated to ground at one end to prevent ground loops. Route signal cables separately from high-voltage power lines.
