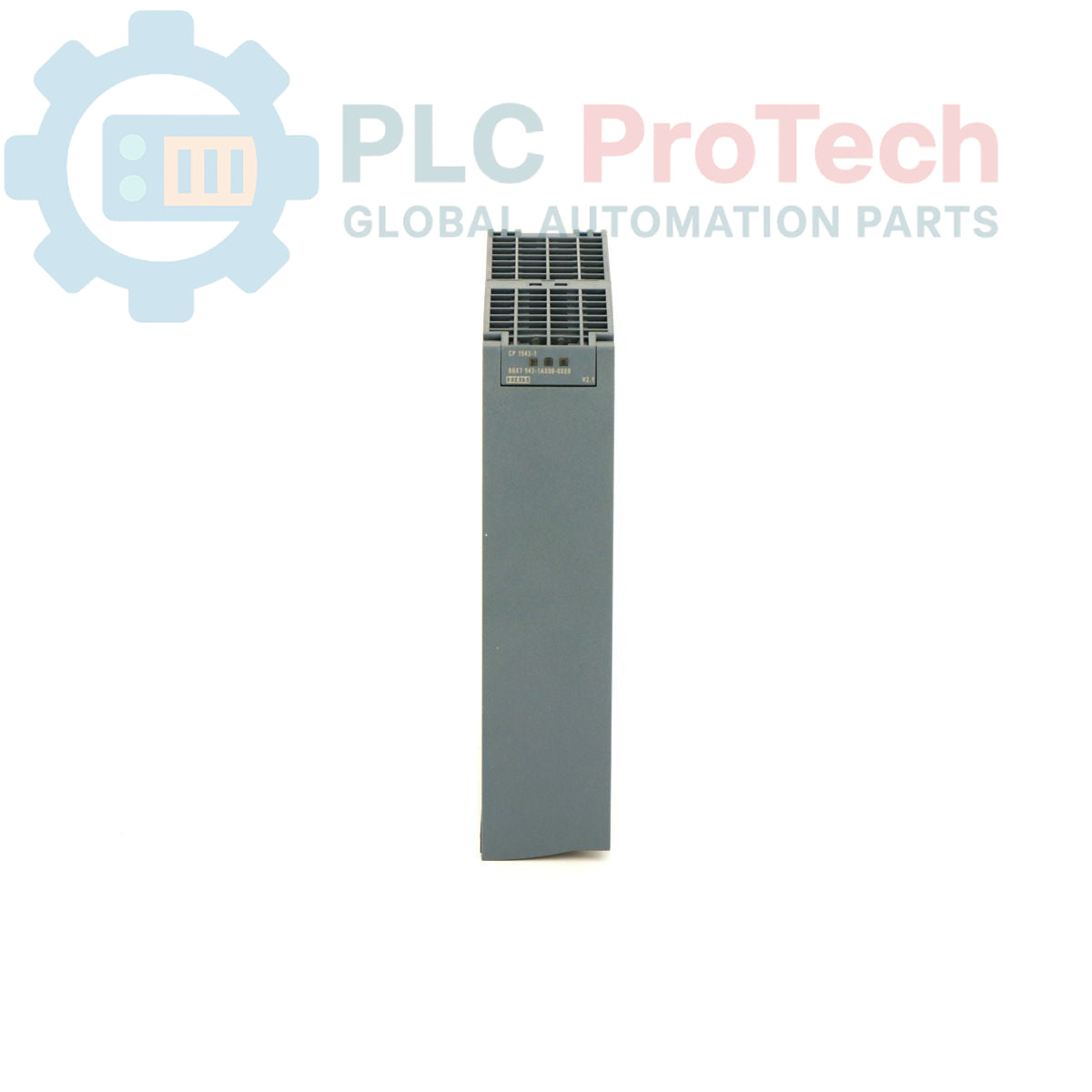

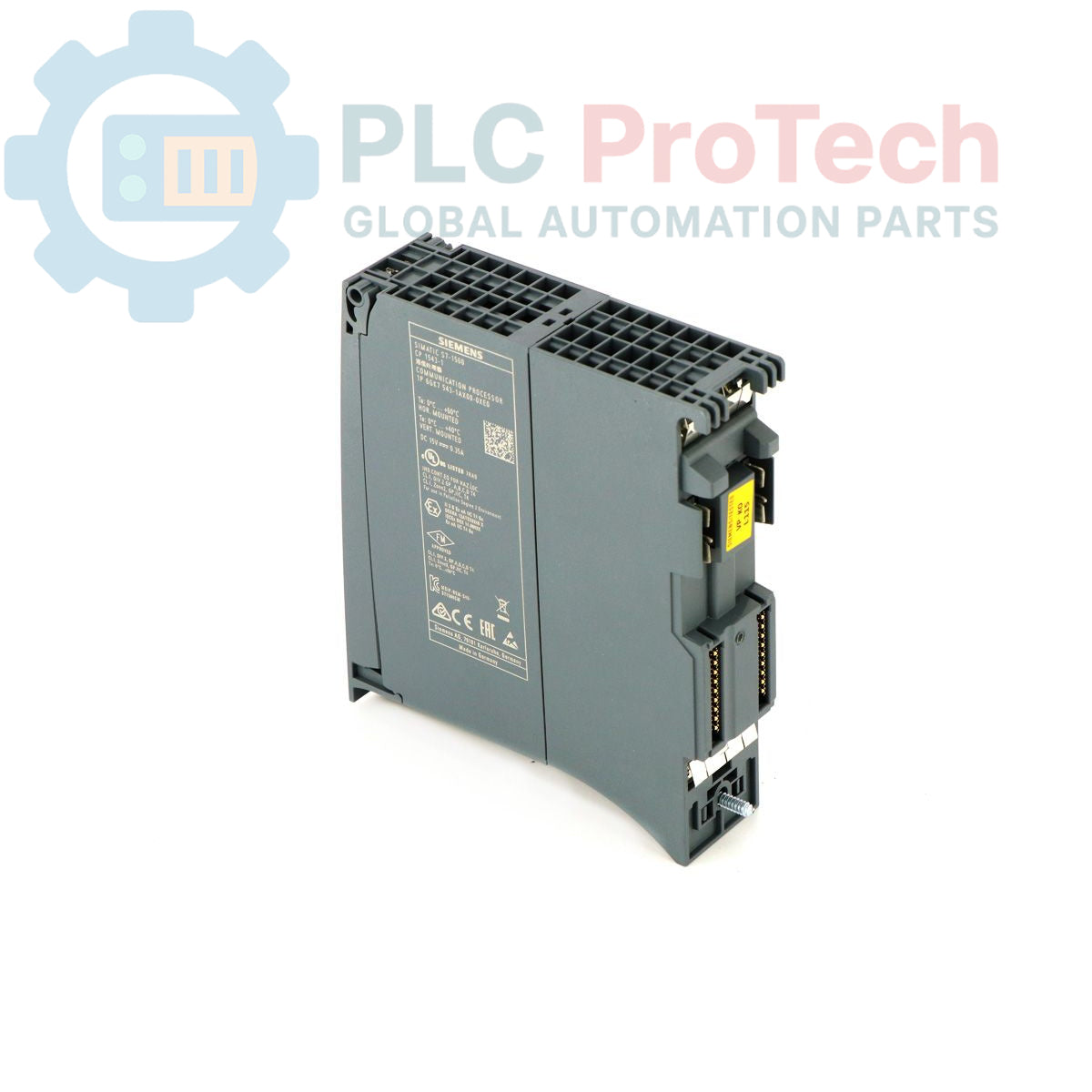

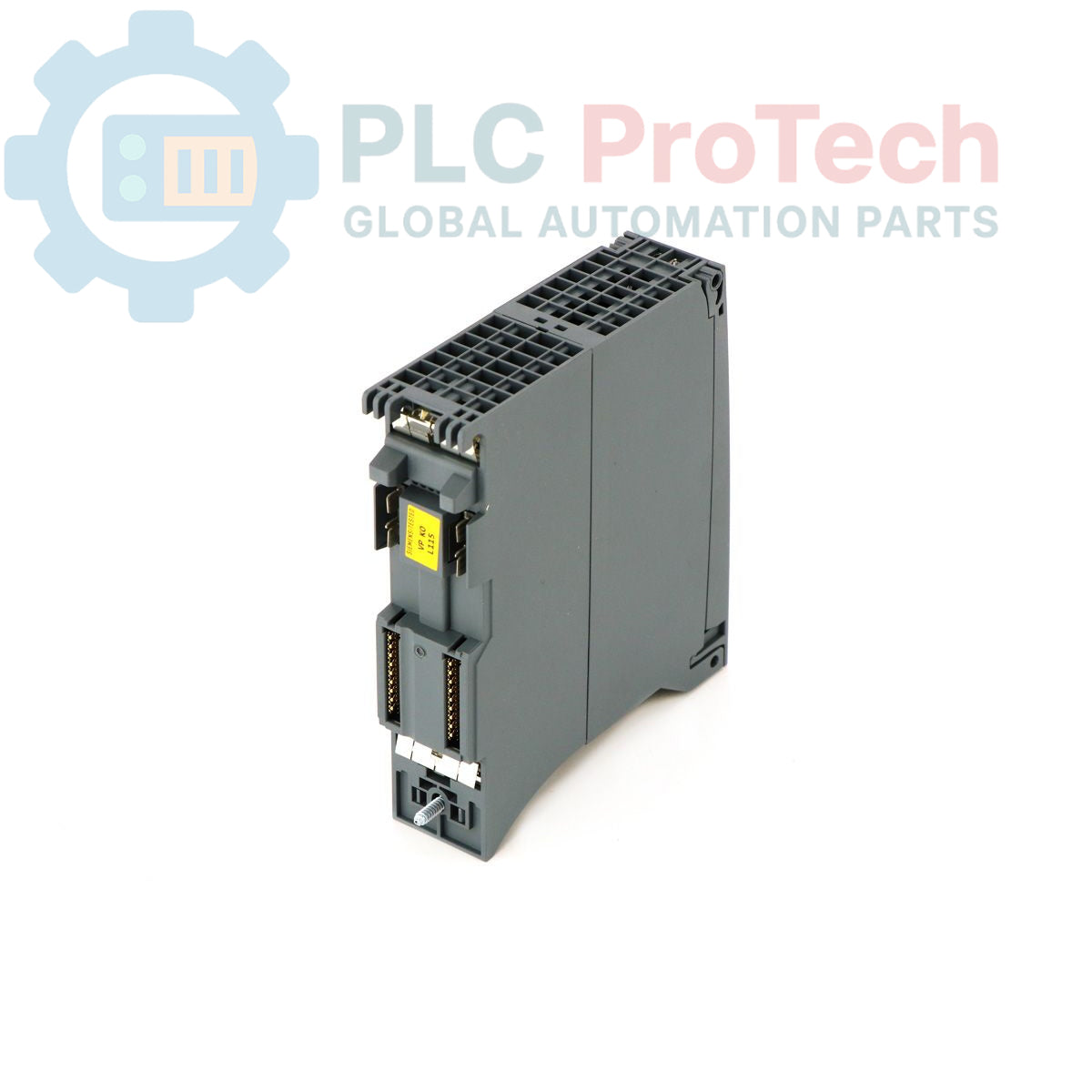

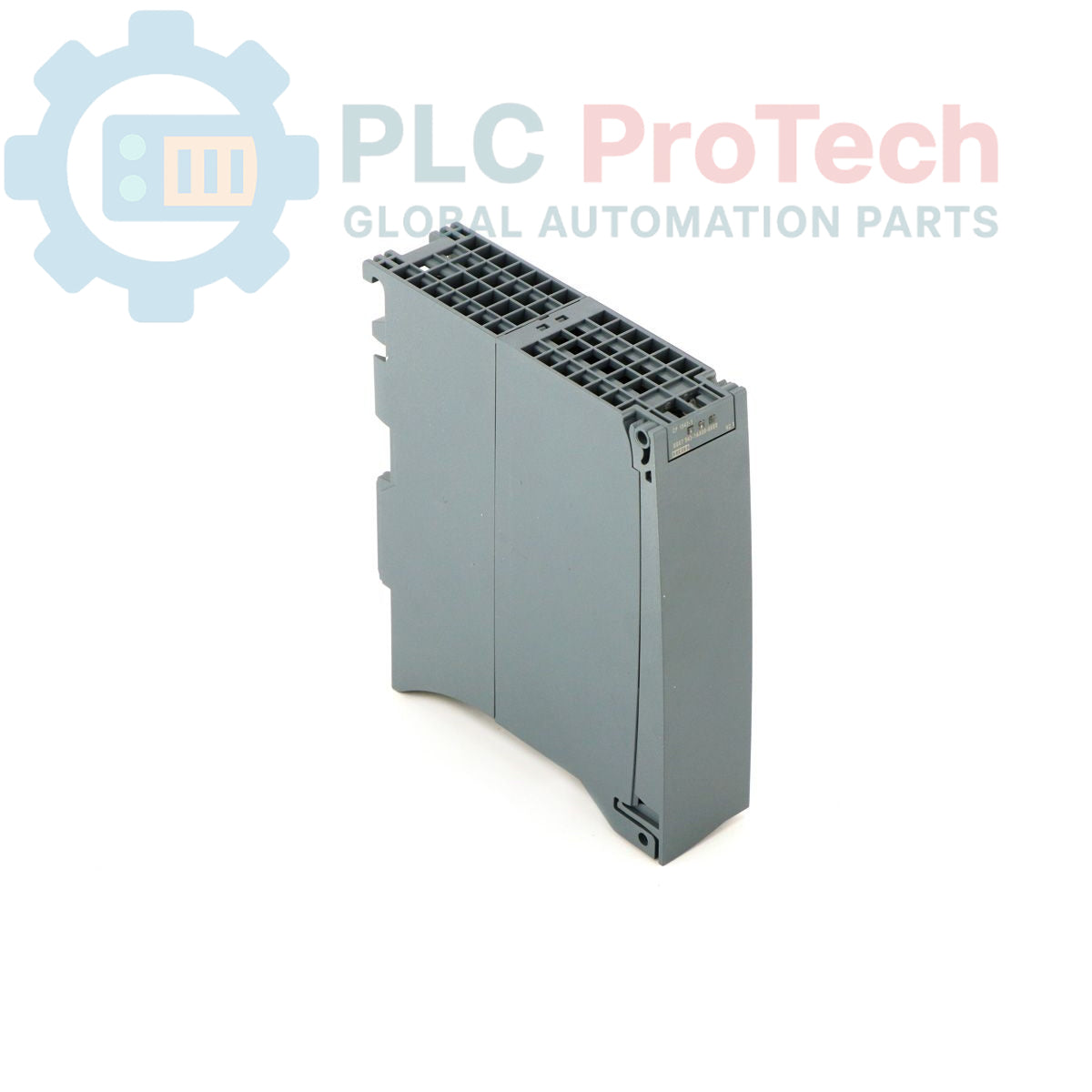

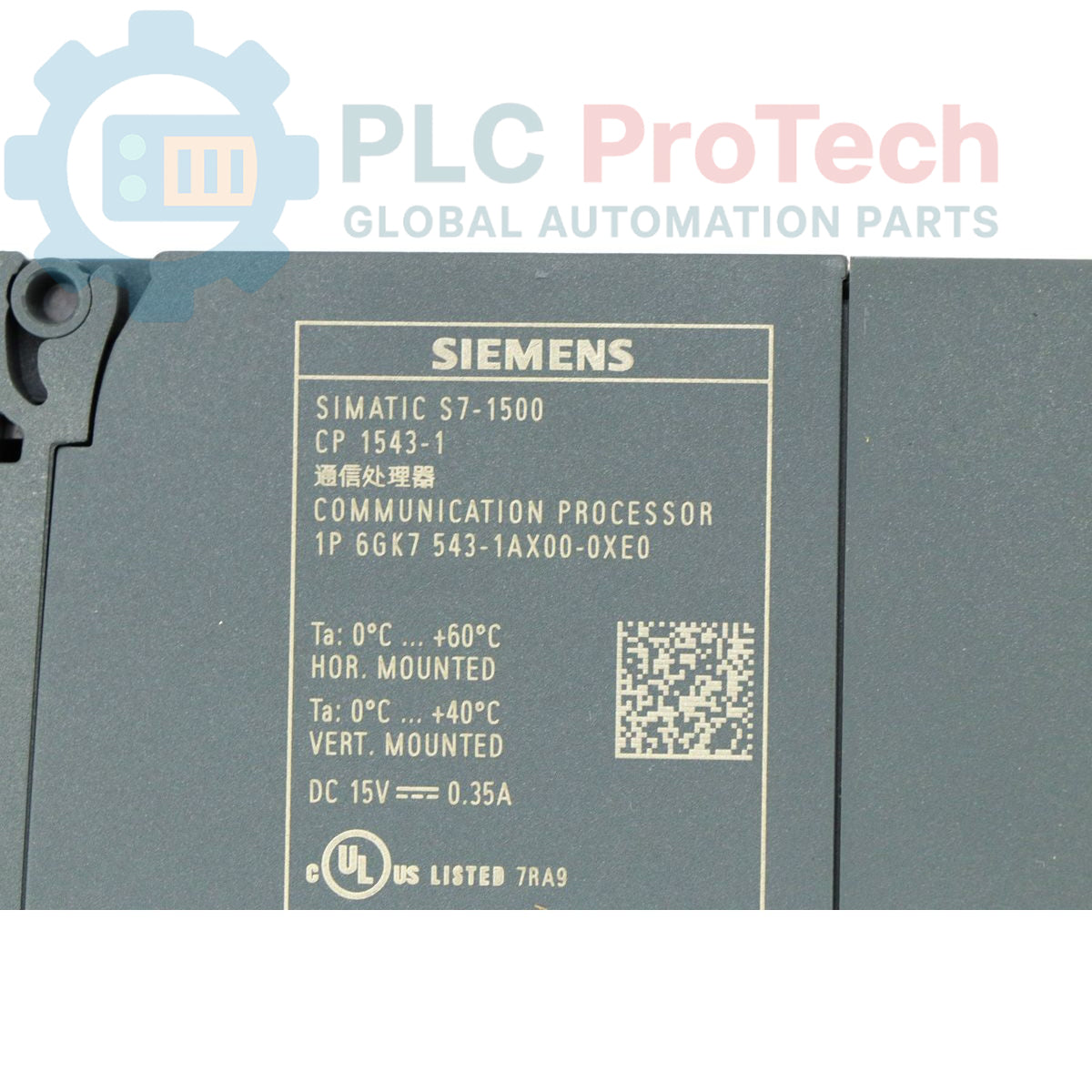

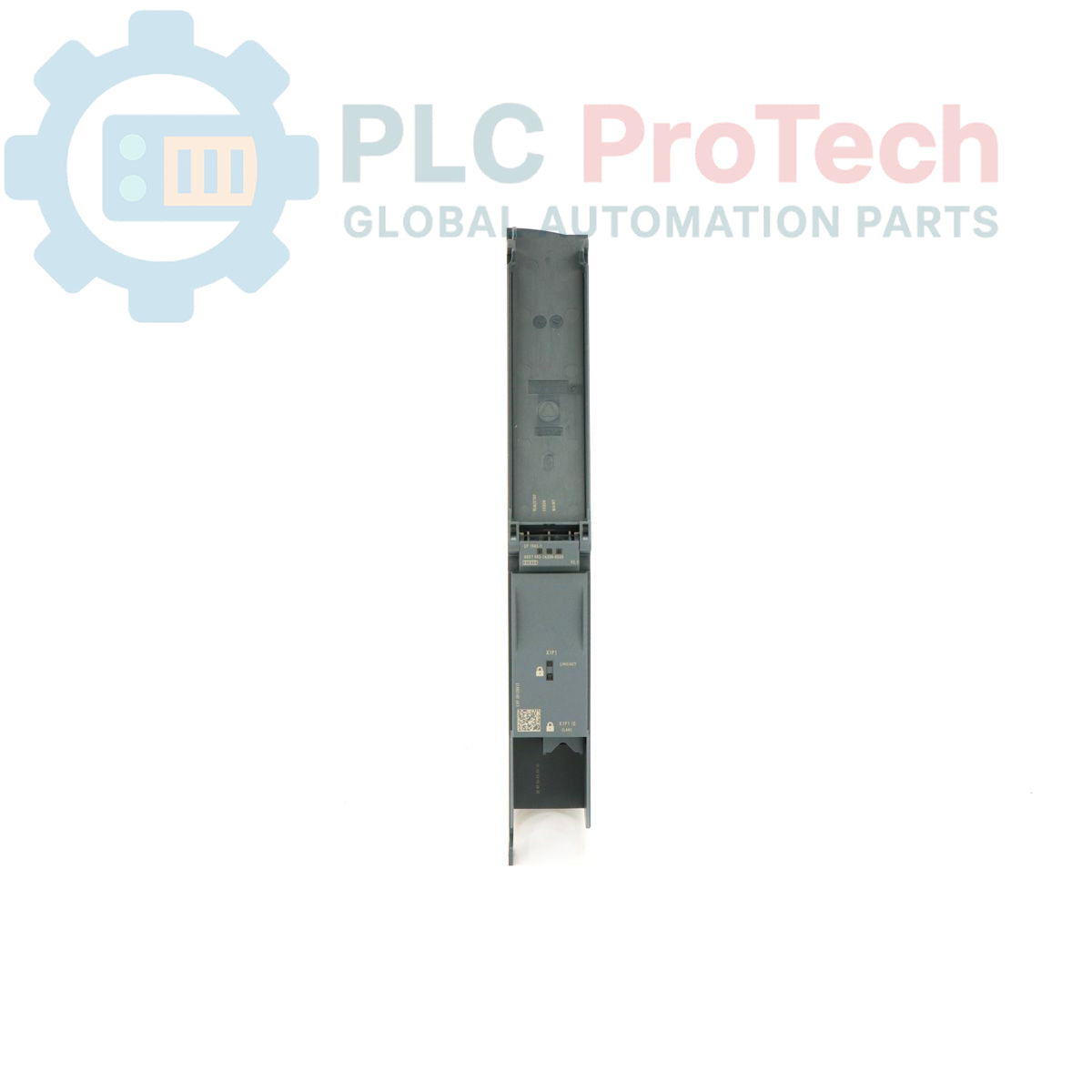

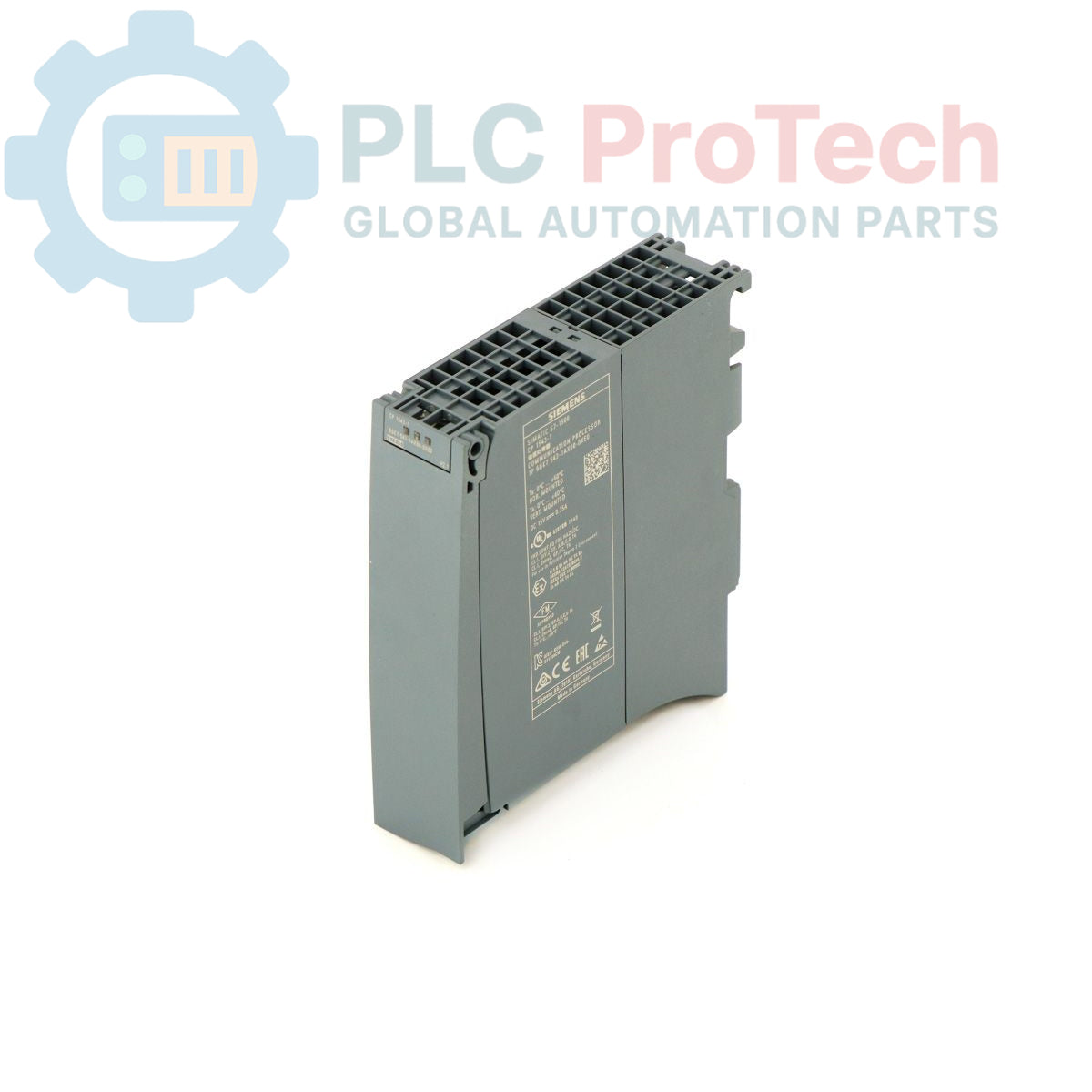

Siemens SIMATIC S7-1500 CP 1543-1 6GK7543-1AX00-0XE0 Communication Processor

SKU 6GK7543-1AX00-0XE0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6GK7543-1AX00-0XE0
Origin Germany
Product Type: CoMMunication Modules
Barcode: 85176200
Payment: T/T, Western Union
Weight: 0.8 kg
Dimensions: 3.50cm x 12.90cm x 14.20cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 6GK7543-1AX00-0XE0 is a high-performance Communications Processor (CP 1543-1) designed for the SIMATIC S7-1500 automation platform. Manufactured by Siemens, this module facilitates robust connectivity to Industrial Ethernet networks. It supports a comprehensive suite of protocols including TCP/IP, ISO, UDP, and S7 communication, while offering advanced security features such as an integrated firewall and VPN capabilities. With support for both IPv4 and IPv6, and features like FTP client/server, DHCP, and NTP time synchronization, the module ensures efficient data exchange and network management in complex automation environments.

Features

Seamless connection of S7-1500 systems to Industrial Ethernet
High-speed 10/100/1000 Mbit/s interface via RJ45 port
Advanced security: Integrated VPN and Firewall for network protection
Dual IP support: Fully compatible with IPv4 and IPv6
Network Management: Supports SNMPv1/v3, DHCP, and FTP client/server
Time Synchronization: Precise scheduling via NTP
Diagnostic and management tools for streamlined network monitoring

Applications

Secure industrial network integration for S7-1500 controllers
High-speed data exchange between PLC, SCADA, and IT systems
Secure remote access via VPN in automation networks
Network-wide time synchronization for distributed processes

Technical Specifications

Feature	Specification
Manufacturer	Siemens
Range	Simatic S7
Subrange	NET
Model	6GK7543-1AX00-0XE0
Product Type	Communication modules
Ethernet Interface	1x RJ45 (10/100/1000 Mbit/s)
Security Features	VPN, Firewall
Protocol Support	TCP/IP, ISO, UDP, S7, SNMP, FTP, NTP
Network Addressing	IPv4 / IPv6
Weight	0.80kg
Dimensions	3.50cm x 12.90cm x 14.20cm
Commodity Code	85176200
PLM Product Status	Phase-Out

Installation Guidelines

Mounting: Install the CP 1543-1 on the S7-1500 DIN rail, securing it to the controller CPU rack. Ensure proper mechanical seating on the backplane.
Network Connectivity: Use shielded, industrial-grade Ethernet cables (Cat6/6a recommended) to connect to the RJ45 port for optimal 1000 Mbit/s performance.
Security Configuration: Utilize the STEP 7 or TIA Portal configuration environment to define firewall rules and VPN tunnels. Proper setup is critical to ensuring network integrity.
Grounding: Ensure the S7-1500 rail system is properly grounded to mitigate electromagnetic interference, which can impact Ethernet communication quality.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What security features does the 6GK7543-1AX00-0XE0 provide?

The module includes an integrated firewall and VPN capabilities to secure industrial communication against unauthorized access.

Does this module support IPv6?

Yes, the CP 1543-1 is designed to support both IPv4 and IPv6 addressing protocols.

What is the maximum data rate for the RJ45 port?

The integrated RJ45 port supports high-speed data transmission up to 1000 Mbit/s.

What is the lifecycle status of this communications processor?

This module is currently classified as a phase-out product.
