Description

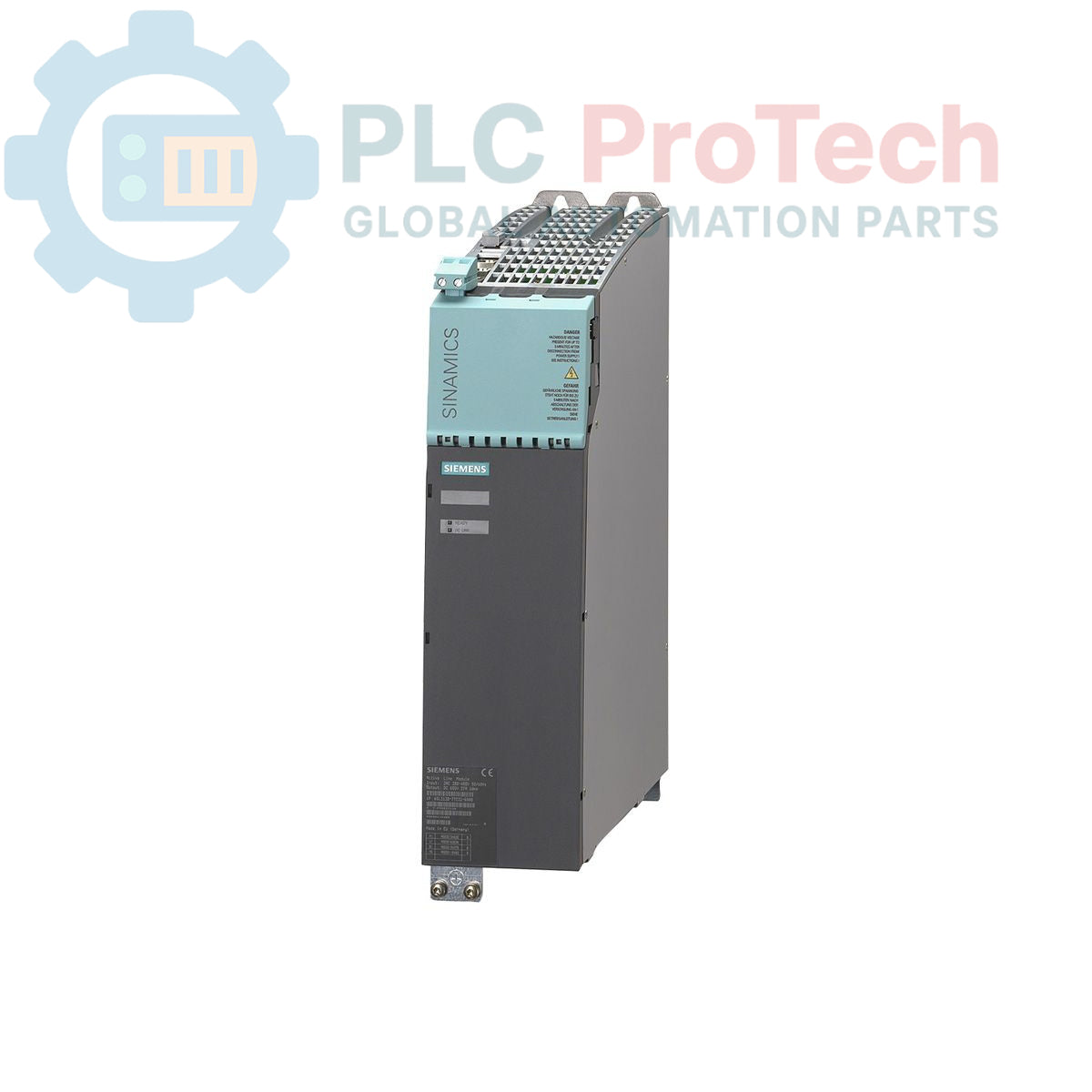

The 6SL3131-7TE21-6AA0 is a SINAMICS S120 active line module designed to provide regulated DC link power from a three-phase industrial AC supply. Manufactured by Siemens, this unit features a 3-phase input voltage range of 380-480 V AC at 50/60 Hz and delivers a regulated 600 V DC output at 27 A with a 16 kW power rating.

The 6SL3131-7TE21-6AA0 utilizes external air cooling to manage thermal dissipation efficiently within cabinet configurations. Each unit includes a Control Voltage Adapter and a DRIVE-CLiQ cable for seamless integration into broader multi-axis drive architectures. The module measures 35.60 x 10.20 x 53.30 cm and weighs 8.60 kg. As a phase-out lifecycle product with a designated successor (6SL3131-7TE21-6AA3), it is deployed primarily to support legacy system maintenance, direct hardware replacement, and operational continuity in established S120 installations.

Features

• SINAMICS S120 active line module architecture for regulated DC link power generation
• 3-phase input voltage operating range of 380-480 V AC (50/60 Hz)
• 600 V DC regulated output providing 27 A current and 16 kW power output
• External air cooling design for optimized thermal management
• Included Control Voltage Adapter and DRIVE-CLiQ cable for fast system communication

Applications

• Multi-axis industrial machine tools and drive systems
• High-performance automated manufacturing and processing lines
• Regenerative energy management in industrial drive networks
• Sinamics S120 system maintenance and direct component replacement

Technical Specifications

Installation Guidelines

• Mount the 6SL3131-7TE21-6AA0 module vertically onto a suitable mounting plate inside an enclosed industrial control cabinet supporting external air cooling requirements.
• Ensure proper clearance around the unit to facilitate external airflow channels and prevent heat accumulation.
• Connect the 3-phase 380-480 V AC input supply lines and DC link busbars securely in accordance with system schematics and local electrical codes.
• Attach the included Control Voltage Adapter and connect the DRIVE-CLiQ cable to establish communication with the Control Unit before powering on the system.
