Product Overview

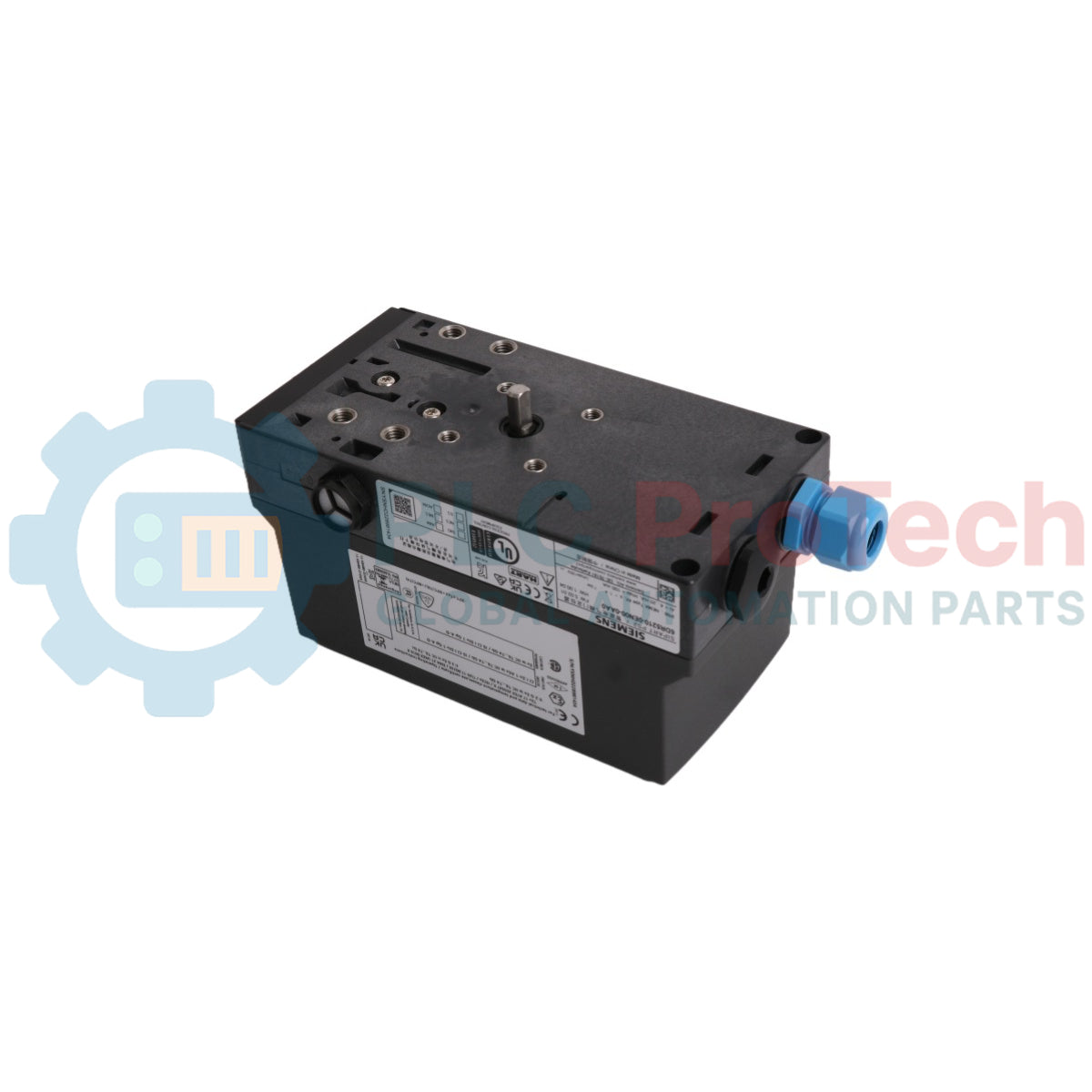

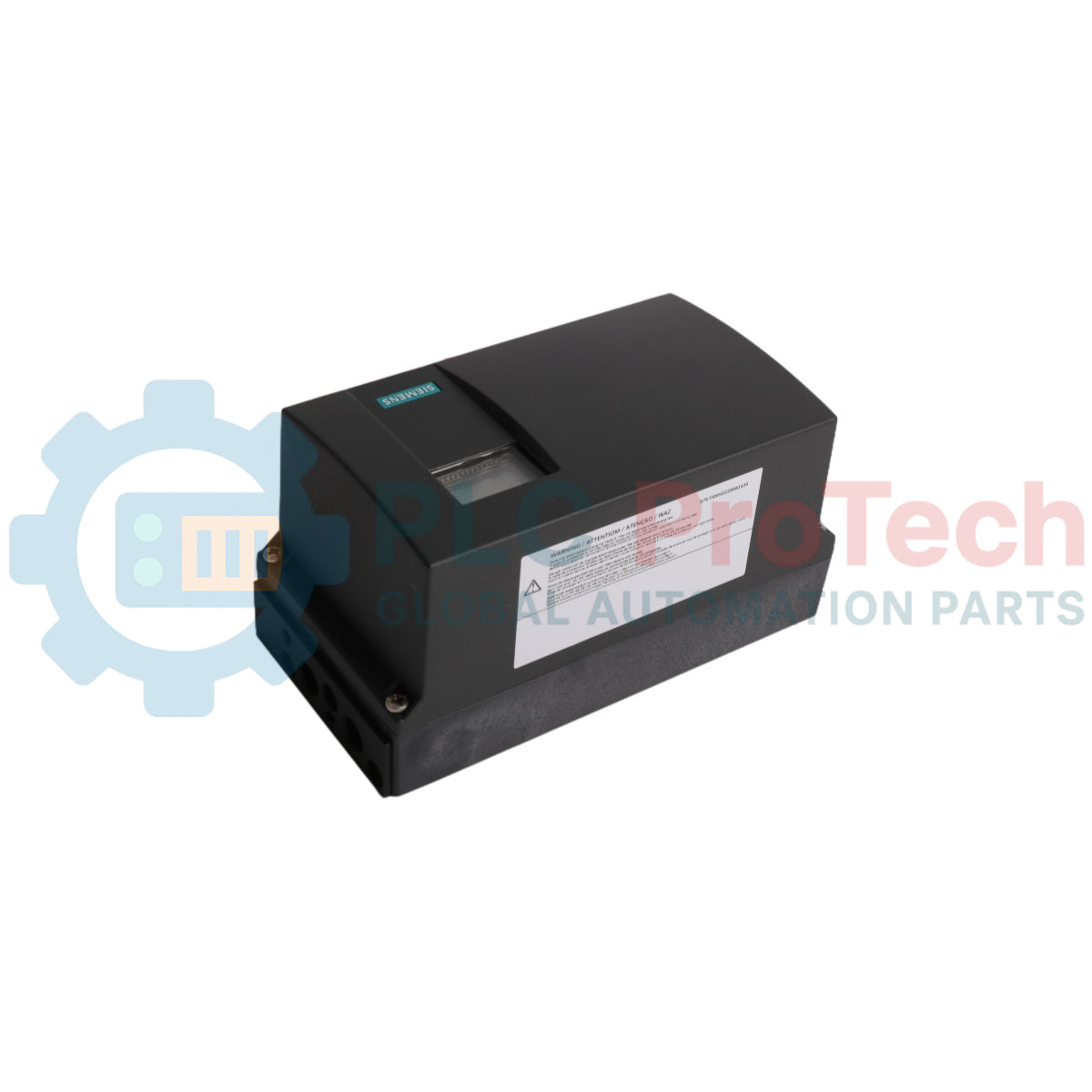

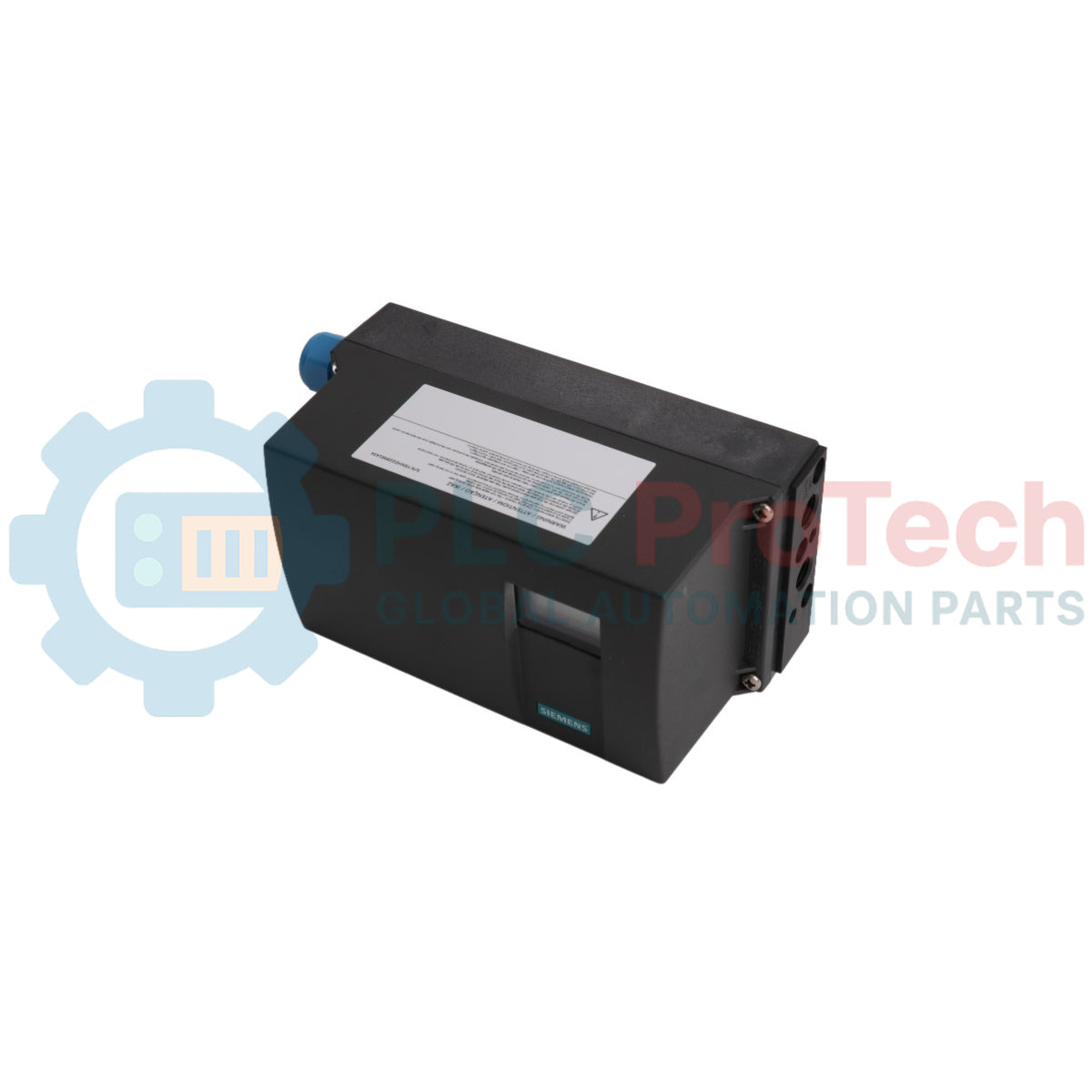

The Siemens 6DR5210-0EN01-0AA0 (6DR52100EN010AA0) is a high-performance SIPART PS2 electropneumatic positioner equipped with a Profibus PA communication interface. This model is designed specifically for the digital automation of linear and part-turn (rotary) actuators, providing seamless integration into decentralized control systems. As a single-acting unit, it is ideal for spring-return actuators commonly found in safety-related applications. The 6DR5210-0EN01-0AA0 is built in a rugged aluminum enclosure, offering superior mechanical durability and electromagnetic shielding compared to standard polycarbonate models. By utilizing Profibus PA, this positioner provides extensive diagnostics, including valve wear monitoring and ambient temperature tracking, directly to the control room, significantly enhancing predictive maintenance capabilities.

Technical Configuration

The 6DR5210-0EN01-0AA0 combines advanced digital communication with Siemens' proven piezo-pneumatic technology.

• Profibus PA Communication: Enables full digital integration, allowing for cyclic data exchange (position, status) and acyclic data exchange (parameters, diagnostics) via a single bus cable.

• Single-Acting Operation: Optimized for actuators that use a mechanical spring for the fail-safe stroke, providing precise pressure control to the opposing chamber.

• Rugged Aluminum Housing: The metal enclosure provides enhanced protection (IP66) and is suitable for environments with high mechanical stress or where increased fire protection is required.

• Explosion Protection (Ex n): This specific variant is rated for Zone 2 (Non-sparking / Energy-limited), making it suitable for hazardous areas where explosive atmospheres occur only rarely and for short periods.

• Intelligent Diagnostics: Supports "Partial Stroke Testing" (PST) and "Full Stroke Testing" (FST) to ensure valve readiness without interrupting the ongoing process.

Technical Specifications

Technical FAQs

What is the advantage of using Profibus PA over 4-20 mA?

Profibus PA allows for bidirectional digital communication. Unlike 4-20 mA, which only sends a position signal, Profibus PA allows you to remotely access over 100 diagnostic parameters, perform remote calibrations, and identify the exact cause of a valve fault without visiting the field.

Can I use this positioner on a double-acting actuator?

No. The 6DR5210 series is a single-acting hardware configuration. For double-acting actuators, you would require the 6DR5220 series modules, which feature the necessary second pneumatic output (Y2).

Is this module "Fail-Safe"?

Yes. In the event of a power failure or bus communication loss, the pneumatic output (Y1) will exhaust to the atmosphere, allowing the actuator's internal spring to move the valve to its designated fail-safe position (Open or Closed).

Engineering & Installation Guide

• Bus Wiring (Profibus PA): Ensure the use of specialized Type A Profibus PA cable (shielded twisted pair). The shield should be grounded according to FISCO or Entity concepts to prevent electromagnetic interference. Ensure a bus terminator is installed at the end of the segment to prevent signal reflections.

• Air Quality and Filtration: The integrated piezo-valves are highly sensitive. Compressed air must be dry, oil-free, and filtered to 5 microns (ISO 8573-1 Class 2). Failure to provide clean air will lead to the "sticking" of internal components and erratic positioning.

• Initialization Procedure: Use the "Automatic Initialization" (RUN 1 to RUN 5) via the local push-buttons or the bus system. During this process, the positioner automatically calculates the mechanical stops and adjusts its internal PID gain. Ensure the feedback lever is correctly aligned to avoid "out of range" errors during initialization.
