Description

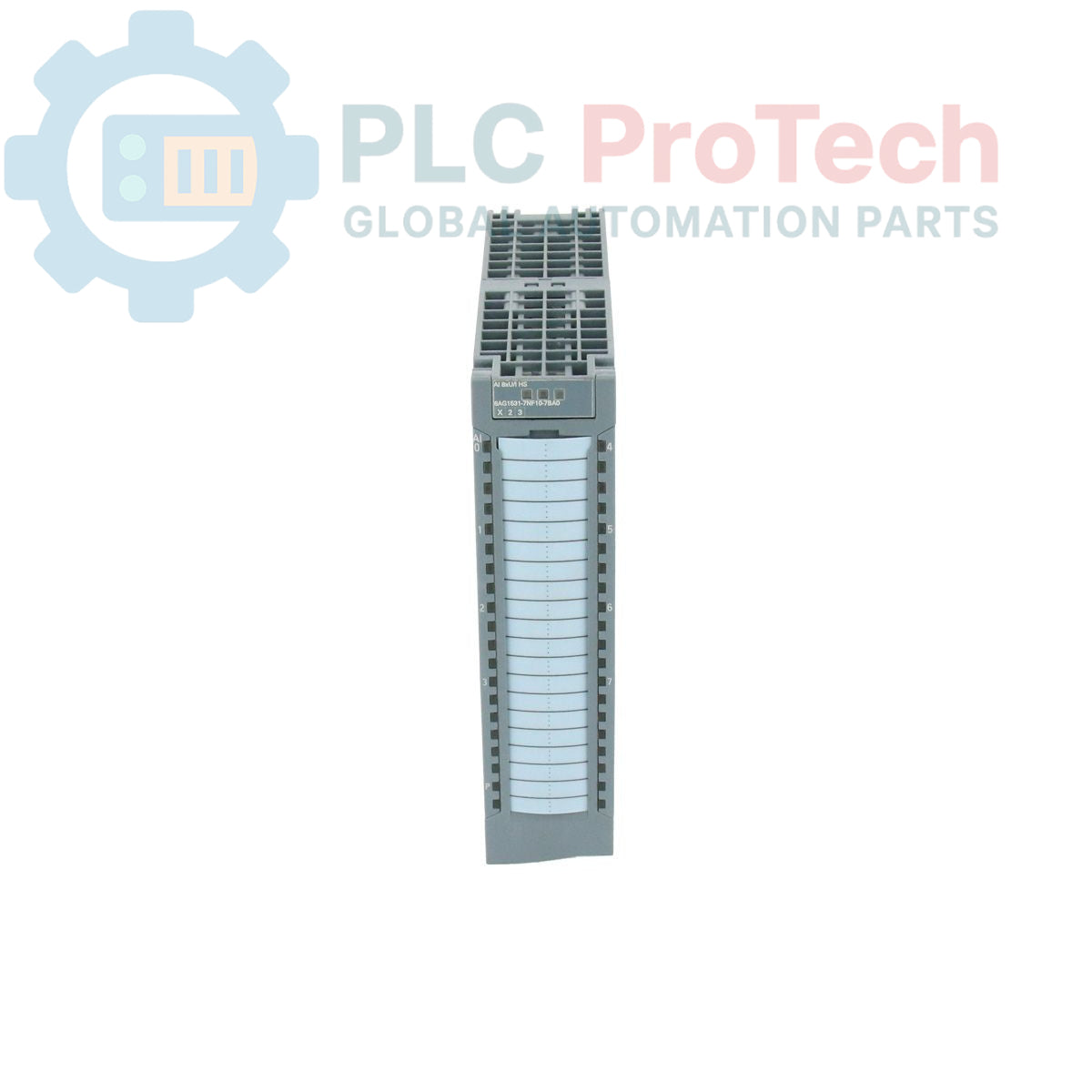

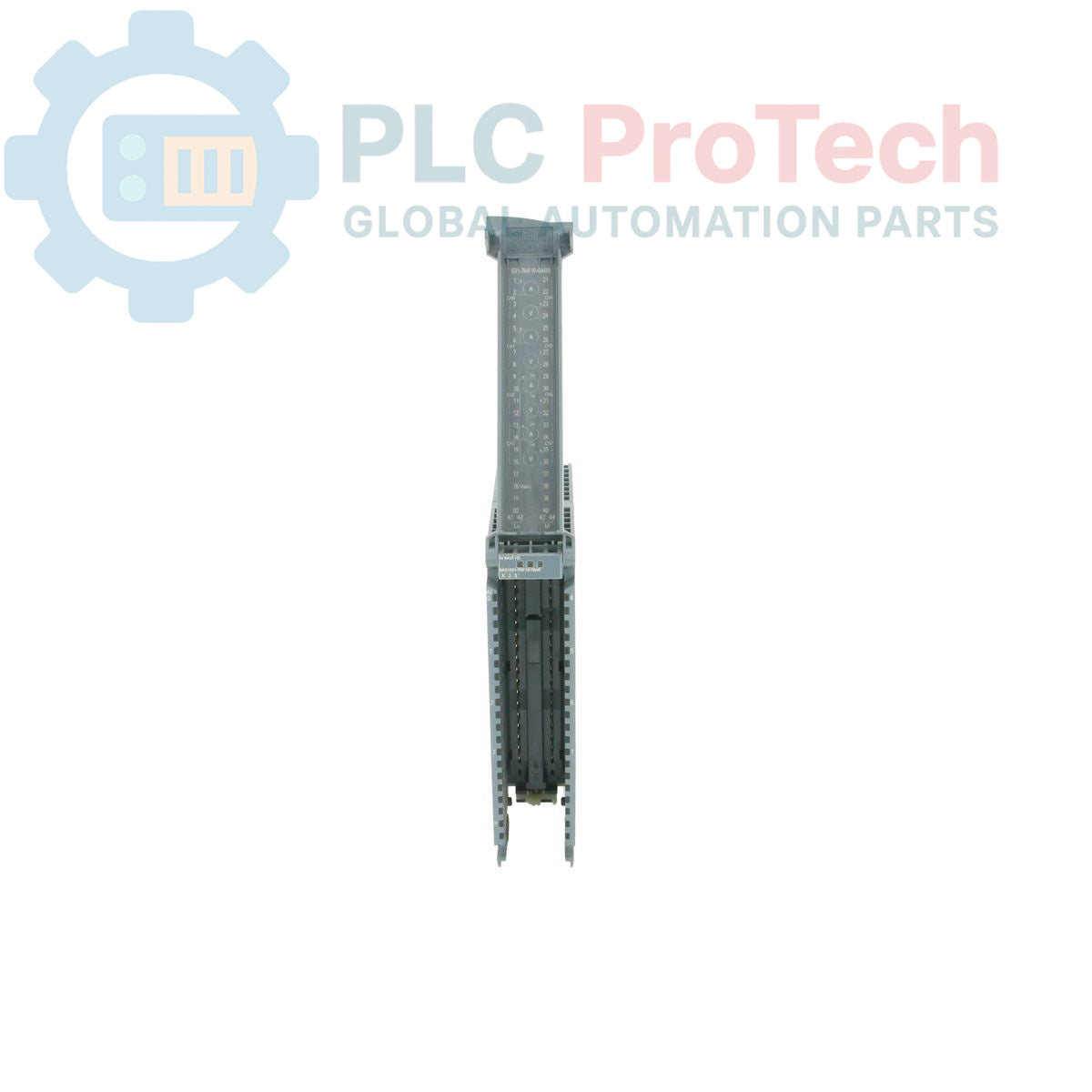

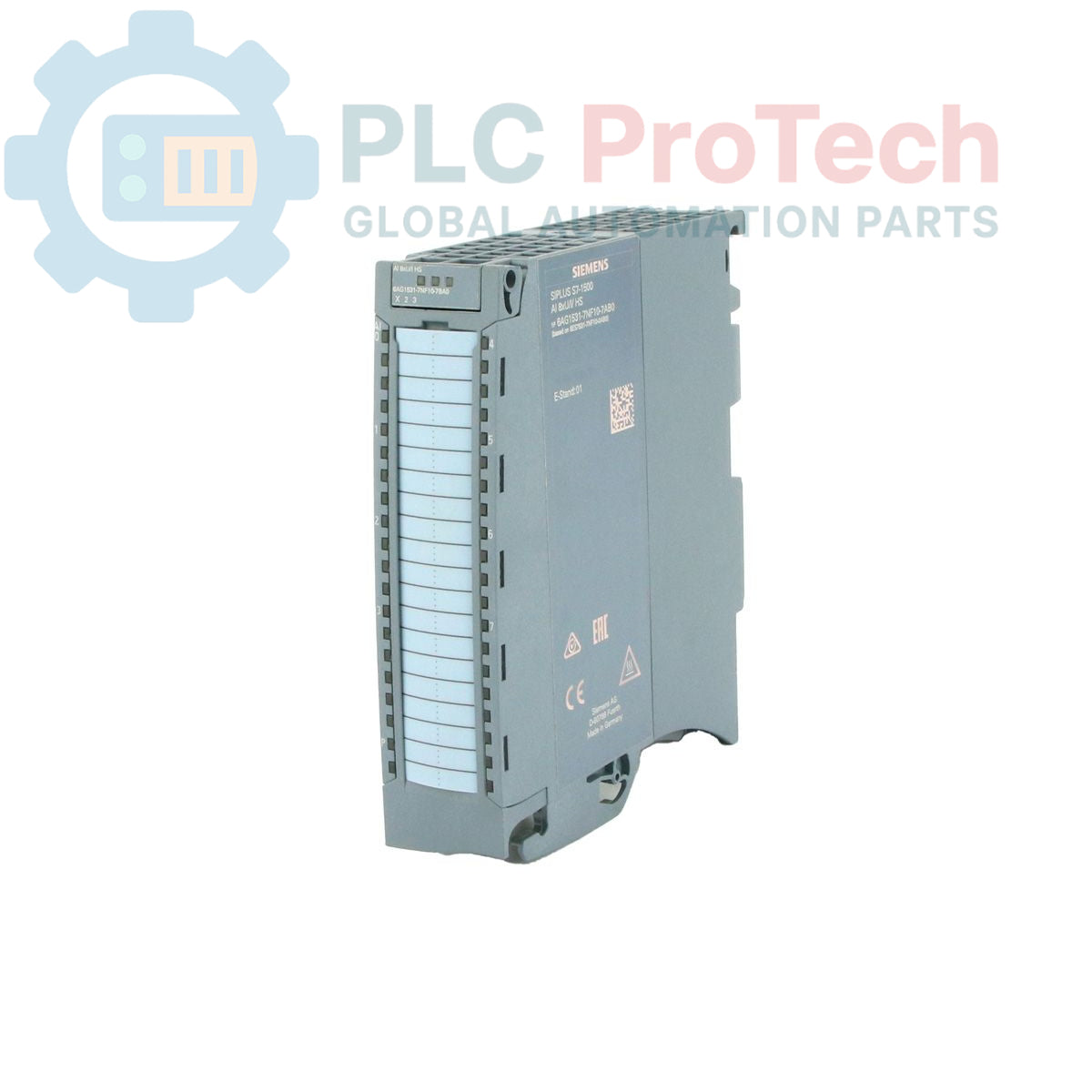

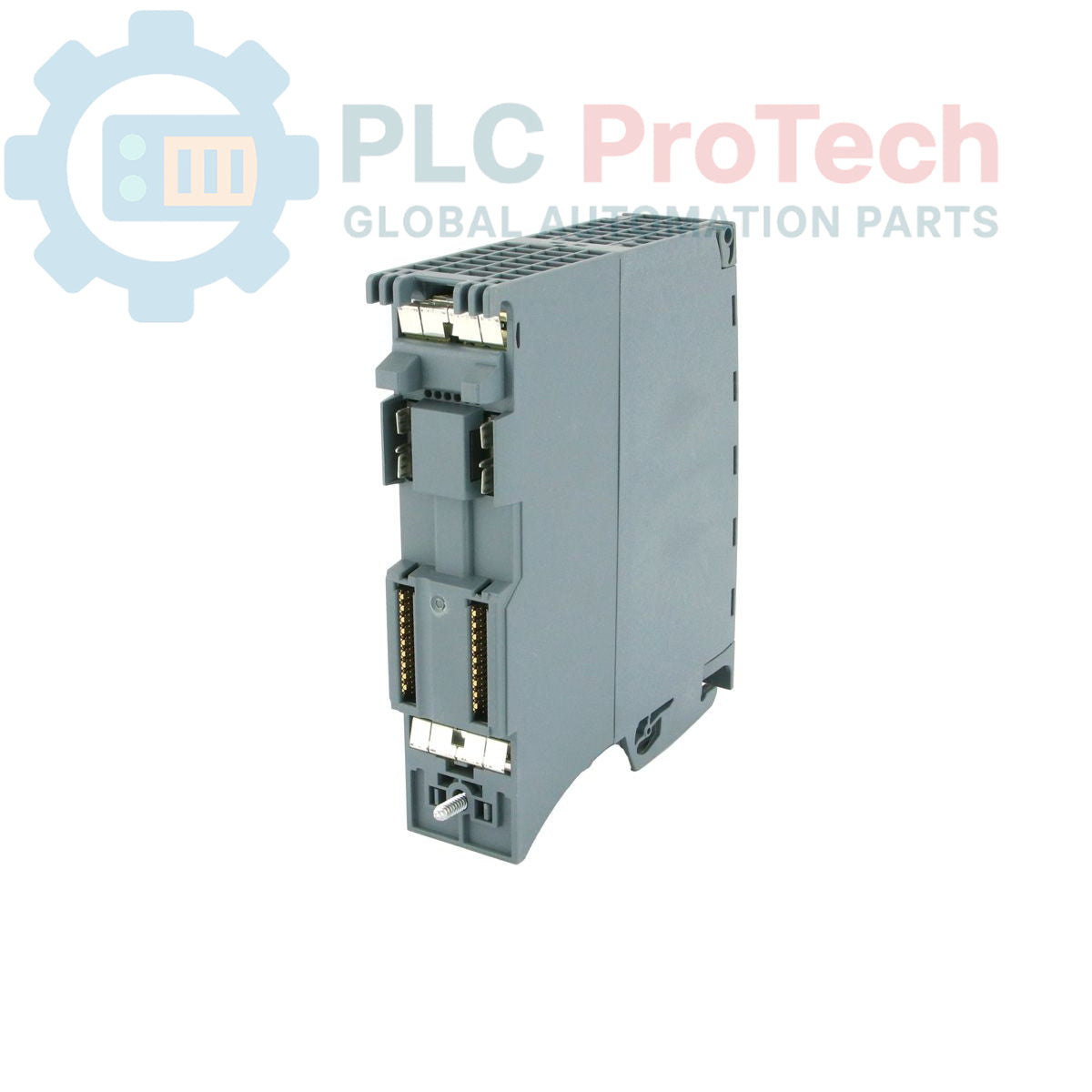

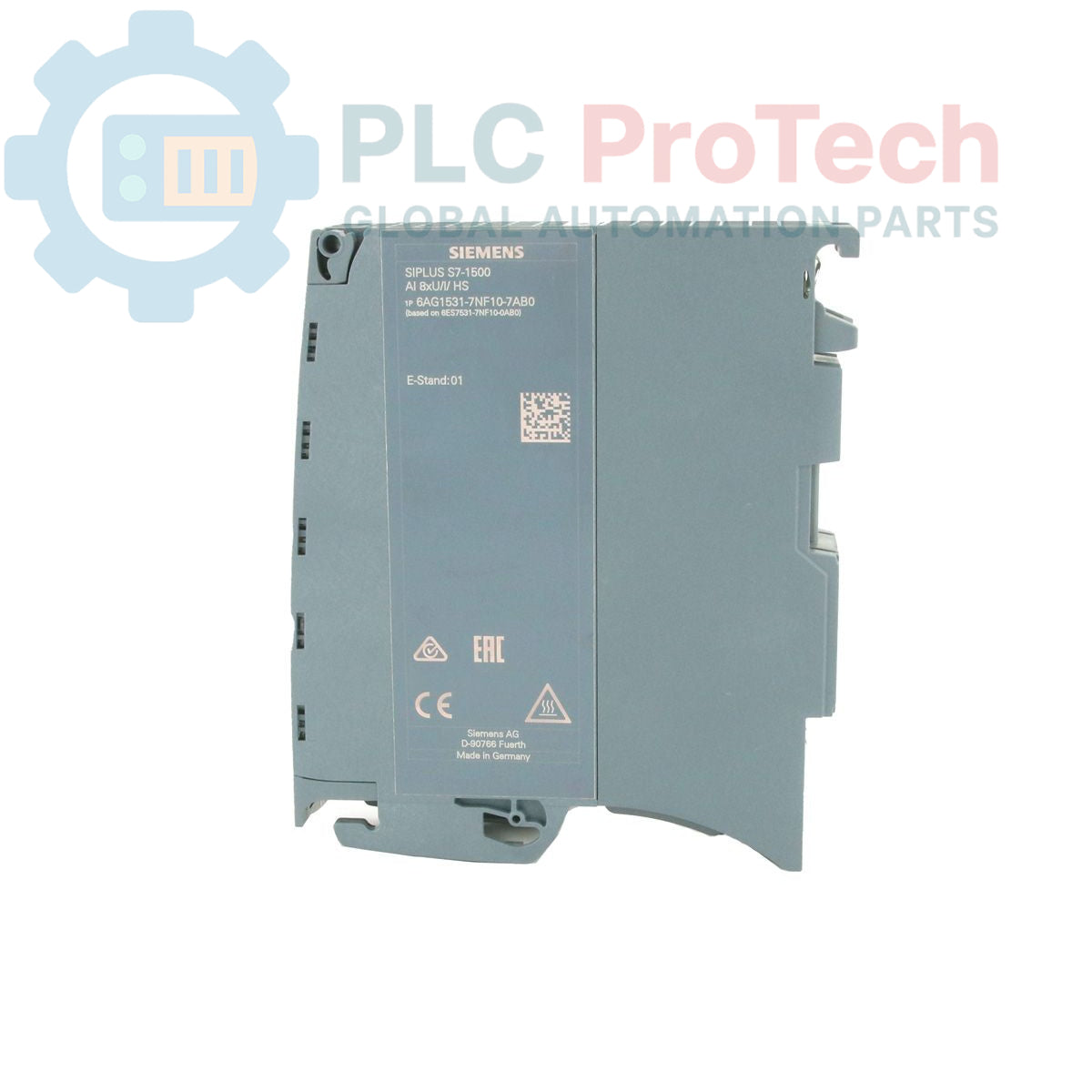

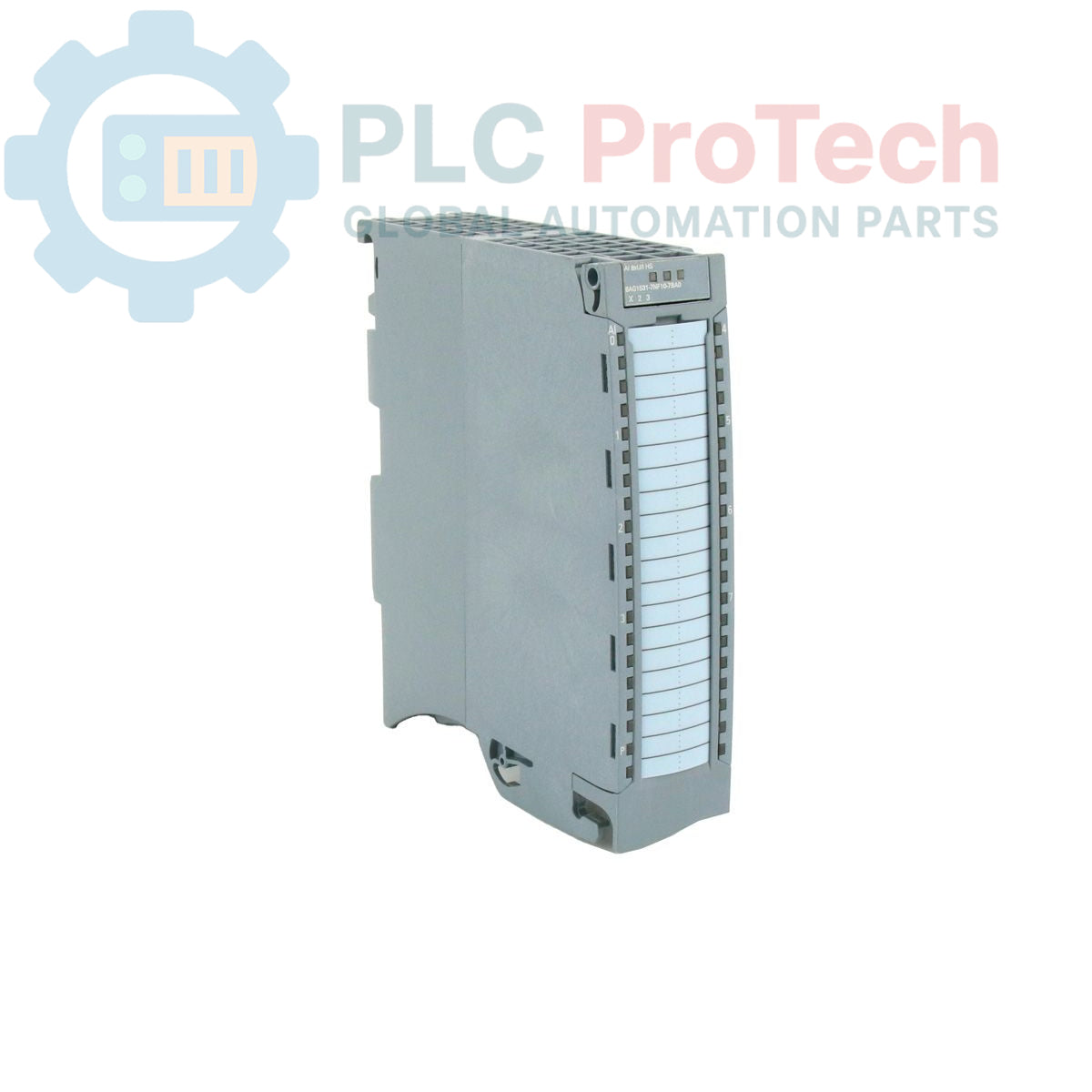

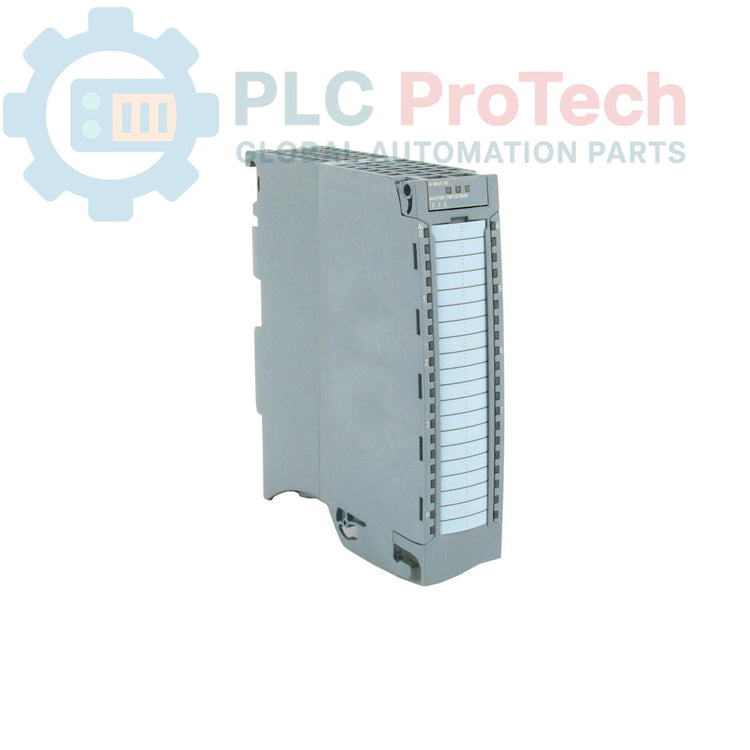

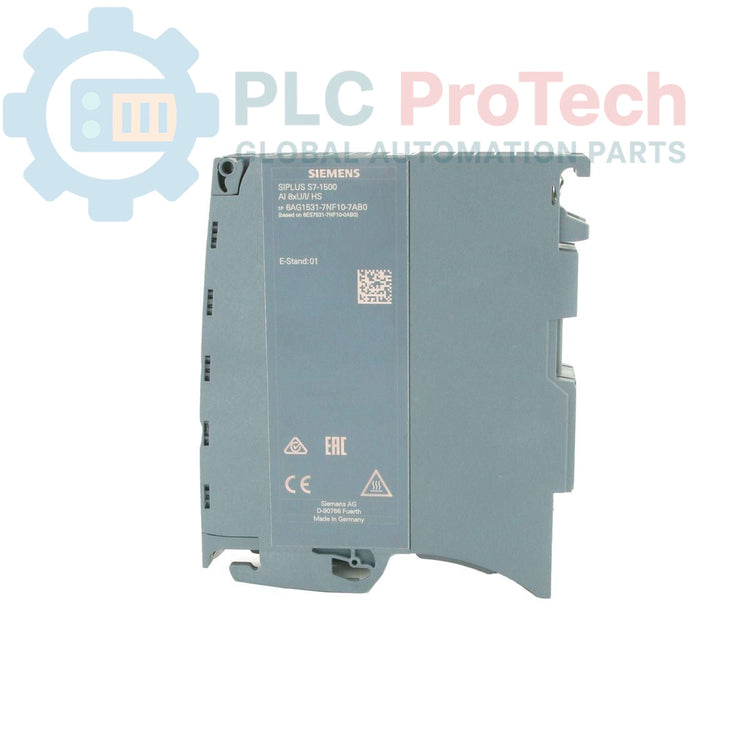

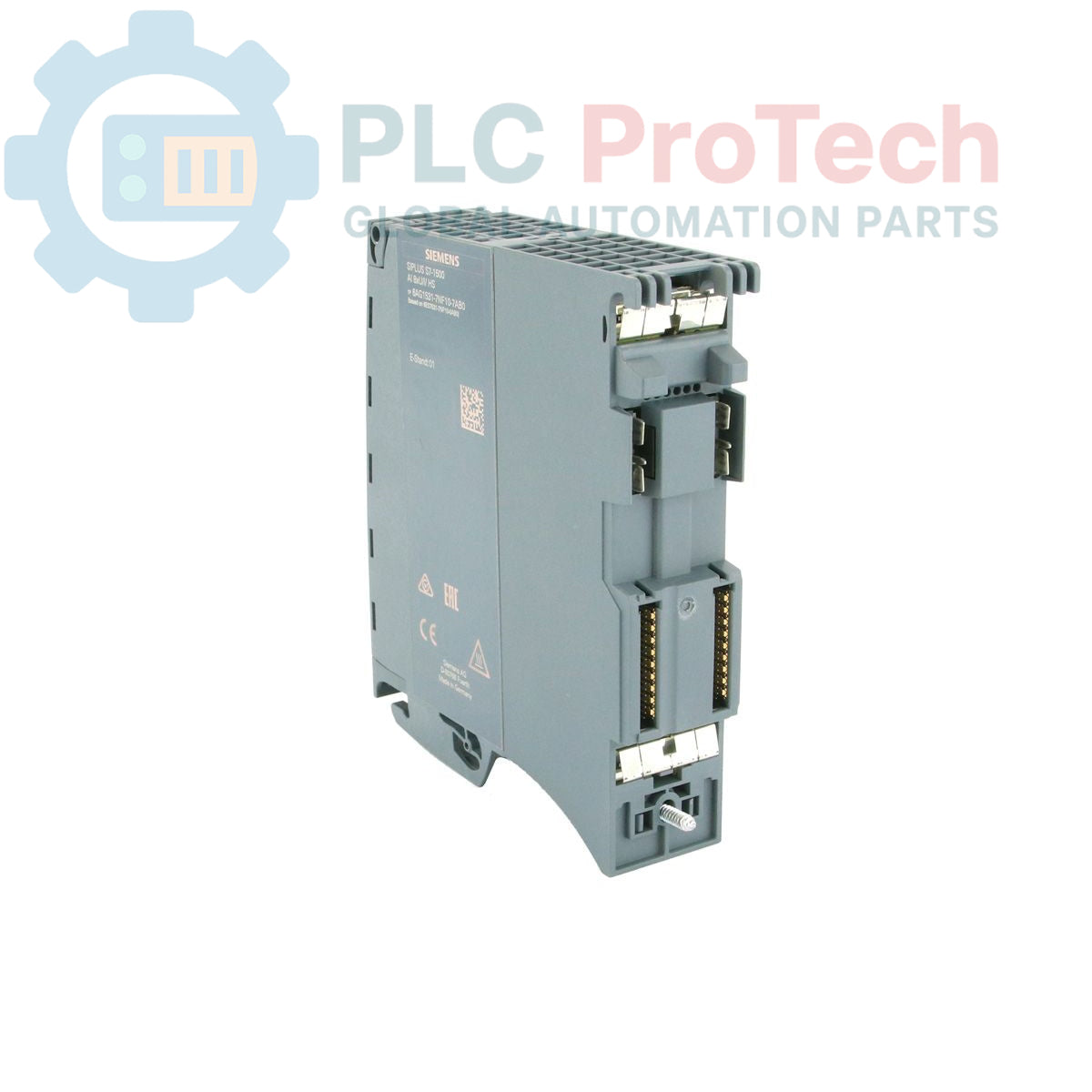

The 6AG1531-7NF10-7AB0 is a high-speed Analog Input Module from the SIPLUS S7-1500 range, manufactured by Siemens. Based on the 6ES7531-7NF10-0AB0, this module is specifically engineered with a conformal coating to provide enhanced durability in extreme environmental conditions, supporting an operating temperature range of -40 degC to +70 degC. It features 8 analog input channels with 16-bit resolution and 0.3% accuracy, offering high-speed performance with hardware interrupts within 0.0625 ms. This module includes the necessary infeed element, shielding bracket, and shield terminal for secure industrial installation.

Features

• Conformal coating for operation in harsh environments (-40 degC to +70 degC)
• 8 high-speed analog input channels (grouped in 8)
• 16-bit resolution with 0.3% accuracy
• Hardware interrupts with 0.0625 ms response time
• Common mode voltage capability of 10 V
• Includes essential shielding and infeed accessories

Applications

• High-speed data acquisition in extreme climates
• Industrial process control in harsh environments
• High-precision analog signal monitoring
• Automation systems requiring rapid hardware interrupt responses

Technical Specifications

Installation Guidelines

• Mounting: Mount the module onto the S7-1500 DIN rail. Ensure the module is securely locked into the backplane.
• Shielding: Utilize the included shielding bracket and shield terminal to ensure proper cable shielding, which is critical for maintaining signal integrity in high-speed analog applications.
• Infeed: Install the provided infeed element to ensure stable power distribution across the module's channels.
• Environment: Designed for outdoor or harsh industrial conditions; however, ensure the installation site adheres to the specified temperature and humidity limits for the conformal coating to provide maximum protection.
