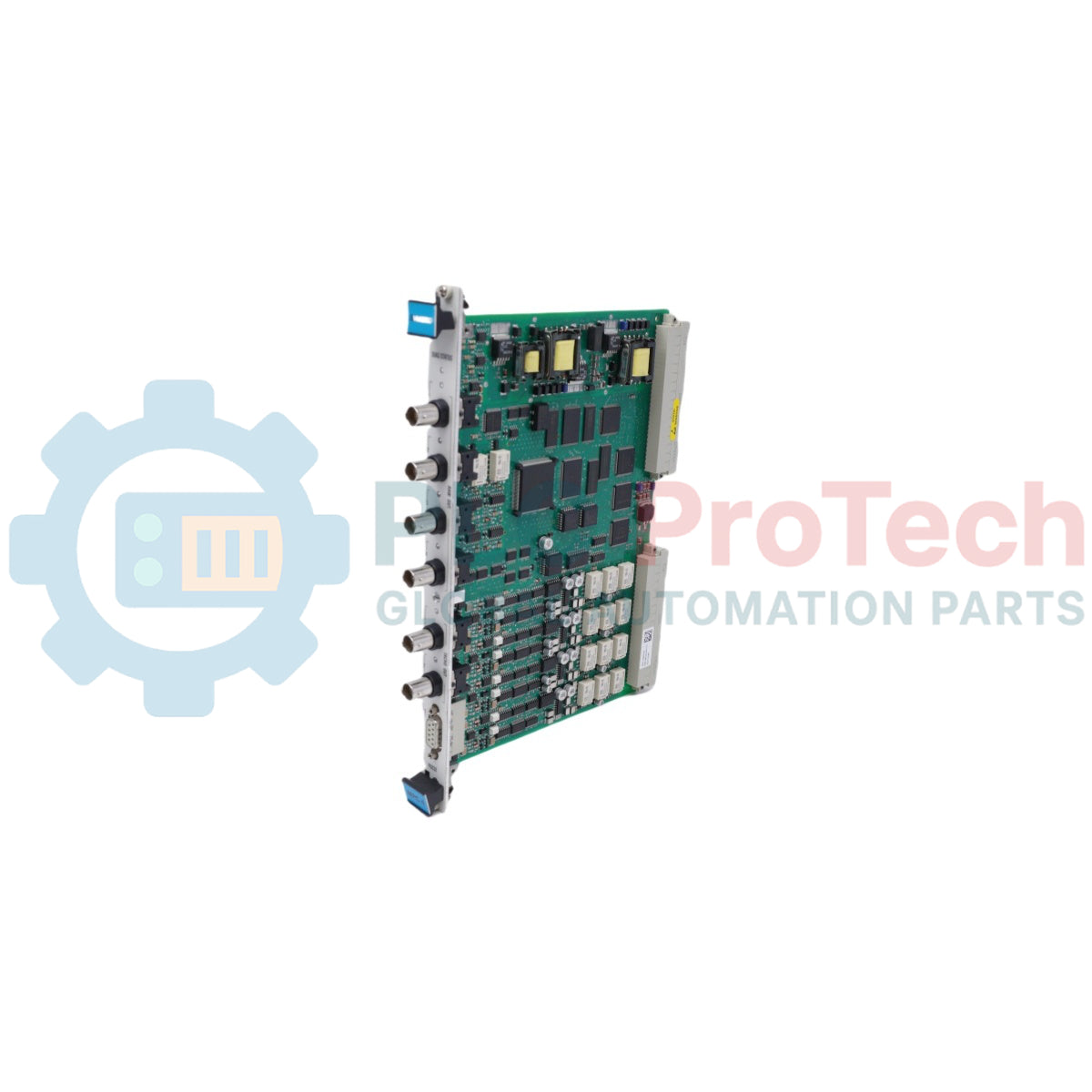

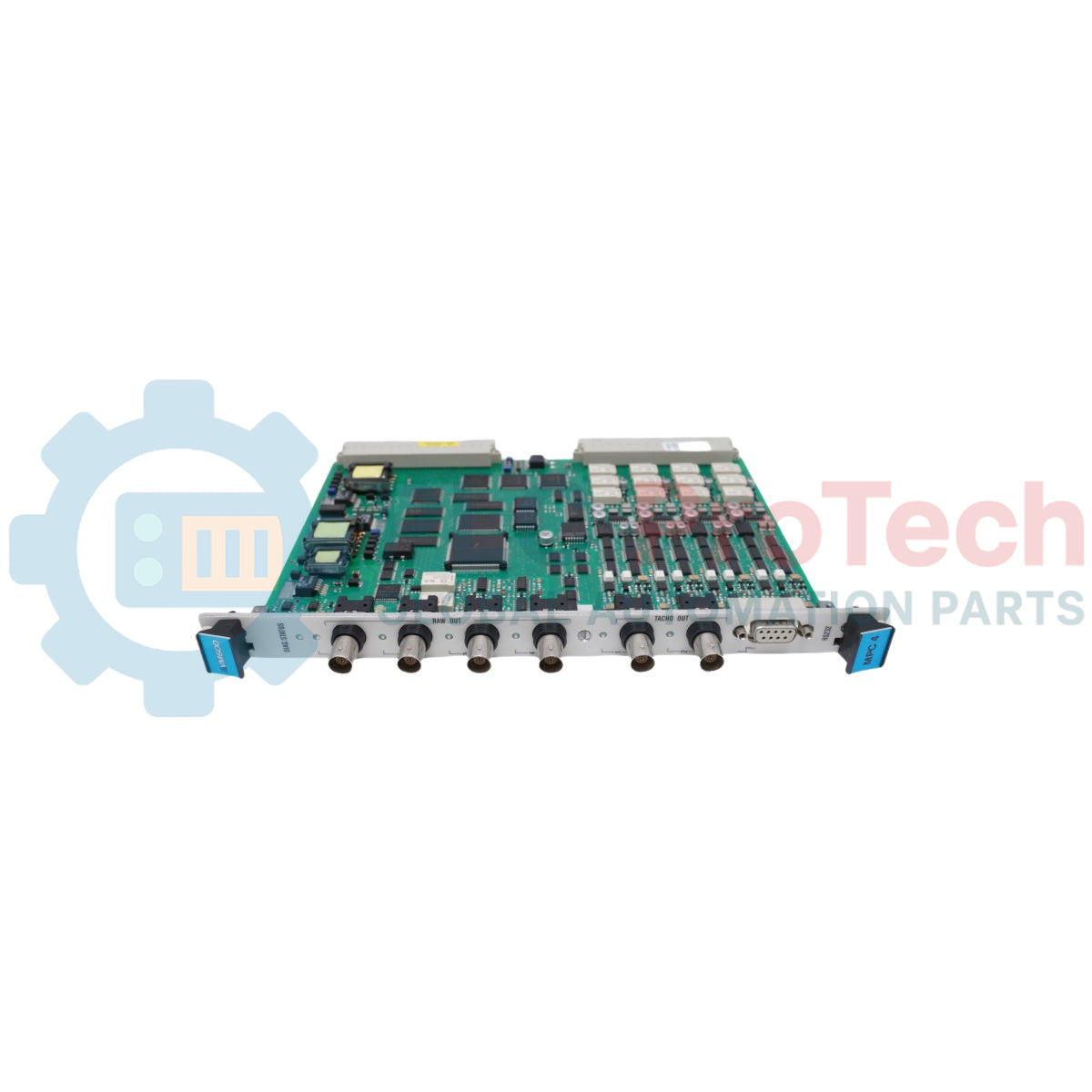

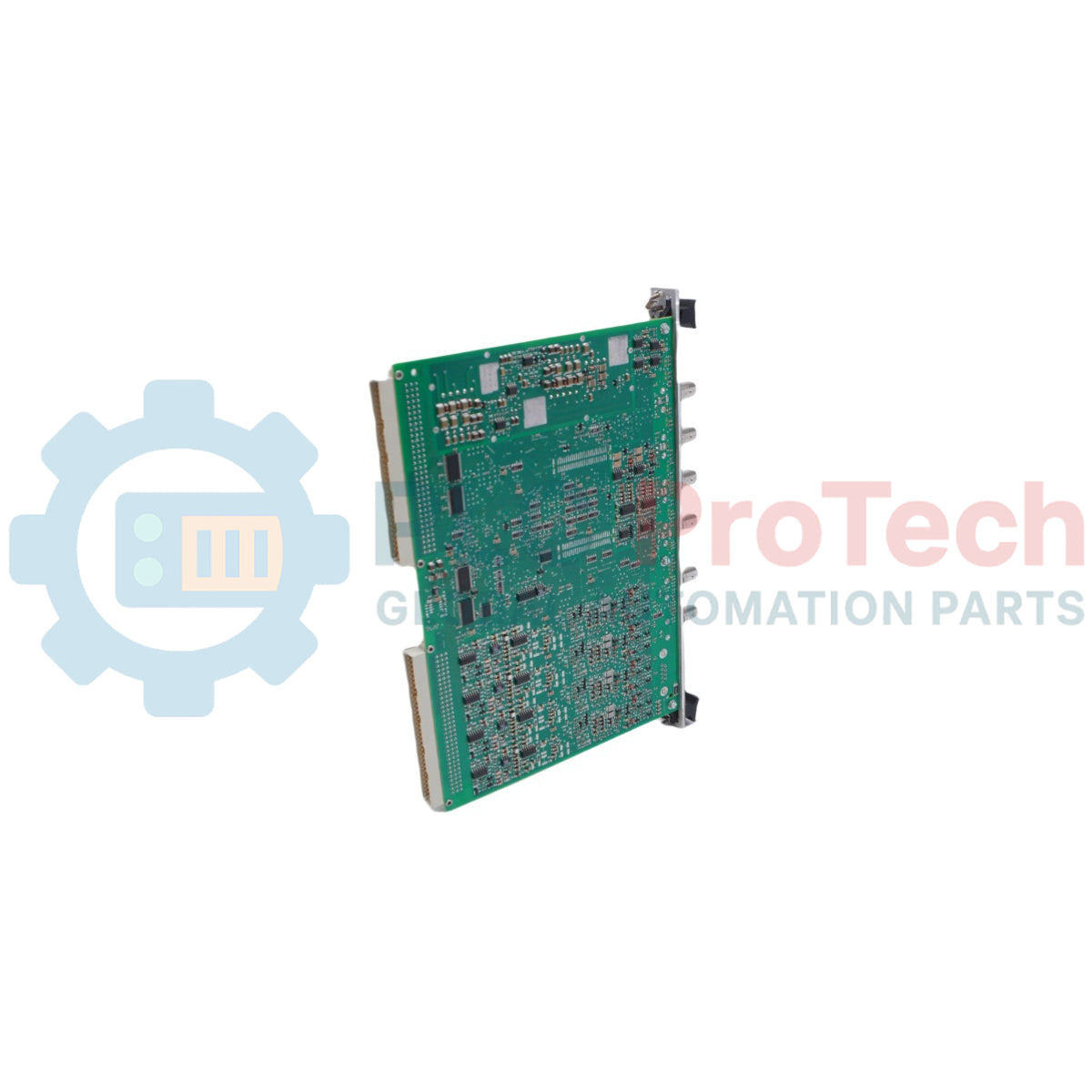

The MPC4 (PNR 200-510-070-113) is the core processing module of the Vibro-Meter VM600 Machinery Protection System (MPS). This "Standard Version" card is a high-performance, programmable unit designed for the continuous monitoring and protection of critical rotating assets, such as gas and steam turbines, large compressors, and industrial pumps. It performs high-speed signal processing and autonomous alarm logic to safeguard machinery against excessive vibration, shaft displacement, and overspeed conditions.
The 200-510-070-113 variant provides a robust 4+2 channel architecture, making it a versatile choice for Turbine Supervisory Instrumentation (TSI).
Four Dynamic Input Channels: These channels accept signals from a wide range of transducers, including TQ-series proximity probes (eddy current), CA-series accelerometers, and CE-series velocity sensors.
Two Speed (Tachometer) Channels: Dedicated inputs for speed sensors to monitor shaft rotational frequency and provide phase reference (phase trigger) for tracking filters.
Signal Processing Power: Features high-speed Digital Signal Processors (DSPs) that extract scalar values (e.g., Peak-to-Peak, RMS, Gap Voltage) and perform real-time FFTs and order tracking.
VME Backplane Integration: The card communicates with the rack's CPUM for management but maintains an independent safety bus to ensure protective actions (trips) are executed even if the rack controller fails.
| Parameter | Specification Details |
| Model / PNR | MPC4 / 200-510-070-113 |
| Brand | Vibro-Meter (Meggitt) |
| Origin | Switzerland |
| Dynamic Inputs | 4 Channels (Vibration, Displacement, Pressure) |
| Speed Inputs | 2 Channels (Tacho/Phase Reference) |
| Input Impedance | 100 kΩ |
| A/D Conversion | 16-bit resolution |
| Frequency Response | DC to 20 kHz |
| Operating Temp | -25 to $+65^{\circ}C$ |
| Power Consumption | 11 W (Nominal) |
How does the "Standard" 200-510-070-113 differ from the "SIL" version?
The 200-510-070-113 is the standard machinery protection card. While it is highly reliable and extensively used, the MPC4SIL (200-510-071-311) version includes additional hardware redundancy and internal safety diagnostics required to meet specific SIL 2 (Safety Integrity Level) certifications.
Can this card be used for combustion monitoring?
Yes. Due to its high frequency response (up to 20 kHz), the MPC4 can process dynamic pressure signals from CP-series sensors to monitor combustion instabilities in gas turbines.
What is the role of the "Sensor OK" monitoring?
The card continuously monitors the bias voltage of the connected sensor. If a cable is cut or a sensor fails, the MPC4 detects the "Out of Limits" DC voltage and triggers a "Sensor OK" fault, which can be programmed to inhibit a false trip while alerting operators to the hardware issue.
Rear Card Pairing: The MPC4 200-510-070-113 is always installed in the front of the VM600 rack. It must be paired with an IOC4T (200-560-000-xxx) I/O card in the corresponding rear slot to provide terminal connections for field wiring and relay outputs.
Logic Configuration: Configuration is performed via the Vibro-Meter MPS software. This includes setting alarm thresholds (Alert/Danger), bypass logic, and voting logic (e.g., 2-out-of-2).
Grounding: For precise vibration measurements, ensure that the cable shields are grounded at the IOC4T terminal block only, following the single-point grounding principle to avoid ground loops.
The MPC4 200-510-070-113 is renowned for its Autonomous Safety Functionality. Unlike PLC-based protection, the MPC4 does not rely on a central processor to make trip decisions. Each card is a "system within a system," capable of shutting down a machine in less than 20 milliseconds upon detecting a violation of safety limits. This deterministic behavior is critical for preventing catastrophic mechanical failures in high-energy rotating equipment.
Global Express Shipping
Returns & Warranty
Manufacturer: VIBRO-METER
Product No.: VM600 MPC4 200-510-070-113
Country of origin:United States
Product Type: Machinery Protection Card
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 420g
Dimensions: 2cm x 18.5cm x 26.1cm
Shipping port: Xiamen
Warranty: 12 months
