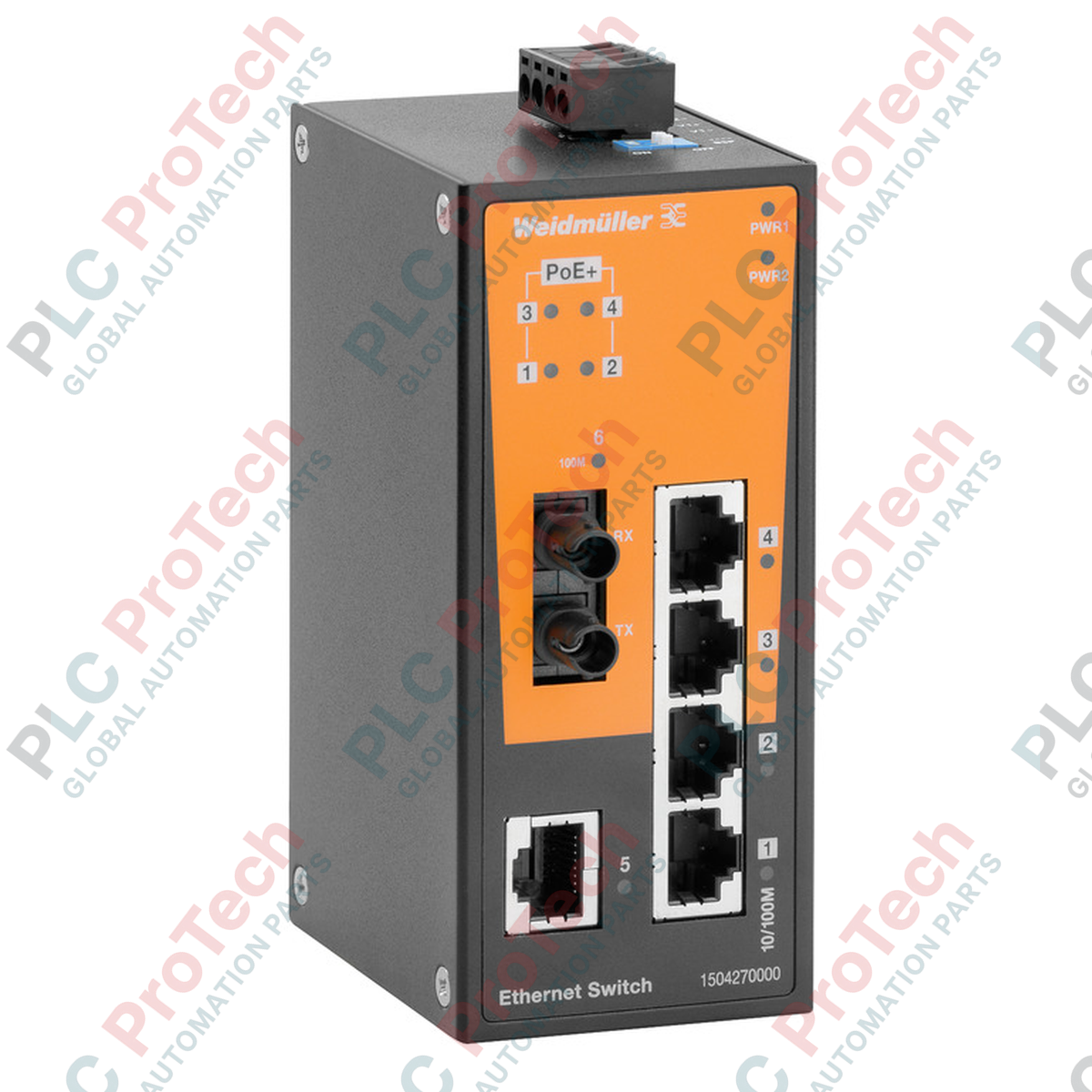

To facilitate robust Ethernet connectivity and power delivery in demanding industrial environments, the Weidmuller 1504270000 (model IE-SW-BL06-1TX-4POE-1ST) provides a reliable, unmanaged networking solution. This device integrates four IEEE 802.3af/at compliant Power-over-Ethernet (PoE+) ports, one standard 10/100BaseT(X) RJ45 port, and one 100BaseFX multimode fiber port utilizing an ST-Duplex connector. Housed in a rugged IP30 aluminum enclosure, this switch is designed to withstand harsh electromagnetic interference and extreme thermal variations typical of factory automation and process control networks.
| Manufacturer | Weidmuller |
| Part Number / SKU | 1504270000 |
| Model Designation | IE-SW-BL06-1TX-4POE-1ST |
| Switch Type | Unmanaged PoE |
| Transmission Speed | Fast Ethernet (10/100 Mbps) |
| RJ45 Ports | 1x 10/100BaseT(X) |
| PoE Ports | 4x 10/100BaseT(X) PoE+ (IEEE 802.3at/af) |
| Fiber Optic Port | 1x 100BaseFX Multimode (ST-Duplex connector) |
| Transmission Distance (Typ.) | 5 km |
| MAC Table Size | 1 K |
| Packet Buffer Size | 512 kBit |
| Supply Voltage | 24/48 V DC (2 redundant inputs) |
| Current Consumption | 5.5 A at 24 V DC, 2.6 A at 48 V DC (at full PoE+ load) |
| Connection Type | 1 removable 4-pin terminal block |
| Housing Material | Aluminium |
| Protection Class | IP30 |
| Mounting Type | DIN rail, Panel (with optional mounting kit) |
| Operating Temperature | 0 to 60 degC |
| Storage Temperature | -40 to 85 degC |
| Operating Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 50 mm x 115 mm x 70 mm |
| Net Weight | 375 g |
| Shipping Weight (Calculated) | 1 kg |
| Terminal Pin / Interface | Function / Circuit Assignment |
|---|---|
| Pin 1 (Terminal Block) | V1+ (Primary Power Input +24 / +48 V DC) |
| Pin 2 (Terminal Block) | V1- (Primary Power Input Ground) |
| Pin 3 (Terminal Block) | V2+ (Redundant Power Input +24 / +48 V DC) |
| Pin 4 (Terminal Block) | V2- (Redundant Power Input Ground) |
| Ports 1 to 4 (RJ45) | 10/100BaseT(X) Fast Ethernet with IEEE 802.3at PoE+ Output |
| Port 5 (RJ45) | 10/100BaseT(X) Standard Fast Ethernet Uplink |
| Port 6 (ST-Duplex) | 100BaseFX Multimode Fiber Optic Port (TX/RX) |
The IE-SW-BL06-1TX-4POE-1ST replaces standard non-PoE variants where field devices require power over the data line. Note that the ST-Duplex fiber interface requires matching multimode fiber cabling (50/125 or 62.5/125 micrometers) and is not compatible with single-mode (SC/LC) systems without an active media converter.
When operating at 24 V DC, the internal step-up converter generates significant heat under full 120W PoE+ load. Ensure at least 20mm of lateral clearance on the DIN rail to prevent thermal throttling or adjacent module degradation. Do not exceed the 5.5 A input threshold at 24 V DC.
Always terminate the functional ground screw on the chassis directly to the local low-impedance DIN rail ground. Use shielded twisted pair (STP) Cat5e or Cat6 cabling for the RJ45 ports to mitigate high-frequency electromagnetic noise in motor control centers.
CRITICAL WARNING
Ensure all power sources (V1 and V2) are completely de-energized before attempting to wire the 4-pin terminal block. Verify that the power supply output matches the 24/48 V DC rating of the switch. Failure to isolate power can result in electrical shock, equipment damage, or arc flash hazards.
Mount the switch securely onto the TS35 DIN rail, ensuring the top latch engages first before snapping the bottom clip into place.
Connect the functional earth ground wire to the designated grounding screw on the aluminum housing to ensure proper EMI shielding.
Wire the redundant power inputs to the removable 4-pin terminal block, securing the screws to a torque of 0.5 Nm.
Insert the ST-Duplex fiber connectors, ensuring correct TX/RX crossover alignment with the remote transceiver.
Connect the RJ45 Ethernet and PoE field cables, verifying that the port LEDs illuminate to indicate active link and power delivery.
