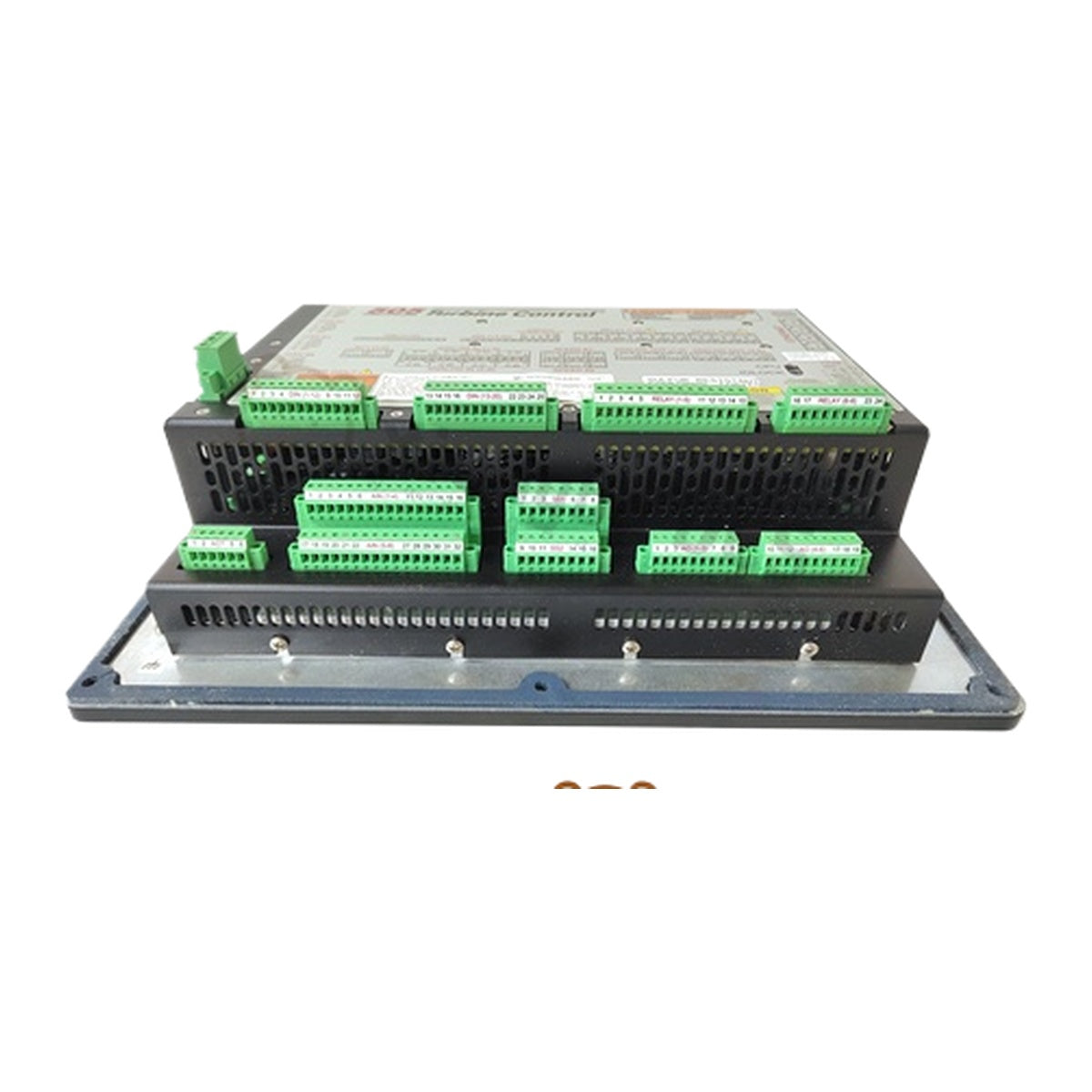

The Woodward 8200-1311 505-XT digital governor is a field-programmable steam turbine control system designed for single valve, split-range, extraction, or admission steam turbines in mechanical drive or generator applications. The 8200-1311 operates as a standalone unit or interfaces with a plant Distributed Control System (DCS) to manage steam turbine operation and parameter limiting. The device controls speed, load, inlet pressure, extraction/admission pressure, auxiliary parameters, exhaust pressure, and acceleration using integrated PID loops. Operating on AC or DC input power, this control system utilizes a built-in graphical user interface (GUI) with an integrated screen and keypad for system setup, online adjustment, and process parameter monitoring.
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Part Number | 8200-1311 |
| Input Power Voltage Range | 88-264 Vac / 90-150 Vdc |
| Input Power Frequency | 45-65 Hz (AC) |
| Power Consumption (AC) | 73 W max, 1.6 A max |
| Power Consumption (DC) | 73 W max, 0.8 A max |
| Output Voltage Holdup Time | > 30 ms @ 110 Vac, > 120 ms @ 220 Vac |
| Isolation to EARTH | > 1500 Vrms |
| Isolation to Other Circuits | > 3000 Vrms |
| Operating Temperature | -30 degC to +70 degC |
| Storage Temperature | -30 degC to +70 degC |
| Humidity | 5% to 95%, non-condensing |
| Ingress Rating | IP20 (Rear), IP54 (Front bezel) |
| Speed Sensor Inputs | 2 channels (MPU: 1 to 35 Vrms, 10 Hz to 35 kHz; PROX: 0 to 32 Vdc, 0.04 Hz to 35 kHz) |
| Prox Sensor Power Output | 24 Vdc ± 14%, 0-200 mA per channel |
| Analog Inputs | 8 channels (4-20 mA, 16-bit resolution, differential/loop-powered) |
| Loop Power Output | 24 Vdc ± 14%, 0-250 mA |
| Analog Outputs | 6 channels (4-20 mA, 14-bit resolution, 0 to 600 ohm load) |
| Actuator Outputs | 2 channels (configurable 4-20 mA or 20-200 mA) |
| Discrete Inputs | 20 channels (with contact power) |
| Relay Outputs | 8 channels (Form-C, 1 Dedicated Trip, 7 Configurable) |
| Ethernet Ports | 4 ports (10/100 Mbit/sec, isolated RJ45) |
| CAN Ports | 4 ports (isolated, up to 1 Mbit/s) |
| Serial Communications | 1 port (RS-232 / RS-485 isolated, COM1) |
| Connector Pin | Function |
|---|---|
| Power Input Pin 1 | L+ Input Power (+) |
| Power Input Pin 2 | L- Input Power (-) |
| Power Input Pin 3 | EARTH Ground / Shield Connection |
| COM1 Pin 1 | RS-232 Transmit |
| COM1 Pin 2 | RS-232 Receive |
| COM1 Pin 3 | Signal Common |
| COM1 Pin 4 | Shield (AC) |
| COM1 Pin 5 | RS-485 (+) |
| COM1 Pin 6 | Termination Resistor (+) |
| COM1 Pin 7 | Termination Resistor (-) |
| COM1 Pin 8 | RS-485 (-) |
| Speed #1 Pin 1-2 | MPU #1 Input Signal |
| Speed #1 Pin 3-4 | PROX #1 Input Signal |
| Speed #1 Pin 5-6 | PROX Power #1 (+24 Vdc / GND) |
| Speed #2 Pin 9-10 | MPU #2 Input Signal |
| Speed #2 Pin 11-12 | PROX #2 Input Signal |
| Speed #2 Pin 13-14 | PROX Power #2 (+24 Vdc / GND) |
