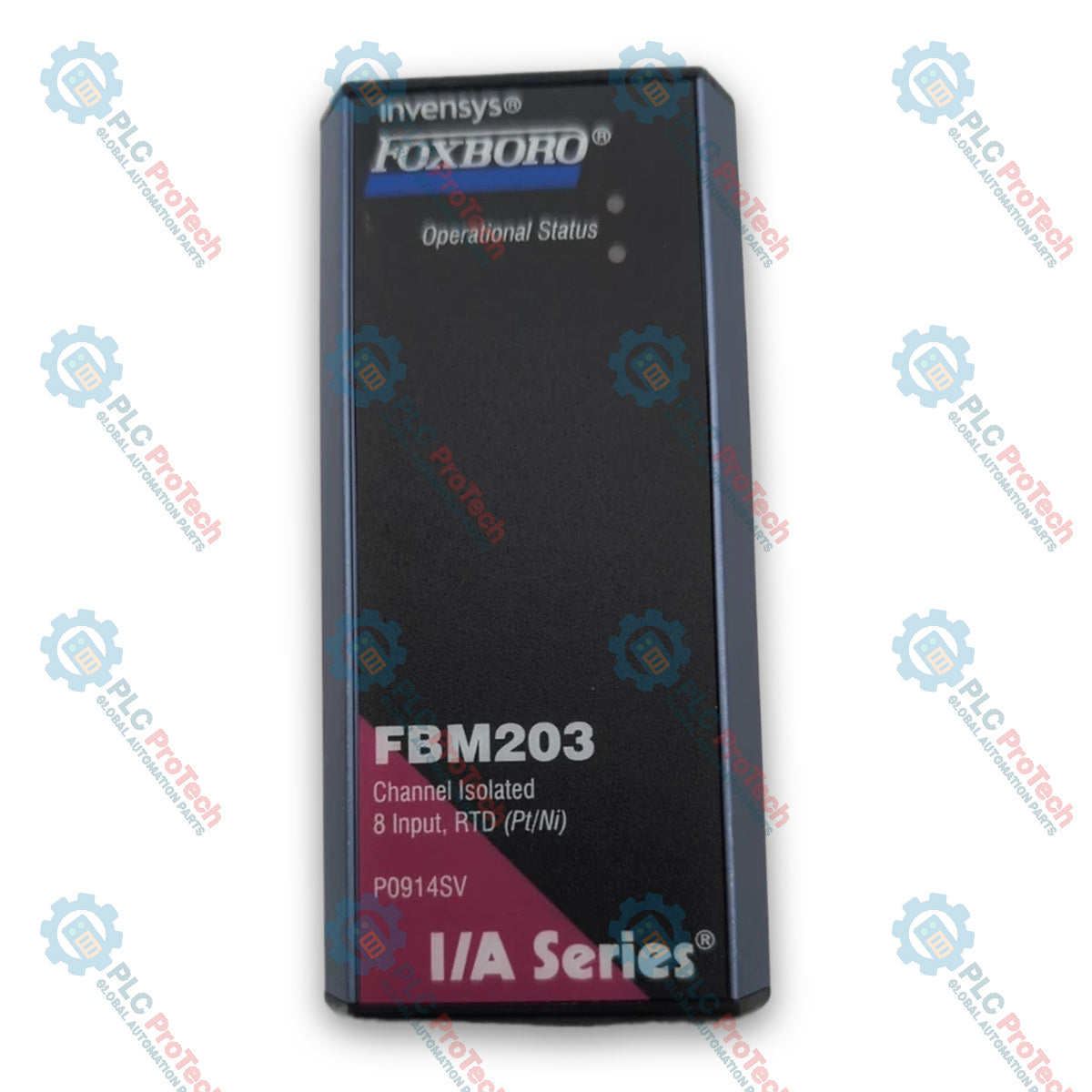

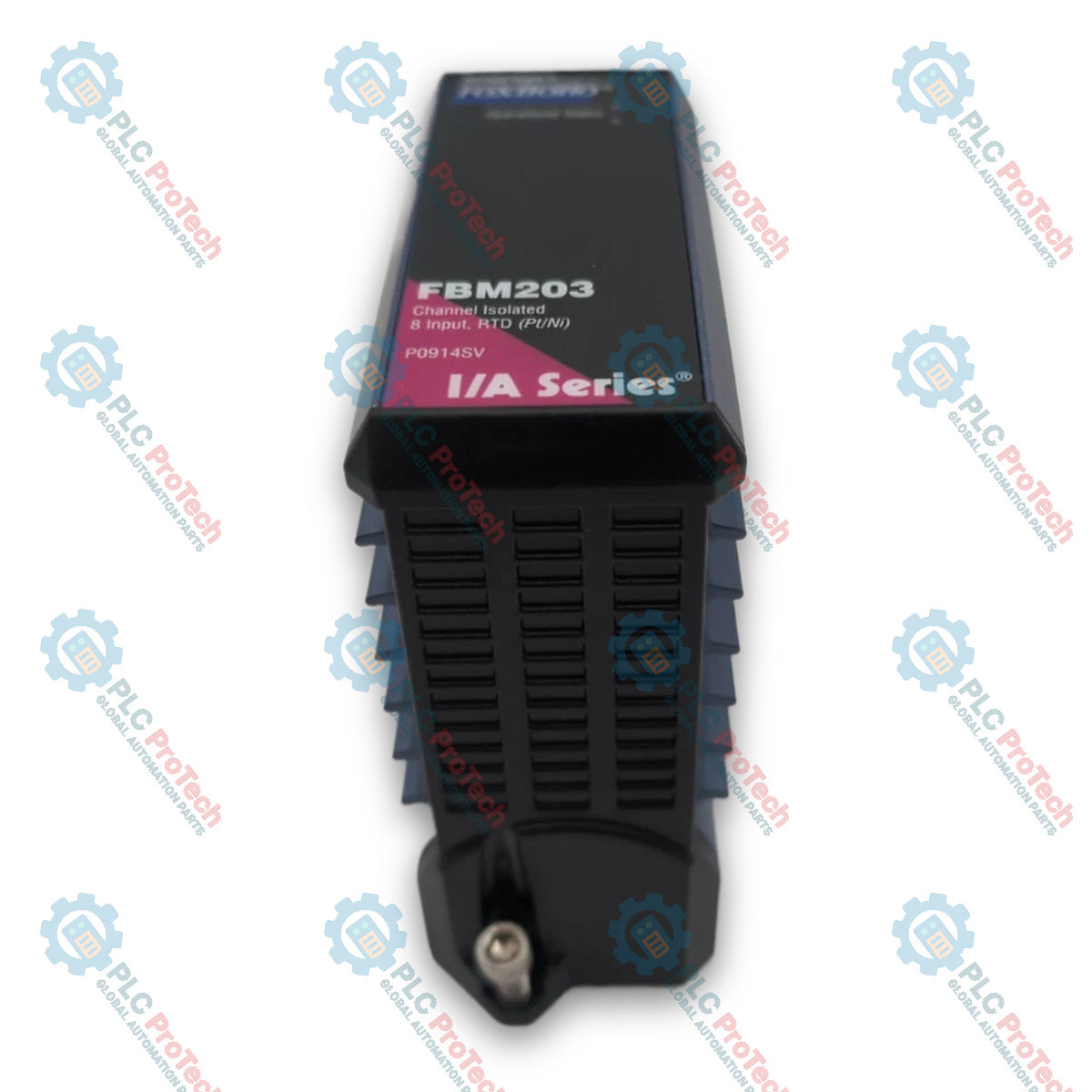

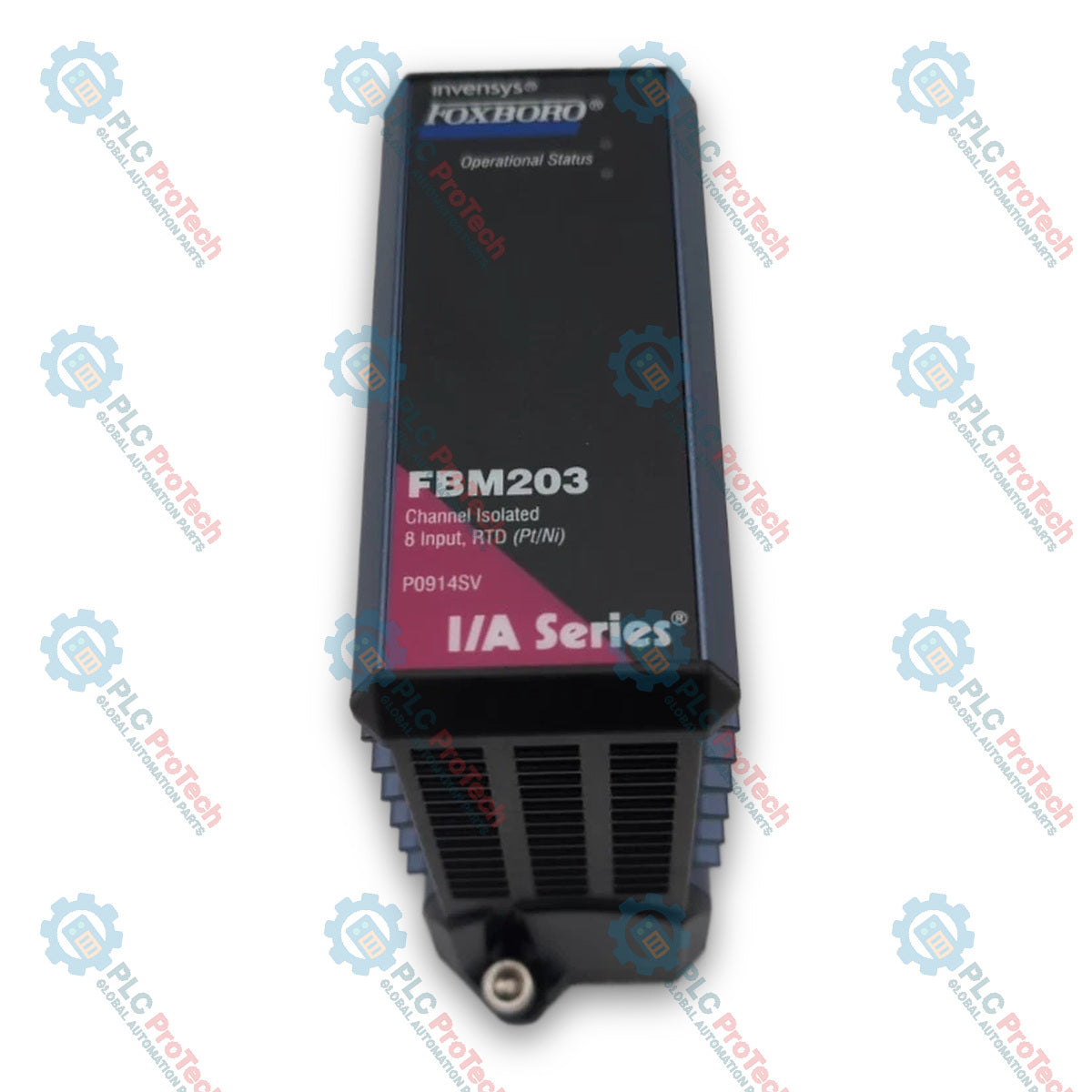

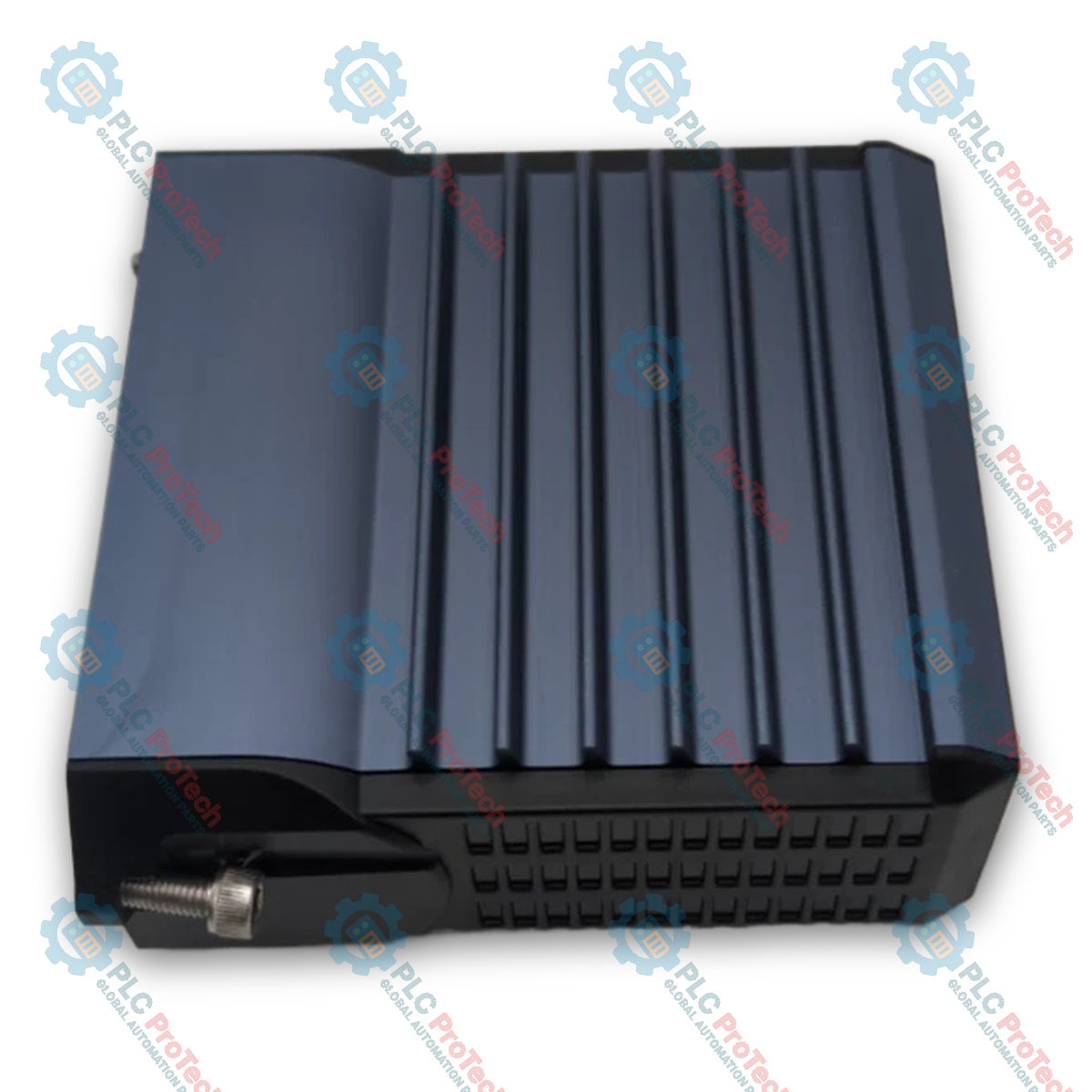

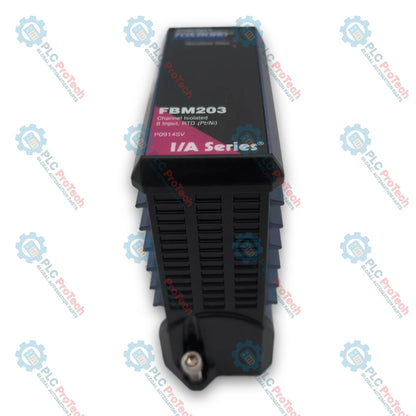

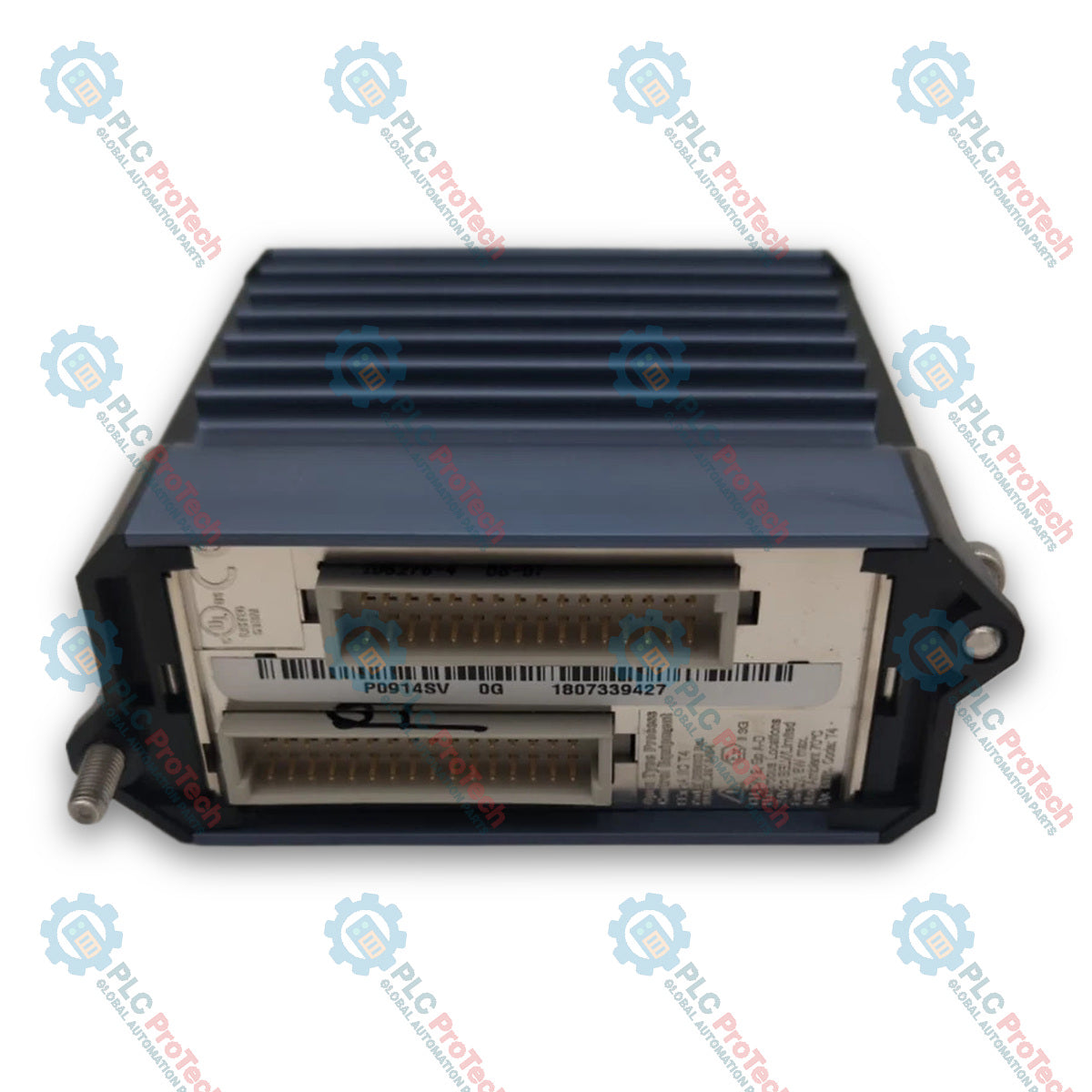

Foxboro P0914SV FBM203 Platinum/Nickel/Copper RTD Input Module

Hanya 10 item tinggal dalam stok

Pengilang: Foxboro
No. Produk: P0914SV FBM203
Negara asal:Perancis
Jenis Produk: RTD Input Modules
Pembayaran: T/T, Western Union
Berat: 284g
Dimensi: 102 mm x 45 mm x 104 mm (H x W x D)
Pelabuhan penghantaran: Xiamen
Jaminan: 12 bulan

Description

The Foxboro P0914SV FBM203 is an eight-channel resistance temperature detector (RTD) input module designed for process automation systems. The P0914SV accepts 2- or 3-wire RTD sensor inputs within a resistance range of 0 to 320 ohms. Each analog input channel is galvanically isolated from ground and all other channels. The module performs signal conversions to interface electrical input signals from field sensors to a redundant 2 Mbps module fieldbus, executing an analog input application program that provides conversion timing and configurable options for Rate of Change Limits.

Features

Eight galvanically isolated RTD input channels
High accuracy achieved by sigma-delta data conversions for each channel
Compact, rugged design suitable for ISA S71.04 Class G3 harsh environments
Execution of analog input application program with configurable Rate of Change Limits
Support for DIN rail mounted or baseplate-mounted passive termination assemblies
Hot-swappable module replacement without disturbing field wiring, power, or communication cabling
Front-panel LEDs for operational status indications

Applications

Process temperature monitoring using Platinum or Nickel RTD sensors
Industrial temperature measurement in Foxboro Evo Control Core Services systems
Legacy 100 Series FBM system upgrades and replacements

Technical Specifications

Parameter	Specification
Manufacturer	Foxboro by Schneider Electric
Part Number	P0914SV
Model	FBM203
Input Channels	8 isolated RTD channels
Input Range	0 to 320 ohms (320 ohms = 64000 counts)
Sensor Current	0.19 mA dc nominal
Lead Resistance	50 ohms maximum per lead
Analog Accuracy	±0.03% of span (includes linearity)
Temperature Coefficient	±50 ppm/degC
Integration Period	Software configurable
Common Mode Rejection	>125 dB at 50 or 60 Hz
Normal Mode Rejection	>95 dB at 50 or 60 Hz
Input Isolation	Galvanic isolation per channel, 600 V ac for 1 minute
Power Requirements	24 V dc +5%, -10% (Redundant input)
Power Consumption	3 W maximum
Heat Dissipation	3 W maximum
Module Weight	284 g approximate
Dimensions (H x W x D)	102 mm x 45 mm x 104 mm (114 mm height including mounting lugs)
Operating Temperature	0 to +70 degC
Storage Temperature	-40 to +70 degC
Relative Humidity	5 to 95% (noncondensing)
Altitude	-300 to +3,000 m
Environmental Rating	Class G3 (Harsh) per ISA Standard S71.04

Installation Guidelines

Mounting: The module mounts directly onto a DIN rail mounted Modular Baseplate (4-slot or 8-slot) or a 100 Series conversion mounting structure. Baseplates can be installed horizontally or vertically on a DIN rail, or horizontally in a 19-inch rack.
Module Replacement: Designed for removal and replacement without taking down field device wiring, power supply, or fieldbus communication cables.
Field Wiring: Field I/O signals connect through dedicated DIN rail mounted or baseplate-mounted Termination Assemblies (TAs) using compression screw or ring lug terminals via removable termination cables up to 30 meters in length.

Compliance and Certifications

EMC: European EMC Directive 89/336/EEC (EN 50081-2, EN 50082-2, EN 61326 Annex A, CISPR 11 Class A, IEC 61000-4-2/3/4/5/6/8)
Product Safety: UL/UL-C listed for Class I, Groups A-D; Division 2; temperature code T4.
ATEX: CENELEC (DEMKO) certified EEx nA [NL] IIC T4 for Zone 2 explosive atmospheres.

Model Number / Title	Condition	Availability	Action
Foxboro P0973CN I/A Series Expansion Baseplate	Original New	In Stock	View Details
Foxboro IPM2-P0904HA I/A Series Industrial Power Module 2	Original New	In Stock	View Details
Foxboro P0916NK 9 Pin HDLC Base-To-Base Cable	Original New	In Stock	View Details

Key Features:

#Foxboro I/A Series #RTD Input Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What is the Foxboro P0914SV FBM203 used for?

The Foxboro P0914SV FBM203 is an eight-channel RTD input module used to convert electrical resistance signals from 2-wire or 3-wire RTD sensors into digital data for Foxboro control systems.

What input range and sensor types does the module support?

The module supports 2- or 3-wire Platinum and Nickel RTD sensors within a resistance input range of 0 to 320 ohms.

Does the module support redundant communications?

Yes. The module communicates over a redundant 2 Mbps module fieldbus and automatically continues operating over the active path if one path fails.

What power supply does the module require?

The module requires a redundant 24 V dc (+5%, -10%) power supply input and consumes a maximum of 3 W.
