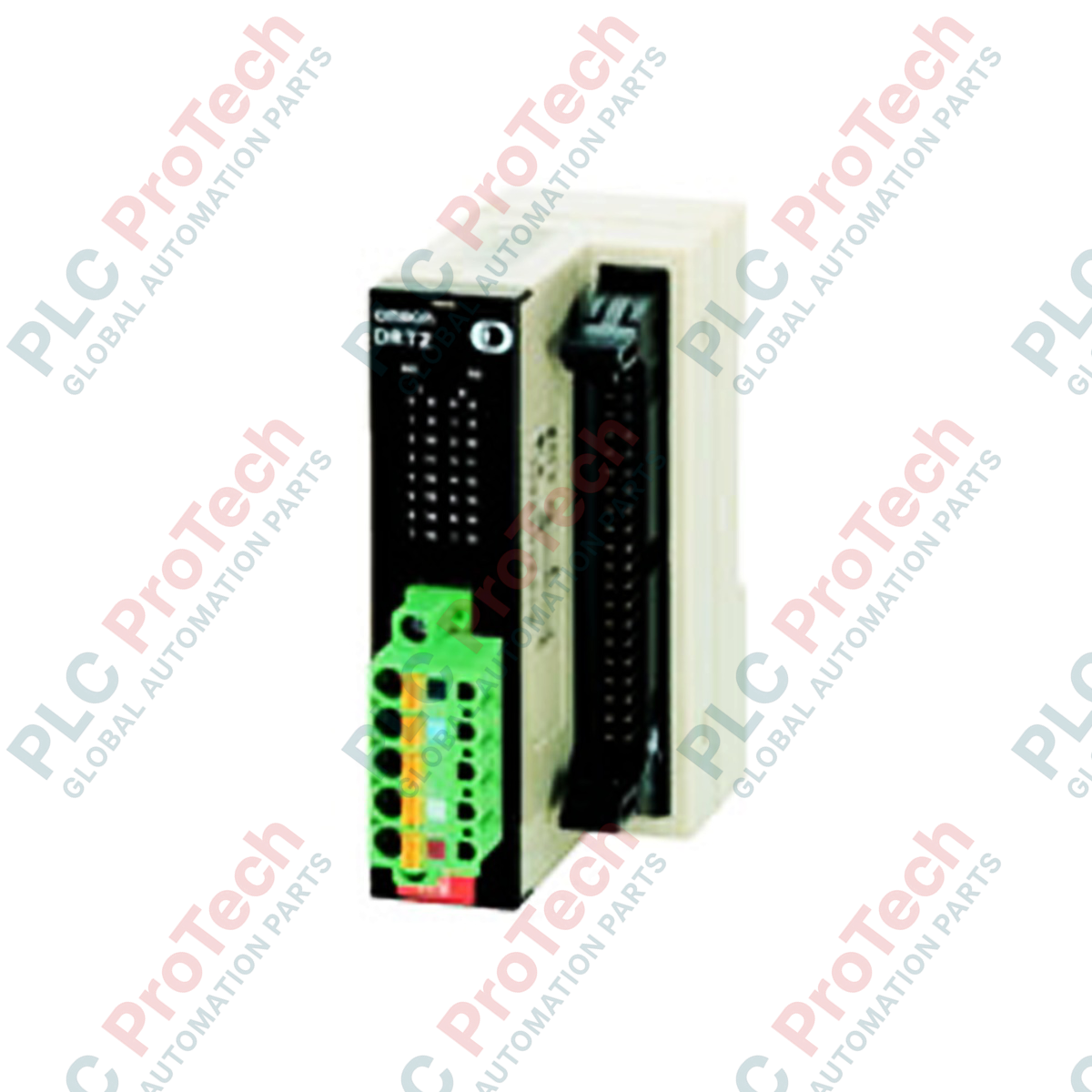

Omron DRT2-OD16MLX DRT2 Series 16-Point Transistor Output Terminal

Hanya 7 item tinggal dalam stok

Pengilang: Omron
No. Produk: DRT2-OD16MLX
Negara asal:Jepun
Jenis Produk: Transistor Output Terminals
Pembayaran: T/T, Western Union
Berat: 1000g
Dimensi: 60 mm x 45 mm x 100 mm
Pelabuhan penghantaran: Xiamen
Jaminan: 12 bulan

Description

Designed for integration into DeviceNet industrial networks, the DRT2-OD16MLX functions as a high-density Smart Slave output terminal featuring 16 transistor outputs. This module is engineered to simplify field wiring while providing advanced diagnostic capabilities directly to the control system. By monitoring operational parameters such as network power supply voltage, output conduction times, and unit status, it minimizes machine downtime and supports predictive maintenance strategies.

The compact footprint and MIL connector interface make the DRT2-OD16MLX ideal for space-constrained control cabinets and distributed I/O architectures. It communicates seamlessly over DeviceNet, allowing for real-time monitoring of output conditions and rapid fault isolation in automated environments.

Features

16-point transistor output configuration utilizing a high-density connector interface.
Smart Slave functionality offering network voltage monitoring and communication error logging.
Output ON/OFF delay time monitoring to track actuator response times.
Compact design optimized for DIN-rail or direct panel mounting in busy control enclosures.
Removable connector system to facilitate rapid maintenance and module replacement without rewiring.

Applications

Automated packaging and material handling systems.
Semiconductor manufacturing and cleanroom assembly lines.
Automotive assembly machinery and robotic work cells.
General distributed control architectures requiring reliable DeviceNet I/O expansion.

Technical Specifications

ParameterSpecification

Manufacturer	Omron Industrial Automation
Model / Part Number	DRT2-OD16MLX
Product Series	DRT2 Smart Slaves
Network Protocol	DeviceNet
Number of Outputs	16 points
Output Type	Transistor (NPN/sinking)
Maximum Total Load Current	2 A
Max Terminal Current (V/G)	1 A per terminal
Connection Type	MIL Connector style
Dimensions (L x W x H)	60 mm x 45 mm x 100 mm
Shipping Weight	1 kg

Connections and Interfaces

Terminal / Pin Row	Function Description
DeviceNet Connector	Network communication (CAN_H, CAN_L) and network power (V+, V-, Drain)
MIL Connector Pins	16 Transistor Output points, V (Output Power), G (Common Ground)

Installation Guidelines

Ensure the DeviceNet network is powered down before mounting or wiring the DRT2-OD16MLX module.
Mount the unit securely to a standard 35mm DIN rail or use the integrated mounting holes for direct panel attachment.
Verify that the total load current does not exceed the rated 2 A limit for the entire block, and keep individual terminal currents below 1 A.
Connect the DeviceNet shield wire to a high-quality functional ground to minimize electromagnetic interference.

Compliance and Certifications

CE Mark
UL Listed
cULus

Key Features:

#Omron DRT2 Series #Transistor Output Terminals

What is the primary function of the Omron DRT2-OD16MLX?

The DRT2-OD16MLX is a 16-point transistor output Smart Slave terminal designed to interface discrete actuators and output devices with a DeviceNet industrial network.

What is the maximum output current capacity of this module?

The module has a maximum total load current rating of 2 A, with a maximum current of 1 A per V and G terminal.

Does this module include diagnostic features?

Yes, as part of the DRT2 Smart Slave series, it monitors network power supply voltage, output ON/OFF delay times, and communication errors to support preventive maintenance.
