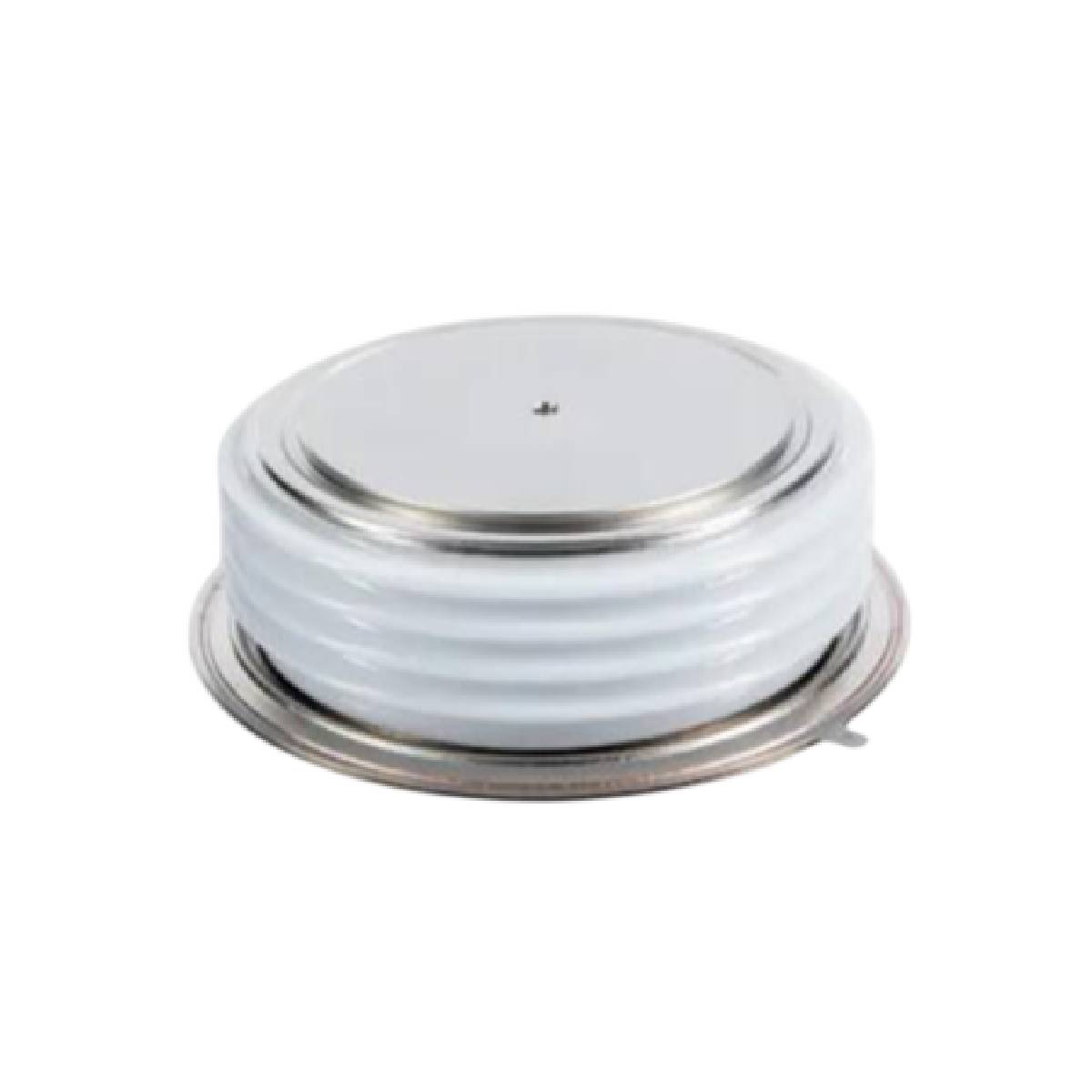

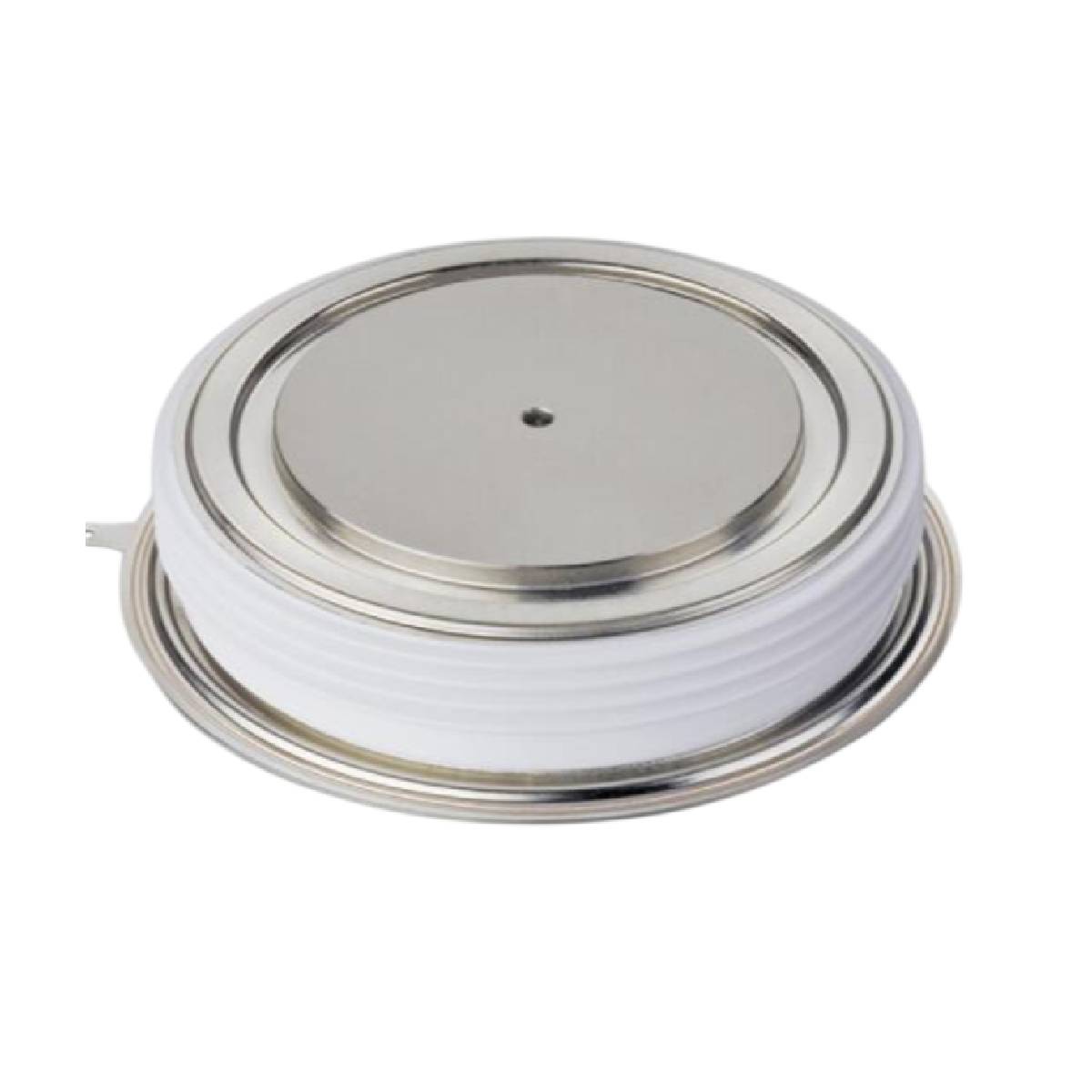

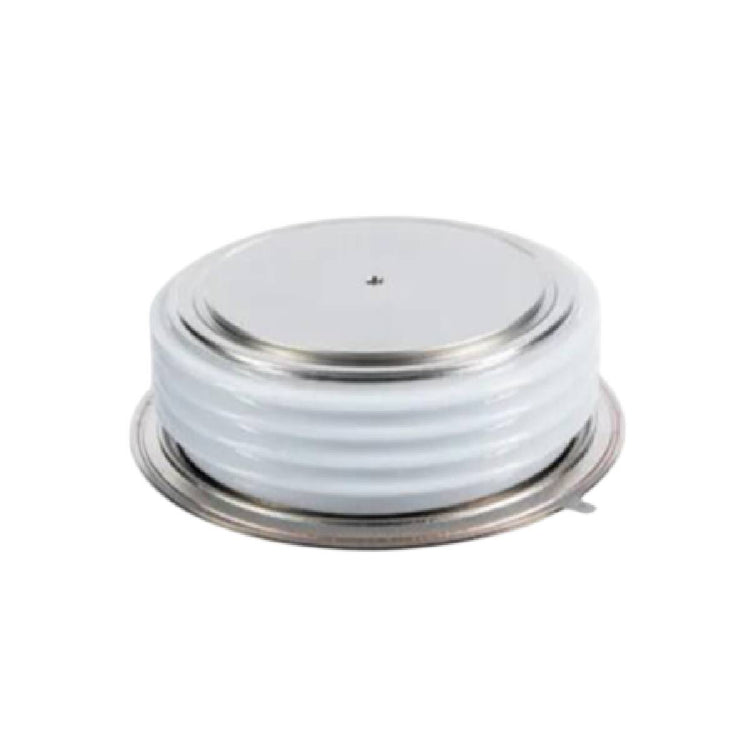

ABB 5STP26N6500 Phase Control Thyristor

SKU 5STP26N6500

In stock

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: 5STP26N6500
Country of origin:Switzerland
Product Type: Phase Control Thyristor
Payment: T/T, Western Union
Weight: 2900g
Dimensions: 150 mm x 35 mm x 150 mm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months

Description

The ABB 5STP26N6500 is a high-power phase control thyristor (PCT) designed to manage premium power handling capability in heavy-duty industrial systems. Operating as a specialized electrical control component, this device utilizes a patented free-floating silicon technology that ensures structural stability while achieving exceptionally low on-state and switching losses. The integration of an interdigitated amplifying gate optimizes power routing and dynamic response performance under heavy operating loads. Specifically built for high-voltage and high-current electrical networks, this device ensures consistent power modulation and system compatibility across core transmission and high-capacity infrastructures.

Features

Implements patented free-floating silicon technology to optimize thermal and mechanical stability.
Features exceptionally low on-state conduction losses and minimal switching transitions.
Equipped with an interdigitated amplifying gate architecture to enhance dynamic gate trigger performance.
Delivers optimum power handling capability under demanding electrical stresses.

Applications

Electric traction systems and transport grid substations.
Large-scale energy distribution and transmission networks.
High-power industrial systems and industrial motor control drives.

Ordering Information

Parameter	Value
Product ID	5STP26N6500
ABB Type Designation	2650A 6500V
Replaced Product ID (OLD)	YS110110-GA, 5STP26N6200

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Product Name	Control System Accessory
Product Type	Control_System_Accessory
Country of Origin	Switzerland
Part Type	New
Customs Tariff Number	85332900
VDRM	6500 V
IT(AV)M	2880 A
Mounting Force	90 kN
Gross Volume	0.787 dm³
Product Net Width	150 mm
Product Net Height	35 mm
Product Net Depth / Length	150 mm
Product Net Weight	2.9 kg
Gross Weight	2.9 kg

Installation Guidelines

Mounting Force Application: Ensure a precise structural mounting force of 90 kN is applied uniformly across the component face during installation to guarantee proper thermal and electrical contact.
Polarity Verification: Refer strictly to the engineering symbol schematic on the housing casing to orient the anode and cathode junctions properly before anchoring.
Thermal Management: Apply appropriate force alignment and clear ventilation access to accommodate the low on-state dissipation profile within the panel enclosure.

FAQ

What is the recommended mounting force for this device?

The certified clamping mounting force required for proper installation and operation of the device is 90 kN.

What core semiconductor technology does this device employ?

The device utilizes patented free-floating silicon technology combined with an interdigitated amplifying gate design to minimize on-state and switching losses.

What are the primary electrical voltage and current ratings for the unit?

The device features a maximum blocking voltage rating (VDRM) of 6500V and a maximum average on-state current rating (IT(AV)M) of 2880A.
