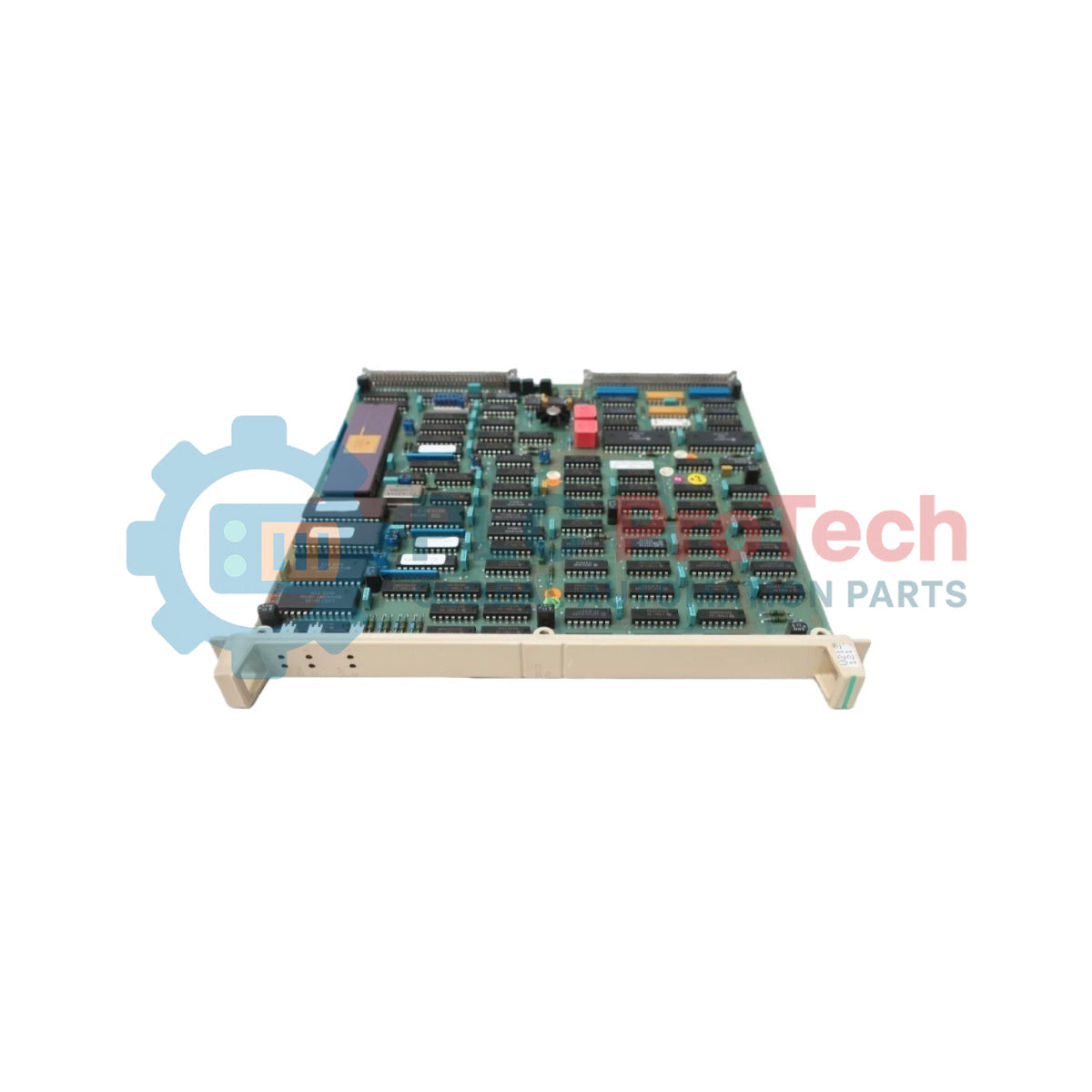

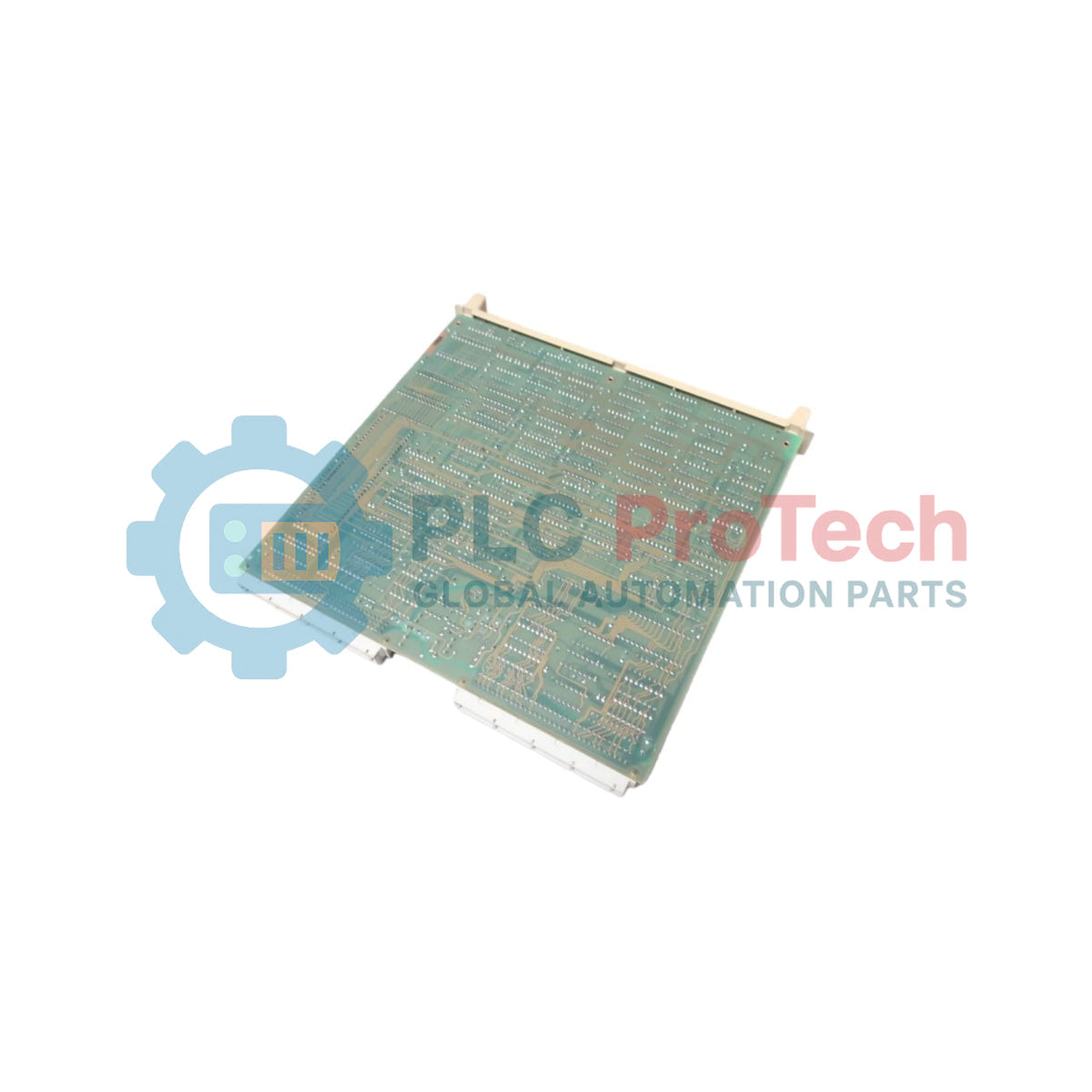

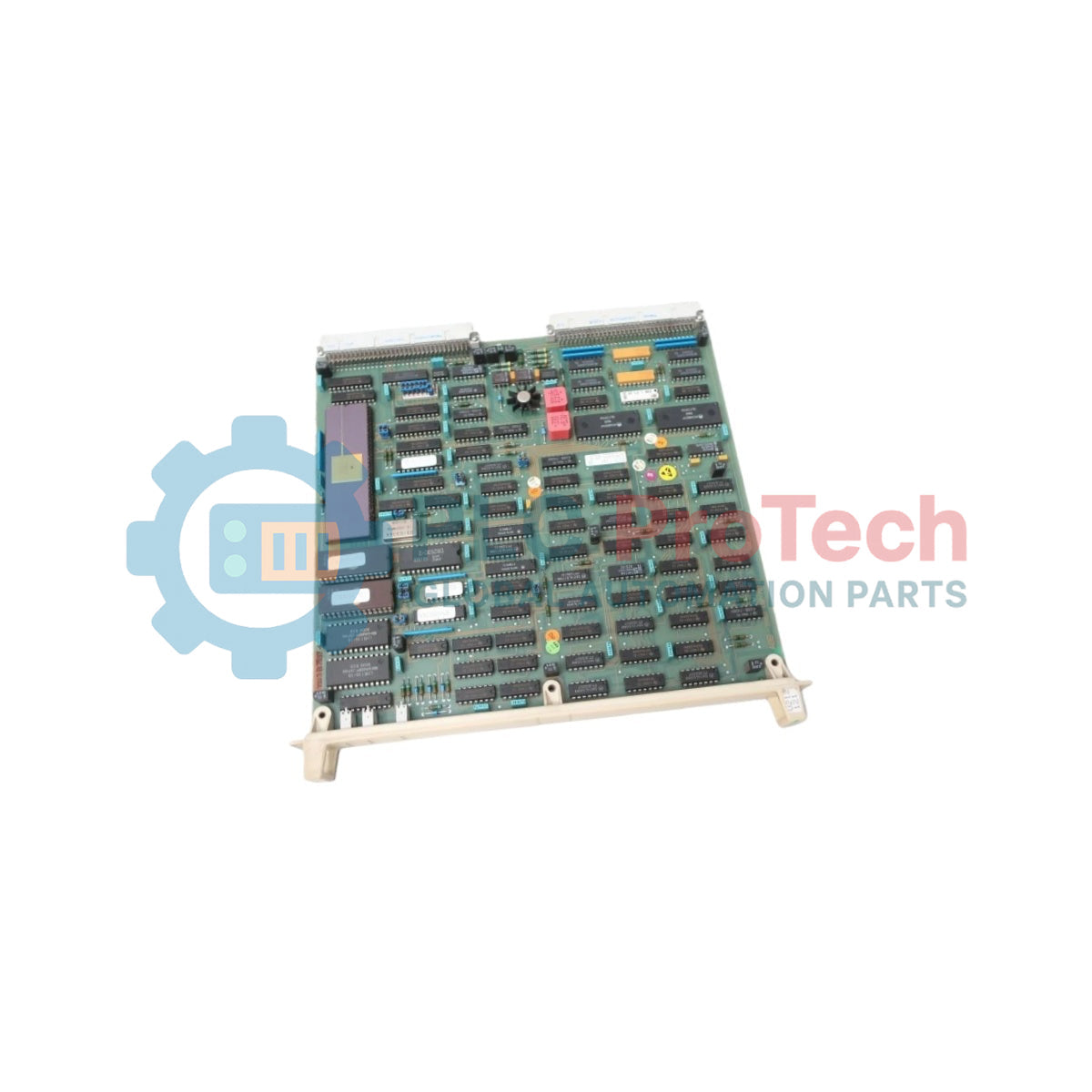

ABB DSCS116 57520001-BZ Synchronous Communication Board

SKU DSCS116 57520001-BZ

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: ABB

  • Product No.: DSCS116 57520001-BZ

  • Country of origin:Sweden

  • Product Type: Synchronous Communication Boards

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 480g

  • Dimensions: 24 x 19 x 5.3 cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The ABB DSCS116 57520001-BZ is a specialized synchronous communication board designed for integration within ABB industrial automation and distributed control systems. This communication module serves as a critical hardware interface, engineered to manage deterministic data exchange and maintain precise synchronization between system nodes and controllers. It acts as an exchange unit supporting reliable network communication in complex industrial control environments.

Built for demanding process applications, the DSCS116 module ensures high reliability and data integrity to prevent communication faults or latency in real-time control architectures. It is deployed primarily in legacy and active ABB control platforms where synchronized data transmission is essential for operational continuity and coordinated multi-device performance.

Features

  • Dedicated synchronous communication architecture for ABB control systems
  • Facilitates reliable, deterministic data exchange between system components
  • Designed for seamless integration into standard control cabinet layouts
  • Maintains precise timing and synchronization for real-time process control
  • Supports lifecycle maintenance and service routines as an authorized exchange part

Applications

  • Distributed Control Systems (DCS)
  • Power generation and distribution facilities
  • Continuous process manufacturing plants
  • Heavy industrial automation infrastructure

Technical Specifications

Parameter Specification
Manufacturer ABB
Exact Model / Ordering Number DSCS116 57520001-BZ
Product Type Synchronous Communication Board
System Compatibility ABB Advant / DCS Platforms
Communication Function Synchronous data exchange and network routing
Country of Origin Sweden
Net Weight 0.48 kg
Dimensions 24 x 19 x 5.3 cm

Installation Guidelines

  1. Verify the exact model number and part code against system documentation before installation.
  2. De-energize the control cabinet and associated rack before handling any internal hardware modules.
  3. Inspect the communication board and connector pins for any signs of transit damage or contamination.
  4. Securely mount the DSCS116 board into the designated slot within the control rack or chassis.
  5. Connect all required network cables and verify terminal seating.
  6. Reapply system power and confirm proper communication status via controller diagnostics.

FAQ

What is the primary function of the ABB DSCS116 57520001-BZ?
The ABB DSCS116 57520001-BZ is a synchronous communication board designed to manage deterministic data exchange and maintain precise timing synchronization between controllers in ABB industrial automation systems.

What systems are compatible with the DSCS116 communication board?
The ABB DSCS116 57520001-BZ is primarily utilized within legacy and active ABB distributed control system (DCS) architectures, such as the Advant platform series.

What is the net weight and physical dimensions of this module?
The ABB DSCS116 57520001-BZ has a net weight of 0.48 kg and physical dimensions of 24 x 19 x 5.3 cm.

What does the exchange unit (EXC) designation mean for this part?
As an exchange unit, the ABB DSCS116 57520001-BZ is provided for maintenance and service replacement cycles, typically requiring the return of the faulty unit under an RMA process to support sustainable hardware lifecycle management.
