ABB

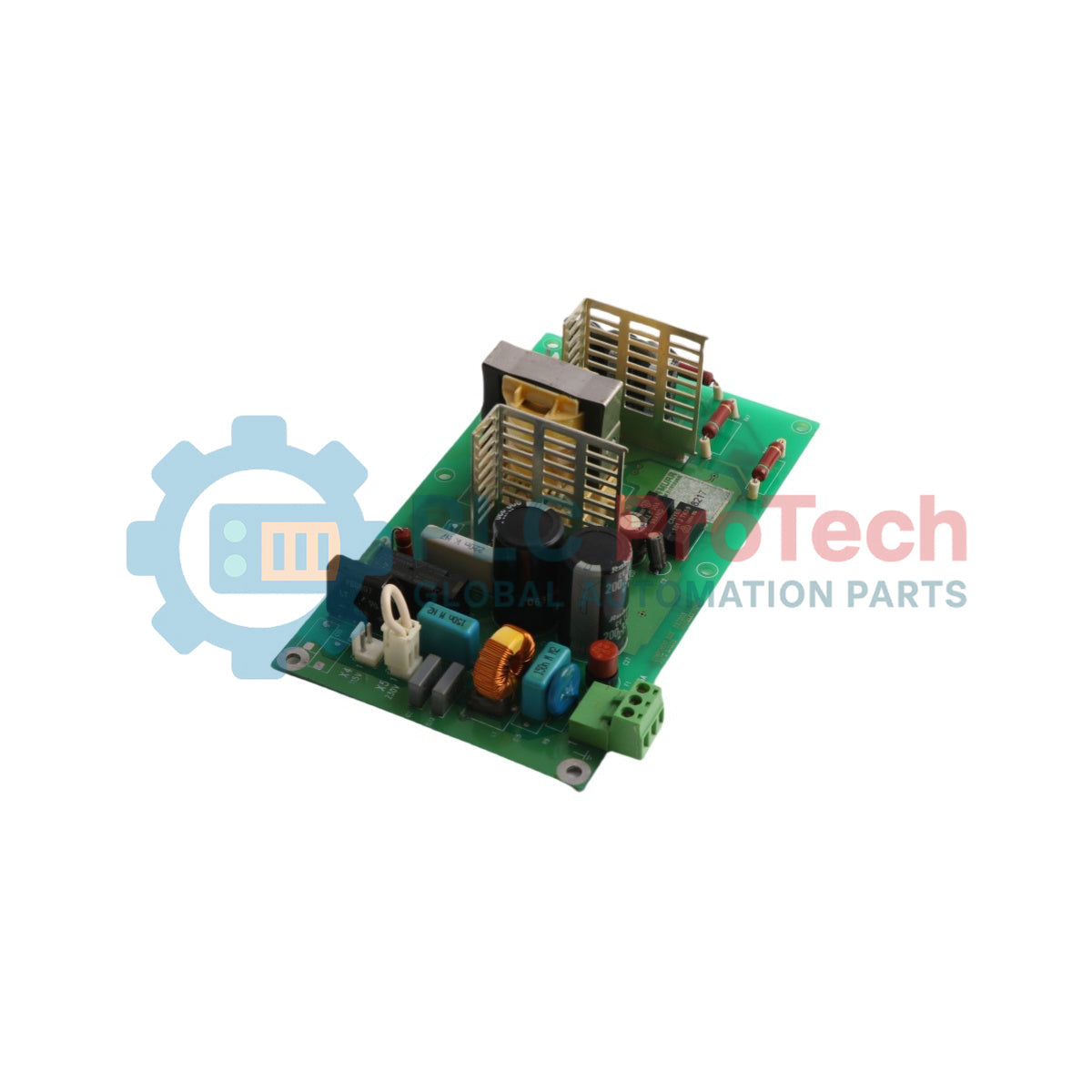

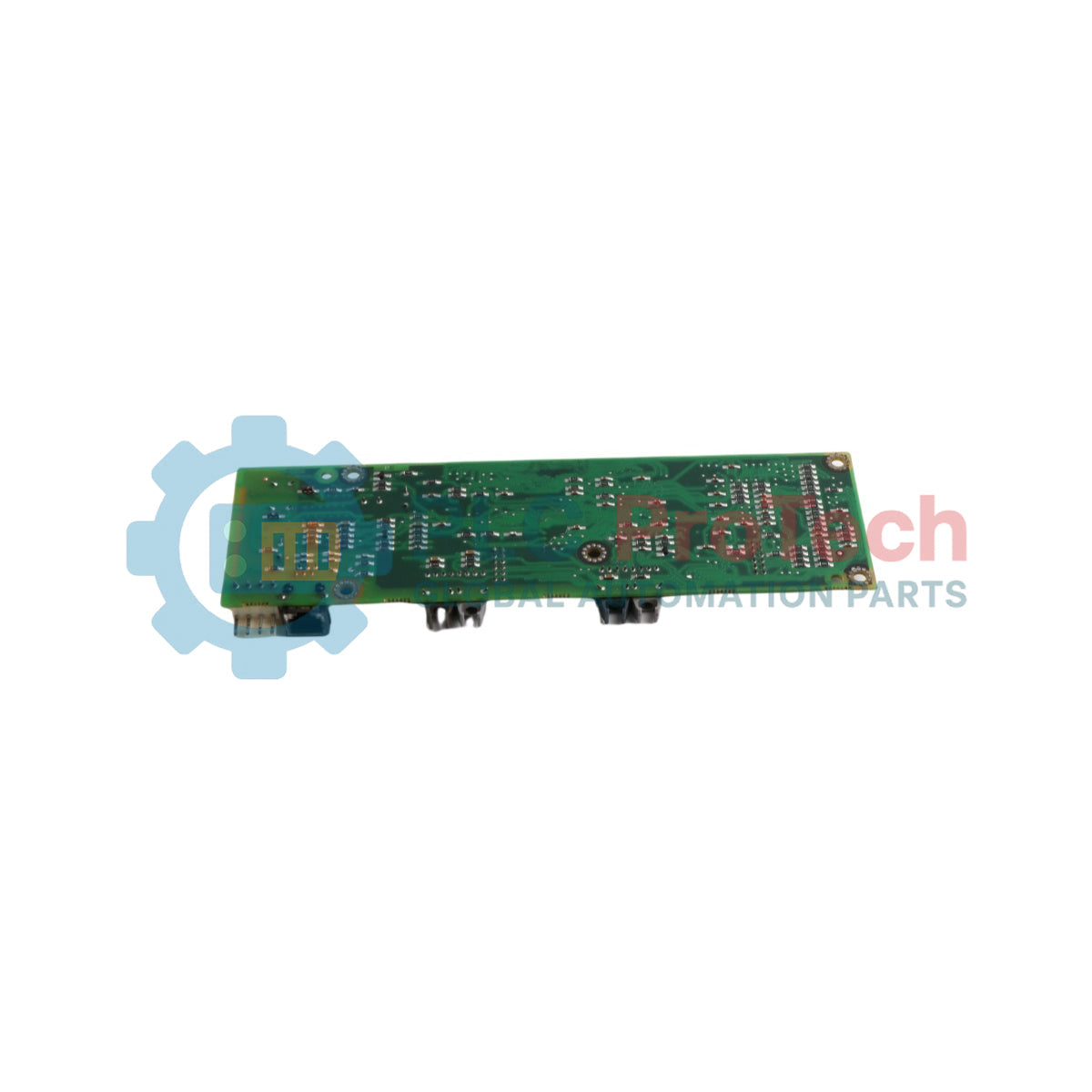

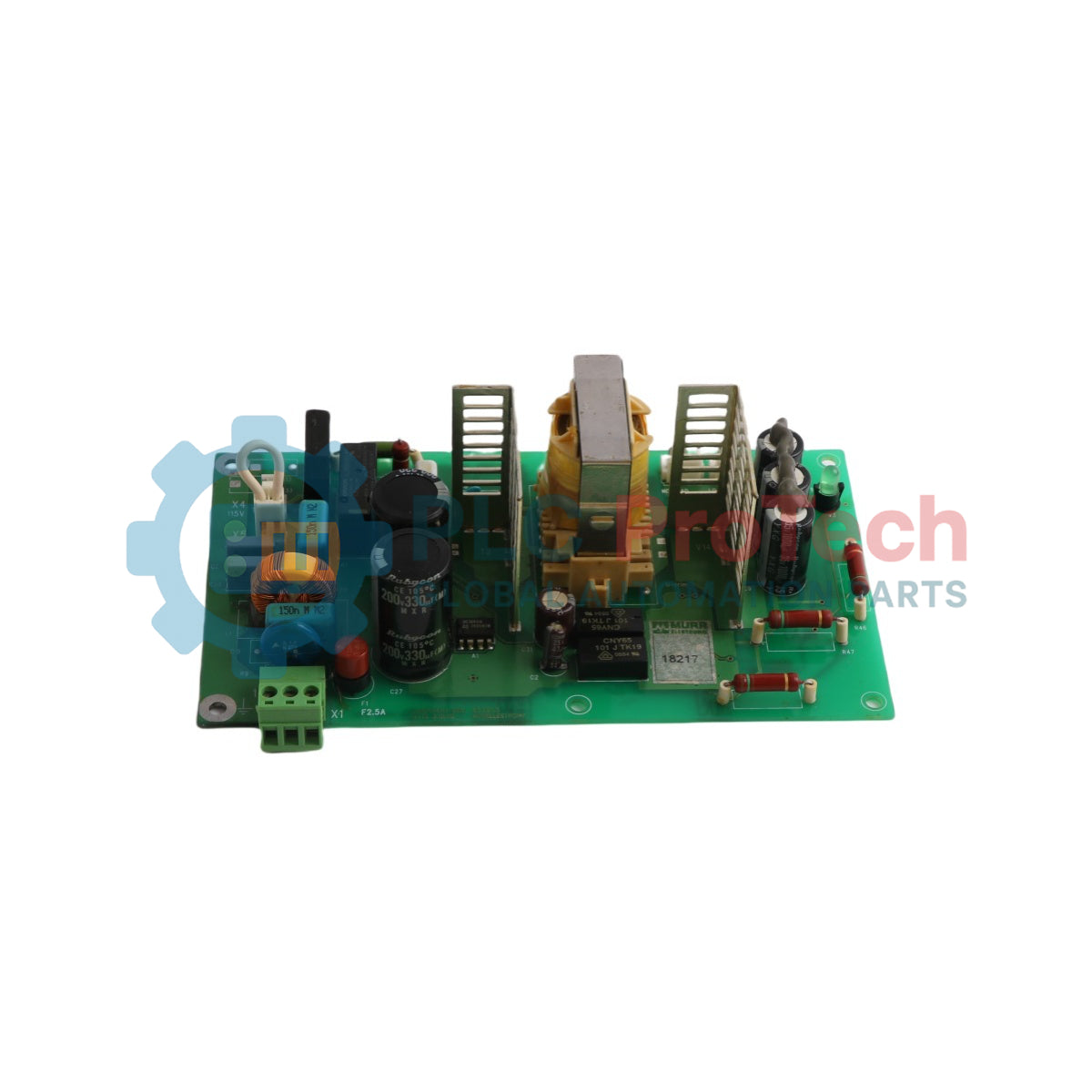

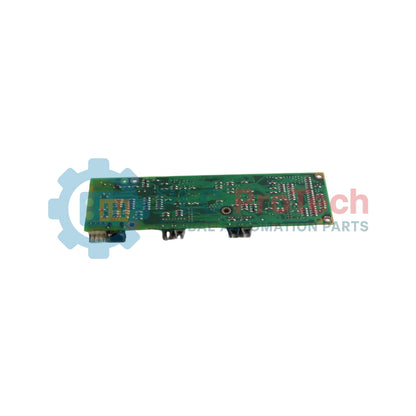

ABB NGPS-11 61433601 ACS600 Multidrives Power Supply Board Kit

SKU NGPS-11

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: NGPS-11
  • Origin Sweden
  • Product Type: Power Supply Module
  • Barcode: 85049099
  • Payment: T/T, Western Union
  • Weight: 0.3 kg
  • Dimensions: 150 mm x 115 mm x 38 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

ACS600 Power Supply Modules
Quantity
Call sales Contact

Product Description

Description

The ABB 61433601 is a specialized NGPS-11 GDR Power Supply Board Kit manufactured for low voltage legacy AC drives, primarily operating within the ACS600 Multidrives series infrastructure. This unit stabilizes and regulates internal DC control power distribution to vital gate drivers, control interfaces, and logic processing networks across ACN634 and ACN644 drive modules. It provides continuous 35W output delivery to safeguard processing integrity and command tracking during severe variable load changes.

Features

  • Provides dedicated 35W regulated DC power infrastructure internally to complex industrial drive chassis networks.
  • Engineered to maintain direct component-level compatibility with the higher power 60W NGPS-12 version upgrade path.
  • Factory-supplied new repair part assembly built to maintain continuous operations across legacy heavy-duty manufacturing components.

Applications

  • ACS600 Multidrives Enclosures: Delivers baseline auxiliary voltage tracks to internal processing cards within ACN634 configurations.
  • ACN644 Inverter System Management: Deployed directly inside modular frequency converters to maintain steady gate controller logic supplies.
  • Legacy Power Grid Maintenance: Acts as a direct drop-in replacement part to address component failures inside older variable speed drive frameworks.

Technical Specifications

Parameter Value
Manufacturer ABB
Product ID 61433601
Model Designation NGPS-11
Product Name GDR POWER SUPPLY NGPS-11 MD KIT
Part Type New
Power Output Rating 35W
Forward Compatibility NGPS-12 (60W) is fully compatible and can replace this unit
Country of Origin Finland (FI)
Customs Tariff Number 85049099
Product Net Weight 0.3 kg
Dimensions (W x H x D) 150 mm x 115 mm x 38 mm



Installation Guidelines

  • Isolate all incoming lines from the local switchgear panel and follow full safety lockout/tagout mandates before opening the cabinet structure.
  • Allow intermediate circuit bus capacitors to discharge entirely for the recommended safety duration prior to accessing interior power points.
  • Secure the card module tightly into its designated guide tracks on the frame enclosure to achieve robust chassis path grounding stability.
  • Ensure all primary input wiring harnesses are routed clear of digital control communication links to minimize high frequency noise risk.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Can this power supply board be upgraded to a higher power model?
Yes, the NGPS-12 module provides 60W of power, includes an integrated power-fail signal loop, and is fully backward-compatible with this 35W device.
Which drive families use this specific power supply kit?
The component is utilized within legacy low voltage ABB AC drives, specifically across ACS600 Multidrives series units such as ACN634 and ACN644.
What happens if this card is replaced by the higher-tier NGPS-12 board?
The NGPS-12 fits into the same physical slot layout as a standard spare part, adding an enhanced power fail signal that can be used for inverter tripping or startup inhibition.
