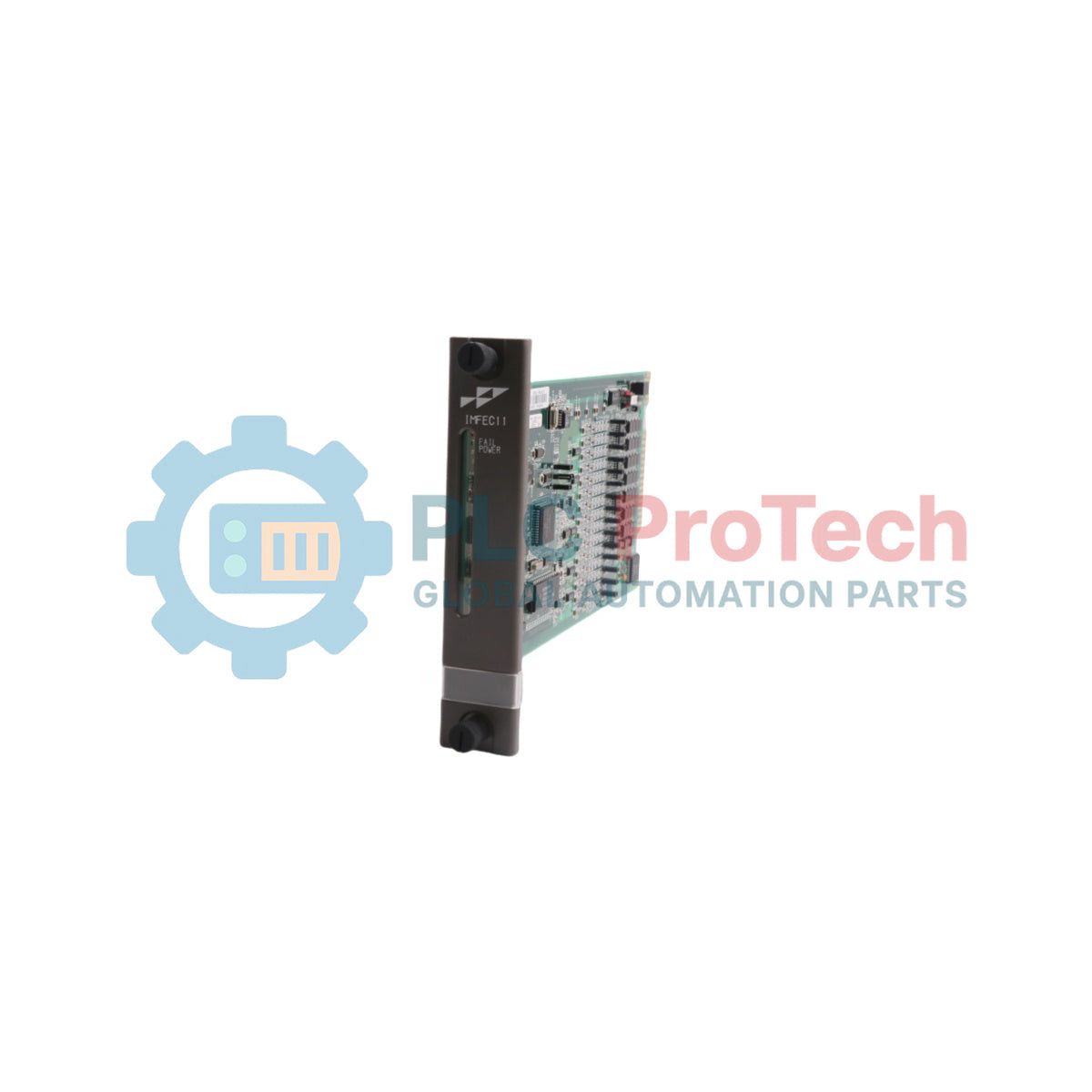

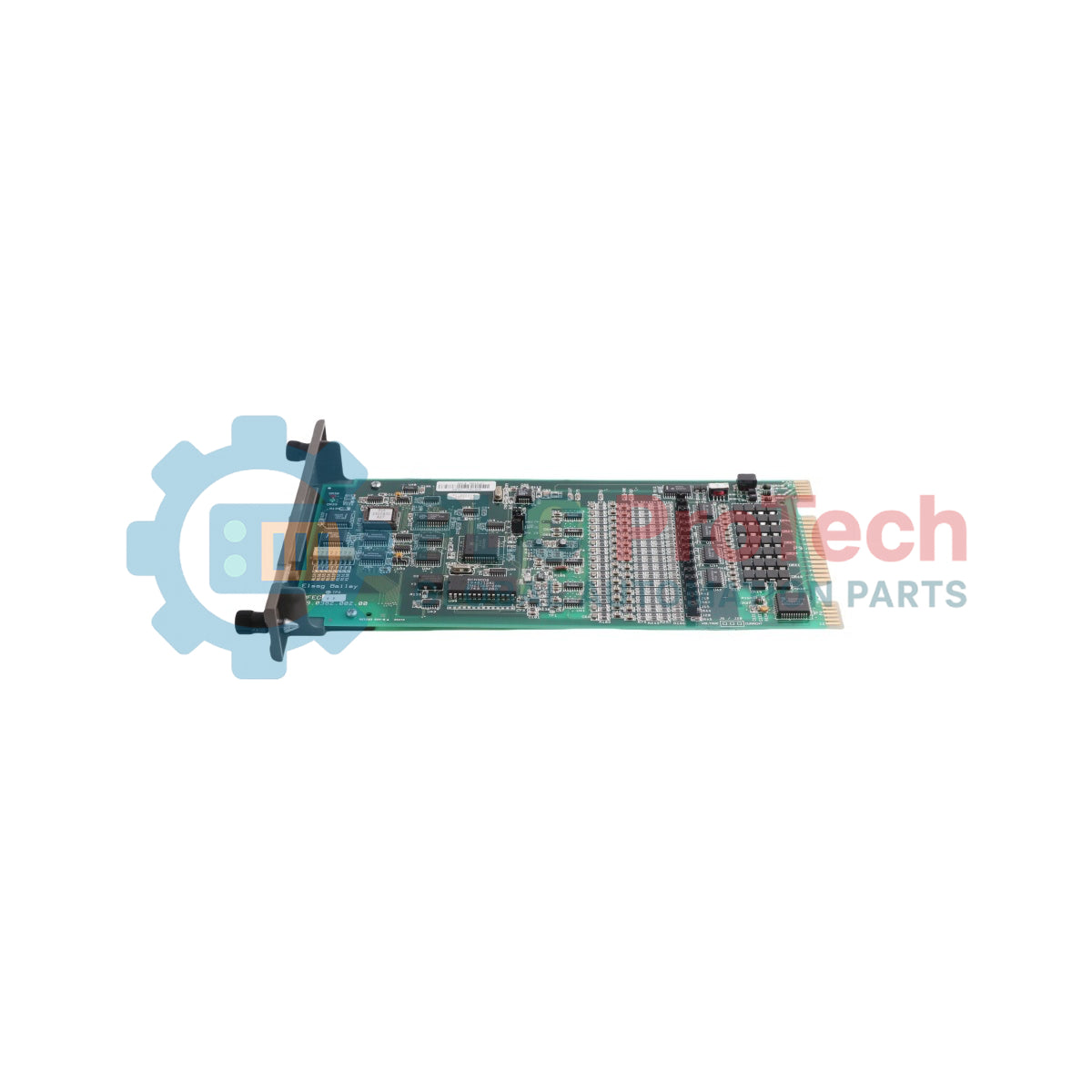

ABB IMFEC11 Bailey Infi 90 Analog Input FSK Slave Module

Description

The ABB IMFEC11 is an Analog Input and Frequency Shift Keying (FSK) Slave module designed for integration within the Bailey Infi 90 distributed control system ecosystem. Acting as an interface point for physical process signals, the IMFEC11 processes specialized input channels and establishes localized data links. It interfaces directly with master controllers over the slave expander bus to transfer process variables seamlessly, ensuring stable data capture for automated plant operations.

Features

• Dedicated interface for processing incoming analog and modulated FSK signals.
• Fully compatible with standard Infi 90 module mounting units and backplanes.
• Direct parallel communication capabilities via the localized slave expander bus architecture.

Applications

• Distributed process control interface loops
• Field instrument integration using analog and FSK modulation
• Continuous monitoring and industrial automation systems

Technical Specifications

Installation Guidelines

• Electrostatic Safeguards: Ensure a properly grounded wrist strap is worn when working with the module to avoid damage to internal circuits.
• Slot Configuration: Line up the module circuit boards carefully with the guide rails in the designated Infi 90 Module Mounting Unit before pressing forward to seat the rear connectors.
• Securing Mechanism: Fasten the front faceplate panel captive screws to lock the unit structurally into the rack assembly.
