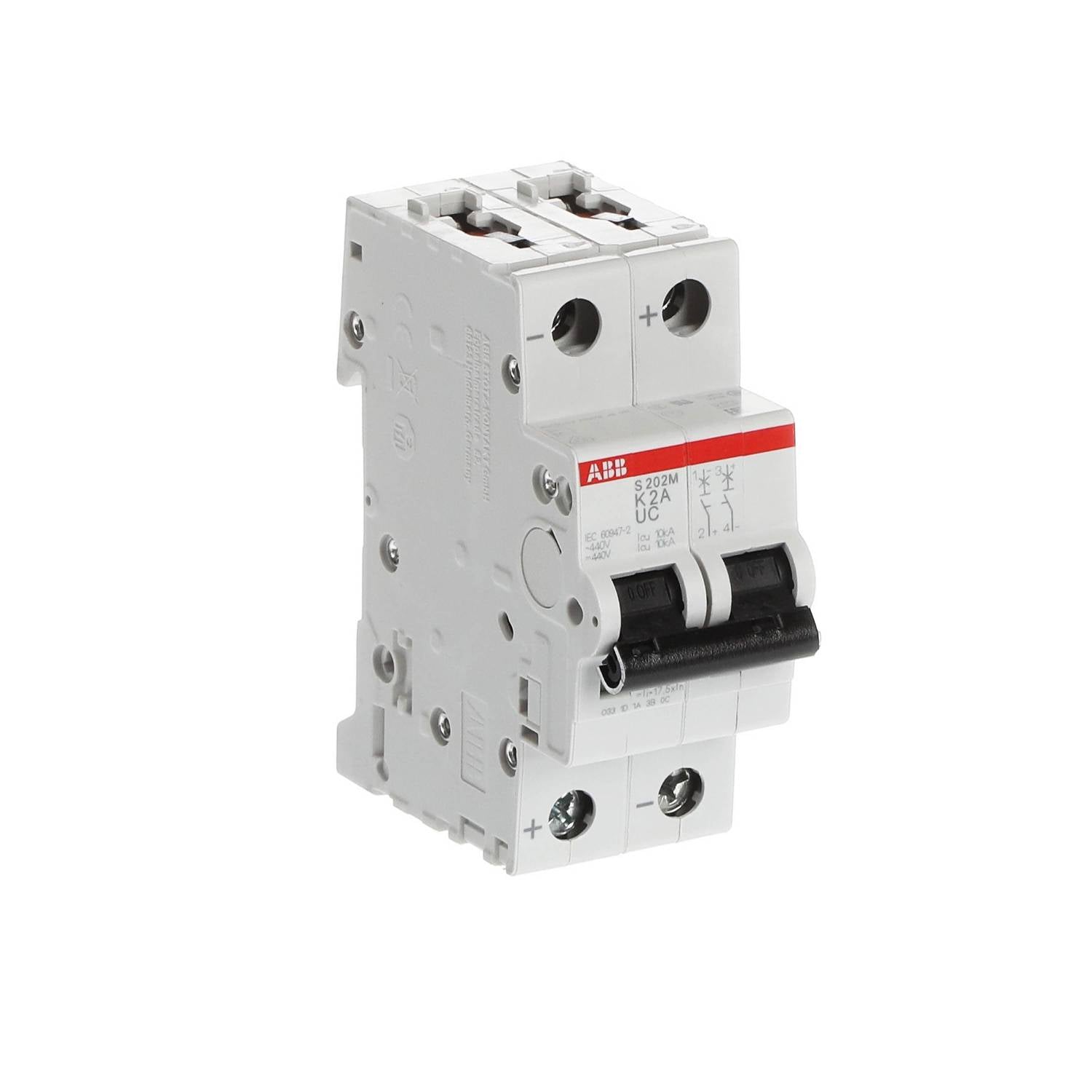

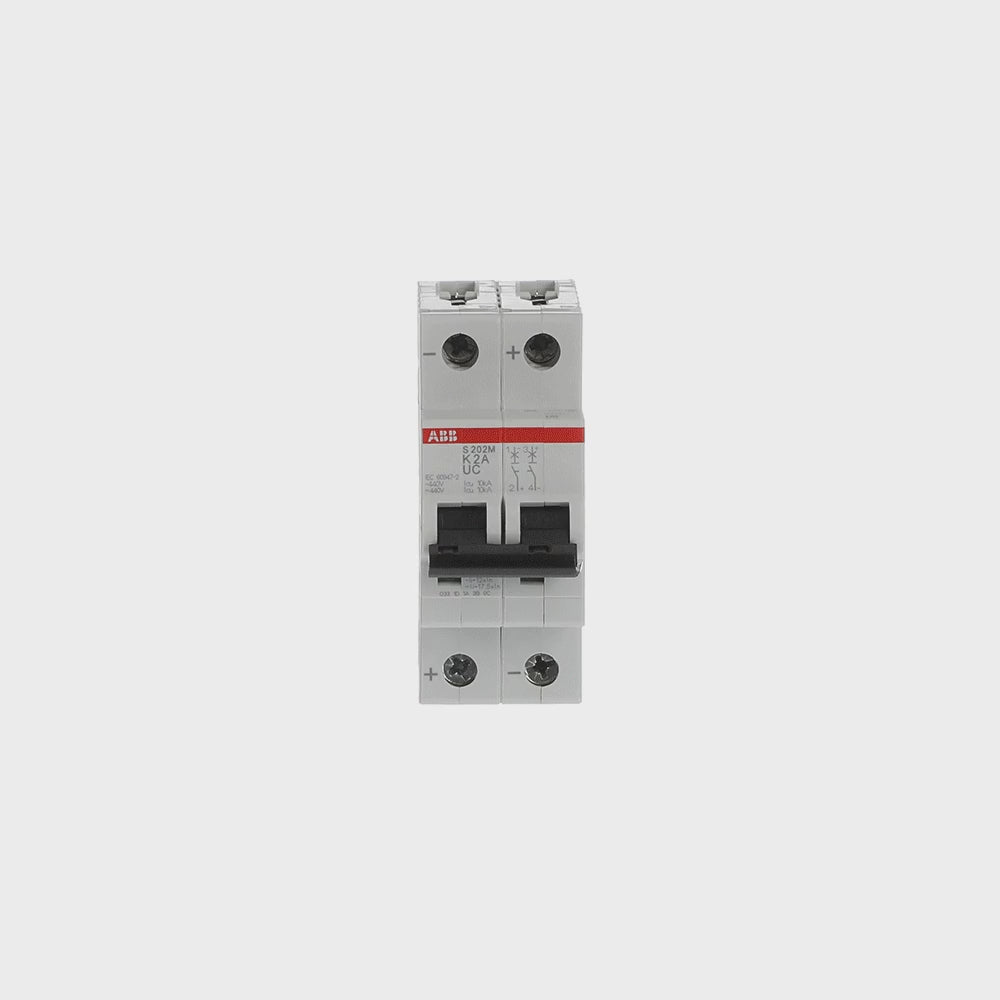

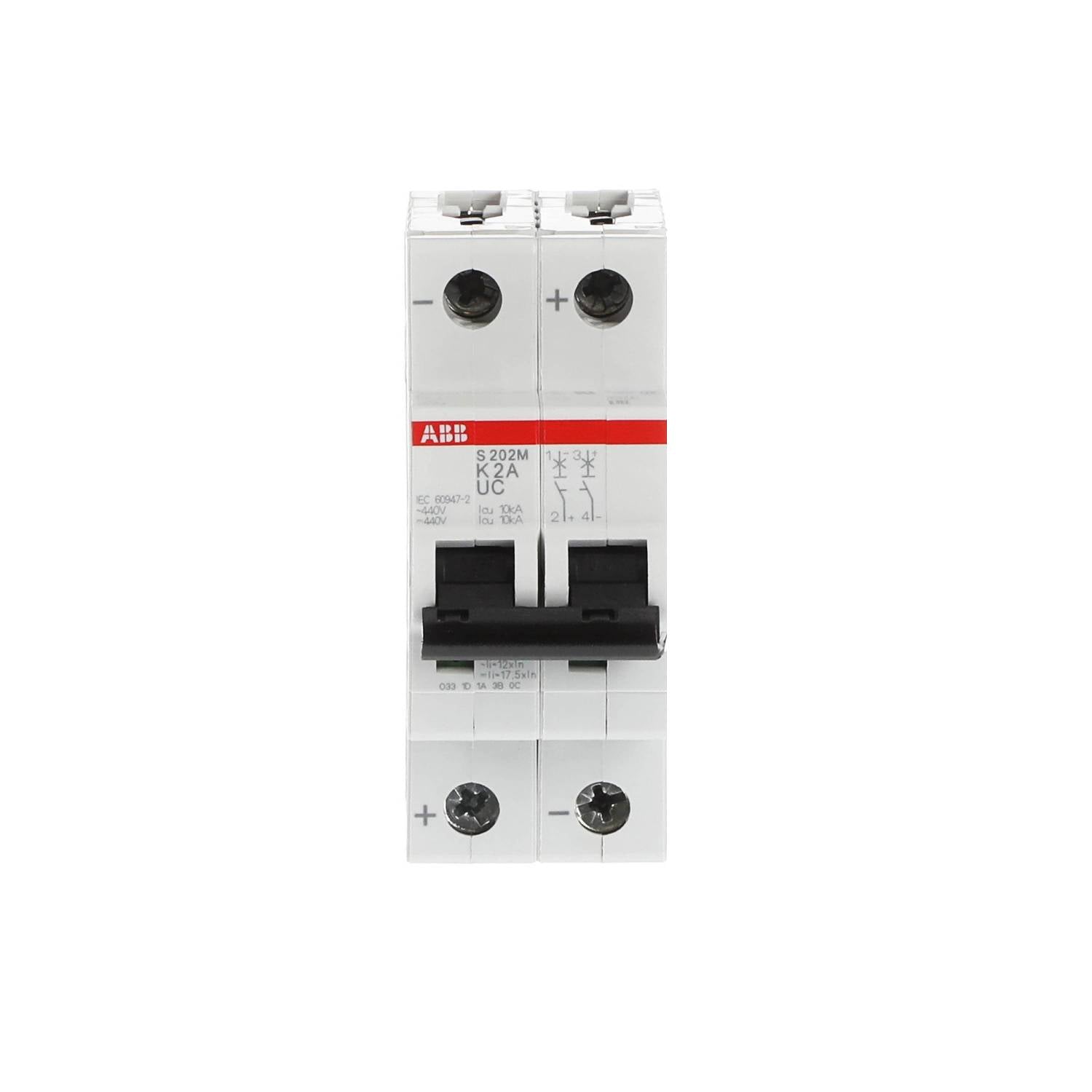

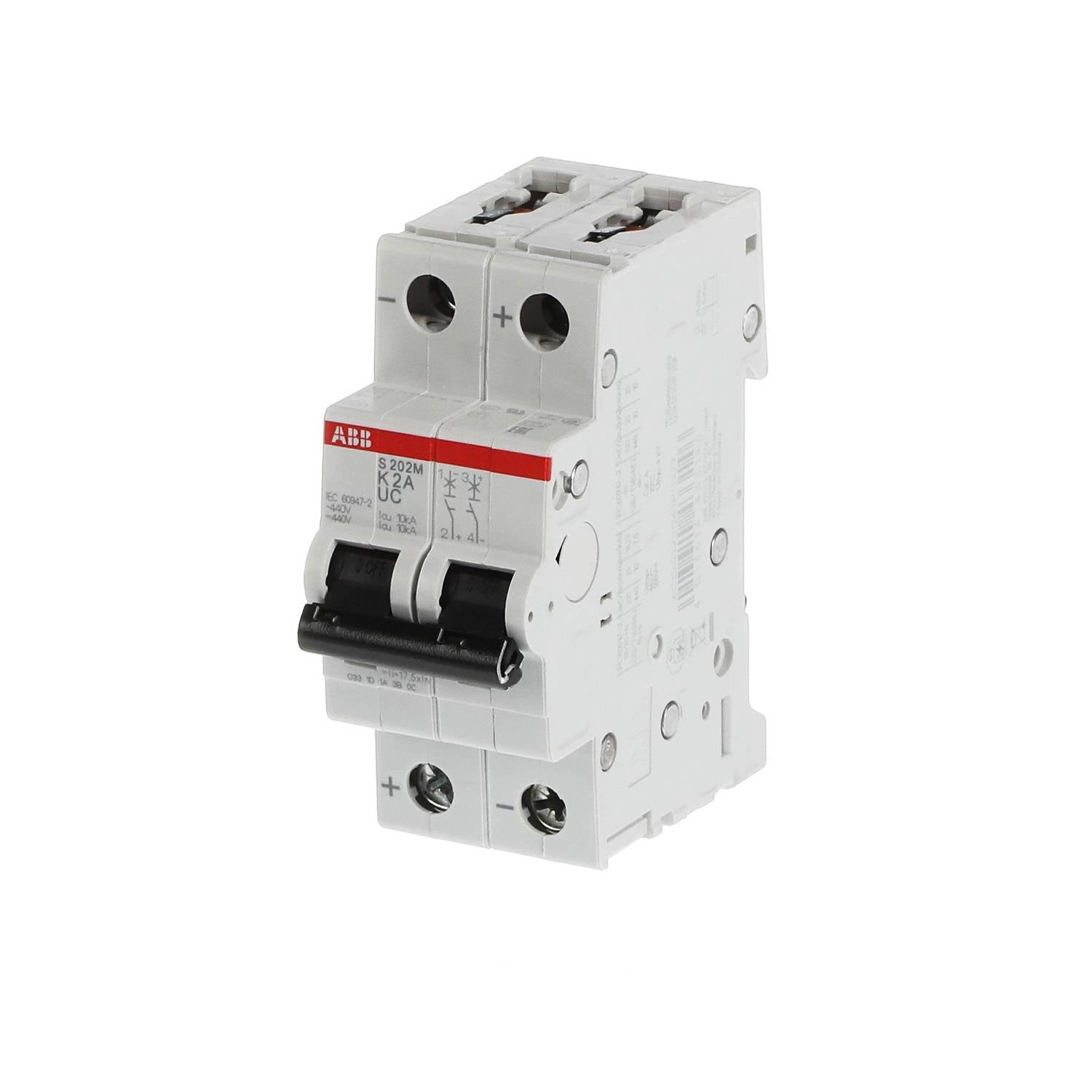

ABB S202M-K2UC 2CDS272061R0277 S200MUC Miniature Circuit Breaker

SKU S202M-K2UC 2CDS272061R0277

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: S202M-K2UC 2CDS272061R0277
  • Origin Sweden
  • Product Type: Miniature Circuit Breakers
  • Payment: T/T, Western Union
  • Weight: 0.234 kg
  • Dimensions: 88 mm x 35 mmx 69 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Miniature Circuit Breakers

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ABB S202M-K2UC 2CDS272061R0277 S200MUC Miniature Circuit Breaker

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

The S202M-K2UC universal current configuration with Product ID 2CDS272061R0277 is a 2-pole miniature circuit breaker engineered to provide flexible overcurrent protection and short-circuit fault mitigation in both alternating current (AC) and high-voltage direct current (DC) industrial networks. As a modular component of the System pro M compact S200MUC series, this device incorporates a delayed thermal tripping mechanism for overload safety alongside an electromechanical magnetic tripping mechanism tailored for instantaneous short-circuit protection. It operates across a wide performance range with a certified breaking capacity up to 10 kA at 440 V AC/DC, making it highly compatible with specialized electrical infrastructure layout panels, field distribution systems, and global industrial automation backup assemblies.

Features

  • Outfitted with a 2-pole hardware matrix ensuring reliable multi-line overcurrent protection and circuit isolation.
  • Utilizes a flexible universal current configuration certified for execution across both AC and DC wiring topologies.
  • Designed with a K-characteristic tripping curve optimized to mitigate specific inductive current spikes and fault profiles.
  • Employs a failsafe bi-directional cylinder-lift terminal configuration to guarantee secure, vibration-resistant cable clamping.

Applications

  • High-voltage direct current distribution setups, transportation infrastructure, and photovoltaic branch panel assemblies.
  • Multi-axis industrial automation systems, heavy-duty motor control panels, and field machinery control loops.
  • Complex low-voltage networks requiring high short-circuit breaking thresholds and multi-standard component flexibility.

Ordering Information

Parameter Value
Extended Product Type S202M-K2UC
Product ID 2CDS272061R0277
EAN 4013614433146

Technical Specifications

Parameter Specification
Manufacturer ABB
Extended Product Type S202M-K2UC
Product ID 2CDS272061R0277
Number of Poles 2P
Number of Protected Poles 2
Tripping Characteristic K
Rated Current (In) 2 A
Input Voltage Type AC/DC
Rated Operational Voltage acc. to IEC 60898-1 400 V AC / acc. to IEC 60947-2 440 V AC / acc. to IEC 60947-2 440 V DC
Rated Frequency (f) 50/60 Hz / DC
Power Loss 3.56 W (1.78 W per Pole at Rated Operating Conditions)
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV (5 kV at 2000 m / 6.2 kV at Sea Level)
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V DC) 25 kA / (230 V AC) 15 kA / (400 V AC) 15 kA / (440 V AC) 10 kA / (440 V DC) 10 kA / (230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V DC) 20 kA / (230 V AC) 10 kA
Rated Short-Circuit Capacity (AC) 10 kA / (230 V AC) 10 kA / (400 V AC) 10 kA / (230 V) 10 kA / (400 V) 10 kA
Rated Conditional Short-Circuit Current (Inc) (230 V) 15 kA / (400 V) 15 kA
Energy Limiting Class 3
Contact Position Indication Red ON / Green OFF
Mechanical Endurance 20000 cycle
Housing Material Insulation Group I, RAL 7035
Actuator Material Insulation Group II, Black, Sealable
Actuator Type Toggle
Actuator Marking 1/0
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Tightening Torque 2.8 N-m
Recommended Screw Driver Pozidriv 2
Connecting Capacity Busbar 10/10 mm² / Flexible with Ferrule 0.75 ... 25 mm² / Flexible 0.75 ... 25 mm² / Rigid 0.75 ... 35 mm² / Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Ambient Air Temperature Operation -25 ... +55 degC / Storage -40 ... +70 degC
Degree of Protection IP20 (Enclosure with Cover IP40)
Pollution Degree 3
Environmental Conditions 28 cycles with 55 degC / 90-96% and 25 degC / 95-100%
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms
Maximum Operating Voltage UL/CSA 500 V DC / 480Y/277 V AC
Interrupting Rating acc. to UL1077 (220 V AC) 10 kA / (277 V AC) 6 kA / (440 V DC) 10 kA / (480Y/277 V AC) 10 kA / (500 V DC) 10 kA
Connecting Capacity UL/CSA Busbar 14-8 AWG / Conductor 14-4 AWG
Tightening Torque UL/CSA 25 in-lb
Product Net Width 35 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.234 kg

Installation Guidelines

  • DIN Rail Installation: Mount the hardware securely onto a standard symmetrical tracking option, such as TH35-15 or TH35-7.5 mounting rails in accordance with the IEC 60715 standard layout.
  • Orientation Versatility: Designed to be mechanically seated at any functional structural mounting position inside the automation control cabinet.
  • Polarity Enforcement: Ensure careful inspection and execution of the terminal wiring connections relative to the marked polarity designations for direct current operations.
  • Torque Specifications: Use a standard Pozidriv 2 screwdriver tool to verify that all cylinder-lift terminal screws are anchored securely to a recommended value of 2.8 N-m (25 in-lb for UL/CSA arrangements).

Compliance and Certifications

  • Declaration of Conformity - CE: 2CDK400583D2704
  • Certification Agencies: CSA, EN, IEC, UL
  • Standards: IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What function do the mechanical indicator configurations provide on this device?
The device features a clear mechanical contact position indicator displaying a Red indication for ON and a Green indication for OFF states.
What are the recommended tightening torque specs for the cylinder-lift terminals?
The screw terminals require a tightening torque of 2.8 N-m for standard industrial configurations or 25 in-lb for installations adhering to UL/CSA requirements.
What specific environmental protection standards does the hardware support?
The device is rated at IP20 for bare terminal protection, which scales up to IP40 when fitted inside an appropriate enclosure assembly with a matching cover.
Reviews

More from this brand

ABB 1SFA898116R7000 PSTX470-600-70 PSTX Softstarter
1SFA898116R7000 PSTX470-600-70ABB 1SFA898116R7000 PSTX470-600-70 PSTX Softstarter
ABB SPCD 3C21 Biased Single-Phase Differential Relay Module for Phase L1
SPCD3C21ABB SPCD 3C21 Biased Single-Phase Differential Relay Module for Phase L1
ABB 64425579A NINT-73C Main Circuit Interface Board
NINT-73CABB 64425579A NINT-73C Main Circuit Interface Board
ABB 3BSE080207R1 NE810 800xA 10-Port Managed Network Switch
3BSE080207R1 NE810ABB 3BSE080207R1 NE810 800xA 10-Port Managed Network Switch

S202M-K2UC 2CDS272061R0277

Stock & lead time on request

Call
  • S202M-K2UC 2CDS272061R0277
  • S202M-K2UC 2CDS272061R0277
  • S202M-K2UC 2CDS272061R0277
  • S202M-K2UC 2CDS272061R0277
1 4

ABB S202M-K2UC 2CDS272061R0277 S200MUC Miniature Circuit Breaker

  • Manufacturer: ABB

  • Product No.: S202M-K2UC 2CDS272061R0277

  • Country of origin:Sweden

  • Product Type: Miniature Circuit Breakers

  • Payment: T/T, Western Union

  • Weight: 234g

  • Dimensions: 88 mm x 35 mmx 69 mm (H x W x D)

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details

Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

The S202M-K2UC universal current configuration with Product ID 2CDS272061R0277 is a 2-pole miniature circuit breaker engineered to provide flexible overcurrent protection and short-circuit fault mitigation in both alternating current (AC) and high-voltage direct current (DC) industrial networks. As a modular component of the System pro M compact S200MUC series, this device incorporates a delayed thermal tripping mechanism for overload safety alongside an electromechanical magnetic tripping mechanism tailored for instantaneous short-circuit protection. It operates across a wide performance range with a certified breaking capacity up to 10 kA at 440 V AC/DC, making it highly compatible with specialized electrical infrastructure layout panels, field distribution systems, and global industrial automation backup assemblies.

Features

  • Outfitted with a 2-pole hardware matrix ensuring reliable multi-line overcurrent protection and circuit isolation.
  • Utilizes a flexible universal current configuration certified for execution across both AC and DC wiring topologies.
  • Designed with a K-characteristic tripping curve optimized to mitigate specific inductive current spikes and fault profiles.
  • Employs a failsafe bi-directional cylinder-lift terminal configuration to guarantee secure, vibration-resistant cable clamping.

Applications

  • High-voltage direct current distribution setups, transportation infrastructure, and photovoltaic branch panel assemblies.
  • Multi-axis industrial automation systems, heavy-duty motor control panels, and field machinery control loops.
  • Complex low-voltage networks requiring high short-circuit breaking thresholds and multi-standard component flexibility.

Ordering Information

Parameter Value
Extended Product Type S202M-K2UC
Product ID 2CDS272061R0277
EAN 4013614433146

Technical Specifications

Parameter Specification
Manufacturer ABB
Extended Product Type S202M-K2UC
Product ID 2CDS272061R0277
Number of Poles 2P
Number of Protected Poles 2
Tripping Characteristic K
Rated Current (In) 2 A
Input Voltage Type AC/DC
Rated Operational Voltage acc. to IEC 60898-1 400 V AC / acc. to IEC 60947-2 440 V AC / acc. to IEC 60947-2 440 V DC
Rated Frequency (f) 50/60 Hz / DC
Power Loss 3.56 W (1.78 W per Pole at Rated Operating Conditions)
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV (5 kV at 2000 m / 6.2 kV at Sea Level)
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V DC) 25 kA / (230 V AC) 15 kA / (400 V AC) 15 kA / (440 V AC) 10 kA / (440 V DC) 10 kA / (230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V DC) 20 kA / (230 V AC) 10 kA
Rated Short-Circuit Capacity (AC) 10 kA / (230 V AC) 10 kA / (400 V AC) 10 kA / (230 V) 10 kA / (400 V) 10 kA
Rated Conditional Short-Circuit Current (Inc) (230 V) 15 kA / (400 V) 15 kA
Energy Limiting Class 3
Contact Position Indication Red ON / Green OFF
Mechanical Endurance 20000 cycle
Housing Material Insulation Group I, RAL 7035
Actuator Material Insulation Group II, Black, Sealable
Actuator Type Toggle
Actuator Marking 1/0
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Tightening Torque 2.8 N-m
Recommended Screw Driver Pozidriv 2
Connecting Capacity Busbar 10/10 mm² / Flexible with Ferrule 0.75 ... 25 mm² / Flexible 0.75 ... 25 mm² / Rigid 0.75 ... 35 mm² / Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Ambient Air Temperature Operation -25 ... +55 degC / Storage -40 ... +70 degC
Degree of Protection IP20 (Enclosure with Cover IP40)
Pollution Degree 3
Environmental Conditions 28 cycles with 55 degC / 90-96% and 25 degC / 95-100%
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms
Maximum Operating Voltage UL/CSA 500 V DC / 480Y/277 V AC
Interrupting Rating acc. to UL1077 (220 V AC) 10 kA / (277 V AC) 6 kA / (440 V DC) 10 kA / (480Y/277 V AC) 10 kA / (500 V DC) 10 kA
Connecting Capacity UL/CSA Busbar 14-8 AWG / Conductor 14-4 AWG
Tightening Torque UL/CSA 25 in-lb
Product Net Width 35 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.234 kg

Installation Guidelines

  • DIN Rail Installation: Mount the hardware securely onto a standard symmetrical tracking option, such as TH35-15 or TH35-7.5 mounting rails in accordance with the IEC 60715 standard layout.
  • Orientation Versatility: Designed to be mechanically seated at any functional structural mounting position inside the automation control cabinet.
  • Polarity Enforcement: Ensure careful inspection and execution of the terminal wiring connections relative to the marked polarity designations for direct current operations.
  • Torque Specifications: Use a standard Pozidriv 2 screwdriver tool to verify that all cylinder-lift terminal screws are anchored securely to a recommended value of 2.8 N-m (25 in-lb for UL/CSA arrangements).

Compliance and Certifications

  • Declaration of Conformity - CE: 2CDK400583D2704
  • Certification Agencies: CSA, EN, IEC, UL
  • Standards: IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
Key Features:
#Miniature Circuit Breakers

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ABB S202M-K2UC 2CDS272061R0277 S200MUC Miniature Circuit Breaker

Download Open in new tab

What function do the mechanical indicator configurations provide on this device?
The device features a clear mechanical contact position indicator displaying a Red indication for ON and a Green indication for OFF states.

What are the recommended tightening torque specs for the cylinder-lift terminals?
The screw terminals require a tightening torque of 2.8 N-m for standard industrial configurations or 25 in-lb for installations adhering to UL/CSA requirements.

What specific environmental protection standards does the hardware support?
The device is rated at IP20 for bare terminal protection, which scales up to IP40 when fitted inside an appropriate enclosure assembly with a matching cover.
