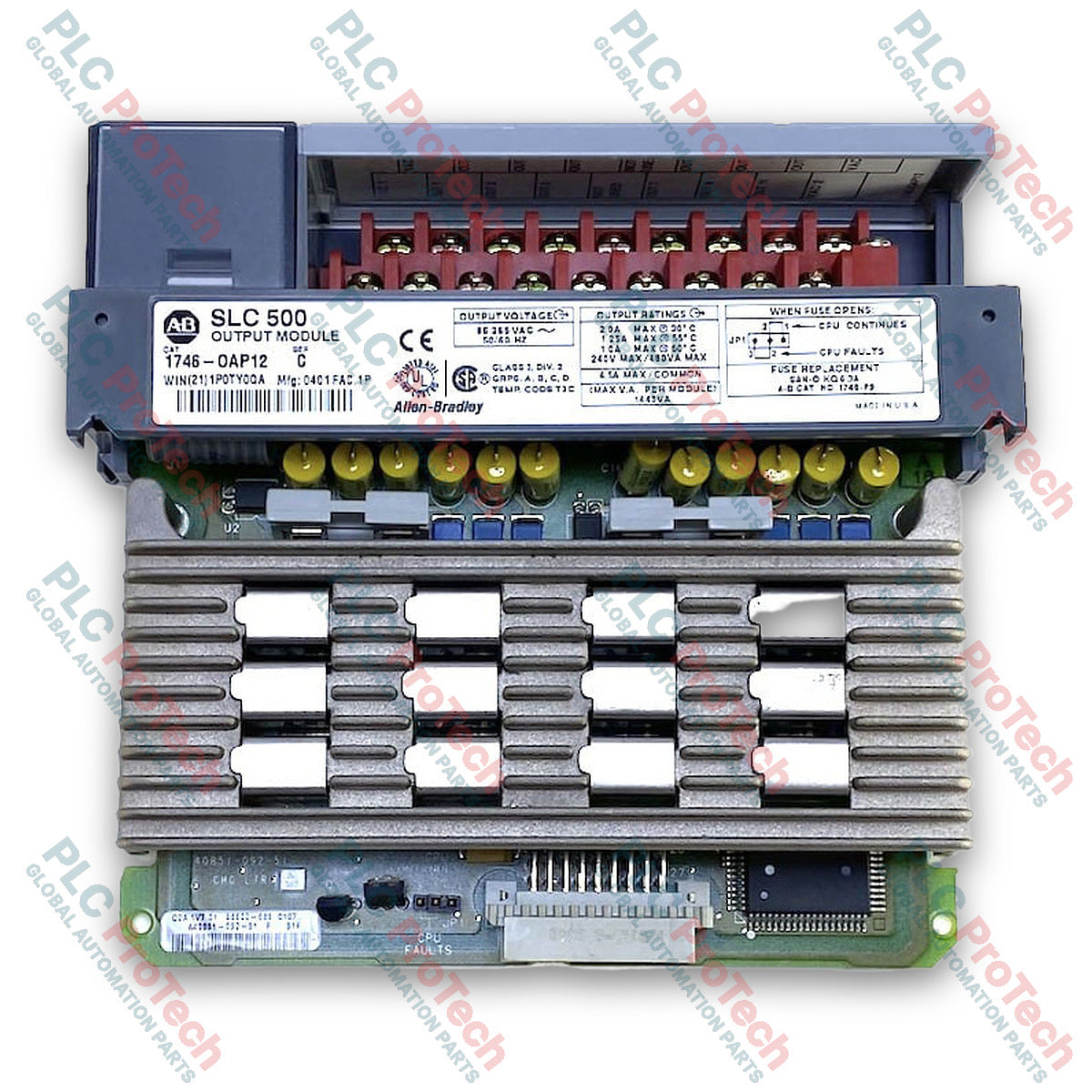

Allen-Bradley 1746-OAP12 SLC 500 Discrete AC Output Module

SKU 1746-OAP12

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 1746-OAP12
Origin United States
Product Type: Output Module
Payment: T/T, Western Union
Weight: 0.28 kg
Dimensions: 11.8 x 3.5 x 14.5 cm
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantity

Call sales Contact

Product Description

Description

The Allen-Bradley 1746-OAP12 is a reliable discrete AC output module designed for the Allen-Bradley SLC 500 modular hardware platform. This module features 12 AC output channels grouped into isolated commons, providing versatile power switching capabilities for industrial control applications. Built to fit into any available I/O slot of an SLC 500 chassis, the 1746-OAP12 incorporates fused commons with blown fuse indicators to enhance system diagnostics and protect connected equipment from overcurrent conditions.

Engineered for standard industrial AC control loads, this module operates within an 85 to 264VAC voltage range and supports flexible jumper settings for blown fuse detection. A color-coded removable terminal block (RTB) is included to simplify wiring installation and maintenance procedures, making it an efficient solution for discrete automation tasks.

Features

12 discrete AC output channels organized into isolated commons
Compatible with all Allen-Bradley SLC 500 programmable controller systems
Fused commons design with blown fuse LED indicators for fast troubleshooting
Configurable jumper for internal fuse monitoring
Color-coded Removable Terminal Block (RTB) included for simplified wiring
Robust thermal and electrical current performance across standard industrial temperature ranges

Applications

Industrial motor starters and contactors control
Solenoid valve and actuator actuation
Pilot lights and annunciator panels
General AC load switching in discrete manufacturing environments

Technical Specifications

Parameter	Specification
Manufacturer	Allen-Bradley / Rockwell Automation
Exact Model	1746-OAP12
Product Type	Discrete AC Output Module
Module Family	SLC 500
Number of Outputs	12 AC outputs (isolated groups)
Operating Voltage Range	85 to 264VAC (120/240VAC nominal)
Max. Continuous Current Per Point	2.0A at 30 degC / 1.0A at 60 degC
Max. Continuous Current Per Module	9.0A at 30 degC / 6.0A at 60 degC
Min. Load Current	10mA
OFF-State Leakage Current	2mA max
Output Signal Delay	ON to OFF: 1 ms max; OFF to ON: 11 ms max
Country of Origin	United States

Connections / Interfaces

Backplane Connection: Connects directly to the SLC 500 rack backplane for power and communication with the processor.
Field Wiring Interface: Color-coded Removable Terminal Block (RTB) mounted on the front of the module for field device connections.

Installation Guidelines

Always disconnect power to the SLC 500 chassis and external power sources before installing or removing the module.
Insert the module securely into any available I/O slot of the 1746 chassis and secure the chassis retaining screws.
Connect field AC wiring to the appropriate terminals on the removable terminal block according to application wiring diagrams.
Verify fuse jumper settings before initial system power-up.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What controllers are compatible with the Allen-Bradley 1746-OAP12?

The 1746-OAP12 is compatible with all Allen-Bradley SLC 500 modular processors when placed in any available slot of a 1746 I/O chassis.

How many output channels does this module provide?

The module features 12 discrete AC output channels arranged in groups with isolated commons.

Does the 1746-OAP12 include fusing protection?

Yes, the module includes fused commons to protect against overcurrent conditions, complete with blown fuse LED indicators and a jumper option for internal fuse monitoring.

What is the operating voltage range of the 1746-OAP12?

The module operates within a voltage range of 85 to 264VAC, supporting nominal 120VAC and 240VAC applications.
