Description

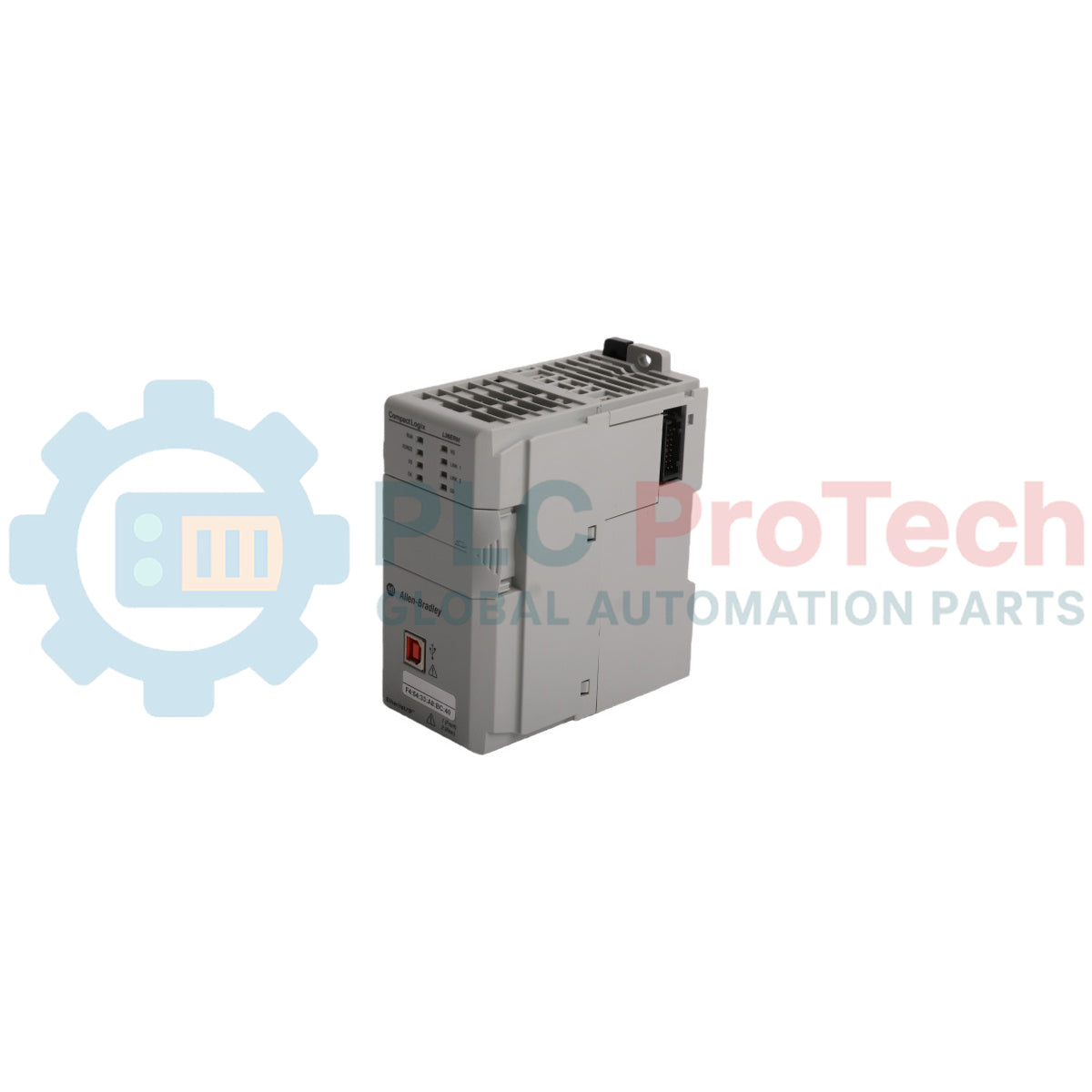

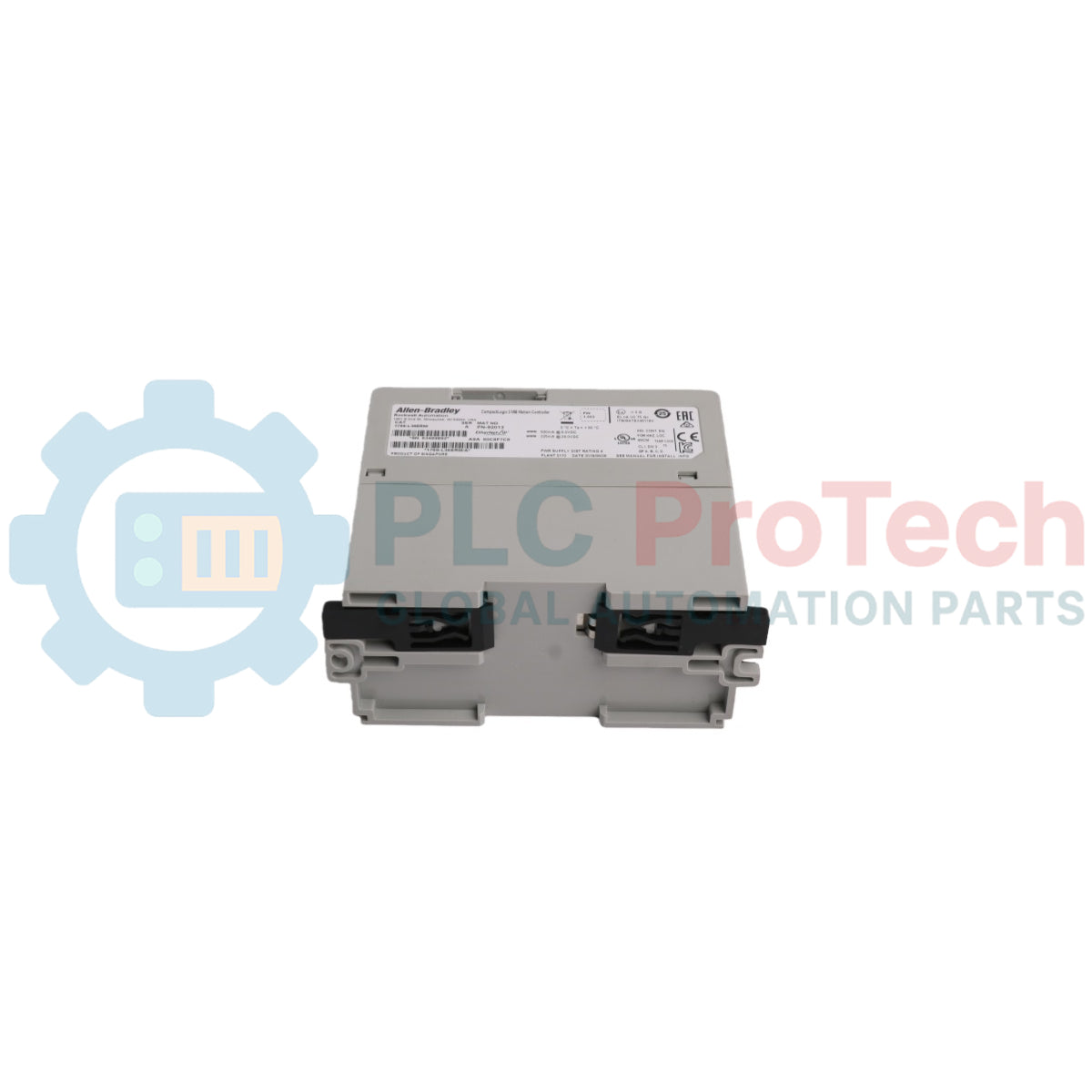

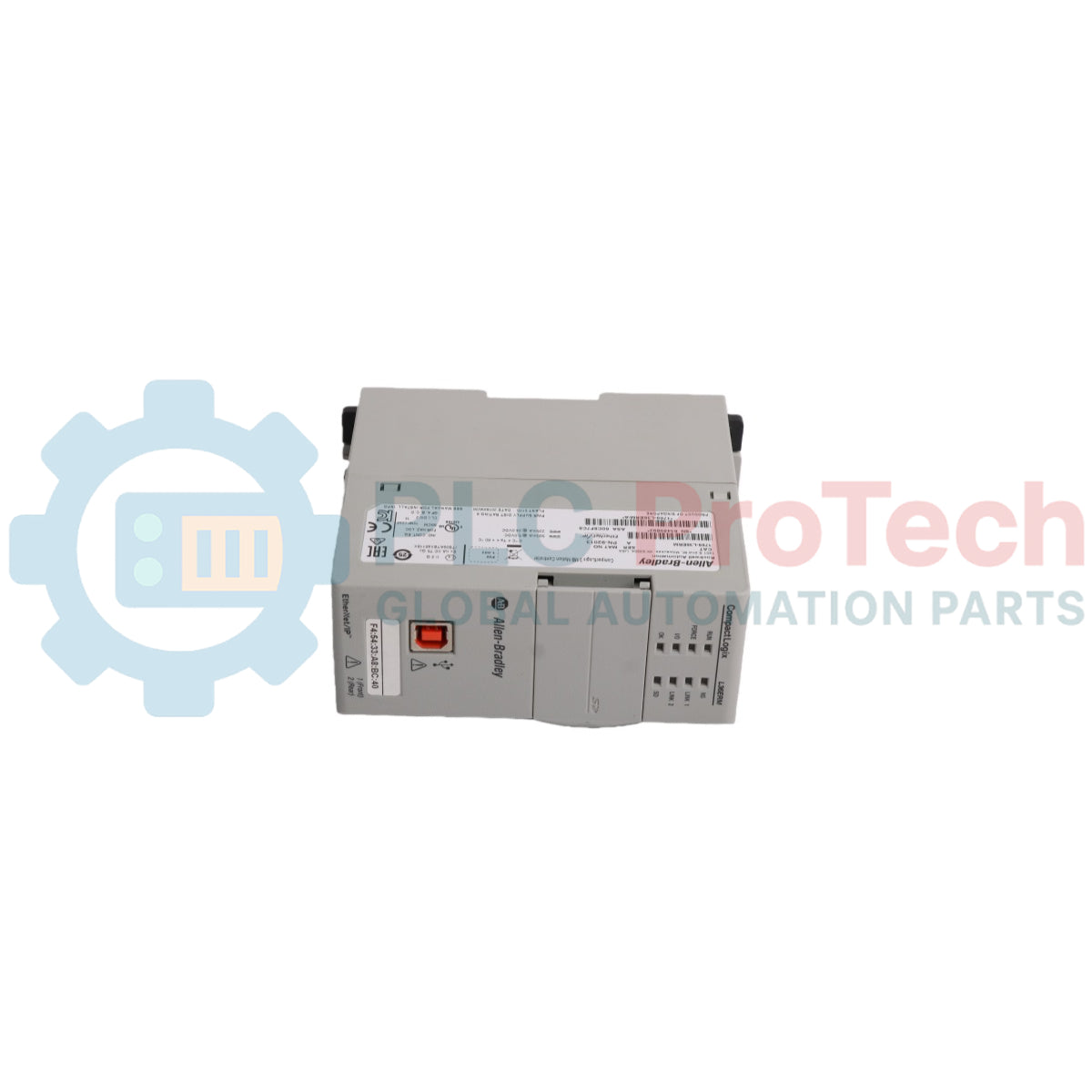

The Allen-Bradley 1769-L36ERM is a packaged automation controller operating within the CompactLogix 5370 system architecture. This device provides integrated machine control, motion capabilities, and distributed station processing for small to medium-sized industrial machinery setups. Outfitted with 3 MB of built-in non-volatile user memory, the 1769-L36ERM runs real-time instruction executions and manages localized or remote logic requirements without demanding oversized control cabinet footprints.

Operating over localized industrial infrastructure, the controller features dual Ethernet/IP communication ports arranged to support linear and Device Level Ring (DLR) network topologies. The architecture permits simultaneous connection to upstream factory networks and downstream control infrastructure. It handles up to 30 local 1769 Compact I/O module expansions directly via its backplane bus and provides integrated motion capabilities over EtherNet/IP supporting up to 16 axes. The system relies on a secure secure digital (SD) card for retentive program storage and incorporates a maintenance-free energy storage solution to eliminate external battery reliance during power cycles.

Features

• Integrated Motion on EtherNet/IP: Supports up to 16 axes of integrated motion control via standard network architecture.
• Dual-Port Ethernet Capabilities: Built-in dual ports configured to support Device Level Ring (DLR) and linear network options for enhanced link redundancy.
• High Expansion Capacity: Enables direct interface and power distribution for up to 30 local 1769 Compact I/O expansion modules across three I/O banks.
• Battery-Free Logic Maintenance: Utilizes internal energy storage structures to write memory contents securely to flash during unexpected power sags.

Applications

• Multi-axis coordinated packaging lines and continuous sorting operations.
• Integrated assembly machines, material handling lines, and automotive component conveyors.
• Food and beverage manufacturing, processing cells, and batch mixing stations.
• Multi-bank distributed pump stations and environmental water filtration controls.

Technical Specifications

Connection and Interfaces

Installation Guidelines

• Power Supply Positioning: Adhere strictly to the module distance rating. The controller must be positioned within 4 module slots of a compatible 1769 system power supply.
• Chassis Expansion Restrictions: When expanding the configuration past 8 or 16 modules into Bank 2 or Bank 3, ensure standard 1769 expansion cables and end caps are securely fastened to retain bus continuity.
• Convective Thermal Clearances: Ensure a minimum clearance of 50 mm (2.0 in.) on all sides of the controller layout inside the enclosure panel to maintain acceptable air cross-flow.
• Grounding Connection: Confirm that the DIN rail or panel mounting plate is connected to a clean functional earth ground point to minimize radio frequency interference (RFI).
