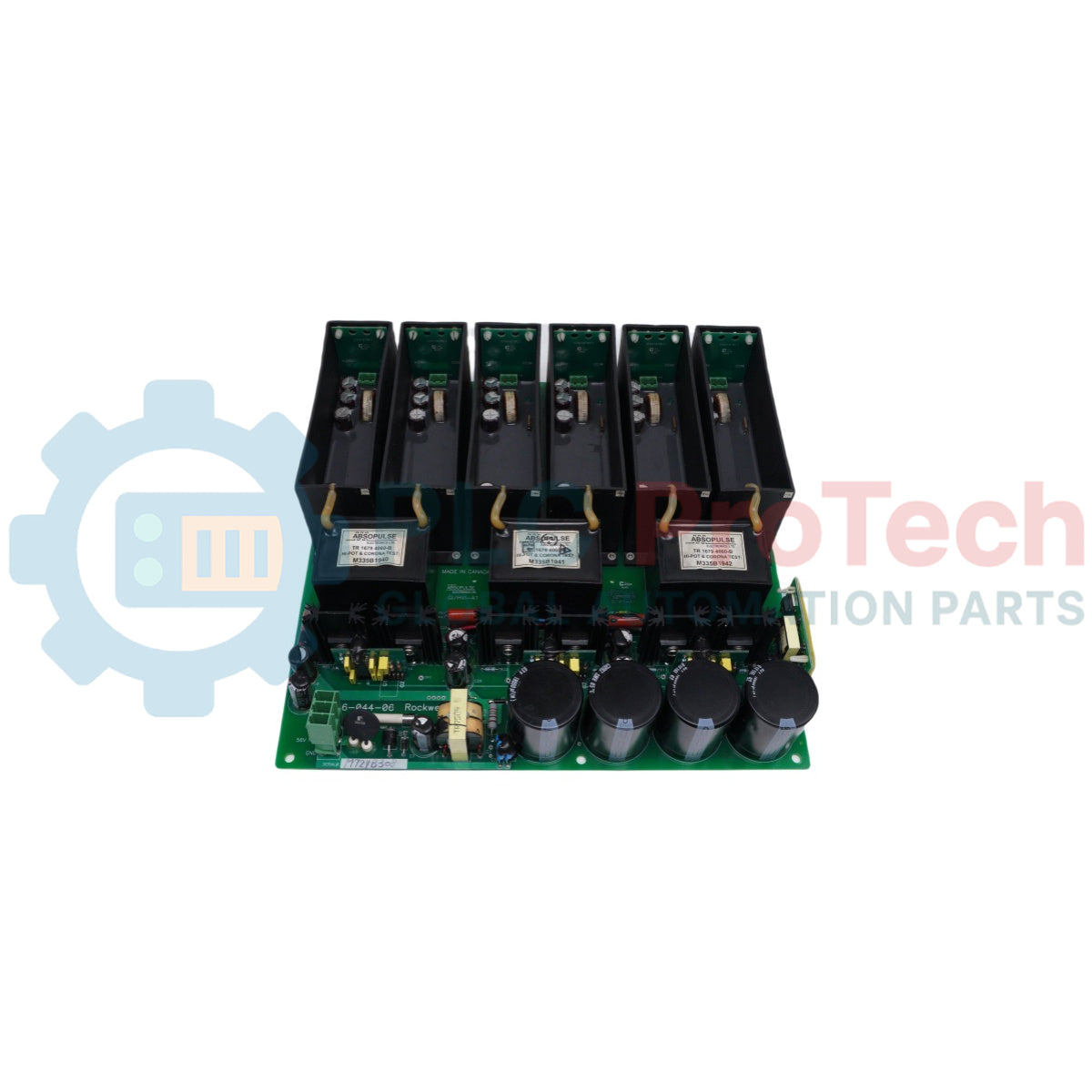

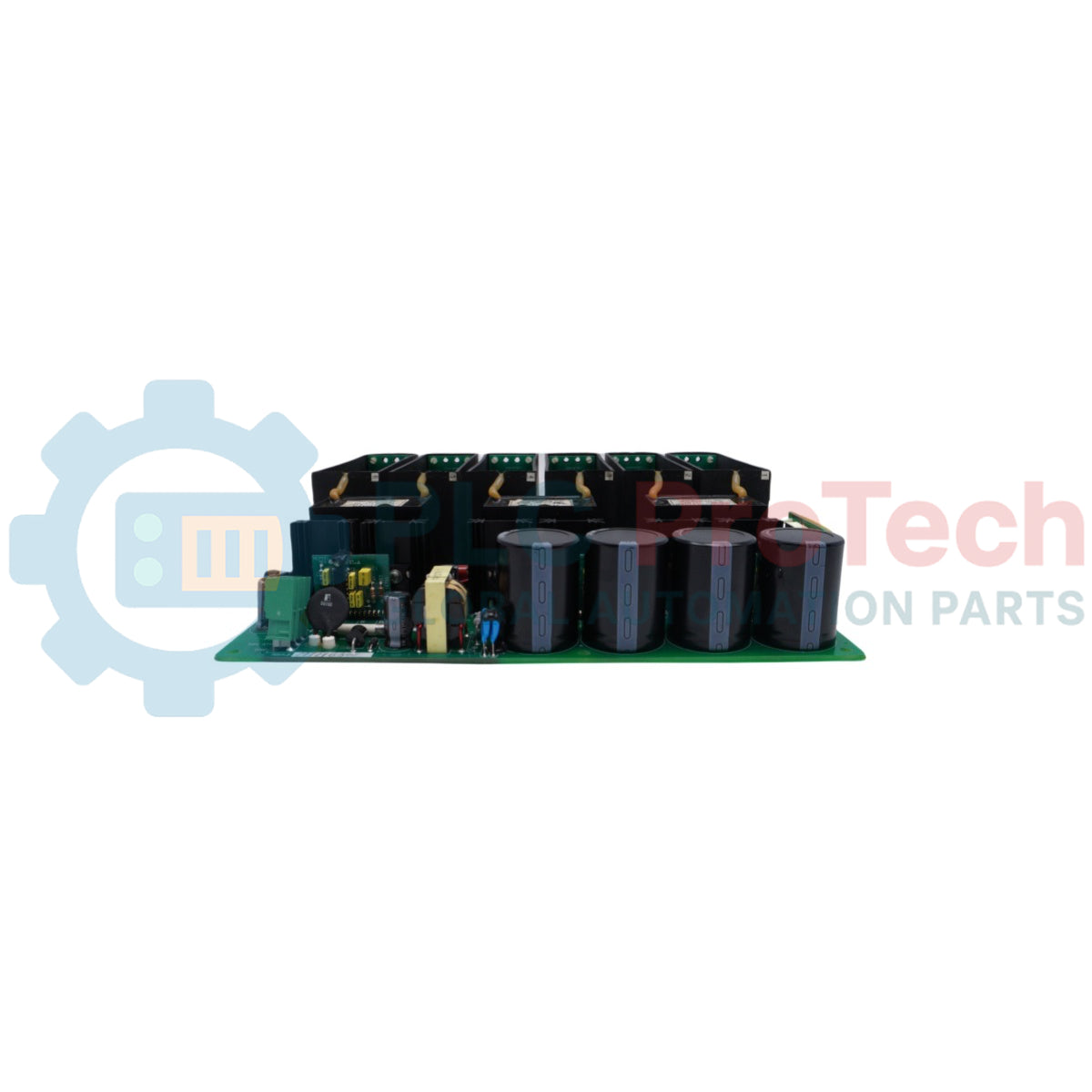

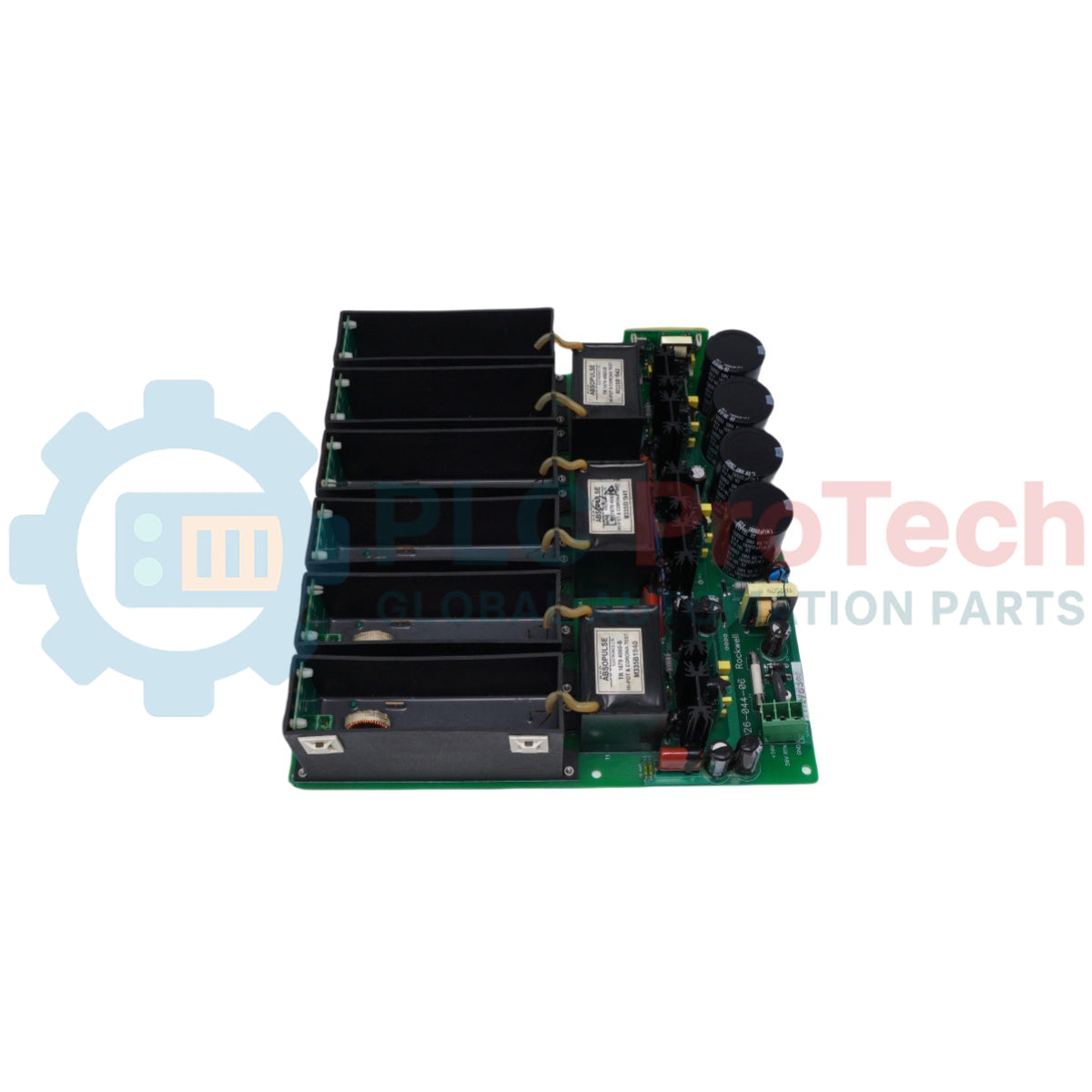

Allen-Bradley 80026-044-06-R PowerFlex 7000 IGDPS Power Supply Module

SKU 80026-044-06-R

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Allen-Bradley
  • Product No.: 80026-044-06-R
  • Origin United States
  • Product Type: Power Supply Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 4.24 kg
  • Dimensions: 118 mm x 35 mm x 87 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Power Supply Modules Powerflex 7000

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Allen-Bradley 80026-044-06-R PowerFlex 7000 IGDPS Power Supply Module

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

The Allen-Bradley 80026-044-06-R is an Isolated Gate Driver Power Supply (IGDPS) switching power supply module designed for medium voltage industrial drives. Specifically engineered for integration within the PowerFlex 7000 medium voltage AC drive platform, the 80026-044-06-R serves as a specialized power delivery unit that converts DC link or bus voltages into multiple isolated outputs. This configuration is optimized to drive Symmetrical Gate-Commutated Thyristors (SGCT) or Integrated Gate-Commutated Thyristors (IGCT) in high-power converter and inverter configurations. By providing independent, low-noise power paths, the module isolates gate control circuitry from high-voltage main power structures, minimizing electromagnetic interference (EMI) and preventing cross-channel fault propagation across the gate driver sub-assemblies.

Features

  • Multi-channel electrical isolation delivering power across 6 distinct outputs to mitigate cross-channel interference
  • High-current capacity tailored to handle the transient peak power requirements of medium voltage thyristor gating
  • Ruggedized component layout for reliable deployment within industrial drive enclosures and high-vibration power structures
  • Direct mechanical and electrical compatibility with the standard PowerFlex 7000 component chassis layouts

Applications

  • Gate driver power distribution in PowerFlex 7000 medium voltage AC drives
  • Isolated power provisioning for SGCT and IGCT power semiconductors
  • High-power inverter and rectifier bridge power subsystem configurations

Technical Specifications

Parameter Specification
Manufacturer Allen-Bradley / Rockwell Automation
Model Number 80026-044-06-R
Alternate Part Number 80026-044-06
Product Series PowerFlex 7000
Module Type Isolated Gate Driver Power Supply (IGDPS) / Switching Power Supply
Input Voltage 50V DC / 56V DC
Input Current Range 10A
Output Voltage 6x 20V DC
Output Current 3A per channel
Mounting Type Surface Mount

Installation Guidelines

  • Enclosure Isolation: Ensure the main power feed to the PowerFlex 7000 drive is locked out and all internal DC link inductors and capacitors are fully discharged before initiating installation.
  • Surface Mount Torque: Secure the module to the internal panel or chassis using specified surface-mount fasteners to prevent mechanical stress under continuous operational vibrations.
  • Cable Routing: Routinely separate low-voltage gate driver output cabling from high-voltage motor or line cables to maintain clean signal delivery paths and preserve low noise thresholds.
  • Thermal Management: Ensure surrounding airflow channels remain unobstructed to maintain steady convective cooling across the module's power electronics under full rated load.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary role of the module within industrial drive systems?
The module operates as an Isolated Gate Driver Power Supply (IGDPS) that supplies isolated, regulated 20V DC power to the gate driver boards of SGCT or IGCT power semiconductors.
How many independent output channels are provided by the power supply?
The power supply features 6 separate output channels, each configured to deliver independent 20V DC power to clear isolation boundaries.
What are the input power characteristics required for operation?
The device accepts a nominal DC input voltage within the 50V DC to 56V DC range, with a typical rated input current capacity of up to 10A.
