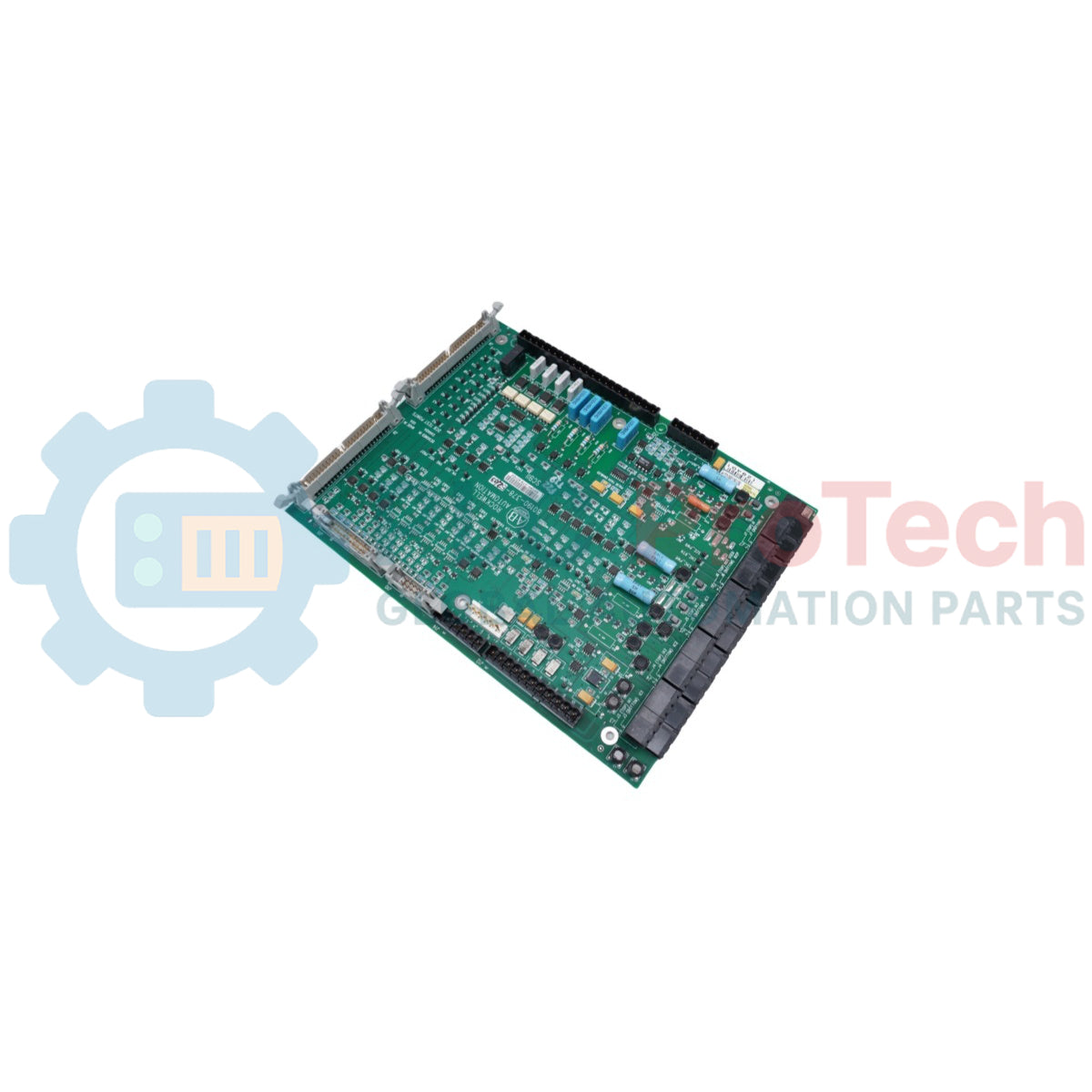

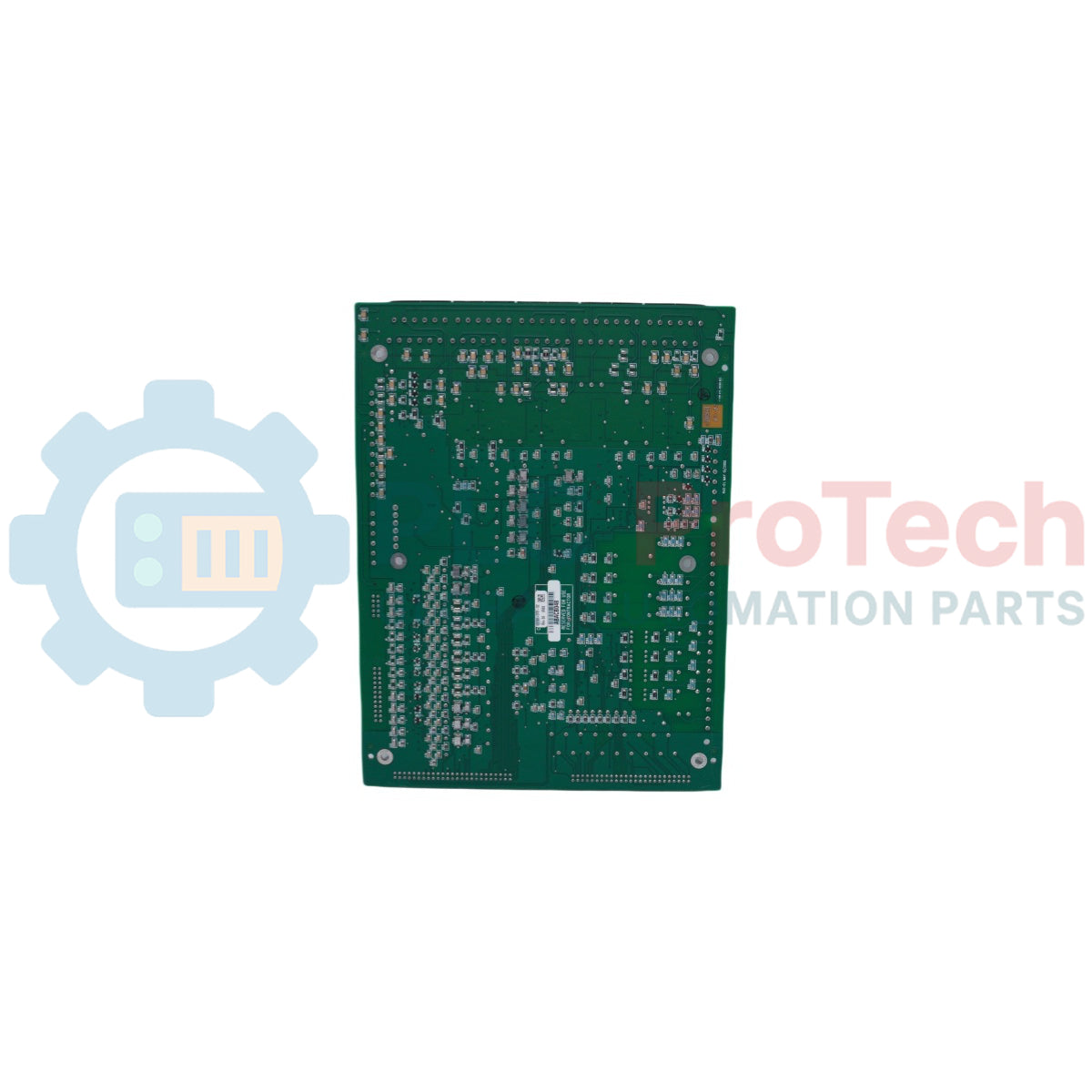

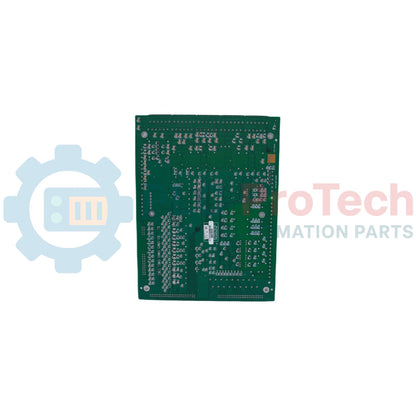

Allen-Bradley 80190-378-52 Inverter Control Board

SKU 80190-378-52

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Allen-Bradley
  • Product No.: 80190-378-52
  • Origin United States
  • Product Type: Inverter Control Board
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.45 kg
  • Dimensions: 25 mm x 180 mm x 150 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Inverter Control Board
Quantity
Call sales Contact

Product Description

Description

The Allen-Bradley 80190-378-52 is an inverter control board designed for managing and regulating inverter operations in industrial variable frequency drive (VFD) systems. The 80190-378-52 executes precise control algorithms, switching commands, and feedback signal processing to ensure reliable operation of power electronic circuits within the drive architecture.

Features

  • Dedicated control processing for industrial variable frequency drive regulation
  • High-voltage isolation boundaries for control circuit protection
  • Robust environmental resistance tailored for harsh industrial enclosures

Applications

  • Variable frequency drive (VFD) control systems
  • Industrial motor control centers
  • Automation power electronic regulation

Technical Specifications

Parameter Specification
Manufacturer Allen-Bradley
Part Number 80190-378-52
Product Type Circuit Board (Inverter Control Board)
Manufacture Year 2022
Isolation 3000V AC
Industrial Ratings NEMA 4X/12
Vibration 1.5g
Relative Humidity 5-95%
Storage Temperature -40 degC to +70 degC
Product Package Original Package

Installation Guidelines

  • Cooling/Ventilation: Ensure adequate airflow within the drive enclosure to maintain operating temperatures within acceptable limits.
  • Moisture Protection: Maintain the environment within the specified 5-95% non-condensing relative humidity range; ensure NEMA 4X/12 integrity is preserved when mounting in appropriate enclosures.
  • Vibration/Shock Resistance: Secure the circuit board using all designated mounting points to withstand industrial vibration up to 1.5g.
