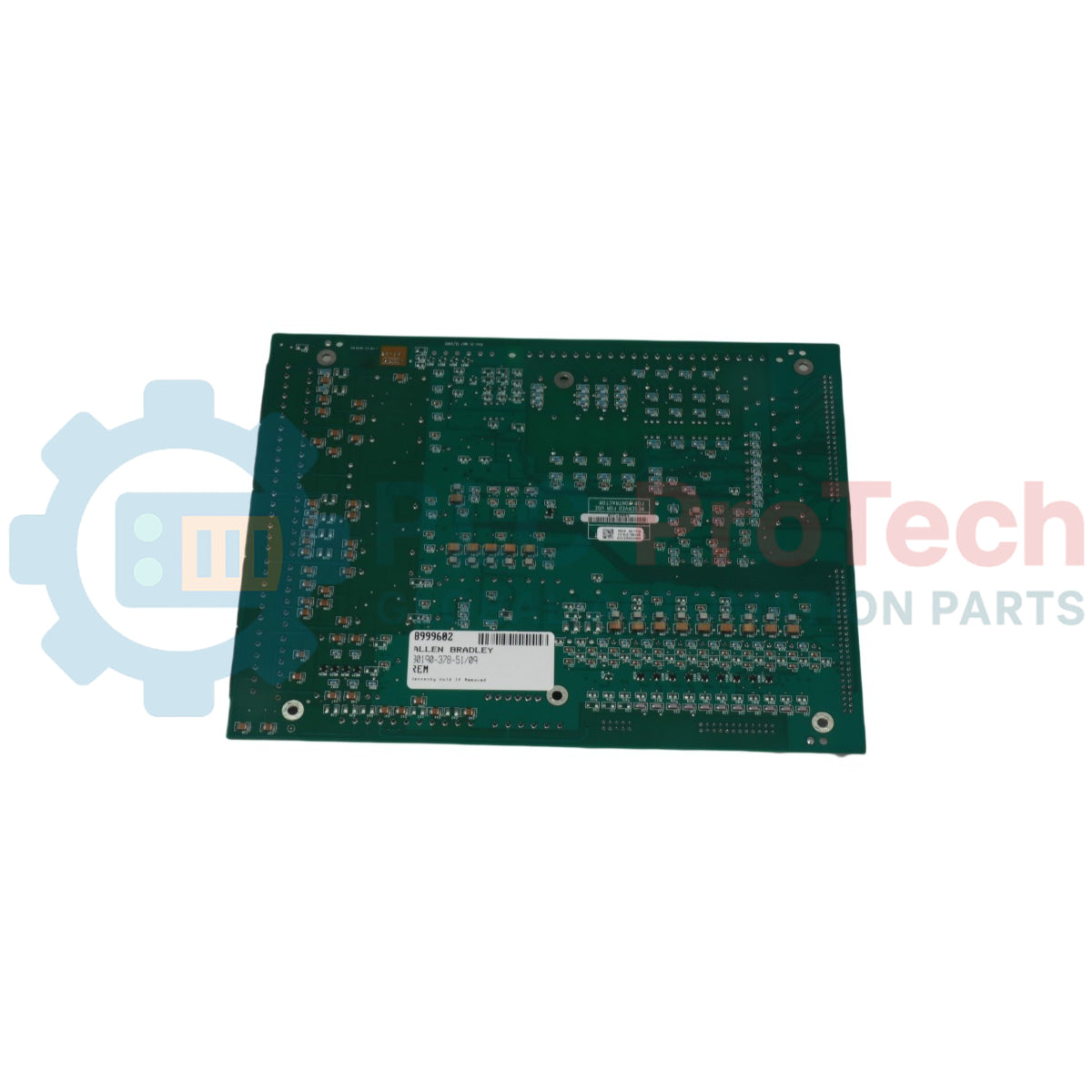

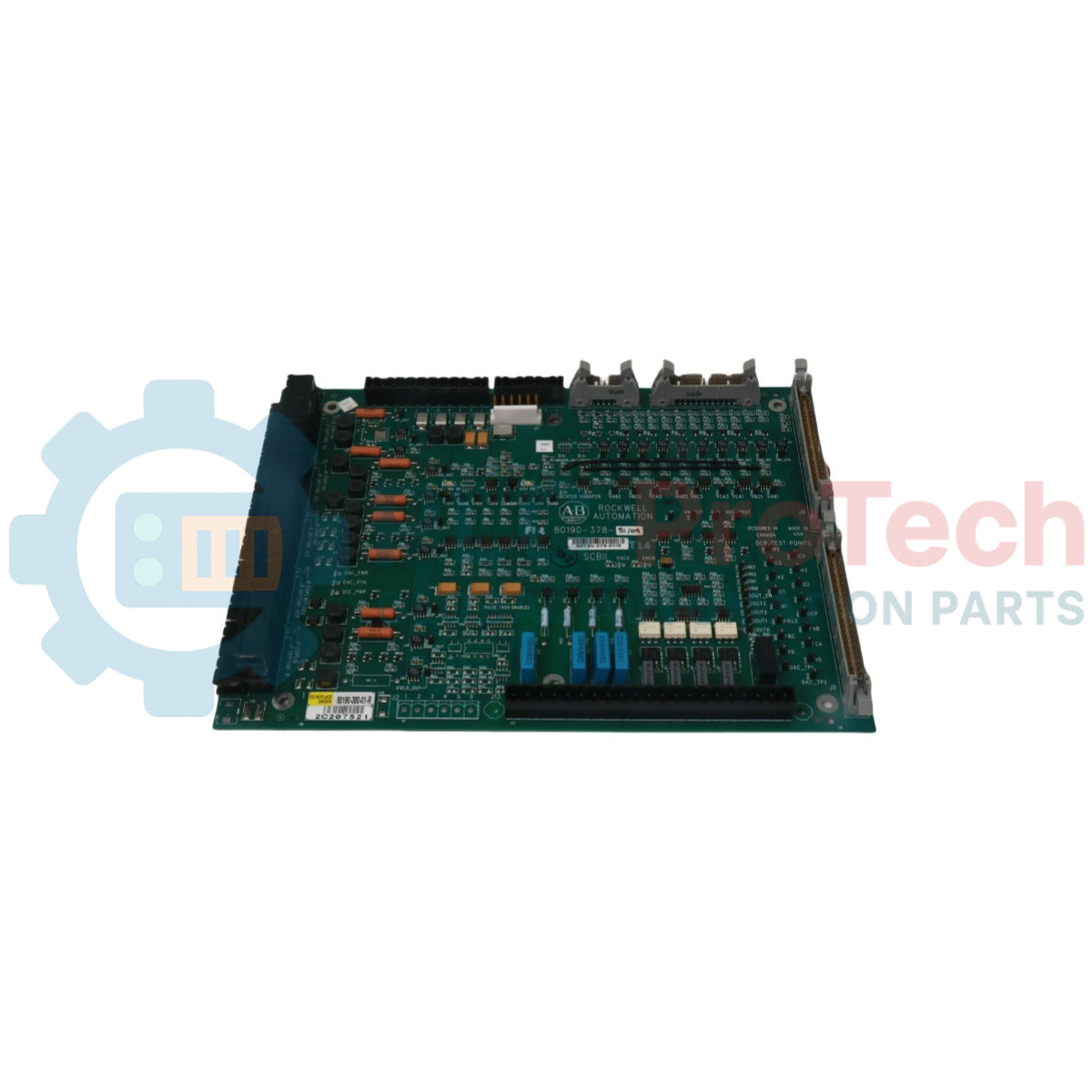

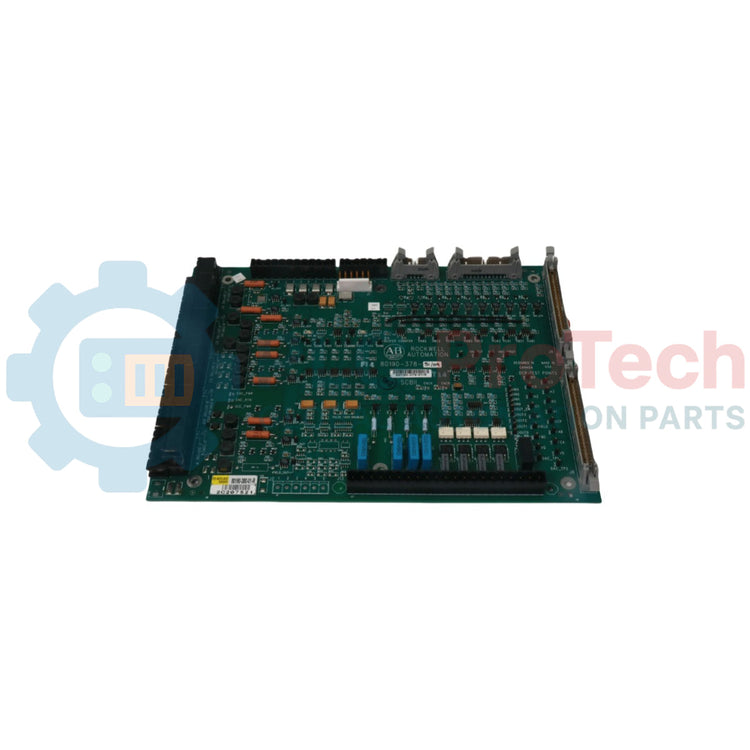

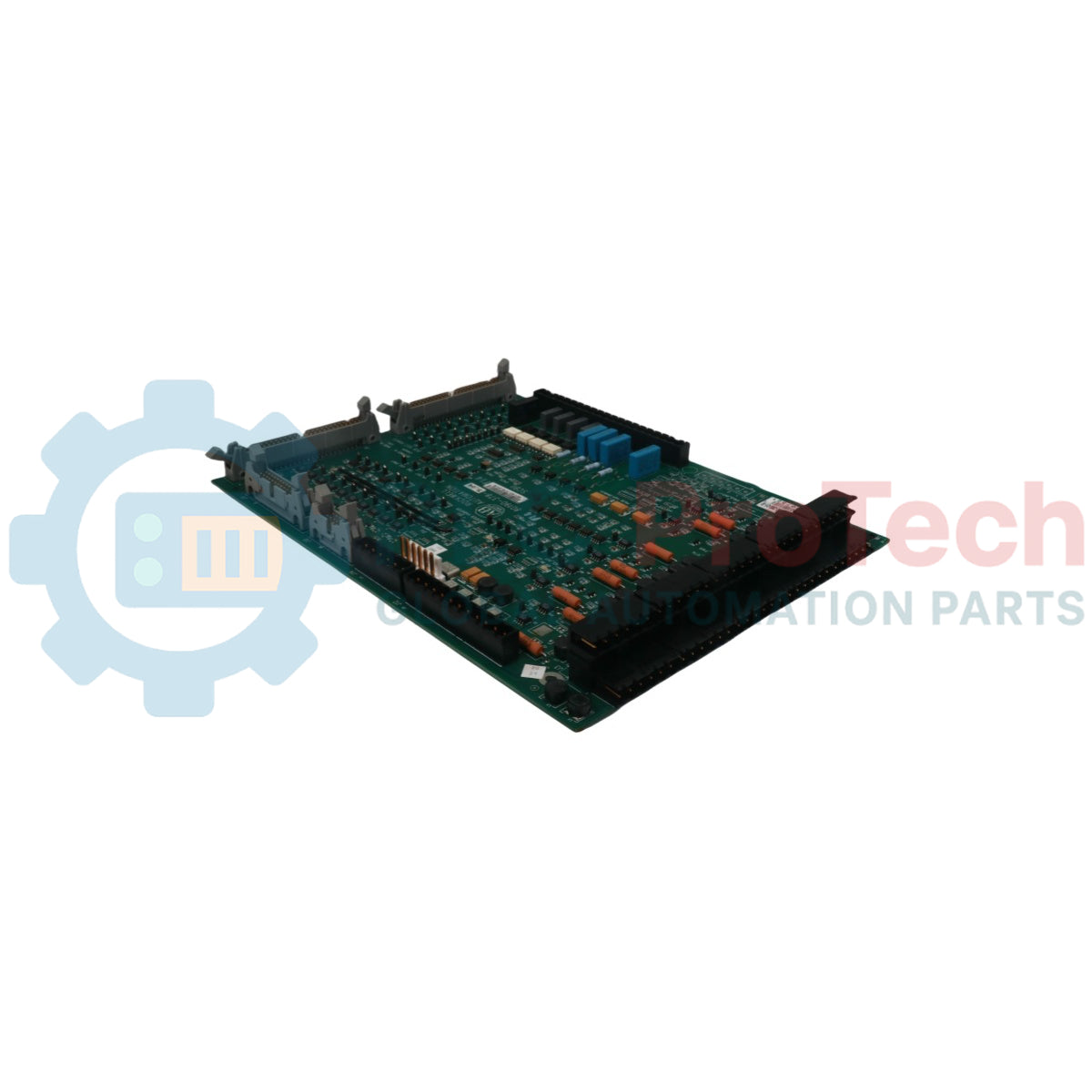

Allen-Bradley 80190-380-01-R Rectifier Board

SKU 80190-380-01-R

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Allen-Bradley
  • Product No.: 80190-380-01-R
  • Origin United States
  • Product Type: Rectifier Board
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.3 kg
  • Dimensions: 28 mm x 252 mm x 190 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Analog Control Boards Rectifier Boards
Quantity
Call sales Contact

Product Description

Description

The Allen-Bradley 80190-380-01-R is a specialized rectifier board and analog control module assembly configured for high-demand industrial automation networks. This internal board assembly primarily executes raw AC to DC power conversion sequences while delivering highly precise, localized voltage feedback tracking directly to host PLC architectures and Add-On I/O module subsystems. Engineered with an 8-channel digital input configuration operating at 24V DC, the 80190-380-01-R provides isolated status monitoring with dedicated internal hardware safety clamping to shield downstream logic components from field-side voltage transients, making it highly compatible for integration into heavy-duty automation systems and drive controls.

Features

  • Executes efficient AC to DC power conversion stages tailored for specialized drive or control backplane segments
  • Provides precise voltage feedback loop monitoring to optimize external system loop stability
  • Integrates an 8-channel digital input module layout running at a localized current threshold of 5mA per channel
  • Features integrated protection schemes designed to maintain system accuracy under demanding ambient field interferences

Applications

  • Alternating current to direct current power conversion tracks in industrial PLC system grids
  • Precise internal voltage feedback monitoring loops within multi-axis drive frameworks
  • Distributed field sensor processing via high-density Add-On I/O configurations

Technical Specifications

Parameter Specification
Manufacturer Allen-Bradley / Rockwell Automation
Product Model 80190-380-01-R
Spare Model 8019038001R
Board Type Classification Rectifier Board PKGD CUSTR SCB / Analog Control Board
Input/Output Configurations 8 Channels Digital Input
Voltage Configuration 24V DC
Channel Current Load 5mA per channel
Overvoltage Protection 600V DC clamp
Inrush Current Limitation <20A (NTC limited)
Operating Temperature Range -10 degC to +60 degC
Storage Temperature Range -40 degC to +85 degC
Humidity Constraints 5-95% (non-condensing)
Tariff Code 8537101190
Country of Origin USA

Installation Guidelines

  • Inrush Mitigation Verification: Verify that internal negative temperature coefficient (NTC) components are uninhibited by thermal layout restrictions to ensure the field inrush current stays securely beneath the <20A threshold.
  • Transient Clamp Grounding: Ensure the board chassis interfaces securely with a low-impedance factory ground system to enable the 600V DC clamp network to route voltage surges safely away from low-voltage components.
  • Atmospheric Protection: Mount the assembly within an IP-rated housing that maintains internal operational thresholds within -10 degC to +60 degC and guards against condensing humidity conditions.
