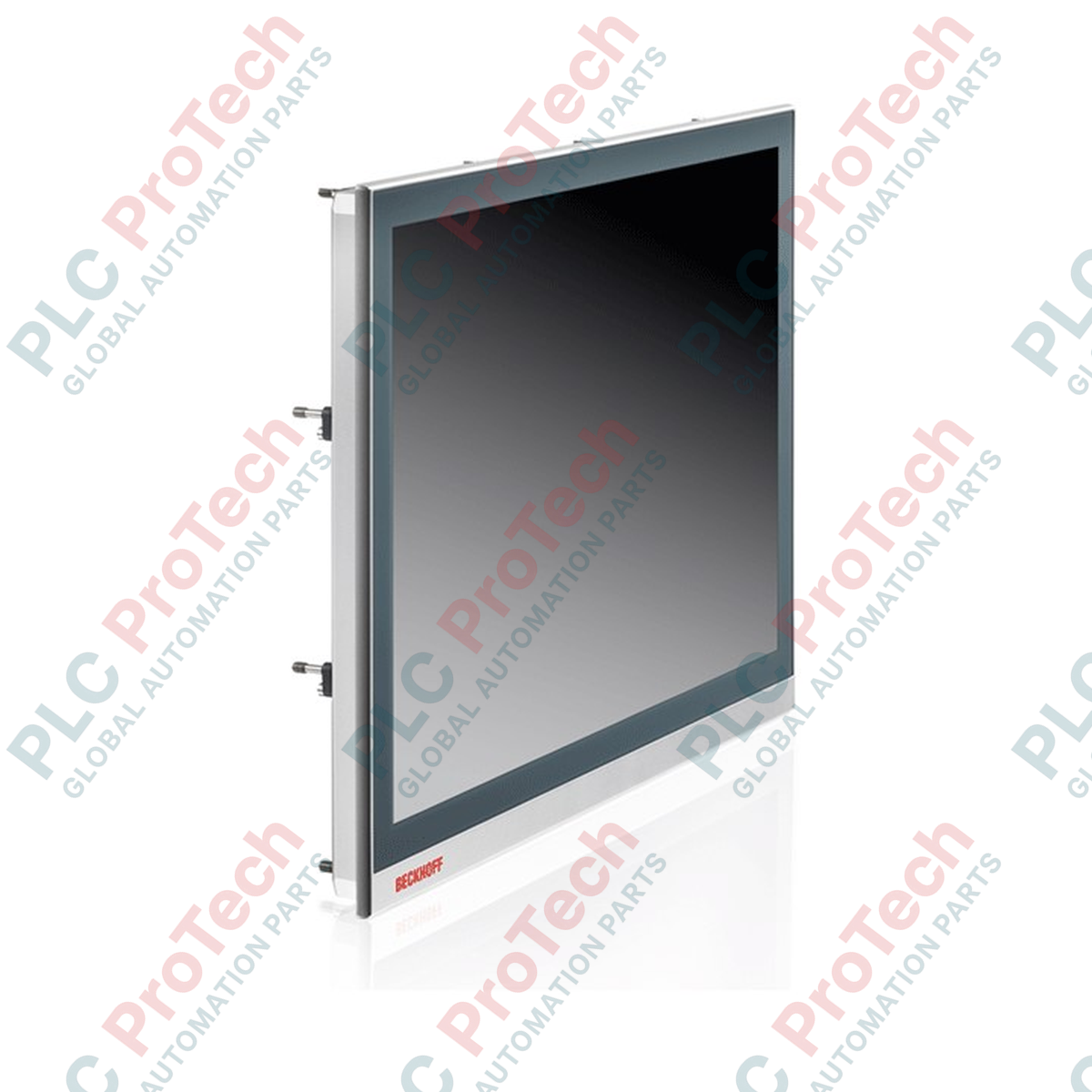

BECKHOFF CP2915-0010 CP29xx Series Multi-touch Built-in Control Panel

Description

Industrial visualization and control operations are streamlined with the BECKHOFF CP2915-0010 built-in Control Panel. This industrial-grade display unit features integrated CP-Link 4 (One Cable Display Link) technology, allowing the transmission of video signals, USB 2.0 data, and power over a single Cat.6A cable up to a distance of 100 meters from the host industrial PC. Designed with a robust aluminum housing and a premium glass front, this control panel provides intuitive multi-finger touch operation and high durability in harsh physical environments.

The unit features a 15-inch display with a resolution of 1024 x 768 pixels. Its capacitive multi-touch interface ensures precise operation even under industrial conditions, with front-side protection rated to IP65 against dust and liquid ingress. Mechanical installation is simplified using reliable pull-out clamping levers that secure the panel firmly into control cabinet doors or operator consoles.

Features

• High-resolution 15-inch display with 1024 x 768 resolution.
• Integrated CP-Link 4 technology for single-cable connection up to 100 meters.
• Projected capacitive multi-touch screen supporting multi-finger interaction.
• Robust housing design with aluminum frame and glass front plate.
• IP65 ingress protection on the front side, IP20 protection on the rear side.
• Integrated USB 2.0 interfaces for convenient peripheral connection.
• Quick-mount installation with integrated pull-out clamping levers.

Applications

This control panel is suited for modern human-machine interface (HMI) applications across various sectors:

• Automotive manufacturing and assembly lines.
• Packaging machinery and material handling systems.
• Process control systems in chemical and petrochemical plants.
• Power generation and distribution control centers.
• Food and beverage production lines requiring easy-to-clean operator panels.

Technical Specifications

Connections and Interfaces

Installation Guidelines

To ensure proper installation and continuous operation of the CP2915-0010 Control Panel, adhere to the following guidelines:

• Mechanical Mounting: Use the integrated pull-out clamping levers to secure the unit within the cutout. Ensure the seal on the front bezel is correctly aligned to maintain IP65 integrity.
• Cable Specifications: Utilize high-quality Cat.6A Ethernet cabling (with gold-plated contacts) for the CP-Link 4 connection to guarantee signal stability over long distances.
• Grounding: Connect the functional earth terminal on the rear of the device to the central machine ground potential using a short, low-resistance conductor.
• Thermal Management: Maintain a clean clearance around the cooling ventilation slots on the rear of the panel to avoid heat build-up. Ensure operating environment stays within 0 to 50 degC.

Compliance and Certifications

• CE
• UL (Underwriters Laboratories)
