Description

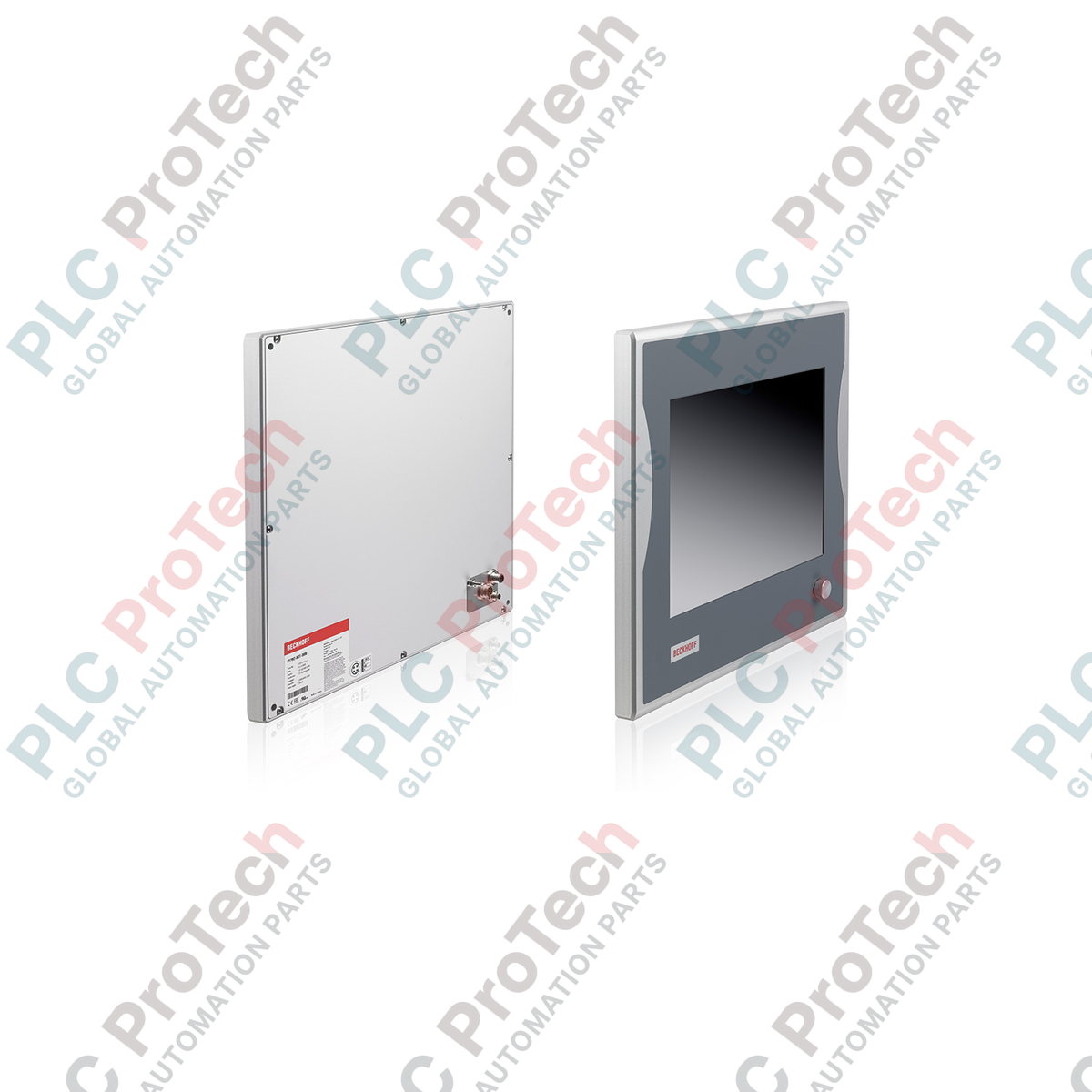

The CP7902-0001-0000 is an industrial control panel engineered by Beckhoff to deliver stable visualization and terminal control for machine-level applications in harsh environments. This unit features a high-contrast 15-inch active matrix TFT display with a sharp resolution of 1024 x 768 pixels, providing operators with clear interface visibility and dependable parameter control. Constructed from robust aluminum, the housing is designed specifically for mounting-arm installation configurations to maximize space efficiency on the factory floor. The CP7902-0001-0000 relies on integrated DVI-E and USB-E 2.0 communication interfaces, allowing full separation between the operator panel and the host industrial PC at distances up to 50 meters without experiencing transmission loss or signal degradation. To withstand heavy-duty shop floor conditions, the front face of the module is rated IP65 to prevent dust, oil, and water ingress, while using a fanless, passive cooling methodology to prevent common mechanical fail points.

Features

• Outfitted with a 15-inch high-resolution active matrix TFT display layout
• Uses DVI-E and USB-E 2.0 connection technology for clean remote operations up to 50 meters away from the industrial PC
• Built with a passive cooling structural design to eliminate mechanical fan failure points and extend device lifespan
• Rated IP65 across the front face panel to protect internal circuits from direct liquid jets and particulate entry
• Formed out of robust aluminum housing featuring pre-arranged mechanical mounting bracket paths
• Runs on a standard 24 V DC power framework optimized for machine tool enclosure distribution loops

Applications

• Automotive assembly lines and robotic weld cells
• High-speed packaging machinery and food processing systems
• Process monitoring and supervisory visualization in chemical plants
• Material handling plants and conveyor system control centers

Technical Specifications

Installation Guidelines

• Load Verification: Verify that the primary structural mounting arm can safely support the static 9 kg load of the control panel before anchoring.
• Mechanical Securing: Mount the panel using the 4 threaded M6 x 18 mm layout holes located on the rear backplane, applying correct engineering torque metrics to preserve the physical thread paths.
• Thermal Mitigation: Keep clear air space open around the aluminum housing surfaces to permit unhindered passive thermal dissipation and cooling air movement.
• EMI Management: Route all DVI-E and USB-E 2.0 communication cables inside separate utility conduits positioned safely away from high-power AC power lines to block electromagnetic interference.

Compliance and Certifications

• CE
• UL
