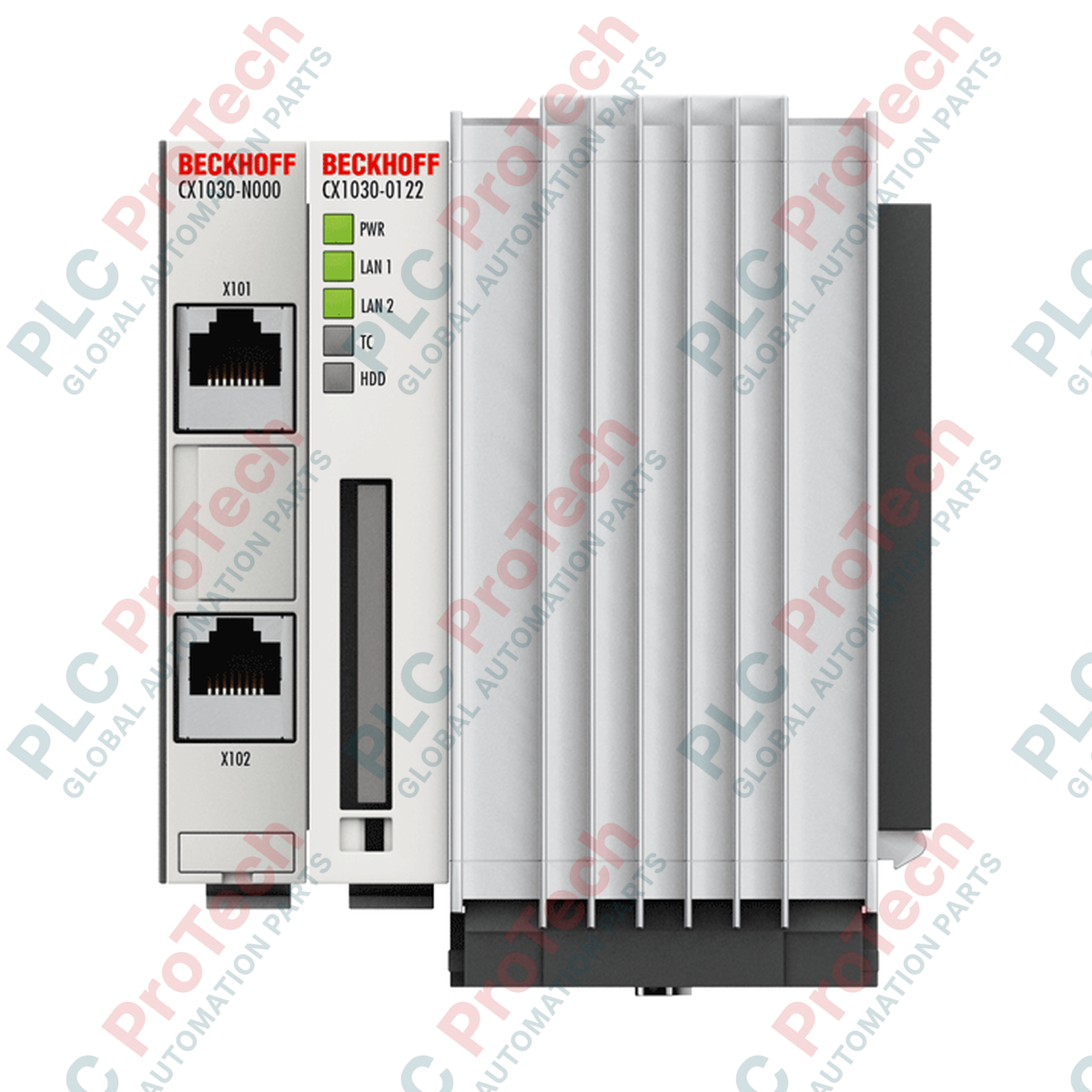

BECKHOFF CX1030-0011 Embedded PC CPU Module

SKU CX1030-0011

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: CX1030-0011
Country of origin:Germany
Product Type: Embedded PCs
Payment: T/T, Western Union
Weight: 580g
Dimensions: 96 mm x 112 mm x 99 mm
Shipping port: Xiamen
Warranty: 12 months

Description

The BECKHOFF CX1030-0011 is a high-performance CPU module designed for demanding industrial control applications. Equipped with an Intel Pentium M single-core processor running at 1.8 GHz, this unit provides reliable processing power for complex automation tasks within a modular, DIN-rail mountable form factor. It serves as the central control engine of a CX1030 system architecture.

This module features two RJ45 Ethernet ports with an integrated switch, enabling flexible network connectivity and simple daisy-chain cabling without requiring additional external network switches. Operating system and user application data are stored using an accessible Compact Flash card slot. System cooling is managed via an integrated, speed-controlled cooling module and fan cartridge containing double ball bearing fans for extended operating lifetime.

Features

Intel Pentium M single-core processor (1.8 GHz clock frequency).
256 MB DDR RAM main memory, expandable to 1 GB.
Integrated 2-port RJ45 Ethernet switch (10/100 Mbit/s).
Compact Flash Type I and II expansion slot with a secure eject mechanism.
Comprehensive diagnostics LEDs indicating power status, LAN activity, TwinCAT run state, and flash memory access.
Internal, battery-backed clock for accurate time and date tracking.
Passive backplane connectivity via a 16-bit ISA (PC/104) system bus.

Applications

Central control units for medium to high-complexity industrial machinery.
PLC and motion control applications leveraging TwinCAT 2 programming environments.
Distributed industrial Ethernet and control network coordination.
Machine-level process automation and visualization systems.

Technical Specifications

Processor and Memory

Parameter	Specification
Processor	Intel Pentium M, 1.8 GHz clock frequency
Number of Cores	1
Main Memory	256 MB DDR RAM (expandable up to 1 GB)
Flash Memory Slot	Compact Flash Type I + II with eject mechanism
Included Flash Storage	128 MB Compact Flash card

Interfaces and Communication

Parameter	Specification
Ethernet Interfaces	2 x RJ45 (10/100 Mbit/s), internal switch
System Bus Interface	16-bit ISA (PC/104)
Diagnostics LEDs	1 x power, 2 x LAN link/activity, 1 x TwinCAT status, 1 x flash access
System Clock	Internal battery-backed clock (exchangeable battery)

Electrical and Power

Parameter	Specification
Power Supply Connection	Via system bus from connected CX1100 series power supply
Max. Power Consumption	32 W

Mechanical and Environmental

Parameter	Specification
Dimensions (W x H x D)	96 mm x 112 mm x 99 mm
Weight	Approx. 580 g
Protection Class	IP20
Operating Temperature	0 to +50 degC
Storage Temperature	-25 to +85 degC
Relative Humidity	95 %, non-condensing
Vibration Resistance	Conforms to EN 60068-2-6
Shock Resistance	Conforms to EN 60068-2-27
Cooling	Cooling module and speed-controlled fan cartridge

Software Compatibility

Parameter	Specification
Supported Operating Systems	Windows Embedded CE 6, Windows Embedded Standard 2009
Control Software	TwinCAT 2 PLC runtime, NC PTP runtime, NC I runtime

Connections / Interfaces

Interface or Terminal	Function
RJ45 Ports	Switched dual Ethernet connection ports for field network integration
Compact Flash Slot	Storage card slot supporting memory-based OS and local databases
PC/104 Bus (ISA)	Inter-module connection for system bus extension and diagnostics

Installation Guidelines

Ensure the system control cabinet power supply is completely de-energized before mounting.
Securely latch the CX1030-0011 module onto a standard 35 mm DIN rail (EN 60715).
Align and connect the corresponding CX1100 power supply module (CX1100-0012, CX1100-0013, or CX1100-0014) to the right side of the CPU module, ensuring the latching mechanism is fully engaged.
Insert the configured Compact Flash card containing the operating system and runtimes prior to system startup.
Connect the network cables to the switched RJ45 ports.
Power on the connected power supply and monitor the diagnostics LEDs to verify correct boot sequence and TwinCAT state.

Compliance and Certifications

CE
UL

FAQ

What processor is used in the BECKHOFF CX1030-0011 CPU module?

The BECKHOFF CX1030-0011 CPU module is equipped with an Intel Pentium M single-core processor running at a clock frequency of 1.8 GHz.

Does the BECKHOFF CX1030-0011 module have built-in power terminals?

No, the BECKHOFF CX1030-0011 does not have its own power supply terminals. It must be powered via the system bus connection by using a compatible CX1100 series power supply module, such as the CX1100-0012, CX1100-0013, or CX1100-0014.

What storage card format does the BECKHOFF CX1030-0011 use?

The BECKHOFF CX1030-0011 uses Compact Flash (Type I and Type II) cards. A 128 MB Compact Flash card is included as standard with this module.

Which operating systems and software runtimes are compatible with the BECKHOFF CX1030-0011?

The BECKHOFF CX1030-0011 supports Windows Embedded CE 6 and Windows Embedded Standard 2009 operating systems, running TwinCAT 2 PLC, NC PTP, or NC I automation software.

How is the BECKHOFF CX1030-0011 cooled?

The BECKHOFF CX1030-0011 features an integrated cooling module with a speed-controlled fan cartridge containing double ball bearing fans, designed for efficient heat dissipation and user serviceability.
